Page 3-14
444C-E-OMA03-A01-03
Production Information
3-3-2 Stop Information
The stop information is displayed for each factor that made machine stop during production. You
can also see the in-depth stop cases until now.
• Without reset, data will be added on irrespective of switchover of board types.
Stop history
Displays the stop histories (the screen as
shown below) of the selected stage.
Stop history
The latest 20 stop histories occurred during an automatic operation are displayed.
↑ ↓
These are used to select stop information.
Error scrn
Displays the error screen displayed when the
machine was stopped.
Axis informati
on
Displays the axis information when the ma-
chine was stopped.
( 3-4-8 Axis Information)
Reset
Resets the stop history.
When the message appears, press Yes .
Page 3-15
FUNCTIONS
3
444C-E-OMA03-A01-05
Production Information
3-3-3 Pick-up Information
The chip pick-up information during production is displayed for each feeder or each nozzle.
• When there are any vacancies of feeder address in changing production board types, they are
not displayed.
• Without reset, data will be added on irrespective of switchover of board types.
•“Count” on Pick up information screen = “Pick up miss” + “Recog miss”
• Whenever Sel head or All head is pressed, each in-depth information is displayed.
For each feeder
The pick-up information of the selected stage is displayed for each feeder.
Error scrn
Displays the latest error image.
Sel head
All head
Toggles each detailed information.
Every time you press , the screens are changed over.
For each nozzle
The pick-up information of the selected stage is displayed for each nozzle.
Feedeer
Nozzle
Page 3-16
444C-E-OMA03-A01-03
Production Information

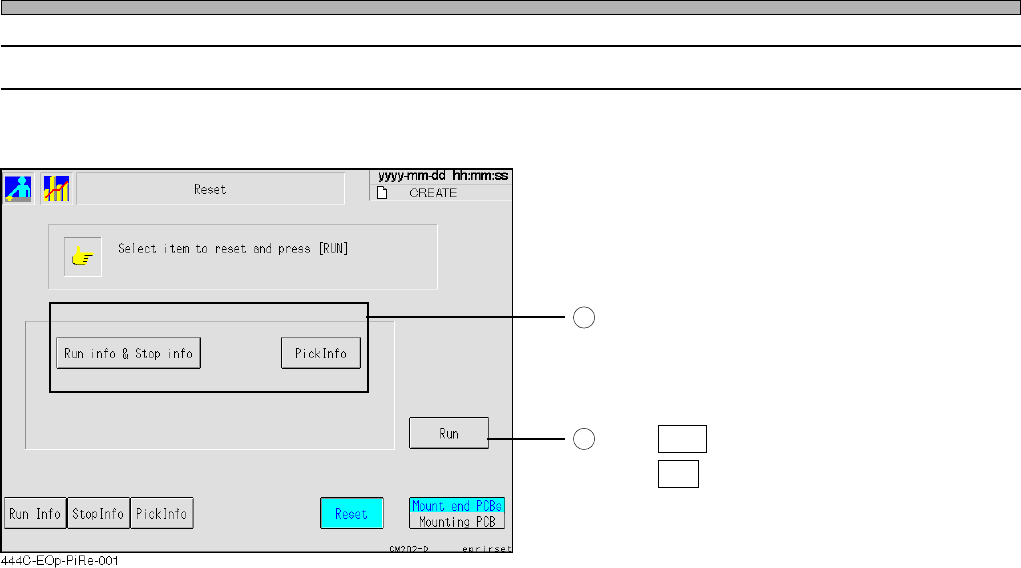

3-3-4 Reset
This is used to reset production information.
Choose the information you would like to reset.
It is possible to choose more than a piece of
information at a time. When you press the
switch again, it is canceled.
Press Run .
Press Yes when the message appears.
1
2
