Page 3-38
Others
444C-E-OMA03-A01-01

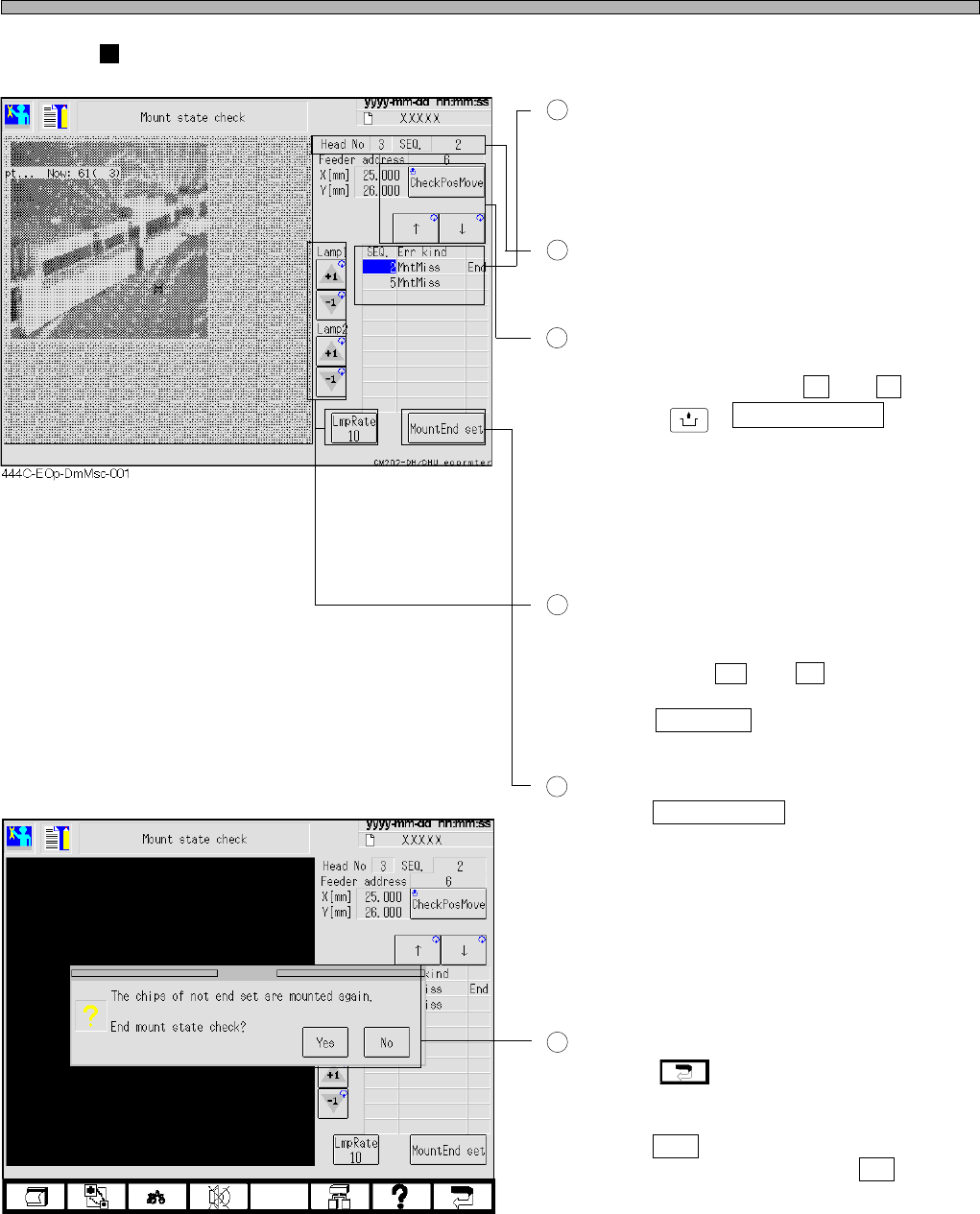

Displays the mount state check screen.
The sequence numbers and error types of all
the mount-error components are displayed.
• Check mount-error components, and mark the
mount-OK ones with “End.”
The detailed information of the cursor-selected
mount error is displayed at the upper right of
the screen.
When you wish to check the mount state of the
mount-error components, select the desired
SEQ using arrow buttons ( ↑ and ↓ ), and
then press
UNLOCK
+ CheckPosMove button.
The head camera travels to the mount position
of the mount-error component.
Unless the camera has traveled to the mount
position of the cursor-selected component, the
image is not displayed.
Adjustment of the head-camera lamp
The lighting values of the head camera can be
adjusted by pressing the increase and de-
crease buttons ( +1 and -1 ) of lamp 1 and
lamp 2.
Pressing LmpRate button toggles the lamp
adjusting rate between “10” and “1.”
Setting and Release of the mounted
Pressing MountEnd set releases “End” setting
if it is set in the cursor-selected row, or sets
“End” if it is not set.
The mount-error component marked with “End”
is not recovery-mounted when operation is
resumed.
The mount-error component that is not marked
with “End” is recovery-mounted when operation
is resumed.
Exit of mount state check screen
Pressing key displays the following
confirmation screen over the mount state
check screen.
Pressing Yes returns the screen to the
immediate-stop screen. Pressing No remains
the mount state check screen.
1
2
3
4
5
6
444C-EOp-DmMsc-002
Page 3-39
FUNCTIONS
3
Others
444C-E-OMA03-A01-01
3-6-10 Bad-component forced-ejection function (Only when a
bad-component forced-ejection unit is available)
The bad-component forced-ejection function forcibly scrapes out chips using the component
forced-ejection unit. (Available only for the nozzles with the numbers whose last two numerals are
00 to 15.)
This function is used if the conventional component-ejection blow cannot eject a chip out of a
nozzle because the chip has gotten caught or has been stuck by something adhesive.

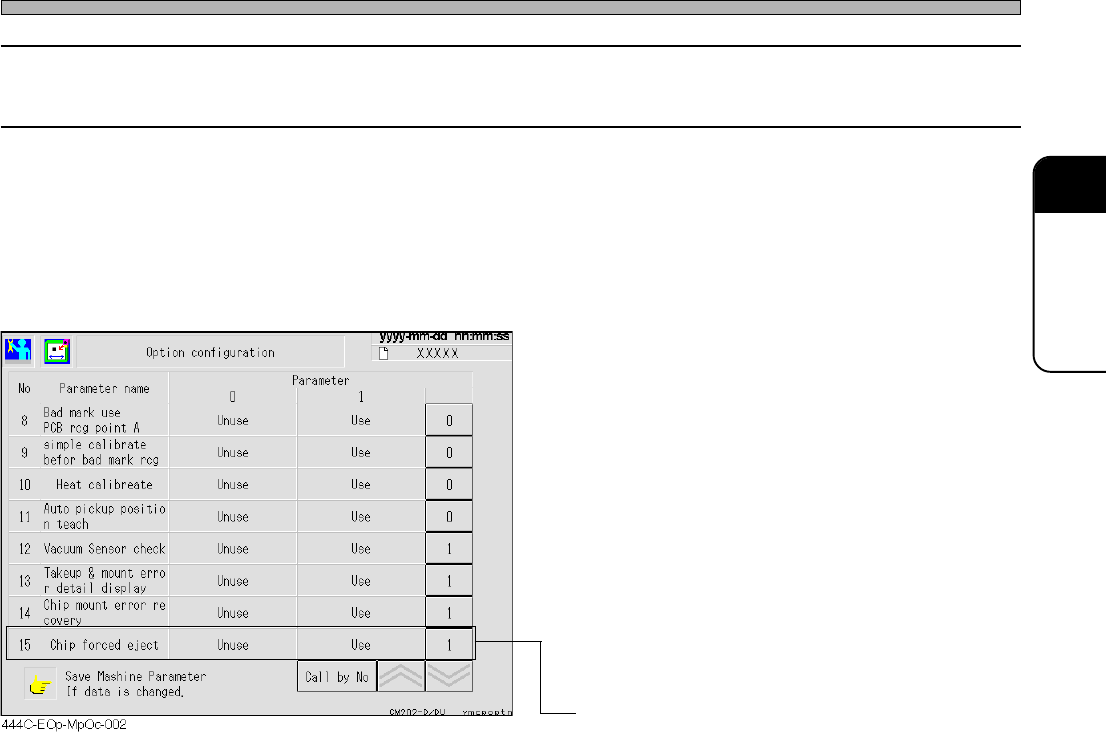

Selection whether or not to use the bad-
component forced-ejection function
When the item “Chip forced eject” on the
option configuration screen of the machine
parameters is set to “Use (1),” the chips are
forcibly scraped out by the component
forced-ejection unit if the conventional
component-ejection blow cannot eject
them.
When it is set to “Unuse (0),” the machine
comes to a chip-eject-error immediate stop
if the conventional component-ejection
blow cannot eject the chips.
• Set “Chip forced eject” to ‘1’ (Use).
To continue conventional operation, set it to ‘0’
(Unuse).
Page 3-40
444C-E-OMA03-A01-01
Others
3-6-11 Nonstop Production Function(Only when an optional
pick-up sensor is available)
The nonstop production function is the feature that only ejects the chip and continues operation
without an immediate stop even if a pick-up unstable error or a chip mount error occurs.
However, if the same chip continuously causes a “chip-data retry count” error, the machine comes
to an immediate stop.
∗ Since this function aims at nonstop production, the machine does not stop even if a chip mount
error occurs. You need to check how the chip is mounted and perform recovery at the post-
process.
∗ If both “Chip mount error recovery” and “No stop production of takeup&mount err” are set to
“Use,” the “Chip mount error recovery” function is assigned higher priority and, when an error
occurs, the machine always comes to an immediate stop.

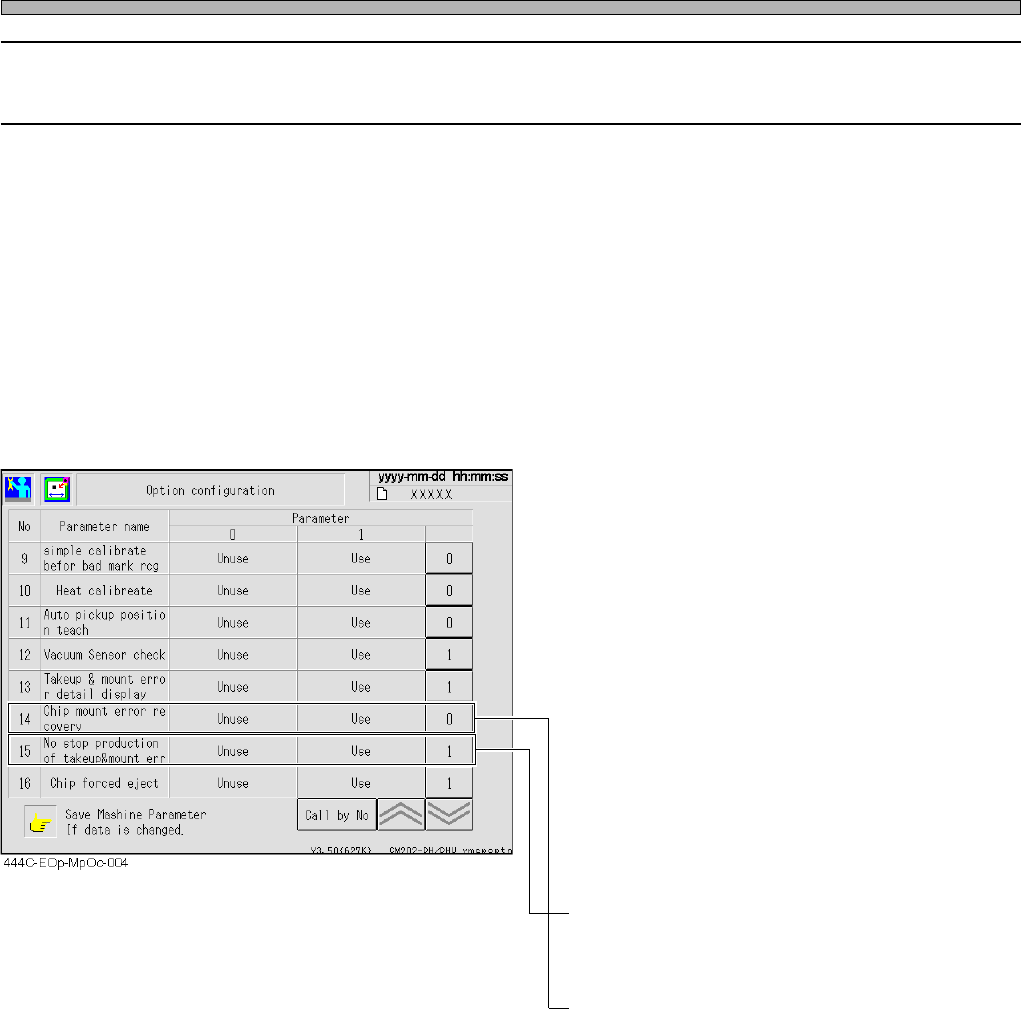

Enabling the nonstop production function
You can enable or disable the nonstop produc-
tion function at the “No stop production of
takeup&mount err” item on the option configu-
ration screen in the machine parameters
∗ “Chip mount error recovery” should be set to
“Unuse.”
When it is set to “Use (1),” the machine contin-
ues operation without coming to an immediate
stop when a pick-up unstable error or a chip
mount error occurs.
When it is set to “Unuse (0),” the machine
comes to an immediate stop when a pick-up
unstable error or a chip mount error occurs.
• To enable the nonstop production function, set
to ‘1 (Use).’ To perform the same operation as
usual, set to ‘0 (Unuse).’
• When enabling the nonstop production func-
tion, set this item to ‘0 (Unuse).’
