Page 1-7 GENERAL DESCRIPTION 1 444C-E-OMA01-A01-01 T ransfer head (CM201: T wo in total / CM202: Four in total) This unit transfers chips from the feeders to the board. Each head has six nozzle holders. Head camera This …
Page 1-6
444C-E-OMA01-A01-01

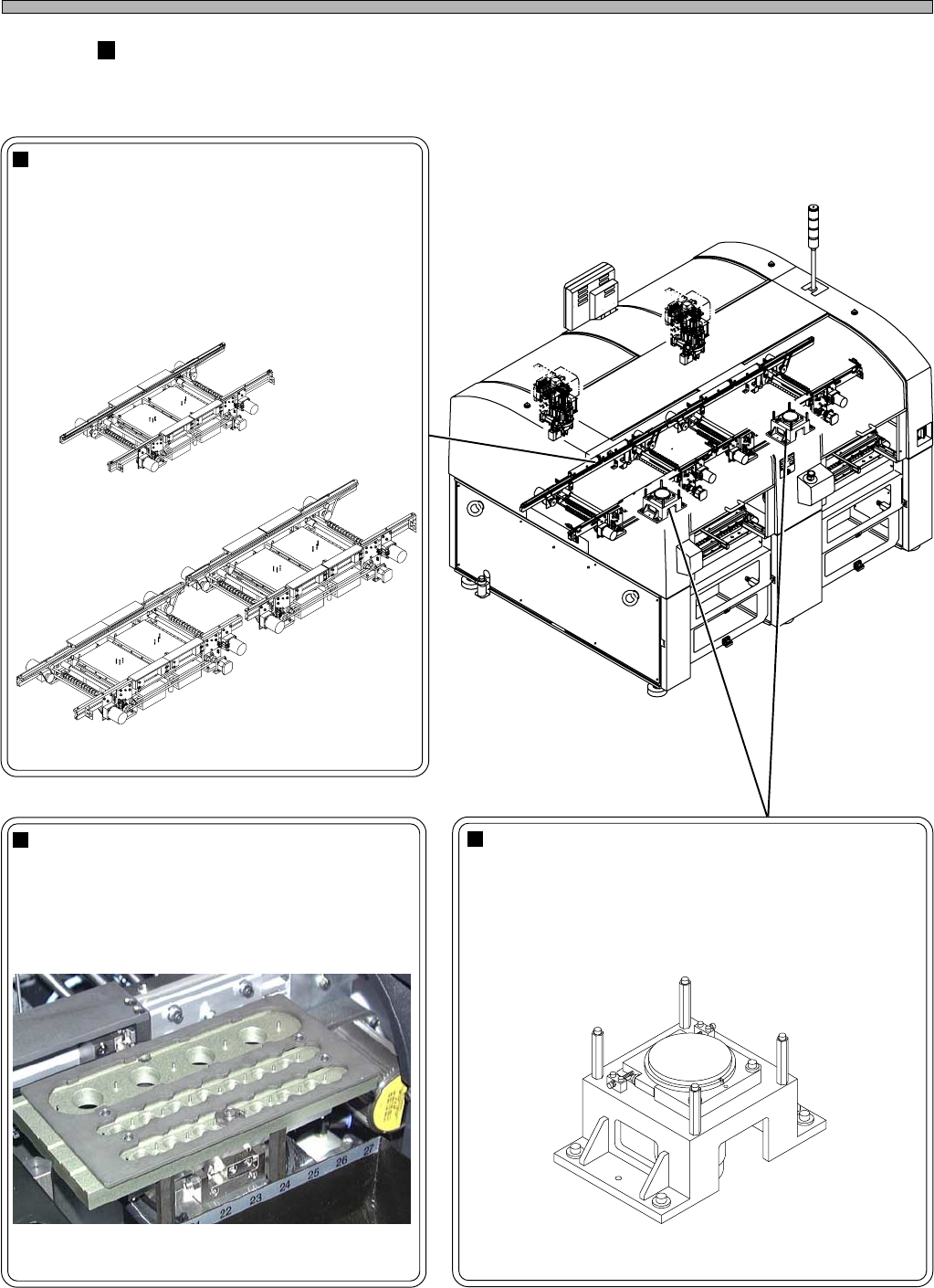

Names and Mechanism of Each Unit
Main units (Front view)
Board conveyor
This unit transports boards in and out.
During mounting, this unit fixes a board by
sandwiching it between Y and Z directions and
keeps it at the mounting height.
Nozzle changer (option)
(CM201: Two in total / CM202: Four in total)
When the production board type is changed,
this unit changes nozzles automatically.
Line camera
(CM201: Two in total / CM202: Four in total)
This camera is used to recognize chips.
It can recognize all the chips from minute chips to
large-sized chips of different shape.
CM201
CM202
030AC0AA
0306C0AA
0305C0AA
4U4C-AG00
160DC0AA
444C-475P
Page 1-7
GENERAL DESCRIPTION
1
444C-E-OMA01-A01-01
Transfer head (CM201: Two in total / CM202: Four in total)
This unit transfers chips from the feeders to the board.
Each head has six nozzle holders.
Head camera
This camera is used for board
recognition, thermal correction
and calibration.
Nozzle holder
Nozzles are set in this holder.
Each head has six nozzle
holders.
Names and Mechanism of Each Unit
X-Y unit, Z unit
(CM201: One in total / CM202: Two in total)
These units move the head unit to the appointed
position fast and precisely.
Nozzle
This picks up chips through
vacuum pressure. Various sizes
and shapes of nozzles support
various chips.
444C-402E
010DC0AA
160CC0AA
4U4C-AC00
010CC0AA
Page 1-8
444C-E-OMA01-A01-02
Names and Mechanism of Each Unit
Chip feeding units
Tape feeder table
(CM201: Two in total / CM202: Four in total)
This is the table where tape feeders will be set. It
moves the feeders through the air cylinder.
Bulk feeder supporting unit
(option)
This is the unit to support bulk feeders. It has the
compressed (pressure-governed) air coupler and
electric-signal connectors to drive the bulk feeders.
4U4C-AA00
150FC0AA
150FC0AA
∗ For CM201-DS or CM202-DS, this is an option.
∗ Standard for CM201-DS or CM202-DS
(Fixed feeder table)
E24C-413E
