BM122/123/221/231 元件识别数据制作方法 3.4 反射 电 极型、导线型 E35CCC-50- 111-B0 3.4-3 3.4.3 反射 导线型－通用 Body Dimension/ Exter nal D im [ mm] Lead C ount Parts Class Parts Ty pe L1 L2 W1 W 2 Lt W t Nu Nd Nl Nr 104 0 Lead Size [mm] Lighting …

100%1 / 126
BM122/123/221/231
元件识别数据制作方法
3.4 反射 电极型、导线型
E35CCC-50-111-B0
3.4-2

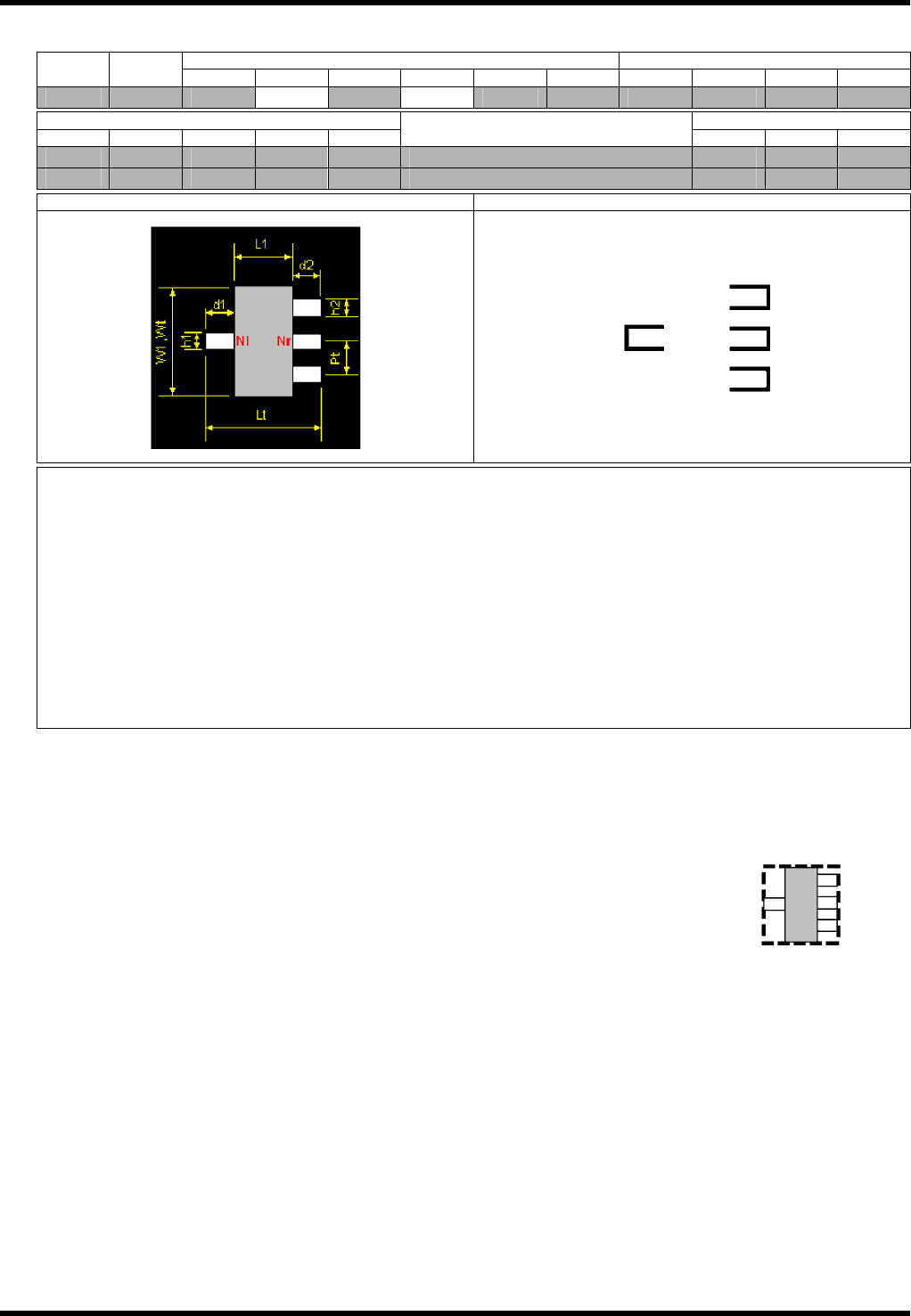

3.4.2 反射 外部电极型
Body Dimension/External Dim [mm] Lead Count Parts
Class
Parts
Type
L1 L2 W1 W2 Lt Wt Nu Nd Nl Nr
103 0
Lead Size [mm] Lighting
d1 d2 h1 h2 Pt
Camera
Upper Middle Lower
Fixed/2D sensor 3 4 4
Head 3 5 1
Component Size Definition Drawing Recognition Shape
Recognition Option
Mounting Position Offset
Controlling 3D Sensor *
Specify Lead Tip Shape
Edit Lead Dimension
Edit Lead Pitch
Bent Lead Existing
Unstable Lead Shape
Resize Processing Window
No Orientation Estimation
No Center Position Estimation
Orientation Estimation, Lead
Accurate Orientation Estimation
Display Estimated Result
Image Reverse Flag
Clipping Level, 2D sensor *
Clipping Level, 3D sensor *
Checking Component Pickup
Tolerance for Component Dimension
Tolerance for Lead Pitch
Tolerance for Orientation
Tolerance for Center Position
Detail Dimension Check
Nozzle Position Checking
Dense Mounting
Lighting Check
Rolling Check
Side Pickup Check
=提示=
有∗记号的可选项不能用于 BM122/123。
通过反射照明识别电极的反射光。
只对电极距离元件本体不超过 0.25mm 的元件有效。
一边的导线根数不能超过 3 根。
左边和上边，右边和下边使用同一电极尺寸。
左、上边：d1，h1 右、下边：d2，h2
如果电极尺寸不相同时，请指定电极修正。
识别中心为导线外形尺寸、或者元件本体尺寸构成的长方形的中心。
在显示电极时，请注意显示的尺寸（点线的窗口以及直线）与元件和电极是否一致。不一致时，必须修正
大小或位置，或者补加或修正元件记述可选项。
BM122/123/221/231
元件识别数据制作方法
3.4 反射 电极型、导线型
E35CCC-50-111-B0
3.4-3

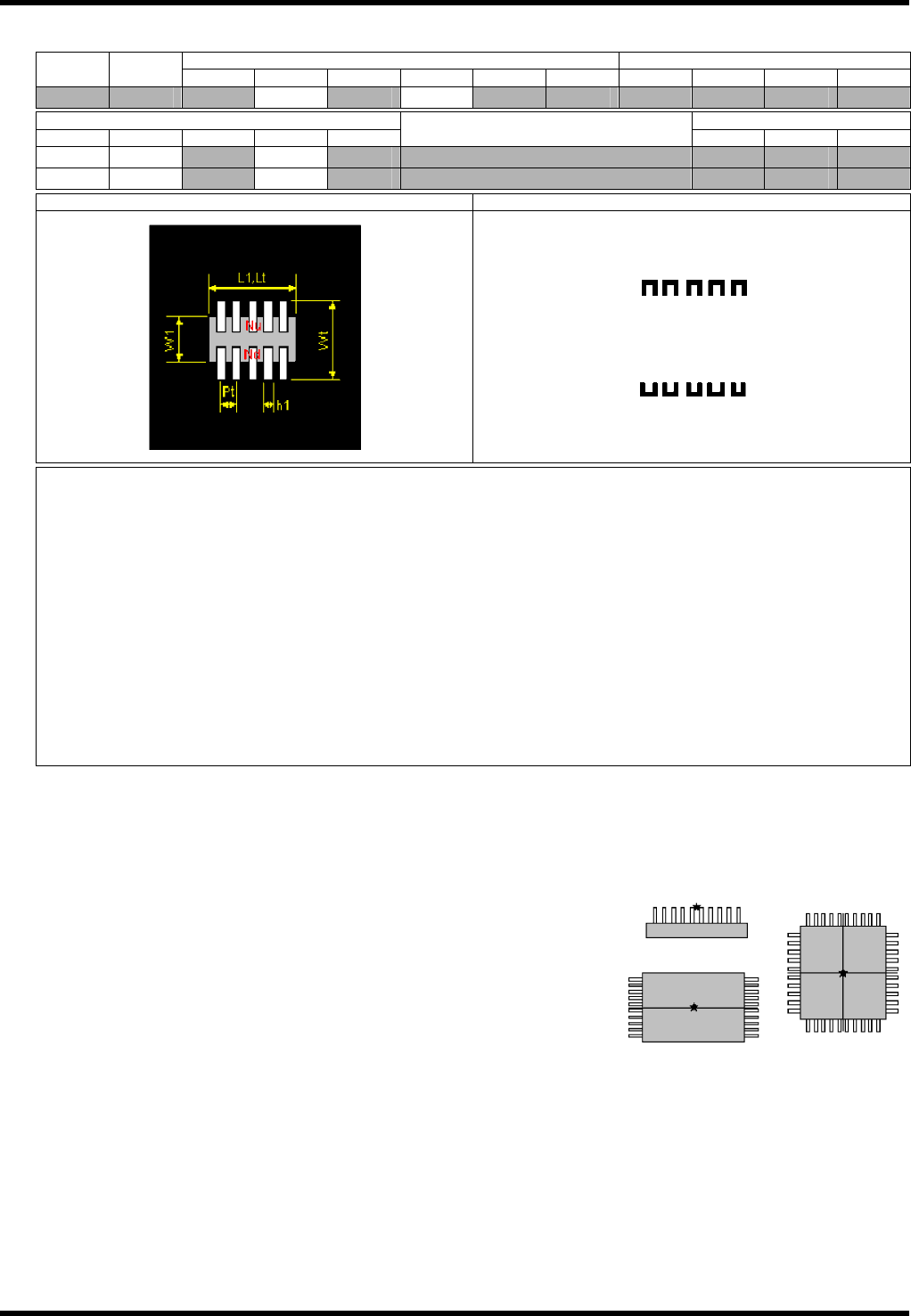

3.4.3 反射 导线型－通用
Body Dimension/External Dim [mm] Lead Count Parts
Class
Parts
Type
L1 L2 W1 W2 Lt Wt Nu Nd Nl Nr
104 0
Lead Size [mm] Lighting
d1 d2 h1 h2 Pt
Camera
Upper Middle Lower
Fixed/2D sensor 3 4 4
Head 3 5 1
Component Size Definition Drawing Recognition Shape
Recognition Option
Mounting Position Offset
Controlling 3D Sensor *
Edit Lead Pitch
Cut Lead - New Definition
Cut Lead Info. Generation
Specify Special NC Lead
Allocate Lead
Asymmetric Lead
Add Primitive, Lead Gr
Resize Processing Window
No Orientation Estimation
No Center Position Estimation
Orientation Estimation, Lead
Adjust Lead Detecting Point
Lead Detecting Window Width
Display Estimated Result
Image Reverse Flag
Clipping Level, 2D sensor *
Clipping Level, 3D sensor *
Checking Component Pickup
Tolerance for Component Dimension
Tolerance for Lead Pitch
Tolerance for Lead Coplanarity *
Tolerance for Orientation
Tolerance for Center Position
Detail Dimension Check
Nozzle Position Checking
Dense Mounting
Lighting Check
Lead Interpolation
Specify Lead Detecting Point *
=提示=
有∗记号的可选项不能用于 BM122/123。
通过反射照明识别电极的反射光。
只对一边至少有四根导线的元件有效。
检测导线顶端位置。
通过各个边求出倾斜。
识别中心为
1) 一个方向上有导线时，在导线顶端的重心上。
2) 相反两个方向上有导线时，各个边中心的等分点。
3) 四个方向有导线时，在上下边中心线与左右边中心线的交点。
BM122/123/221/231
元件识别数据制作方法
3.4 反射 电极型、导线型
E35CCC-50-111-B0
3.4-4

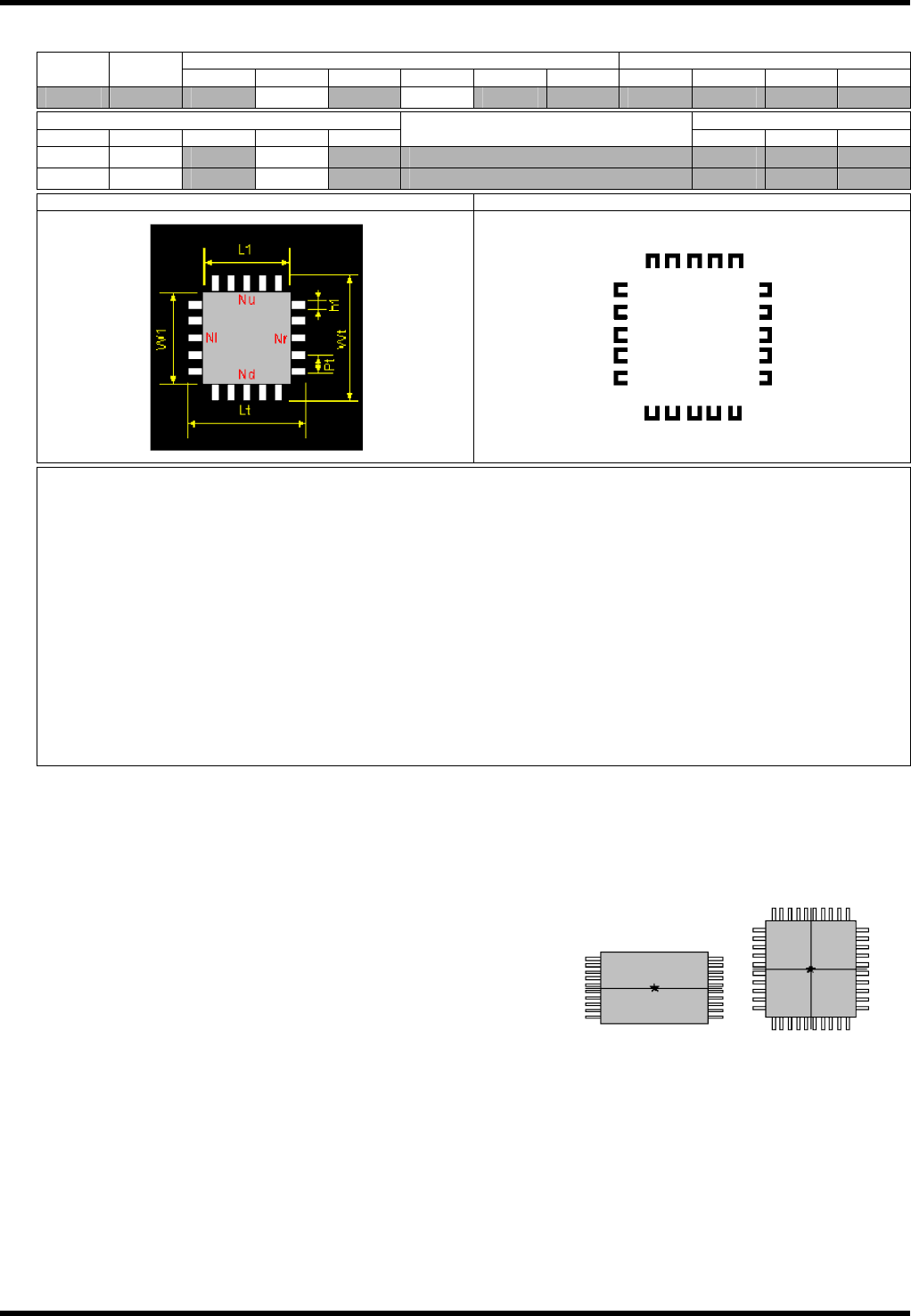

3.4.4 反射 导线型－QFP/SOP
Body Dimension/External Dim [mm] Lead Count Parts
Class
Parts
Type
L1 L2 W1 W2 Lt Wt Nu Nd Nl Nr
104 1
Lead Size [mm] Lighting
d1 d2 h1 h2 Pt
Camera
Upper Middle Lower
Fixed/2D sensor 3 4 4
Head 3 5 1
Component Size Definition Drawing Recognition Shape
Recognition Option
Mounting Position Offset
Controlling 3D Sensor *
Edit Lead Pitch
Cut Lead - New Definition
Cut Lead Info. Generation
Specify Special NC Lead
Allocate Lead
Asymmetric Lead
Add Primitive, Lead Gr
Resize Processing Window
No Orientation Estimation
No Center Position Estimation
Orientation Estimation, Lead
Adjust Lead Detecting Point
Lead Detecting Window Width
Display Estimated Result
Image Reverse Flag
Clipping Level, 2D sensor *
Clipping Level, 3D sensor *
Checking Component Pickup
Tolerance for Component Dimension
Tolerance for Lead Pitch
Tolerance for Lead Coplanarity *
Tolerance for Orientation
Tolerance for Center Position
Detail Dimension Check
Nozzle Position Checking
Dense Mounting
Lighting Check
Lead Interpolation
Specify Lead Detecting Point *
=提示=
有∗记号的可选项不能用于 BM122/123。
通过反射照明识别电极的反射光。
只对一边至少有四根导线的元件有效。
求出各边的中心，通过连接对边的中心求出倾斜。
从导线的顶端检测内侧。
识别中心为
1) 相反两个方向上有导线时，各个边中心的等分点。
2) 四个方向有导线时，在上下边中心线与左右边中心线的
交点。
