Head Reconfiguration Kits 2 Assemb ly Instructions - SIPLACE X-Series Head Reconfiguration Kits 07/2010 Edition 257 2.14.2 Axis unit A364 configuration 2 TBS 25 0/10X 1 TBS 2 50 /20Y1 SDS 120/ 2.5S1 -03 (0 03534 45-) SDS…
2 Assembly Instructions - SIPLACE X-Series Head Reconfiguration Kits Head Reconfiguration Kits
07/2010 Edition
256
2
TBS 250/10X
TBS 250 /20Y
DBM/3P-06
SDS 120/2.5S1-03 (00353445-)
5 V / 15A 15V/1,7A 15V/ 1,7A
DBM/3P-06
TBS 250/10XTBS 250 /20Y
DBM/3P-06
SDS 120/2.5S1-03 (00353445-)
SDS 60 2.5Z1-02 (03002143-)
DBM/3P-06
SDS 60/2.5Z1-02 (03002143-)
15 V / 5A 15 V / 5A
Anti crash board
DC/ DC Converter Dp-Drives (03002397-)
X
Y
Star
Star
X
Y
Free
Free
Z
Z
Free
Free
Gantry
1/2
Gantry
4/3
C+P 20
Gantry 4/3
C+P 20
Gantry 1/2

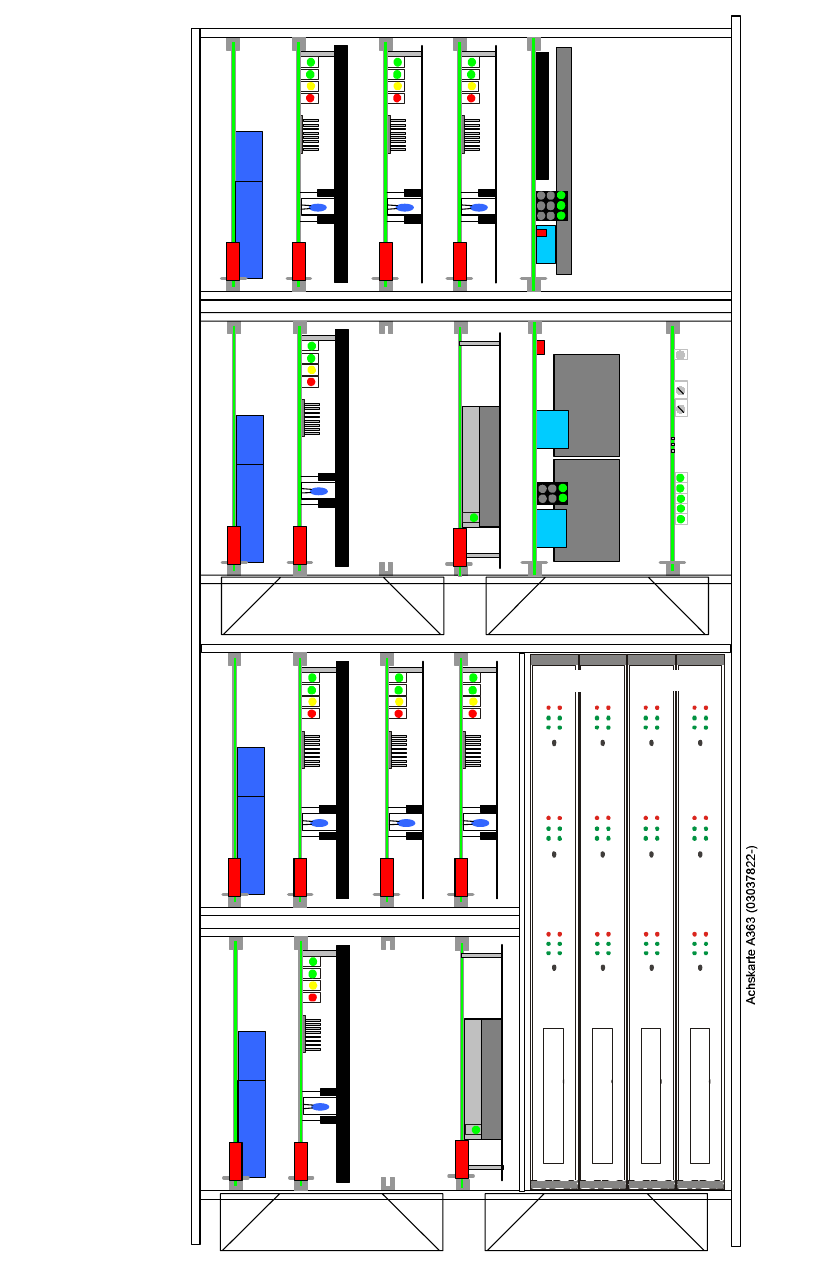

AxisUnit A363 X-Serie / PA 1+2 / C+P 20 - C+P 20
DC/ DC Converter Dp-Drives (03002397-)
Head Reconfiguration Kits 2 Assembly Instructions - SIPLACE X-Series Head Reconfiguration Kits
07/2010 Edition
257

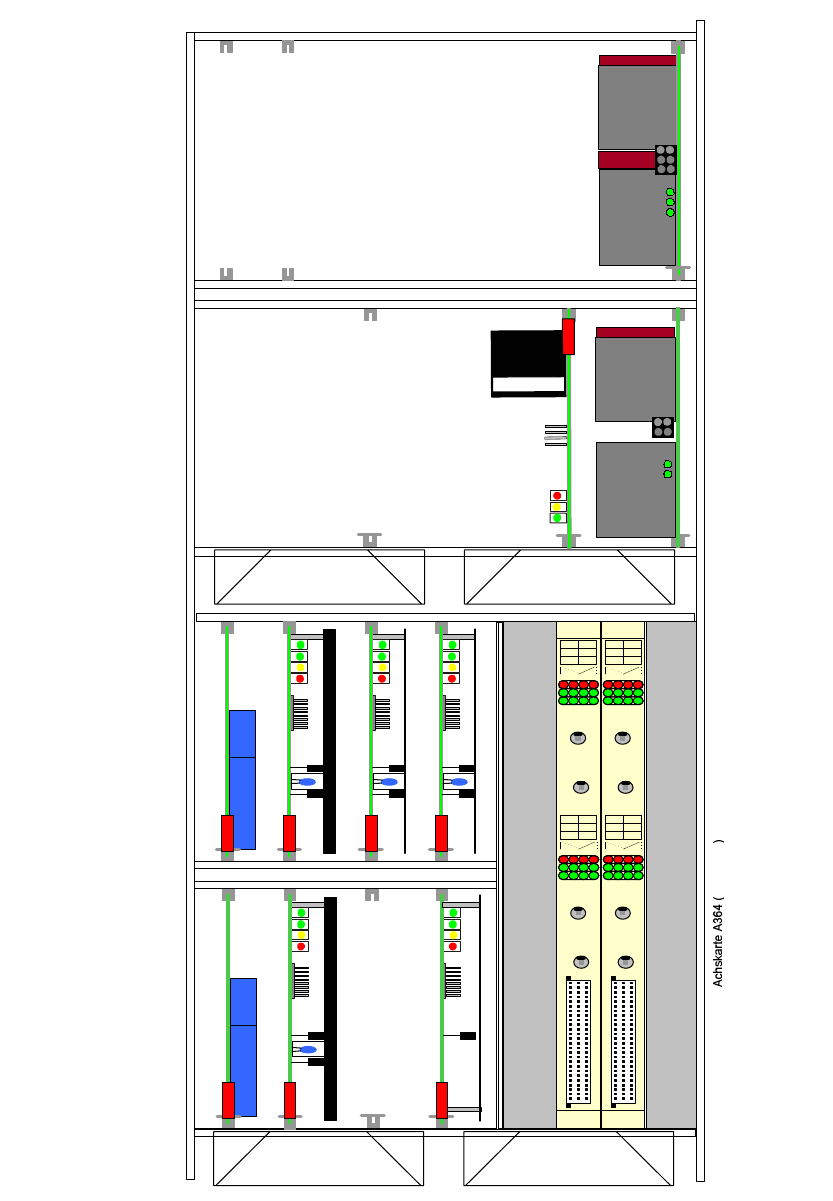

2.14.2 Axis unit A364 configuration
2
TBS 250/10X1
TBS 250 /20Y1
SDS 120/2.5S1-03 (00353445-)
SDS 60 3Z1-02 (03002141-)
SDS 60/1D1-02 (03002142-)
15 V / 5A 15 V / 5A
Gantry
3
AxisUnit A364 X2 + X3 / PA 2 / Gantry 3 / C+P 6/12
DBM01/01NO2
DBM01/01NO2
5 V / 15A 15V/1,7A 15V/ 1,7A
LZS250/1000
Only in Axis unit PA2
C+P 6/12
Gantry 3
A1
A2
A1 A2
CE BE
0IN
ED ON
A3
A4
A3 A4
CE BE
0IN
ED ON
3
A1
A2
A1 A2
CE BE
0IN
ED ON
A3
A4
A3 A4
CE BE
0IN
ED ON
214
Y3
X3
Free
Dp
Star
Z
Free
Free
03036028-
2 Assembly Instructions - SIPLACE X-Series Head Reconfiguration Kits Head Reconfiguration Kits
07/2010 Edition
258
2
A1
A2
A1 A2
CE BE
0IN
ED ON
A3
A4
A3 A4
CE BE
0IN
ED ON
A1
A2
A1 A2
CE BE
0IN
ED ON
A3
A4
A3 A4
CE BE
0IN
ED ON
A1
A2
A1 A2
CE BE
0IN
ED ON
A3
A4
A3 A4
CE BE
0IN
ED ON
1234
TBS 250/10X1
TBS 250 /20Y1
DBM01/01NO2
TBS 250/10X1
TBS 250 /20Y1
15 V / 5A 15 V / 5A
Gantry
1/2
Gantry
4/3
X
Z 1/2
Y
Star 1/2
Dp 1/2
Dp 4/3
Free
X
Y
Star 4/3
Free
Z 4/3
AxisUnit A364 X-Serie / PA 1+2 / C+P 6/12 - C+P 6/12
DBM01/01NO2
DBM01/01NO2
DBM01/01NO2
5 V / 15A 15V/1,7A 15V/ 1,7A
LZS250/1000
Only in Axis unit PA2
C+P 6/12
Gantry 1/2
C+P 6/12
Gantry 4/3
SDS 120/2.5S1-03 (00353445-) SDS 120/2.5S1-03 (00353445-)
SDS 60 3Z1-02 (03002141-) SDS 60 3Z1-02 (03002141-)SDS 60/1D1-02 (03002142-)SDS 60/1D1-02 (03002142-)
03036028-
