be prepared as a part of the drawing package. This ﬁnal bill may be a computer listing, or may be in drawing format. 6.0 Quality Assurance This section provides require- ments and considerations for the quality and quali…

i. Electrical test requirements.

j. Marking requirements.

k.Electrostatic discharge protection requirements.

The hybrid circuit assembly drawing shall include the deﬁ-

nition of any conditions considered in the design where the

manufacturing variation between the end product and

assembly conﬁguration play a role in the producibility or

performance of the assembly.

5.6.3 Final Schematic/Logic As a part of the data pack-

age, a ﬁnal schematic shall also be prepared. The ﬁnal

schematic shall be back-annotated, so that the reference

designator shown on the assembly drawing and the

schematic/logic diagram agree.

5.6.4 Final Bill of Material A ﬁnal bill of material shall

Power (MW)

Dissipation →

0–100 100–150 150–200 200–250

↓

1.02 1.14 1.27 1.4 1.52 1.65 1.78 1.91 2.03 2.16 2.29 2.41 2.54 2.67 2.79 2.92 3.05

0–100

1.02 1.000 0.888 0.800 0.727 0.666 0.615 0.571 0.533 0.500 0.470 0.444 0.421 0.400 0.380 0.363 0.347 0.333

200–3001.14 1.125 1.000 0.900 0.818 0.750 0.692 0.642 0.600 0.562 0.529 0.500 0.473 0.450 0.428 0.409 0.391 0.375

1.27 1.250 1.111 1.000 0.909 0.833 0.769 0.714 0.666 0.625 0.588 0.555 0.526 0.500 0.476 0.454 0.434 0.416

100–150

1.4 1.375 1.222 1.100 1.000 0.916 0.846 0.785 0.733 0.687 0.647 0.611 0.578 0.550 0.523 0.500 0.478 0.458

300–400

1.52 1.500 1.333 1.200 1.090 1.000 0.923 0.857 0.800 0.750 0.705 0.666 0.631 0.600 0.571 0.545 0.521 0.500

1.65 1.825 1.444 1.300 1.181 1.083 1.000 0.928 0.866 0.812 0.764 0.722 0.684 0.650 0.619 0.590 0.565 0.541

1.78 1.750 1.555 1.400 1.272 1.166 1.076 1.000 0.933 0.875 0.823 0.777 0.736 0.700 0.666 0.636 0.608 0.583

1.91 1.875 1.666 1.500 1.363 1.250 1.153 1.071 1.000 0.937 0.882 0.833 0.789 0.750 0.714 0.681 0.652 0.625

400–500

150–200

2.03 2.000 1.777 1.600 1.454 1.333 1.230 1.142 1.066 1.000 0.941 0.888 0.842 0.800 0.761 0.727 0.695 0.666

2.16 2.125 1.888 1.700 1.545 1.416 1.307 1.214 1.133 1.062 1.000 0.944 0.894 0.850 0.809 0.772 0.739 0.708

2.29 2.250 2.000 1.800 1.636 1.500 1.384 1.285 1.200 1.125 1.058 1.000 0.947 0.900 0.857 0.818 0.782 0.750

500–6002.41 2.375 2.111 1.900 1.727 1.583 1.461 1.357 1.266 1.187 1.117 1.055 1.000 0.950 0.904 0.863 0.826 0.791

2.54 2.500 2.222 2.000 1.818 1.666 1.538 1.428 1.333 1.250 1.176 1.111 1.052 1.000 0.952 0.909 0.869 0.833

200–300

2.67 2.625 2.333 2.100 1.909 1.750 1.615 1.500 1.400 1.312 1.235 1.166 1.105 1.050 1.000 0.954 0.913 0.875

600–700

2.79 2.750 2.444 2.200 2.000 1.833 1.692 1.571 1.466 1.375 1.294 1.222 1.157 1.100 1.047 1.000 0.956 0.916

2.92 2.875 2.555 2.300 2.090 1.916 1.769 1.642 1.533 1.437 1.352 1.277 1.210 1.150 1.095 1.045 1.000 0.958

3.05 3.000 2.666 2.400 2.181 2.000 1.846 1.714 1.600 1.500 1.411 1.333 1.263 1.200 1.142 1.090 1.043 1.000

3.18 3.125 2.777 2.500 2.272 2.083 1.923 1.785 1.666 1.562 1.470 1.388 1.315 1.250 1.190 1.136 1.086 1.041

700–8003.30 3.250 2.888 2.600 2.363 2.166 2.000 1.857 1.733 1.625 1.529 1.444 1.368 1.300 1.238 1.181 1.130 1.083

3.43 3.375 3.000 2.700 2.454 2.250 2.076 1.928 1.800 1.687 1.588 1.500 1.421 1.350 1.285 1.227 1.173 1.125

200–300 300–400 400–500 500–600 600–700 700–800

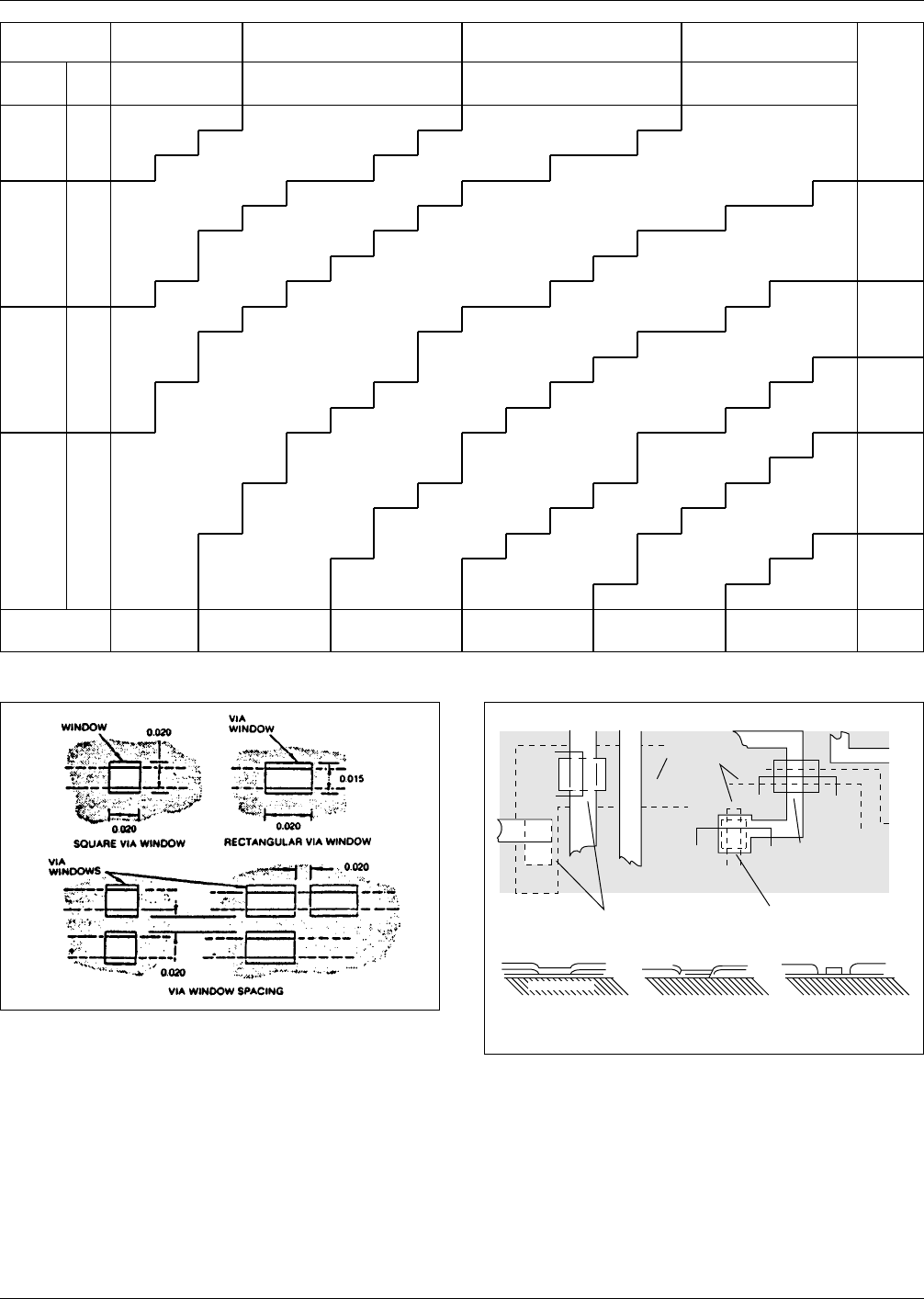

Figure 5–40 Thick-ﬁlm resistor length-width-power

IPC-859-5-41

Figure 5–41 Nominal via window dimensions

IPC-859-5-42

Figure 5–42 Illustration of various multilayer via designs

▼

▼▼

▼

▼▼

▼

Bottom

Conductor

Via window larger than 

bottom conductor but 

smaller than top con-

ductor

▼

Via window smaller than

bottom conductor but larger

than top conductor

Via window larger than

bottom conductor but 

smaller than top conductor

Substrate

Section thru A-A Section thru B-B Section thru C-C

IPC-D-859 December 1989

be prepared as a part of the drawing package. This ﬁnal bill

may be a computer listing, or may be in drawing format.

6.0 Quality Assurance This section provides require-

ments and considerations for the quality and quality assur-

ance provisions that incorporate test coupons into the board

design. This section also includes a brief discussion of

bare-board testing.

6.1 General Quality concepts should be included in all

aspects of the hybrid circuit design. Quality considerations

apply to manufacture, assembly and bare board assembly

testing. The design concepts are the key to the capability of

achieving quality in the previously mentioned areas. Good

workmanship insures that quality. In lieu of test coupons,

production boards may be employed in tests used to deter-

mine the acceptability of hybrid circuits.

6.2 Bare Board Testing Bare board testing is an electri-

cal evaluation of the completely fabricated end-product cir-

cuit without components. Electrical checks are made for

point-to-point continuity, low resistance (opens), and high

resistance (shorts).

Visual surface characteristics may be veriﬁed using auto-

matic optical inspection.

6.2.1 Approaches There are two approaches to bare

board testing, namely:

A. Test all lands.

B. Test for opens at low-voltage levels, and test for shorts

at high-voltage levels.

6.3 Design Considerations

6.3.1 Lands On Grid

All lands to be involved in bare

board testing shall be on grid, so that universal test fixtures

can be used. (Commonly used grids are 2.54 mm [0.100

inch] and 1.27 mm [0.050 inch].)

6.3.2 Lands Off Grid If the conditions in 6.4.2.1 are not

possible, the board layout should attempt to limit the

required number of off-grid lands, so that test ﬁxtures with

ﬂexible pins may be used, or so that a dedicated test ﬁx-

ture can be made cost-effectively.

6.3.3 Power-to-Ground Measurement Information

should be on the initial design documentation that indicates

lands for measuring power-to-ground relationships.

6.4 Test Tapes Test tapes should be generated from

known, good circuits.

6.5 Test Circuitry Quality conformance testing may be

done on the ﬁnished part, or quality conformance test cir-

cuitry, or a combination of both.

The coupons should be produced on separate substrates;

however, all coupons required shall be shown on the mas-

ter drawing artwork and the production master. Figure 6–1

shows the individual coupon layout for layer 1, and Figure

6–7 depicts artwork conﬁguration for layers 1 through 10.

Dimensions shown in Figures 6–2 through 6–6 apply to all

layers.

Special test coupons F through L are shown in Figures 6–8

through 6–13. These may be used for additional testing as

indicated, at the designer’s discretion; however, when their

use is speciﬁed, they shall also be shown on the master

drawing artwork and the production master.

6.5.1 Quantity At least one complete set of quality con-

formance test circuitry (coupons A through E) shall be pro-

vided with each lot of each part number produced.

6.5.2 Manufacturing Requirements The coupons shall

be ﬁred under normal furnace loading conditions. They

shall be processed utilizing the same production equip-

ment, procedures, and personnel used in regular produc-

tion. Operations shall be divided up betweeen identical or

similar types of equipment, operating shifts, and personnel;

and all coupons shall be totally representative of the prod-

uct.

6.5.3 Identification The coupons are to be identiﬁed

with the following:

IPC-859-5-43

Figure 5–43 Routing conductors through multiple

dielectric layers

▼

VIA

SUBSTRATE

VIA

TOP LEVEL

SECOND LEVEL

NOT PREFERRED

VIAS NOT STAGGERED

PREFERRED DESIGN-

VIAS ARE STAGGERED

BOTTOM LEVEL

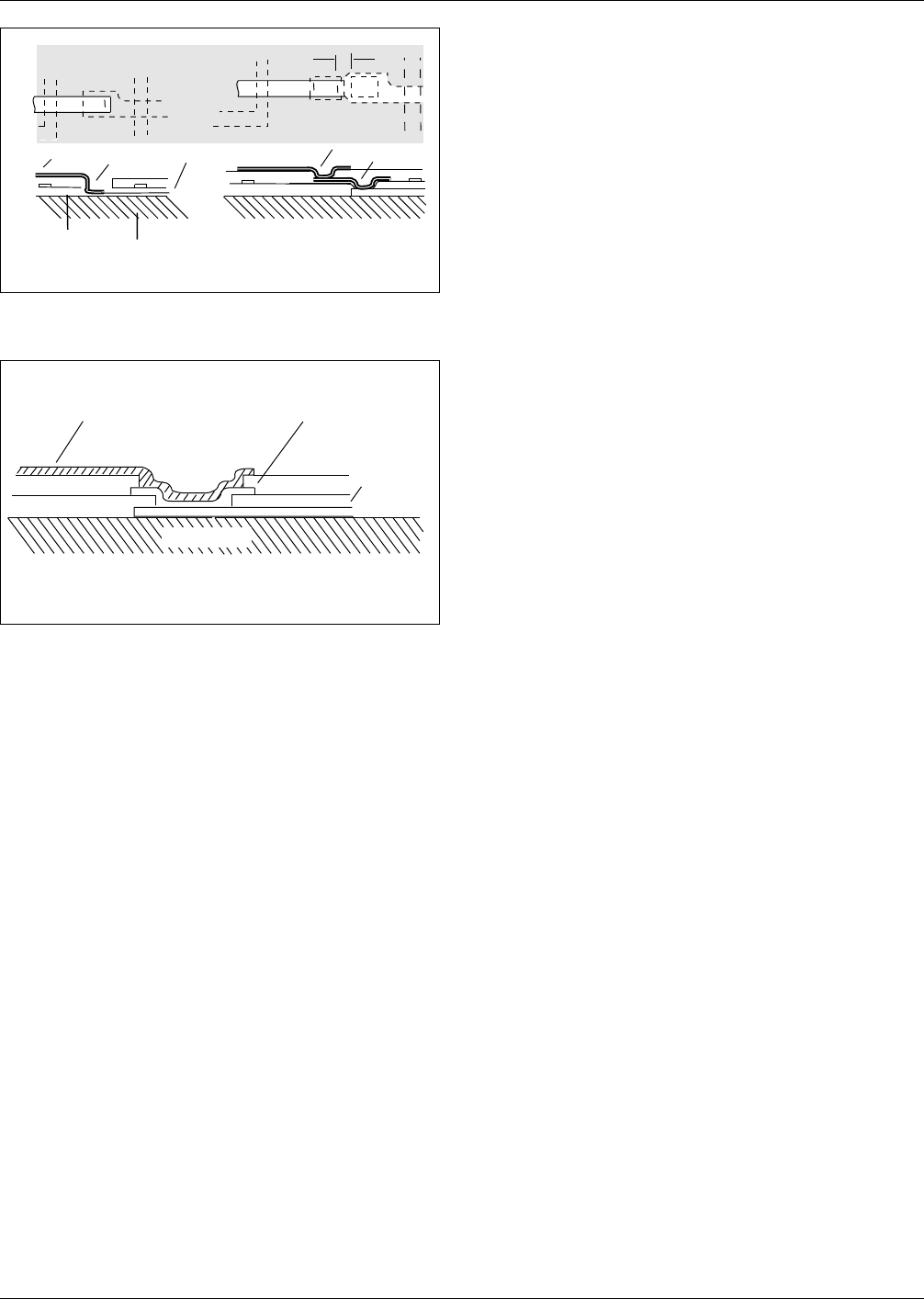

IPC-859-5-44

Figure 5–44 Use of a blind through-hole land

Substrate

Top Conductor Blind Land on

Second Level

Bottom

Conductor

▼

December 1989 IPC-D-859

A. Part number and revision letter

B. Part traceability or lot number

6.5.4 Number of Layers The number of layers of each

coupon shall be the same as the number of layers in the

associated end-product hybrid circuit.

6.5.5 Test Coupon Examples For Quality Conformance

Testing

6.5.5.1 Coupon A

This coupon (Figure 6–2) is used to

evaluate bondability, weldability, solderability, and shorts.

6.5.5.2 Coupon B This coupon (Figure 6–3) is used to

evaluate adhesion, passivation, dielectric resistance, and

outgassing.

6.5.5.3 Coupon C This coupon (Figure 6–4) is used to

evaluate circuit continuity, temperature cycling, thermal

cycling, and construction integrity.

6.5.5.4 Coupon D This coupon (Figure 6–5) is used to

evaluate dielectric withstanding voltage and outgassing.

6.5.5.5 Coupon E This coupon (Figure 6–6) is used to

evaluate insulation resistance. Figure 6–7 shows individual

layer artwork conﬁguration for up to a 10-layer board.

Additional layers may be added as required.

6.5.5.6 Coupon F This coupon (Figure 6–8) is used to

evaluate resistance to electromigration. While it is designed

primarily for tests on surface layers, it may be adapted for

modiﬁed inner layer testing by the addition of vias to the

access lands at each end of the pattern.

Conductor lines are 0.10 mm [0.004 in.] with a 0.15 mm

[0.006 in.] line spacing. Test conditions, 20VDC, for 20

minutes under a drop of DI water.

6.5.5.7 Coupon G This coupon (Figure 6–9) is used to

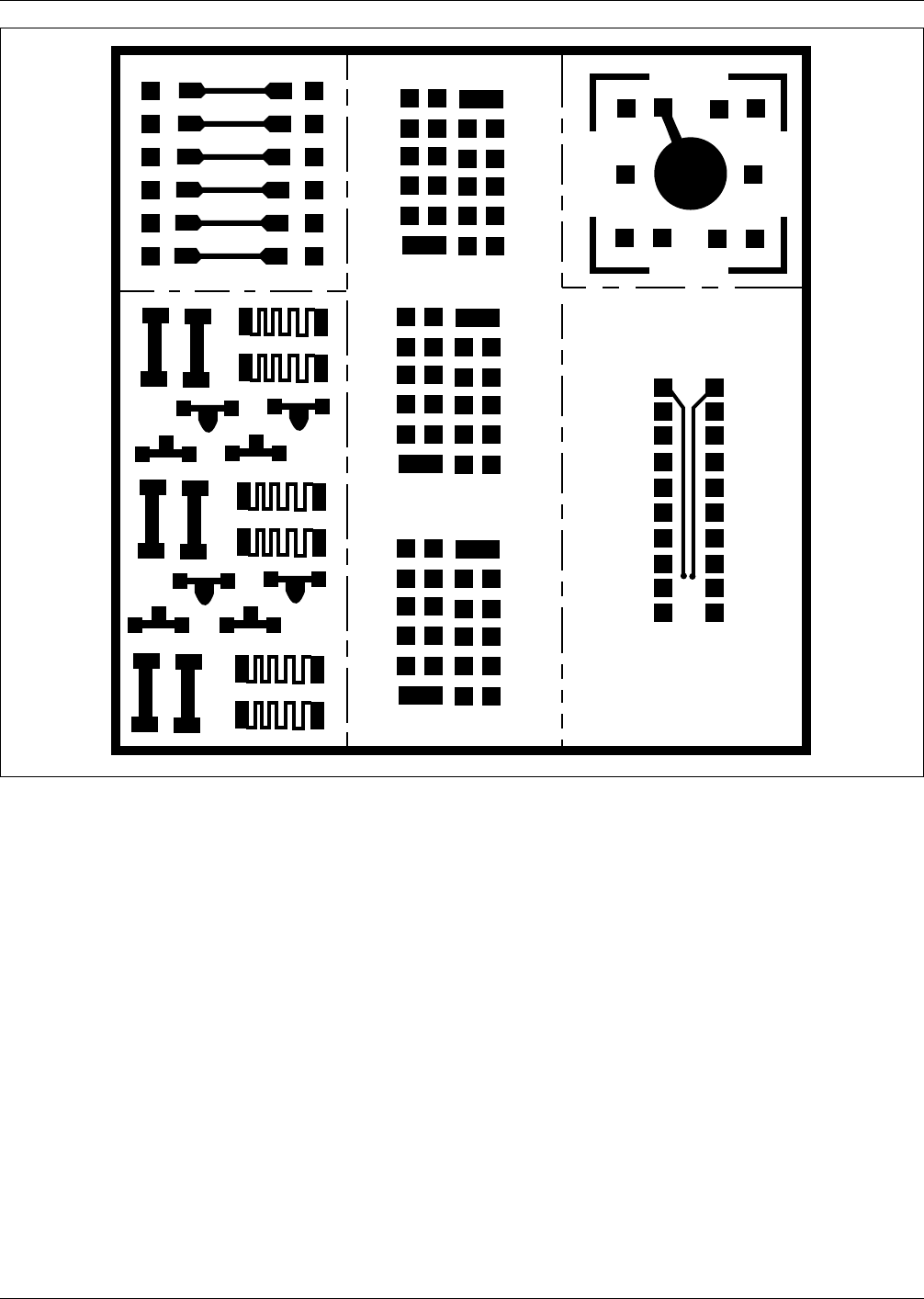

IPC-859-6-1

Figure 6–1 Layer 1—Individual coupon layout
