Before beginning adjustments
2-9
2. Preparatory work
3
Restore the system data.
1.Insert the floppy disk containing the system backup data, into the FD drive of the
machine.
2.Press the [System Backup] button at the lower right of the Setup screen.
The System Backup dialog box appears.
3.Press the [Restore] button.
The Restore Backup dialog box appears.
4.Press the [OK] button to restore the system data.

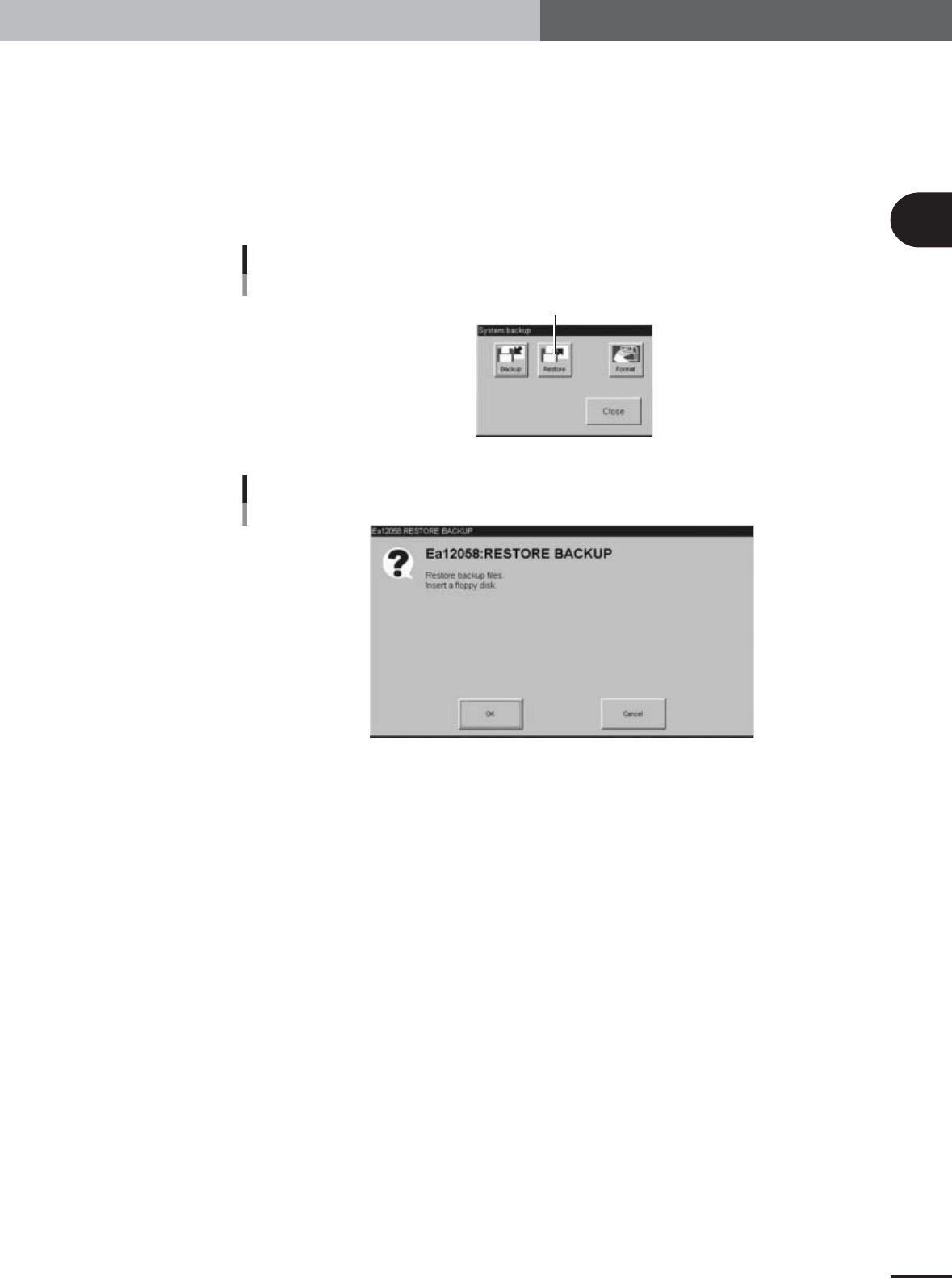

System Backup dialog box
Press the [Restore] button.
27007-X9-A0
Restore Backup dialog box
27010-X9-00
2
Before beginning adjustments
2-10
2. Preparatory work
2.3 Warming up the machine
After starting up the machine, warm it up before beginning adjustments. We recommend
warming up the machine for about 30 minutes, which is longer than the warm-up for PCB
production.
If the machine is stopped for more than 5 minutes during adjustments, then warm it up
again for about 5 minutes.
1
Make pre-operation checks and then start up the machine.
For pre-operation checks and starting up the machine, refer to chapter 2, "Basic
operation", in the separate YV100Xg, YV88Xg surface mounter operation manual.
2
Press the [Warm Up] button on the Setup screen.
The Warm-up dialog box then appears.

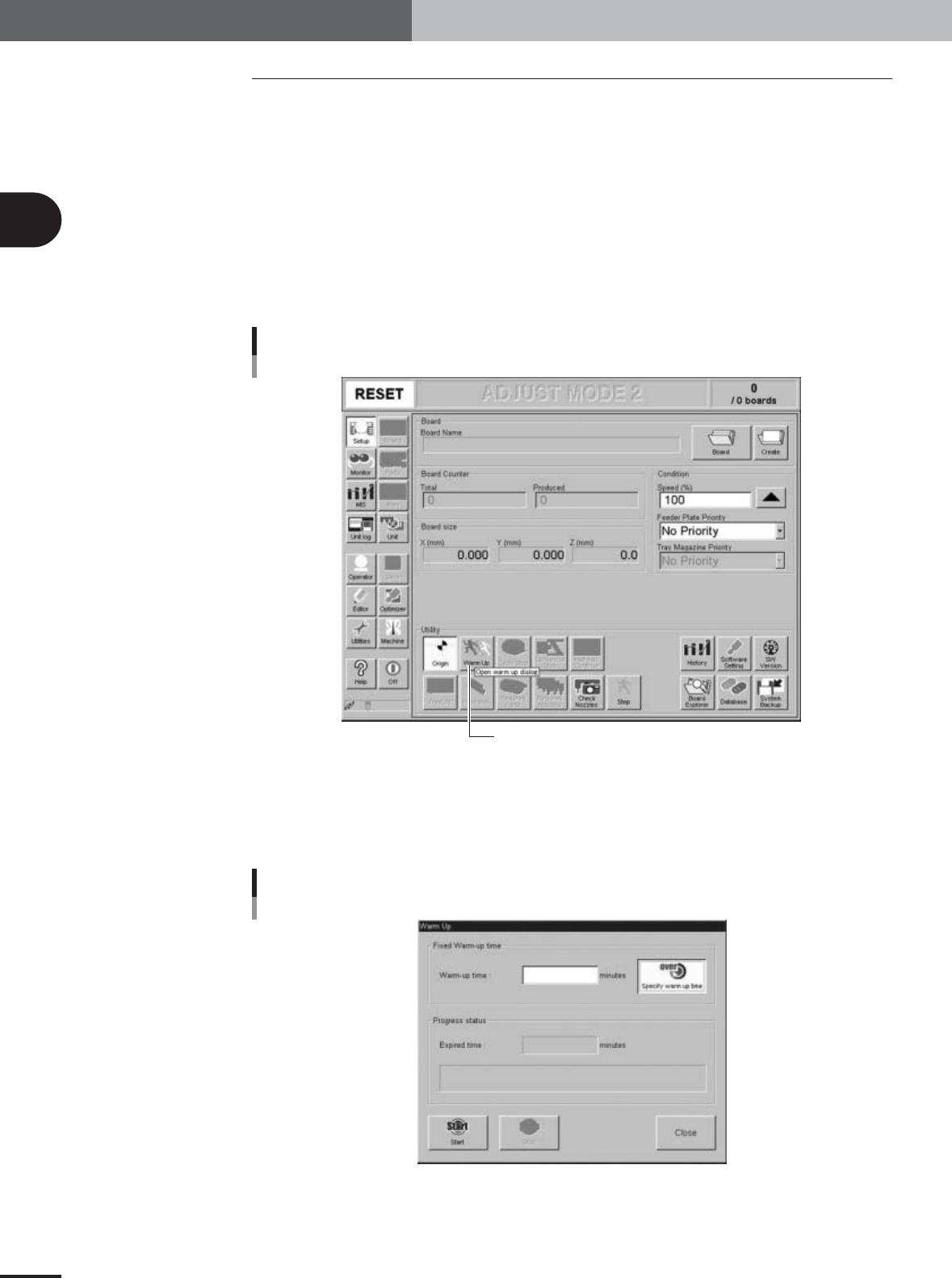

[Warm-up] button
Press the [Warm Up] button to open the warm-up setting screen.
27015-X9-01
3
Enter a warm-up time.
Press the [Stop after time over] button and then enter the warm-up time. Warm-up
will automatically stop when the warm-up time you set has elapsed. A warm-up time
of 30 minutes is recommended for FAMF adjustments.
Warm-up dialog box
27016-X9-00
2
Before beginning adjustments
2-11
2. Preparatory work
4
Press the [Start] button to start warm-up.
The warm-up progress time and bar will appear under the "Progress Status".
Warm-up screen
27017-X9-00
5
Finish the warm-up.
Warm-up will automatically stop when the warm-up time you set in step 3 has
expired. Press the [Close] button after warm-up is complete and return to the previous
screen.
