3 Basic adjustments 3- 14 1. Camer a parameter adjustments 1.1.3 Adjusting the single-vision camera lighting levels To adjust the lighting levels for an optional single-vision camera, the same light adjuster plates as fo…
3
Basic adjustments
3-13
1. Camera parameter adjustments
0
Next, start the side lighting level adjustment.
1.When the dialog box for the side lighting level appears, press the emergency stop
button, remove the light adjuster plate from Head 1. Attach the light adjuster plate-
2 (KV7-M8806-0XX) to Head 1, with the glossy surface facing up.
Confirmation dialog box
Side light level
27049-X9-00
n
NOTE
Attach the light adjuster plate-2 (KV7-M8806-0XX) to Head 1 so that the glossy surface faces up.
2.Press the [OK] button to start adjustment.
The head assembly moves and passes repeatedly over the multi-vision camera, and
the side lighting level is automatically adjusted.
Progress bar during adjustment
Side light level
27050-X9-00
q
Save the result of the side lighting level adjustment.
When the dialog box appears asking whether to save the result, press the [Yes] button
to save it.
Typical side lighting level: 120±2
Save confirmation dialog box
Side light level
27051-X9-00
Result display after adjustment
27052-X9-00
e
3
Basic adjustments
3-14
1. Camera parameter adjustments
1.1.3 Adjusting the single-vision camera lighting levels
To adjust the lighting levels for an optional single-vision camera, the same light adjuster
plates as for multi-vision camera adjustments are used. Have these light adjuster plates
ready.
1
Press the [Single Camera] button in the adjustment utility menu
window.
The single-vision camera adjustment dialog box appears as shown below.
Single-vision camera adjustment dialog box
27053-X9-00
c
CAUTION
Single-vision cameras are optional. The number of single-vision cameras installed in one
machine depends on the machine's specifications. (No single-vision camera is installed in
standard specification machines.) Check your machine's specifications.
In the single-vision camera adjustment dialog box, the single-vision camera number is shown
as "Analog single 1" or "Analog single 2" when the second single-vision camera is installed.
n
NOTE
In the case of standard machines with no single-vision camera installed, the buttons in the dialog box are grayed
out.
2
Check that the "Brightness" option button under "Adjust Item" is
selected.
n
NOTE
Also check that other items in the single-vision camera adjustment dialog box are set as follows.
Camera : Analog single 1 or 2
Light : All
Thickness : 4.0
Speed : 60
3
Basic adjustments
3-15
1. Camera parameter adjustments
3
Specify the pickup position to attach the light adjuster plates to Head
1.
1.Press the [Pickup] button in the single-vision camera adjustment dialog box.
The feeder set No. entry dialog box appears.

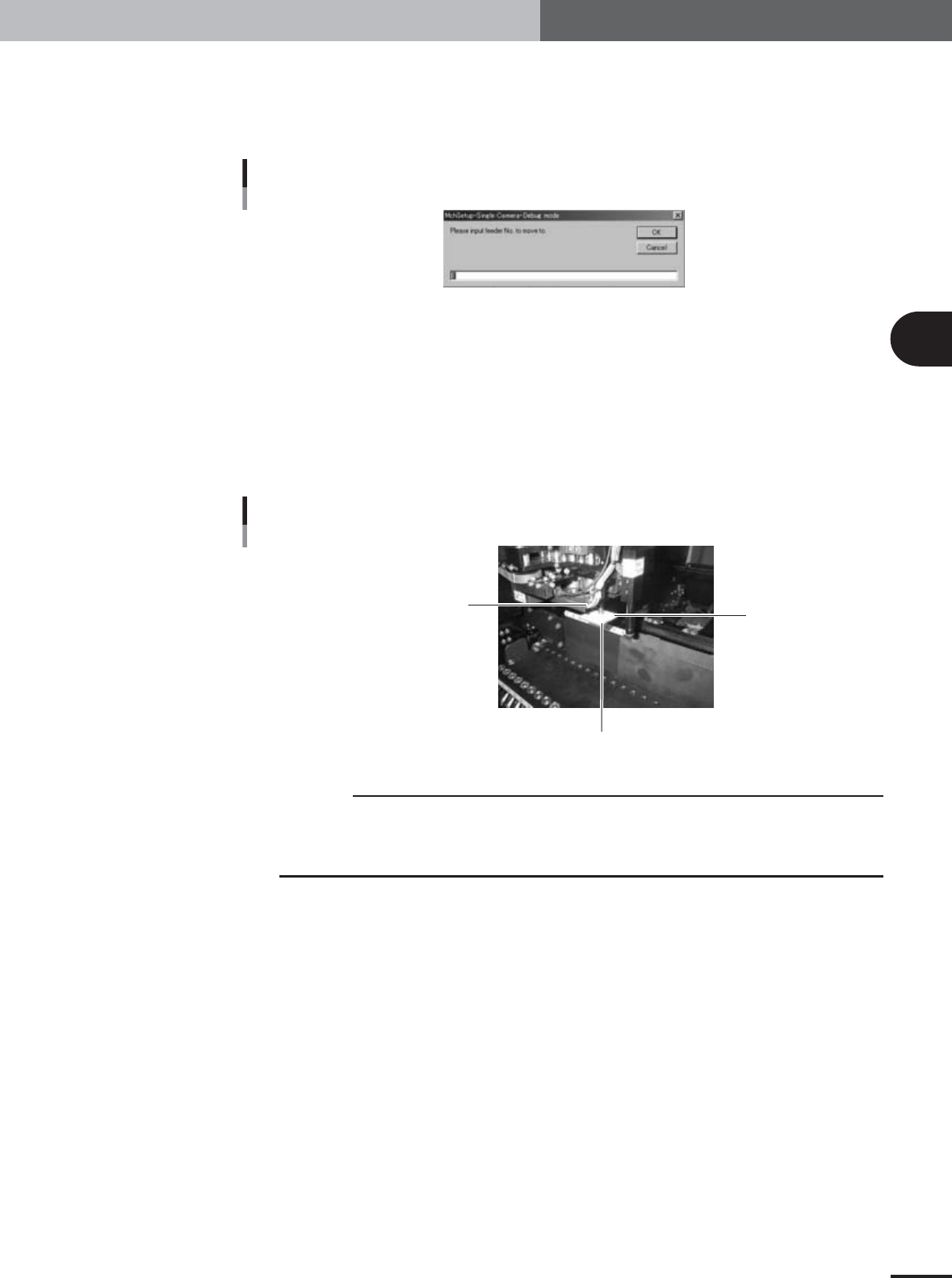

Feeder No. entry dialog box
27054-X9-00
2.In the feeder set No. entry box, enter the feeder set No. at a position where you can
easily attach the light adjuster plates to Head 1 and then press the [OK] button.
The head assembly will move to the specified pickup position and the confirmation
dialog box appears.
4
Press the emergency stop button and attach the light adjuster plate to
Head 1.
Attach the light adjuster plate (KM1-M8806-0XX) to Head 1, with the two-tone
surface facing down and the light gray area positioned just under the nozzle tip.
Attaching the light adjuster plate
Two-tone side should face down.
Light gray side
Dark gray side
28055-X9-00
c
CAUTION
As in the case of the multi-vision camera, the light adjuster plate (KM1-M8806-0XX) is used to
adjust the main and coaxial lighting levels, while the light adjuster plate-2 (KV7-M8806-0XX) is
used to adjust the side lighting level. Adjustments are performed in the order of the main,
coaxial and side lighting levels.
e
