1.2 Camera scale calibration
1.2.1 Preparation for the moving camera scale calibration
To calibrate the moving camera scale, a custom-designed glass PCB is used. The machine
must be set to "Adjust Mode2" (see sections 2.5 and 2.6 in Chapter 2) and the
"MCH_SETUP" PCB data loaded into the machine (see section 2.7 in Chapter 2).
c
CAUTION
Before starting the camera scale calibration, the machine should be warmed up for 30 minutes
or more. (See section 2.3, " Warming up the machine".)
1
Have the glass PCB ready.
Glass PCB
28012-X9-00
2
Adjust the conveyor width.
1.Open the [Unit]-[Conveyor] tab screen and press the [Conveyor] button.
The Conveyor Width dialog box appears.
2.Check that the conveyor width after change is set to "170" (mm) and press the
[OK] button.
The conveyor rail changes to the specified width.
[Unit]-[Conveyor] tab screen
[Unit] button
[Width] button
27065-X9-00
Conveyor width dialog box
27066-X9-00
3
Basic adjustments
3-19
1. Camera parameter adjustments
3
Set the glass PCB on the conveyor.
1.Press the emergency stop button and unclamp the locate pins by loosening the
lever.
2.Place the glass PCB on the conveyor, and adjust the movable locate pin position so
that the distance between the locate pins exactly matches the distance between the
positioning holes in the metal frame of the glass PCB.

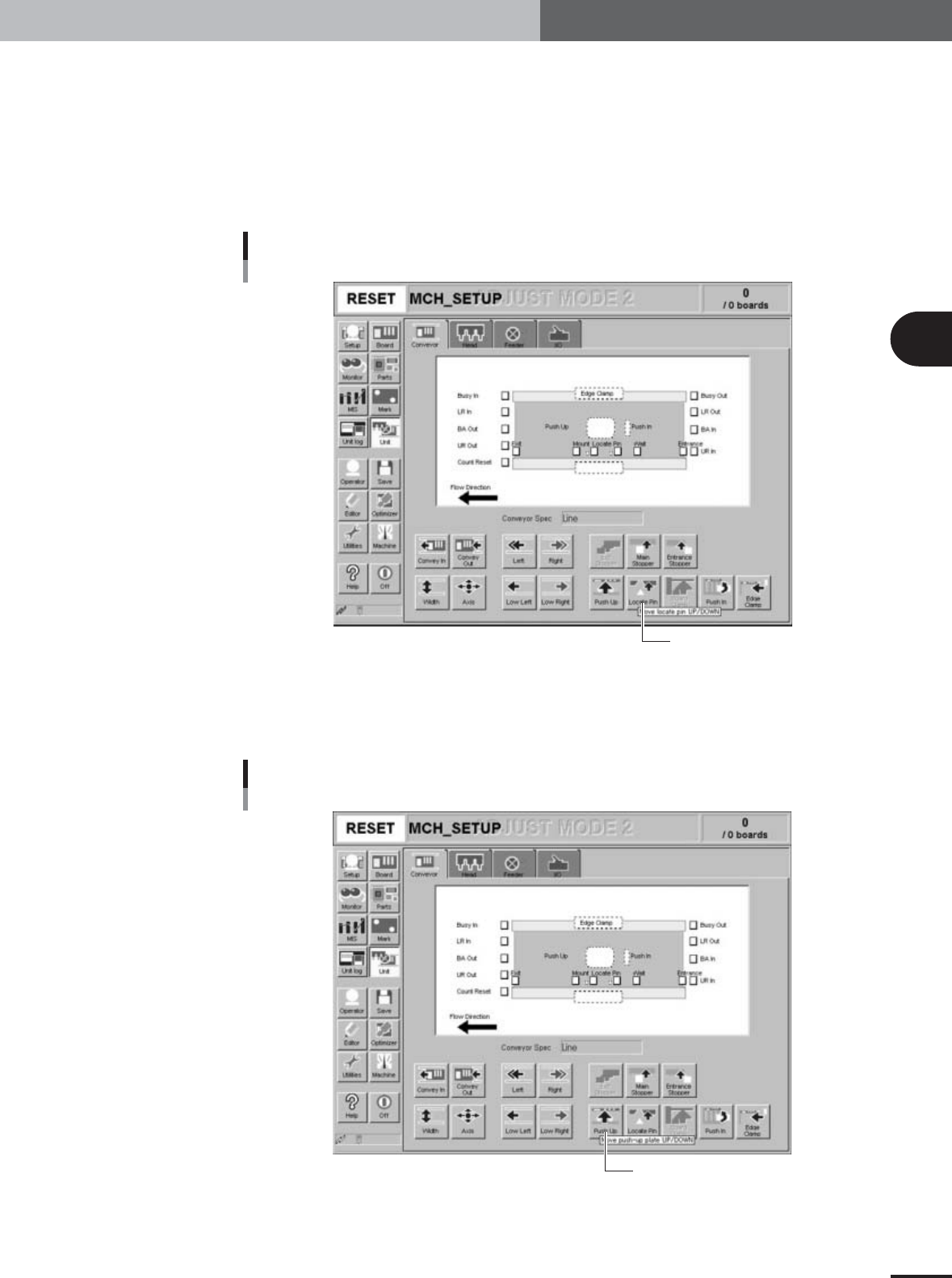

3.Clamp the locate pins and press the [Locate Pin] button to raise the locate pins so
that they engage with the positioning holes in the metal frame of the glass PCB.
[Locate Pin] button
[Locate Pin] button
27067-X9-00
4
Set push-up pins to support the glass PCB from the bottom.

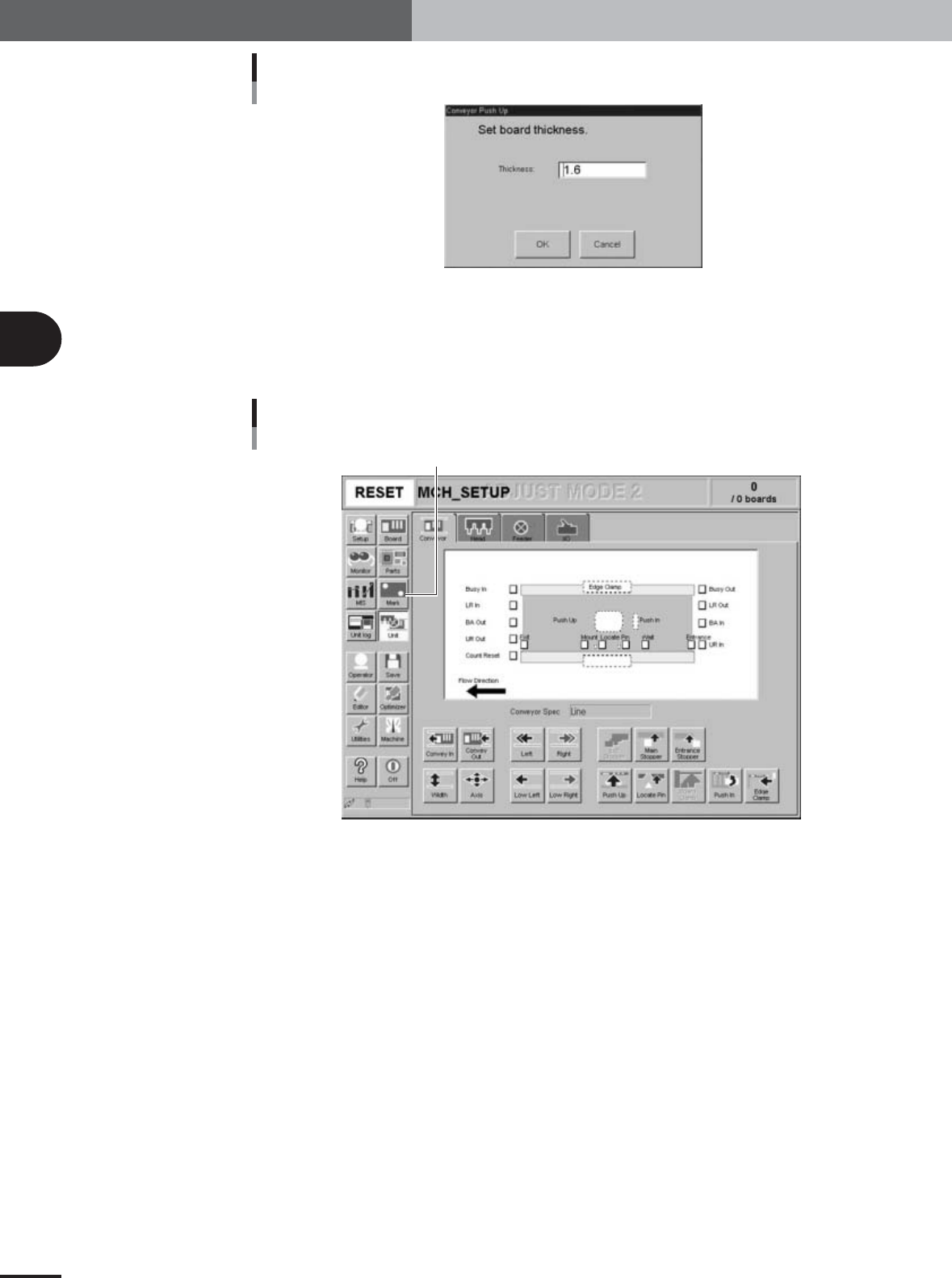

1.Cancel emergency stop and press the [Push Up] button.
The Conveyor Pushup dialog box appears.
[Push Up] button
[Push Up] button
27068-X9-00
e
3
Basic adjustments
3-20
1. Camera parameter adjustments
Conveyor Pushup dialog box
27069-X9-00
2.Press the [OK] button in the Conveyor Pushup dialog box to raise the push-up plate.
3.Set four push-up pins on the push-up plate just under each of the four corners of
the glass PCB.
5
Press the [Mark] button to open the Mark information screen.
[Mark] button
[Mark] button
27070-X9-00
