3 Basic adjustments 3- 46 3. Head offset adjustments 9 Press the [Pick] button to pick up a component. [Pick Up] b utton [Pick Up] b utton 27116-X9-00 0 Press the [Test] button to execute a vision test. This test checks …
3
Basic adjustments
3-45
3. Head offset adjustments
7
Check the feeder set position.
Open the [Pick] tab and make sure the "Feeder Set No." is set to "9" where you
installed the tape feeder in step 1.
Feeder Set No. parameter
Check for the feeder set No.
27114-X9-00
8
Press the [Adjust] button to enter the Parts Adjust mode.
The Parts Adjust window opens.
[Adjust] button
[Adjust] button
27115-X9-00
3
Basic adjustments
3-46
3. Head offset adjustments
9
Press the [Pick] button to pick up a component.
[Pick Up] button
[Pick Up] button
27116-X9-00
0
Press the [Test] button to execute a vision test.
This test checks whether the component is recognized correctly.
[Test] button
[Test] button
27117-X9-00

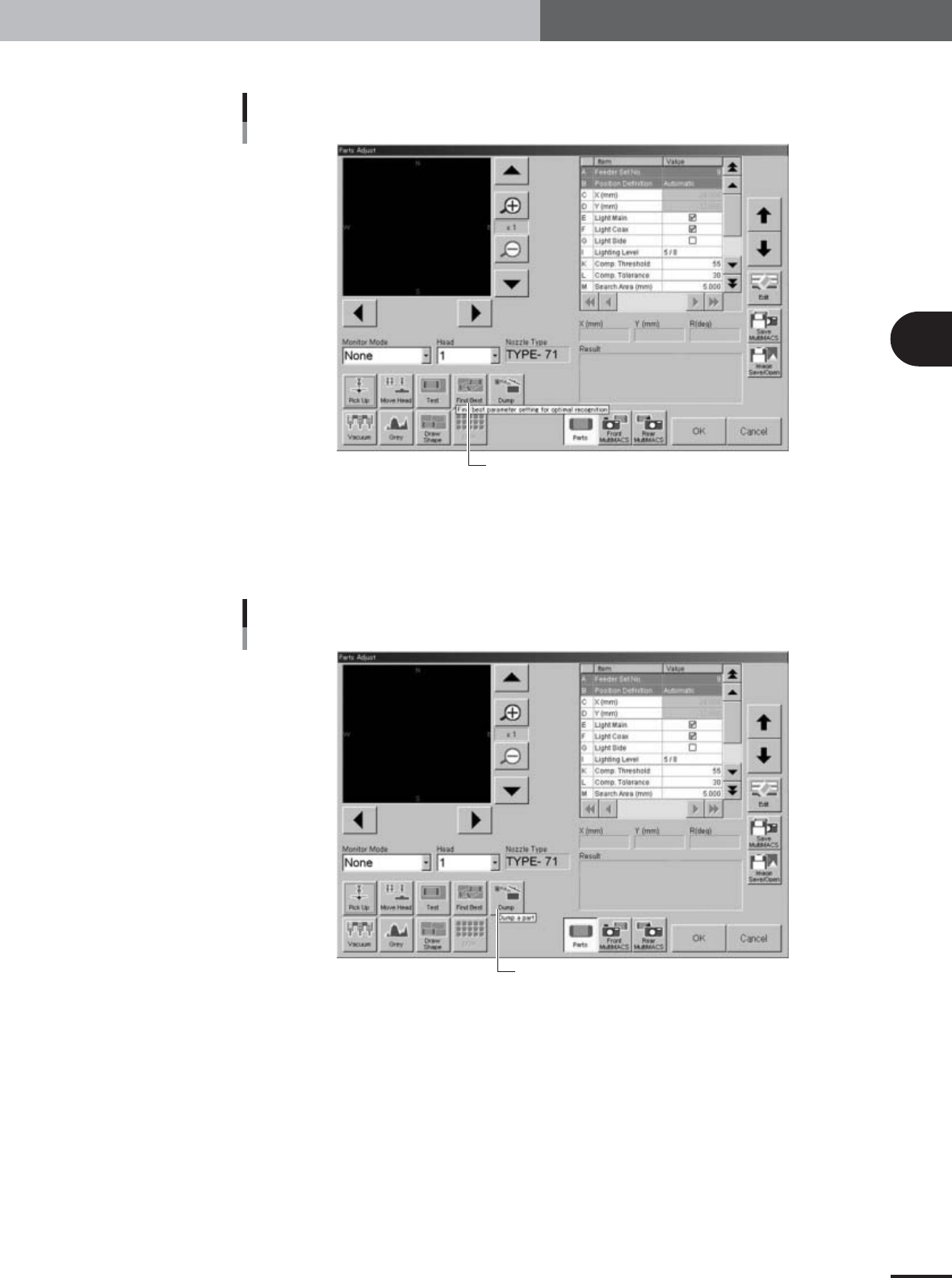

3
Basic adjustments
3-47
3. Head offset adjustments
q
Press the [Find Best] button to find the optimum threshold level.
[Find Best] button
[Find Best] button
27118-X9-00
w
Press the [Dump] button to dump the component.
If you want to manually remove the component from the nozzle, press the emergency
stop and remove it by hand. Then press the [Dump] button to stop the vacuum
suction.
[Dump] button
[Dump] button
27119-X9-00
e
Press the [OK] button to close the Parts Adjust window.
