2. R-axis accuracy offset
Component No. combo box
Enter "11".
27105-X9-00
n
NOTE
Only numbers up to 10 are selectable from the drop-down list of the "Comp. No." combo box, so enter "11" from
the keyboard. In the "MCH_SETUP" PCB data, component No.11 is assigned to glass QFP (KMO-M880A-202).
4
Press the [Pickup] button in the single-vision camera adjustment
dialog box.
The head assembly moves to the component pickup position and the confirmation
dialog box appears.
Confirmation dialog box
27097-X9-00
5
Press the emergency stop button and attach the glass QFP to the
head.
Attach the glass QFP to the head, with the pin-pattern-printed surface facing down
(toward the camera), and then press the [OK] button.
n
NOTE
Handle the glass QFP carefully and protect it from dust and grime. Dust, grime or nicks on the glass QFP surface
may cause recognition errors or result in poor adjustment.
Make sure the nozzle picks up the center of the glass QFP.
e
3
Basic adjustments
3-37
2. R-axis accuracy offset
6
Cancel emergency stop and press the [Execute] button to start
measurements.
The head assembly moves to a position above the single-vision camera and the
component is recognized at each mounting angle to measure the R-axis accuracy
offset.
Progress bar during adjustment
27098-X9-00
7
Save the results.
When the measurements are complete, a dialog box appears asking whether to save
the results. Check the results and press the [Yes] button to save them.
Save confirmation dialog box
27099-X9-00
3
Basic adjustments
3-38
3. Head offset adjustments
Head offset is the position of a head other than Head 1, relative to Head 1. This section explains how
to adjust the head offset of standard heads and FNC (flying nozzle change) heads.
3.1 Preparation for head offset adjustments of Heads 3, 5,
and 7 (YV100Xg family) or Head 2 (YV88Xg)
1
Check the "Adjust Mode" parameter and PCB data.
Offset adjustments of Heads 3, 5, and 7 (YV100Xg family) or Head 2 (YV88Xg) use a
glass QFP, so the machine must be set to "Adjust Mode2" and the "MCH_SETUP"
PCB data loaded into the machine.
You can check the currently selected PCB data and "Adjust Mode" on the status bar.

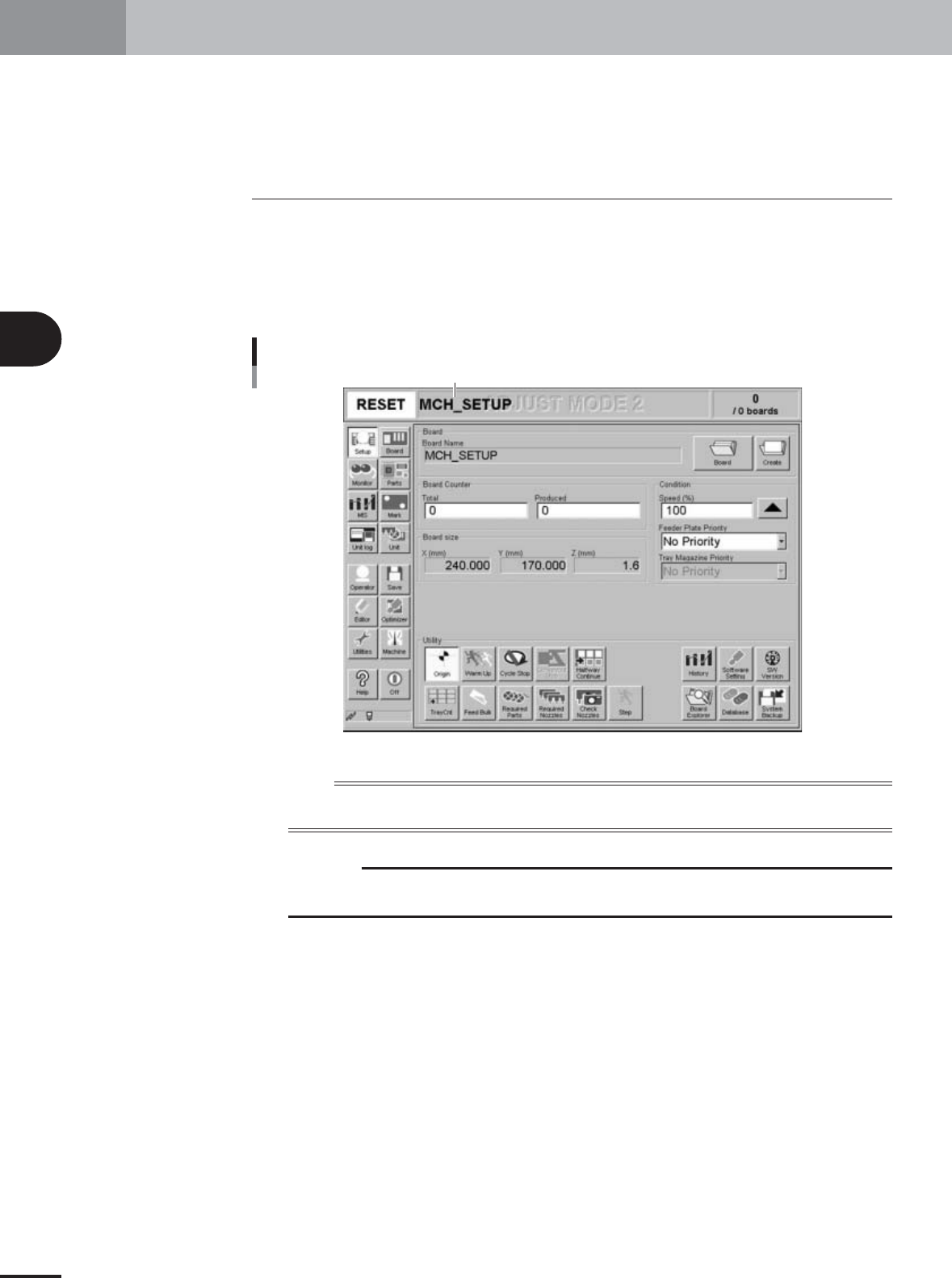

Status bar display
Status bar shows currently selected PCB data and "Adjust Mode".
27085-X9-00
n
NOTE
For these head offset adjustments, the machine must be set to "Adjust Mode2" (see sections 2.5 and 2.6 in
Chapter 2) and the "MCH_SETUP" PCB data loaded into the machine (see section 2.7 in Chapter 2).
c
CAUTION
When adjusting the head offset of Head 2 (YV88Xg), use a Type 65 nozzle to pick up a glass
QFP.
