3
Basic adjustments
3-21
1. Camera parameter adjustments
6
Select "Mark No.1" and press the [Mark Adj] button.
The Mark Adjust window opens.
[Mark Adj] button and Mark Adjust window
[Mark Adj] button
27071-X9-00
3
Basic adjustments
3-22
1. Camera parameter adjustments
7
Perform teaching for the mark on the glass PCB.
1.Cancel emergency stop and press the [Move Head] button in the Mark Adjust
window to open the Move Head window.
2.Use the arrow buttons to move the moving camera so that the mark on the glass
PCB is displayed near the center of the vision monitor. Then press the [OK] button
to close the Move Head window.
[Move Head] button
[Move Head] button
27073-X9-00
Teaching window
Mark
27074-X9-00
n
NOTE
The mark should be positioned near the center of the vision monitor.
3
Basic adjustments
3-23
1. Camera parameter adjustments
8

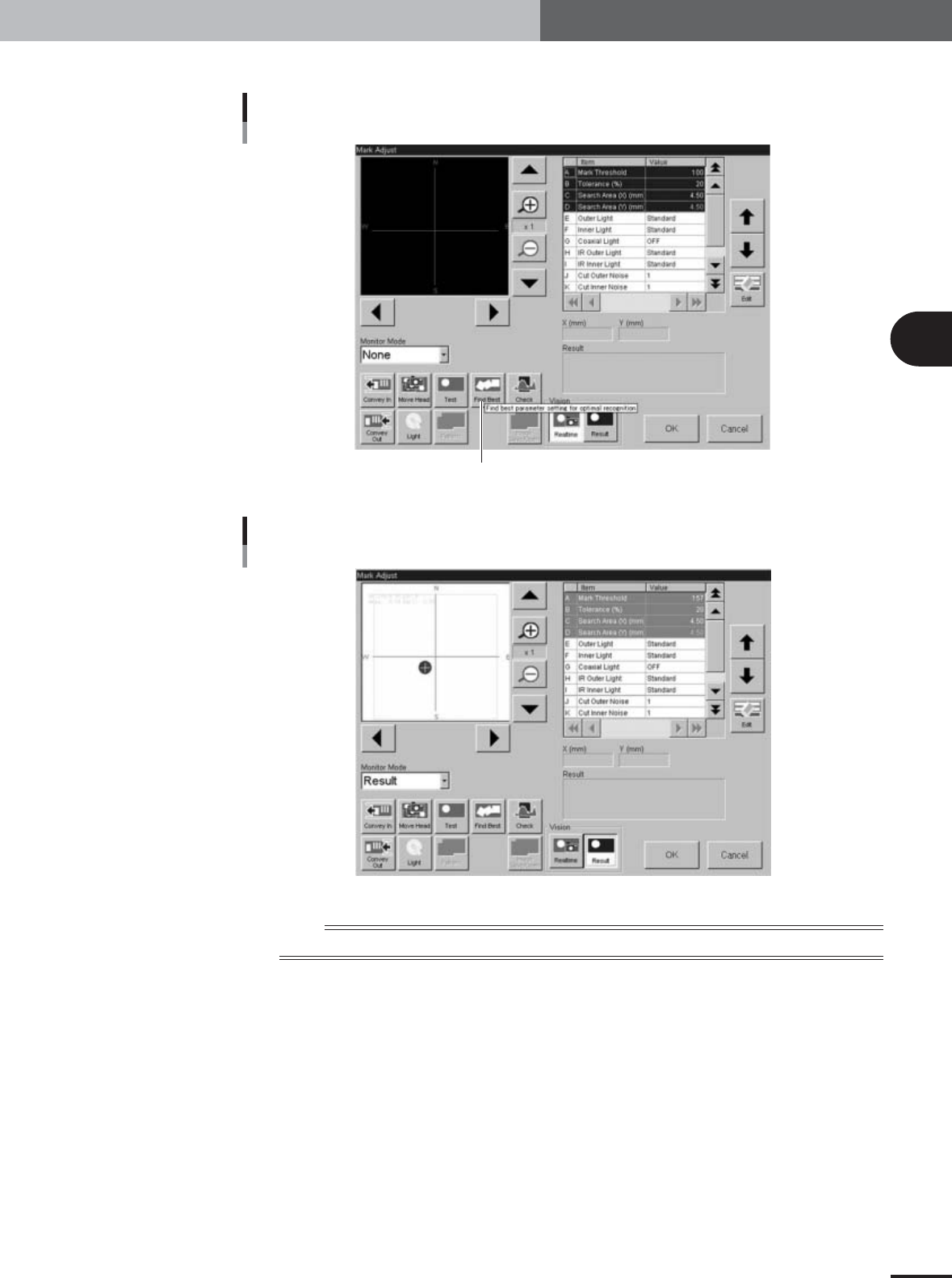

Press the [Find Best] button to find the optimum threshold level.
[Find Best] button
[Find Best] button
27075-X9-00
Display after finding optimum threshold level
27076-X9-00
n
NOTE
It is okay if the mark is not exactly in the center of the vision monitor.
9
Press the [OK] button to close the Mark Adjust window.
