Dual-Simultaneous Programmable Pitch Owner’s Manual Installation and Configuration

3.7 Adjusting Applicator Pitch

To adjust the applicator pitch (Figure 3-3).

1. Loosen the locking screw.

2. Rotate the applicator bracket by hand to square it to the conveyor rail.

3. Torque the locking screw to 2.82 Nm (25 in-lbs).

Item Description

1 Locking Screw

2 Applicator Bracket

Figure 3-3 Adjust Applicator Pitch

3.8 Adjusting Y-Tilt

To adjust the Y-tilt (Figure 3-4):

1. Identify which applicator needs to be tilted forward.

2. Loosen the two (2) screws attaching the applicator to the bracket.

3. From the back side of the applicator bracket, adjust the setscrew extension, longer or

shorter, as needed.

4. Re-tighten applicator screws.

Figure 3-4 Adjust Y-Axis Alignment

Setscrew

Dual-Simultaneous Programmable Pitch Owner’s Manual Installation and Configuration

3.9 Third Valve Option

NOTE

The third valve option installation requires Technical Support assistance to assist with

configuring the 3

applicator for dual simultaneous programmable pitch and assistance

with setting up dual or triple toggle brackets. Contact Technical Support for additional

information.

The third valve option is available for the DSPP as an add-on toggle bracket assembly. Contact Technical

Support for ordering information.

WARNING!

When installing, performing maintenance, or making adjustments with power on,

do not hot swap the Pitch Motor and Pitch ENC and Sensors cables on the

Z-head (Figure 3-5).

3.9.1 Installing the Third Valve Option

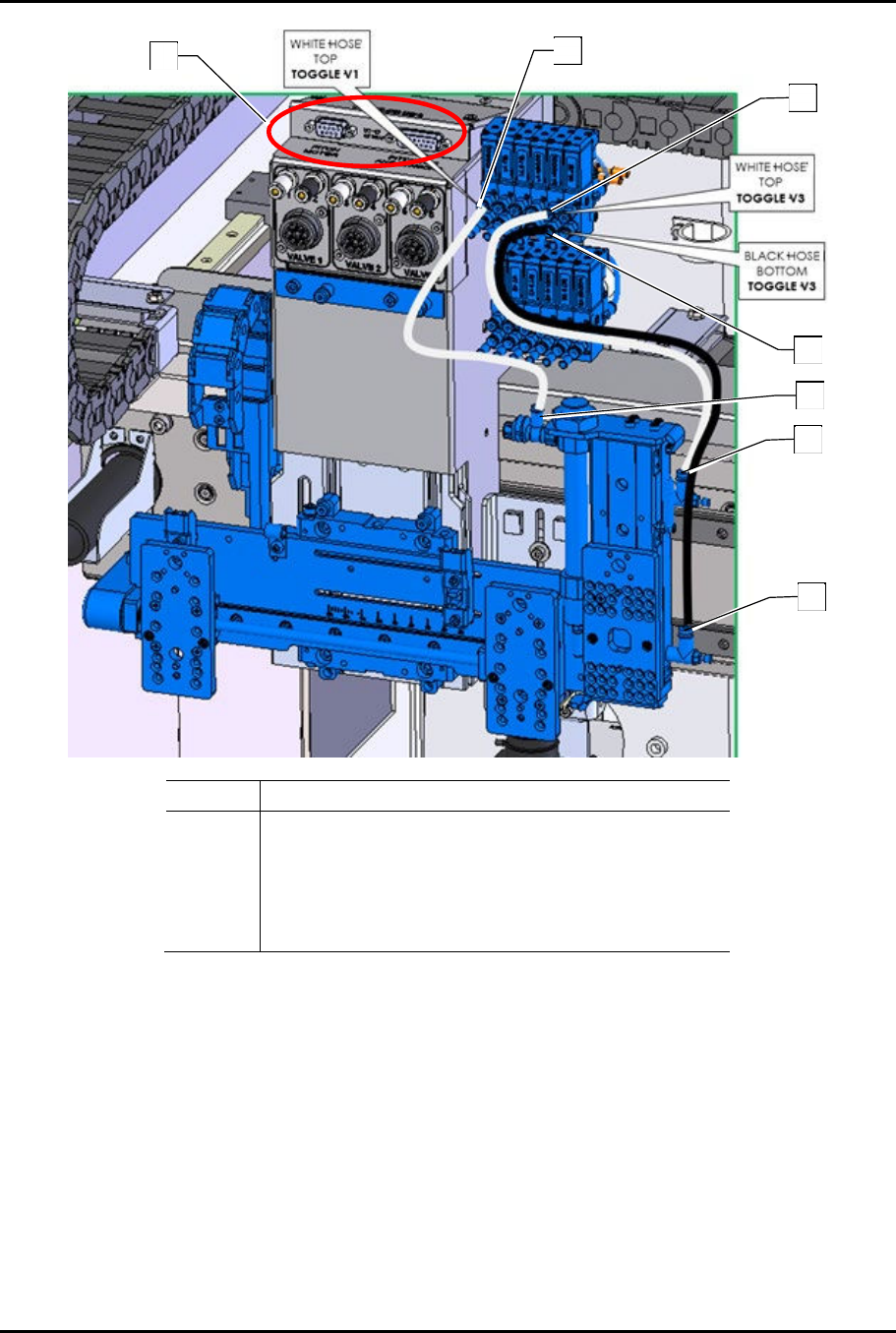

To install the third valve option (Figure 3-5):

1. Perform a service shutdown. Refer to the SL-1040 Conformal Coating System Installation,

Operations, and Maintenance Manual for instructions.

2. Open the front hood of the conformal coating system.

3. Manually move the dispense head to the front of the conformal coating system.

4. Mount the toggle bracket assembly to the right side of the DSPP base plate using the

hardware included.

5. Connect the white tubing from Toggle V1 to the cylinder.

6. Connect the white tubing from Toggle V3 (top) to the right side of the DSPP.

7. Connect the black tubing from Toggle V3 (bottom) toggle to the bottom right side of the

DSPP.
