Dual-Simultaneous Programmable Pitch Owner’s Manual Installation and Configuration
© 2024 Nordson Corporation 21
8.
Scroll down to view output
Signal 61
and
Signal 71
. Select the respective
TRUE
boxes
(
Figure 3-17
.).
Figure 3-17 Selecting Output Signals
9.
Select
Close
.
10.
Select
END IDLE
to modify the END IDLE Macro (
Figure 3-18
).
Figure 3-18 Modify the Macro
Dual-Simultaneous Programmable Pitch Owner’s Manual Installation and Configuration
22 © 2024 Nordson Corporation

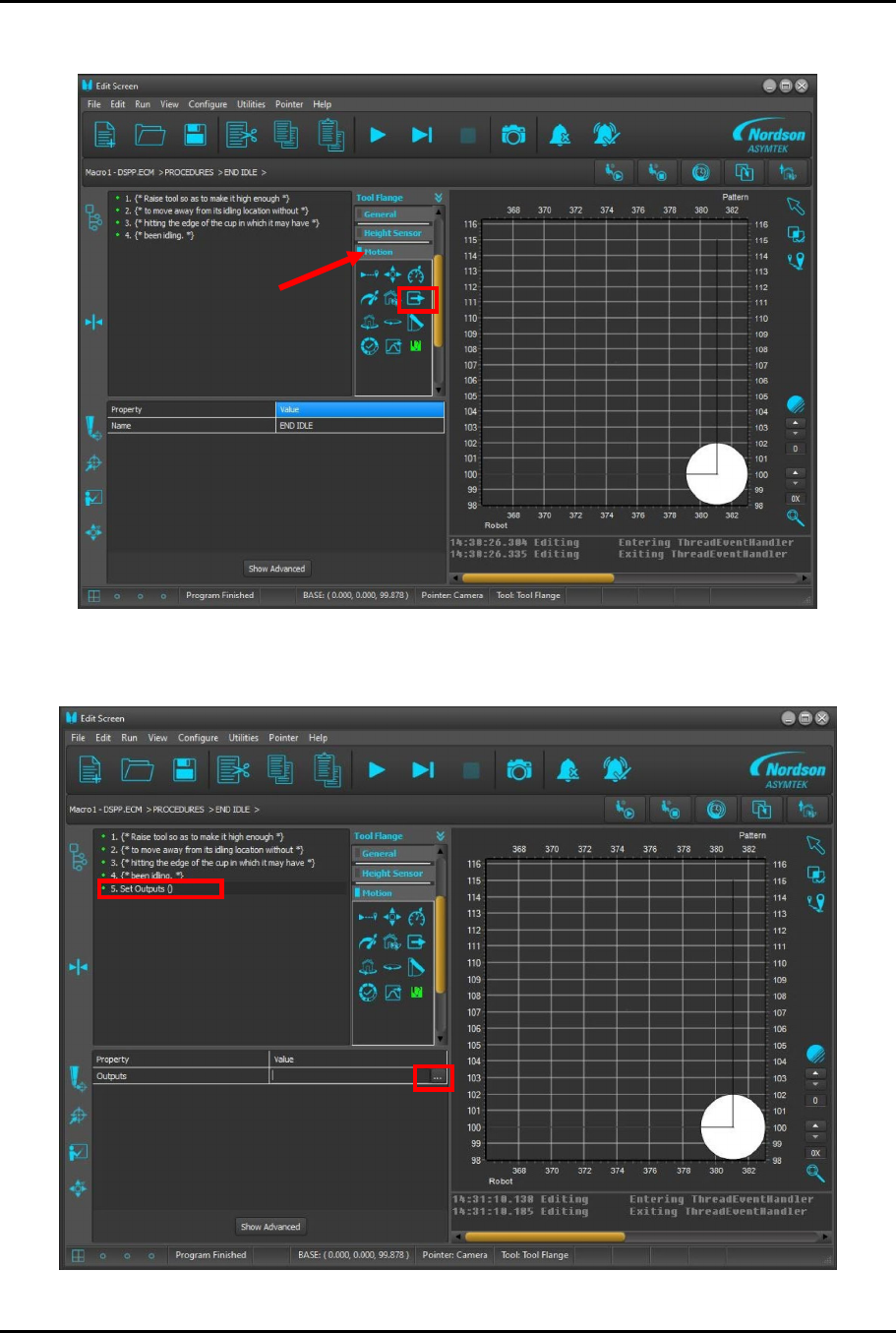

11. Select Motion tab and select change output button (Figure 3-19).
Figure 3-19 Selecting Motion Tab
12.
Select
5. Set Outputs
()
and select
… (Figure 3-20)
.
Figure 3-20 Select Outputs
Dual-Simultaneous Programmable Pitch Owner’s Manual Installation and Configuration
© 2024 Nordson Corporation 23

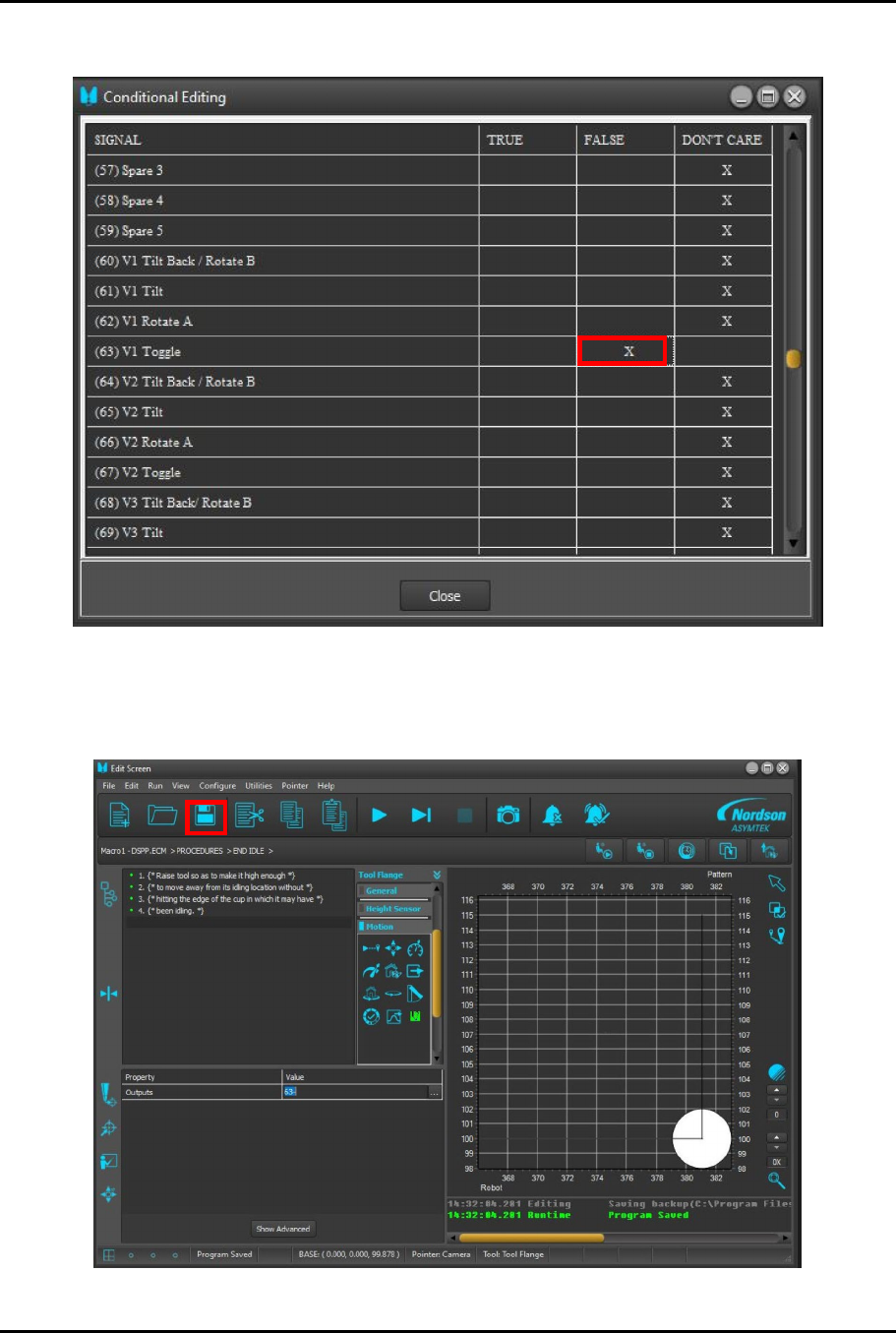

13.
Scroll down to output
Signal 63
and select
False (Figure 3-21).
Figure 3-21 Selecting Output Signal 63
14. Select Close.
15. Select Save (Figure 3-22).
Figure 3-22 Saving the File
