Dual-Simultaneous Programmable Pitch Owner’s Manual Operation

20. Move the dispense head to center the applicator over the upper right intersection of dotted

lines (Figure 4-46).

Figure 4-46 Upper Right Corner

21. Click Next.

22. Click Next again.

> The dispense head will move to the start position and dispense the three (3)

characterization passes using the left valve (Figure 4-47).

Figure 4-47 Dispense Characterization Passes

Dual-Simultaneous Programmable Pitch Owner’s Manual Operation

23. Move the dispense head to align the applicator with the left edge of the first characterization

pass (Figure 4-48).

Figure 4-48 Align Applicator to First Pass

24. Click Next.

25. Move the dispense head to align the applicator with the opposite end of the same

characterization pass (Figure 4-49).

Figure 4-49 Align Applicator to Opposite End

26. Click Next.

Dual-Simultaneous Programmable Pitch Owner’s Manual Operation

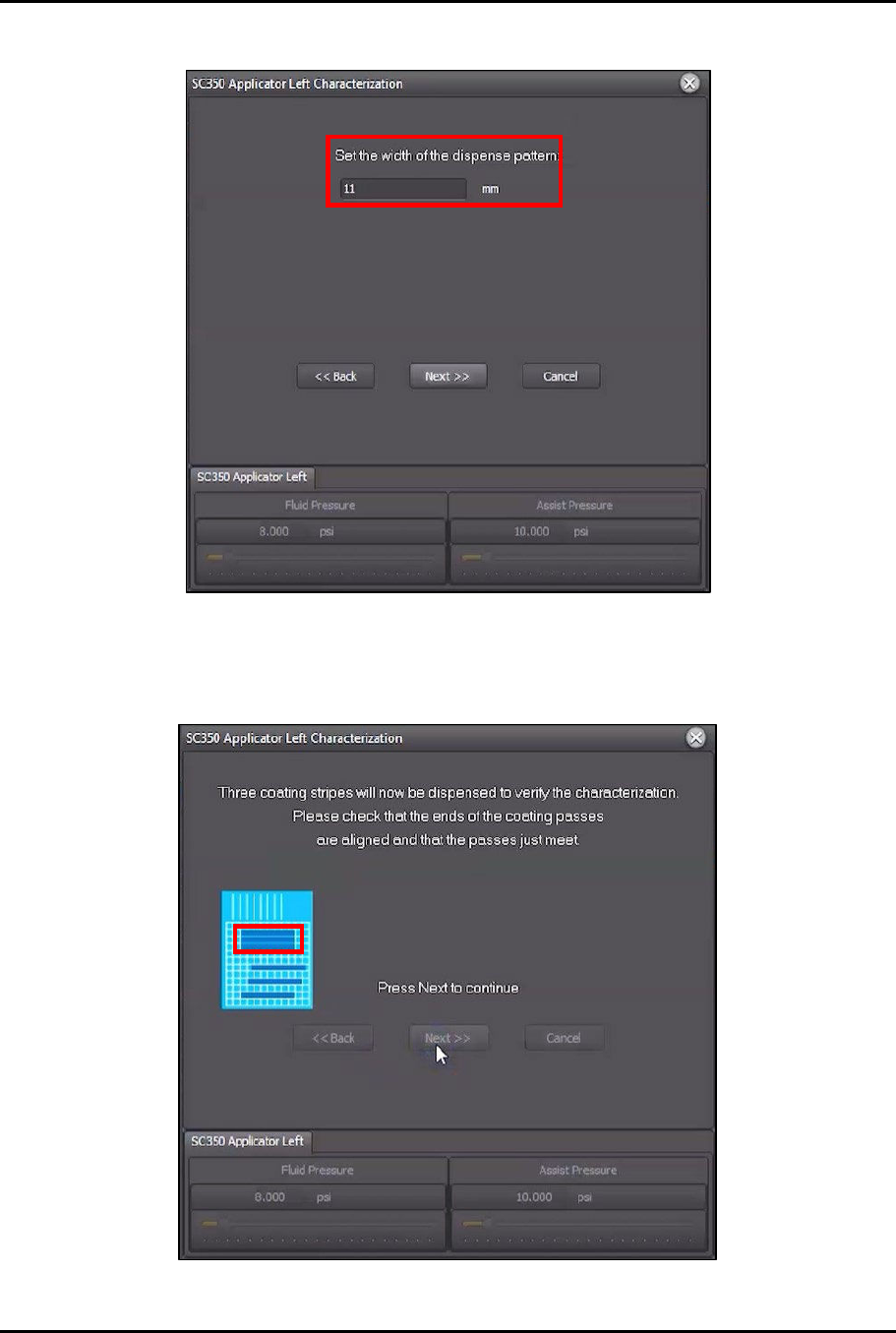

27. Set the width of the dispensed line to 11 mm (Figure 4-50).

Figure 4-50 Set Dispense Pattern Width

28. Click Next.

29. Three (3) stripes will be dispensed to verify characterization (Figure 4-51).

Figure 4-51 Coating Stripes Dispensed
