© 2024 Nordson Corporation 1
1 Introduction
1.1 Overview
The Dual-Simultaneous Programmable Pitch (DSPP) is a programmable valve pitch system that can be
mounted onto the Select Coat SL-1040 Conformal Coating System. The DSPP allows two of the same
coating applicators to be installed and operated simultaneously, coating two parts at the same time. The
pitch, or distance between coating applicators, is programmed and adjusts automatically at changeover,
greatly reducing the setup time due to adjustments and validation.
The DSPP is ideal for applications with the following requirements:
• High product mix with different widths (e.g., multiple different boards with different widths)
• High frequency of width changing
• Labor reduction (e.g., Some of the products require 0.5-hour changeover. The DSPP can
change every several seconds, which dramatically reduces cost on staff, shifts, and labor.)
1.2 Safety First
Operation of the Dual-Simultaneous Programmable Pitch involves mechanical devices and electrical
power. It is essential that every person servicing or operating the DSPP fully understands all hazards,
risks, and safety precautions. See Section 2 - Safety for additional information.
1.3 System Description
The DSPP consists of the following:
• Linear Table
• Pitch Control Module

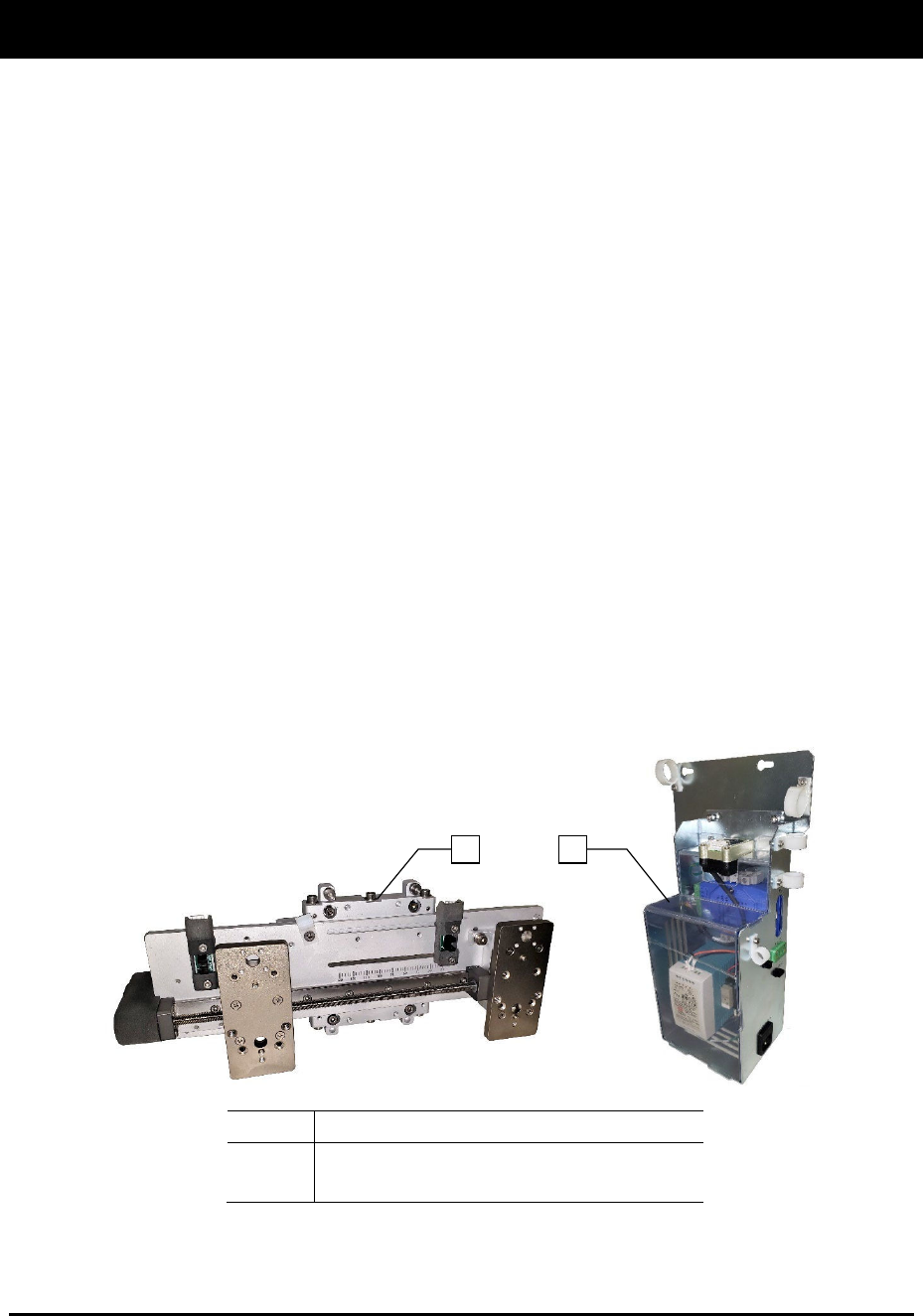

Item Description
1 Linear Table
2 Pitch Control Module
Figure 1-1 Dual-Simultaneous Programmable Pitch
1
2
