Dual-Simultaneous Pr ogrammable Pitch Owner ’s Manual Operation © 2024 Nordson Corporation 59 27. Click the Run button to run the new program. 28. Check the result s (Figure 4- 76). Figure 4-76 Chec k Results 29. Adjust …

Dual-Simultaneous Programmable Pitch Owner’s Manual Operation

23. Click on the Teach button .

24. In the instruction panel, click on 4. Place Pattern Part (Figure 4-74).

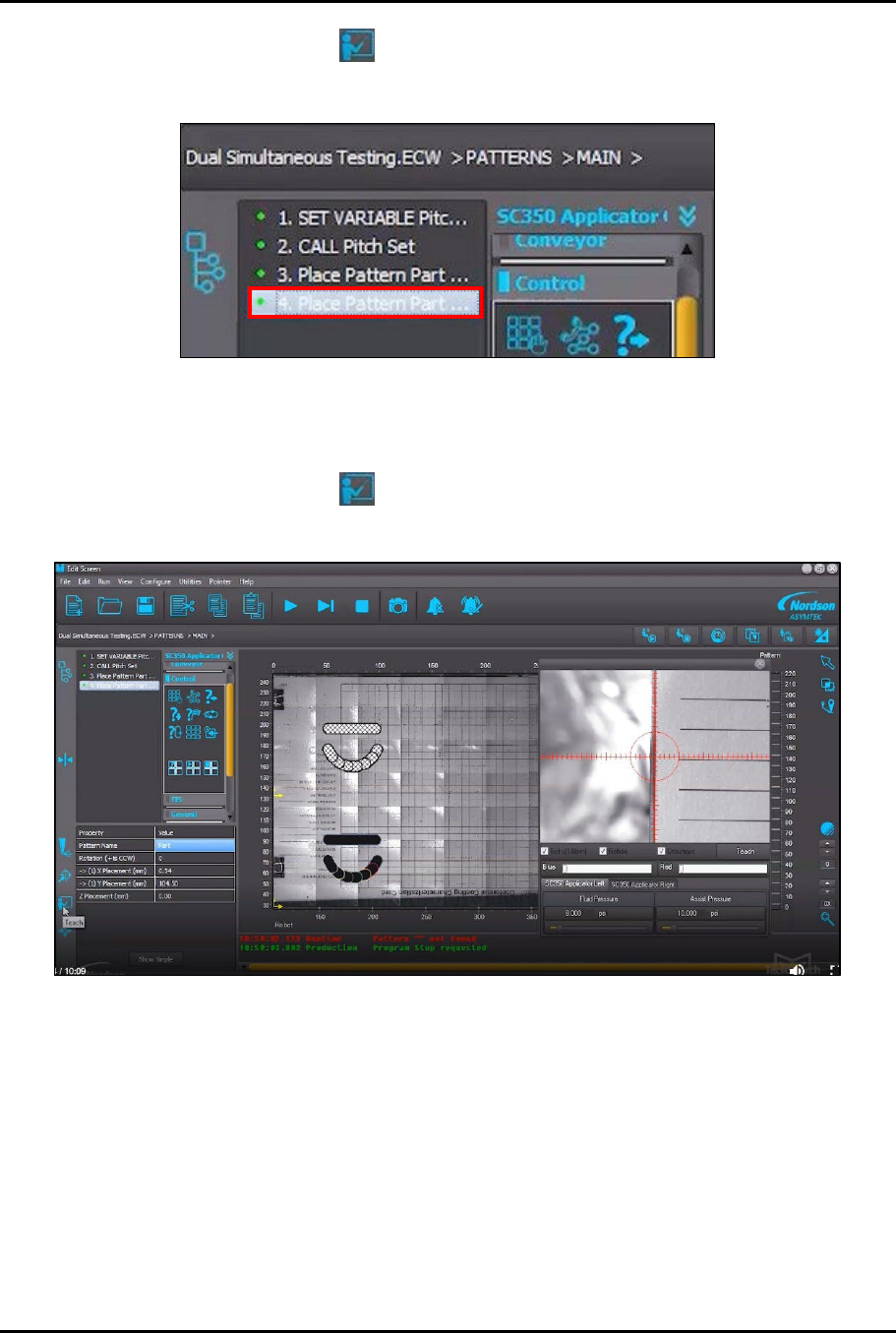

Figure 4-74 Click on Place Pattern Part

25. Use the jog controls to move the dispensing head toward the back of the machine in the

same Y-axis as the pattern that was already placed earlier in this procedure.

26. Click on the Teach button .

> A second pattern will be placed at the new location (Figure 4-75).

Figure 4-75 Place Pattern

Dual-Simultaneous Programmable Pitch Owner’s Manual Operation

27. Click the Run button to run the new program.

28. Check the results (Figure 4-76).

Figure 4-76 Check Results

29. Adjust parameters and rerun the program as needed until the desired results are achieved.

5 Maintenance and Service

5.1 Overview

There are no recommended maintenance and service procedures for the DSPP. Once installed and

configured, the DSPP is designed to perform with no other maintenance or service required.

For questions or concerns, please contact Technical Support.
