Dual-Simultaneous Pr ogrammable Pitch Owner ’s Manual Operation 56 © 2024 Nordson Corporation 19. Use the jog contro ls to mov e the dispensing head and align the left ap plicator to the f ront left corner of the charact…

Dual-Simultaneous Programmable Pitch Owner’s Manual Operation

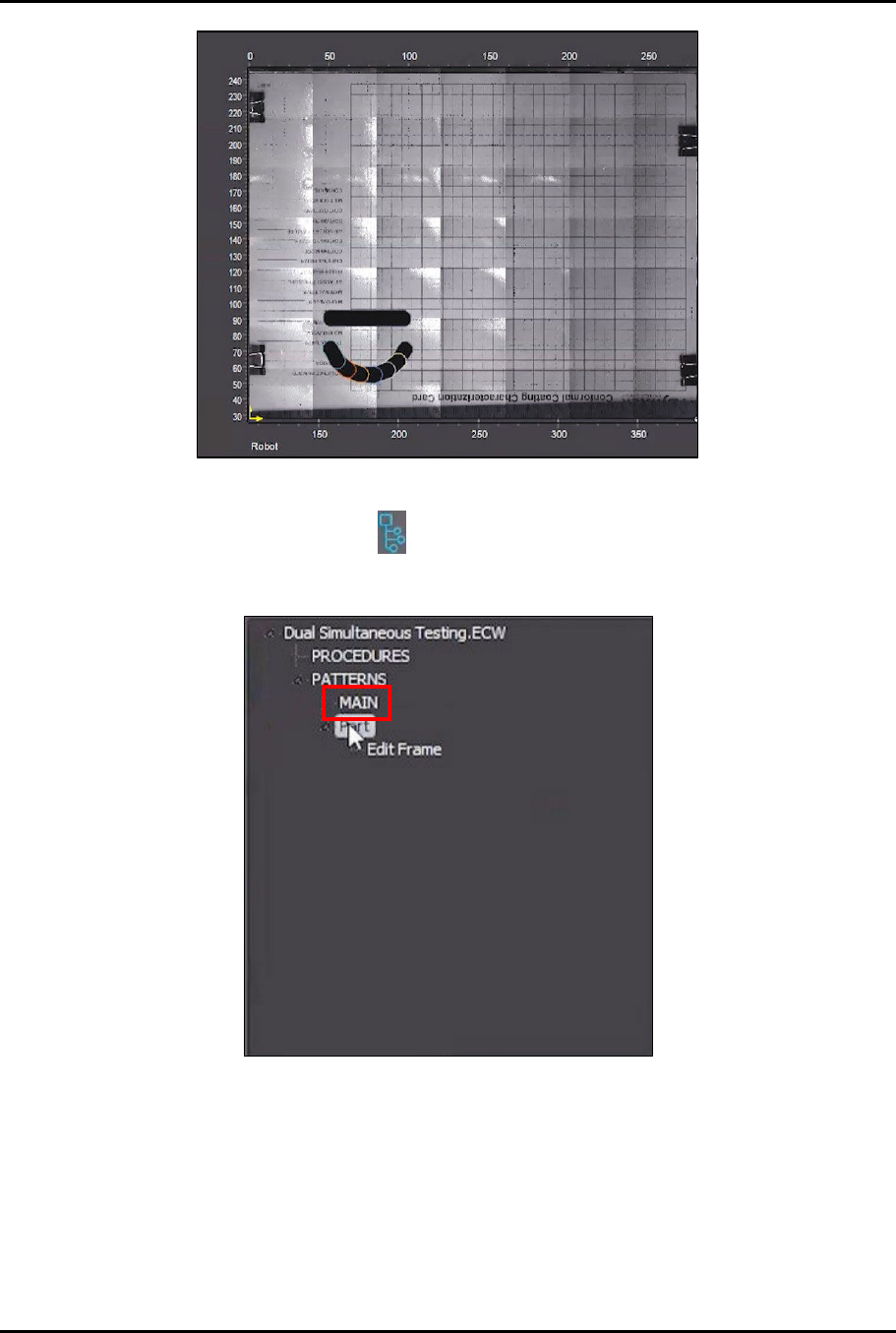

Figure 4-68 Finished Pattern

17. Click on the program tree icon .

18. In the program tree, click on MAIN (Figure 4-69).

Figure 4-69 Select Main

Dual-Simultaneous Programmable Pitch Owner’s Manual Operation

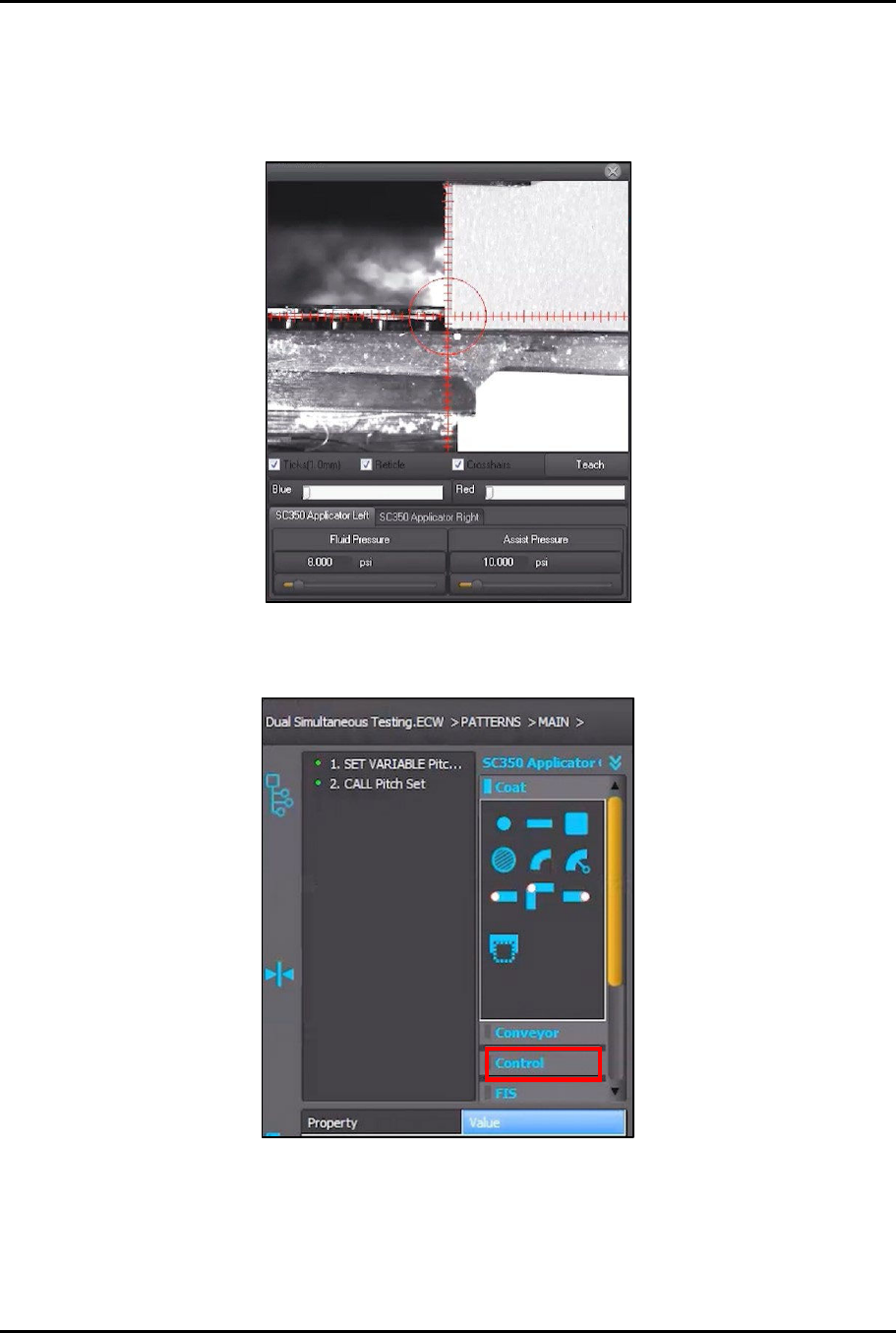

19. Use the jog controls to move the dispensing head and align the left applicator to the front

left corner of the characterization card (Figure 4-70).

NOTE

You are going to place the newly created pattern at different locations on the

characterization card.

Figure 4-70 Align Left Applicator

20. Click on Control in the instruction panel (Figure 4-71).

Figure 4-71 Click on Control

Dual-Simultaneous Programmable Pitch Owner’s Manual Operation

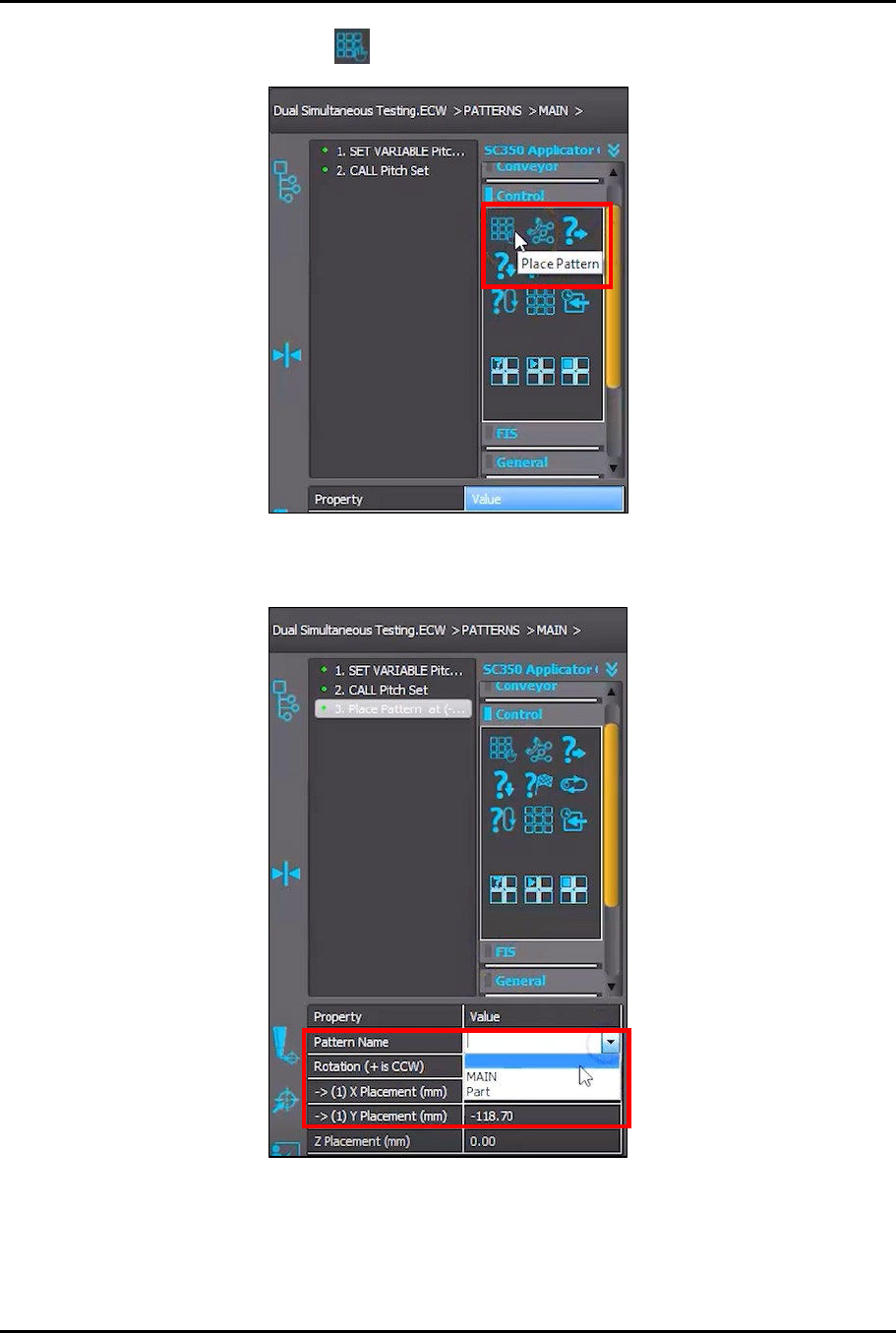

21. Select the Place Pattern function from the Control menu (Figure 4-72).

Figure 4-72 Select Place Pattern

22. In the Property field, click on Pattern Name and select Part from menu (Figure 4-73).

Figure 4-73 Select Part Pattern
