Dual-Simultaneous Programmable Pitch Owner’s Manual Operation

5. Click OK.

6. In the Property field, change the pattern name to Part (Figure 4-60).

Figure 4-60 Change Pattern Name

7. Click on Part in the program tree (Figure 4-60).

8. Click on the List arrows in the instruction panel and select the Applicator Combo

option (SC350 Applicator Combo shown in this example) from the menu (Figure 4-61).

Figure 4-61 Select Applicator Combo

Dual-Simultaneous Programmable Pitch Owner’s Manual Operation

9. Click on Coat in the instruction panel (Figure 4-62).

Figure 4-62 Click on Coat

10. Click on in the Coat menu (Figure 4-62).

> The instruction element will be added to the vision window (Figure 4-63).

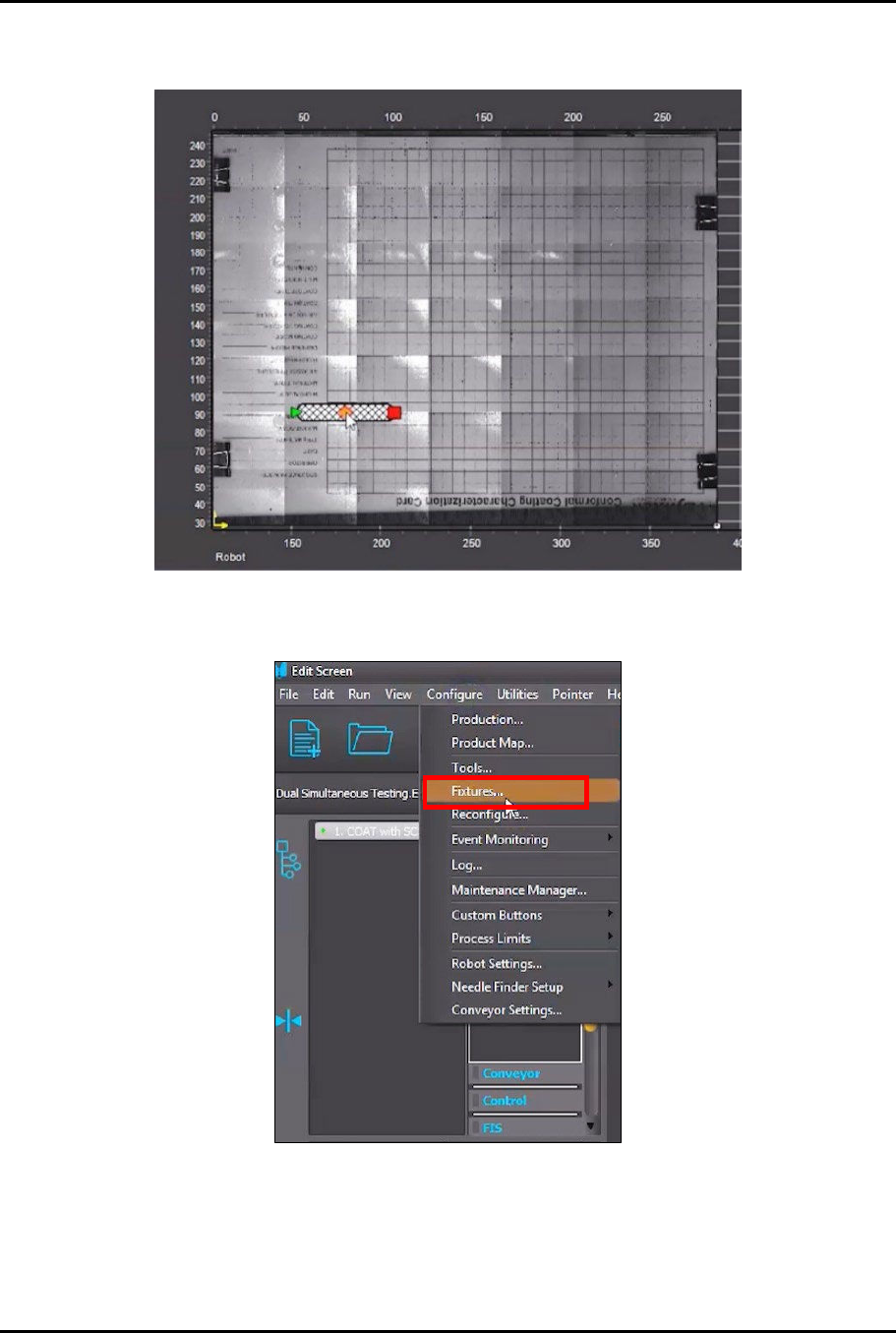

Figure 4-63 Instruction Element Added to Vision Window

Dual-Simultaneous Programmable Pitch Owner’s Manual Operation

11. Use the cursor to drag the instruction element down toward the lower left corner

(Figure 4-64).

Figure 4-64 Reposition Instruction Element

12. In the Edit Screen, select Configure > Fixtures (Figure 4-65).

Figure 4-65 Select Fixtures
