Dual-Simultaneous Programmable Pitch Owner’s Manual Operation
© 2024 Nordson Corporation 31

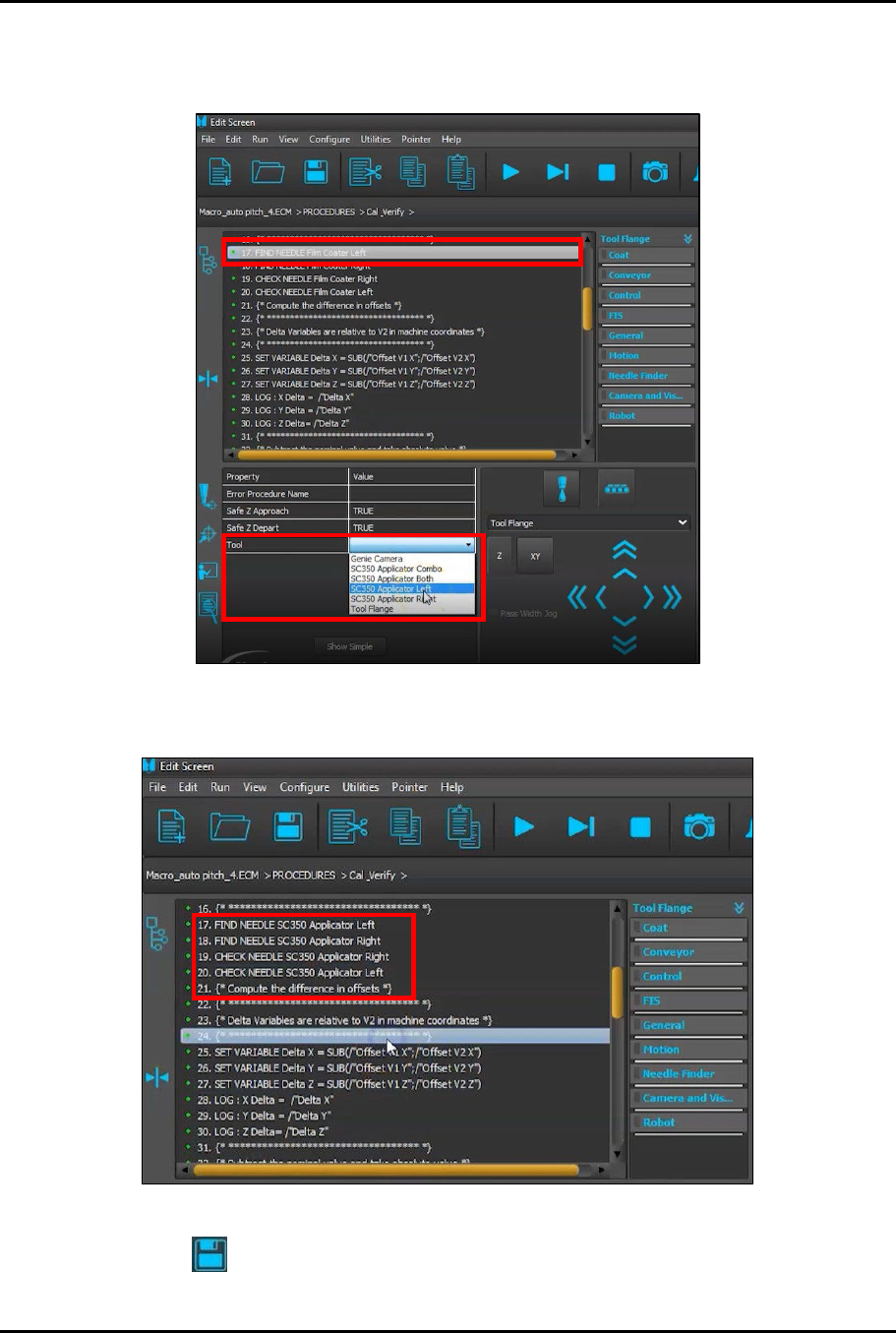

8. Change the applicator names in the Cal & Verify procedure by highlighting one of them
(e.g., Film Coater Left) and then selecting the corresponding applicator from the drop-down
list (Figure 4-16).
Figure 4-16 Select Applicator Name
9. Repeat Step 8 until all applicator entries have been changed (Figure 4-17).
Figure 4-17 All Applicator Names Changed
10. Click on to save the changes.
Dual-Simultaneous Programmable Pitch Owner’s Manual Operation
32 © 2024 Nordson Corporation

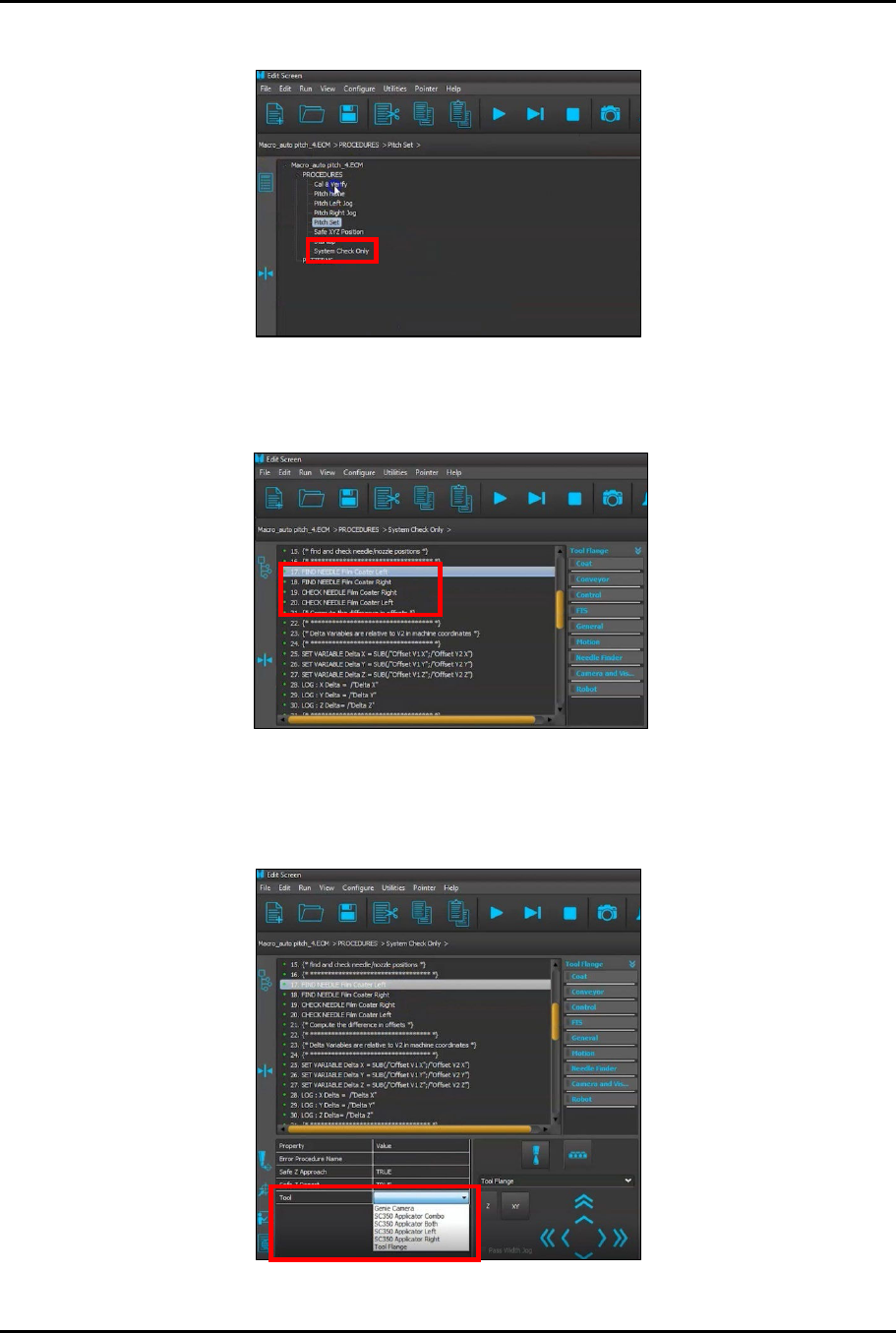

11. In the Edit Screen, locate and click on the procedure System Check Only (Figure 4-18).
Figure 4-18 Select System Check Only Procedure
12. Scroll through the System Check Only procedure until you locate the applicator names
(Figure 4-19). Click on the first applicator name to be highlighted.
Figure 4-19 Locate Applicator Names
13. Click on the Value for Tool to activate the drop-down list (Figure 4-20).
?
NOTE
Make a note of the exact name of each applicator on the drop-down list.
Figure 4-20 Activate Drop-Down Menu
Dual-Simultaneous Programmable Pitch Owner’s Manual Operation
© 2024 Nordson Corporation 33

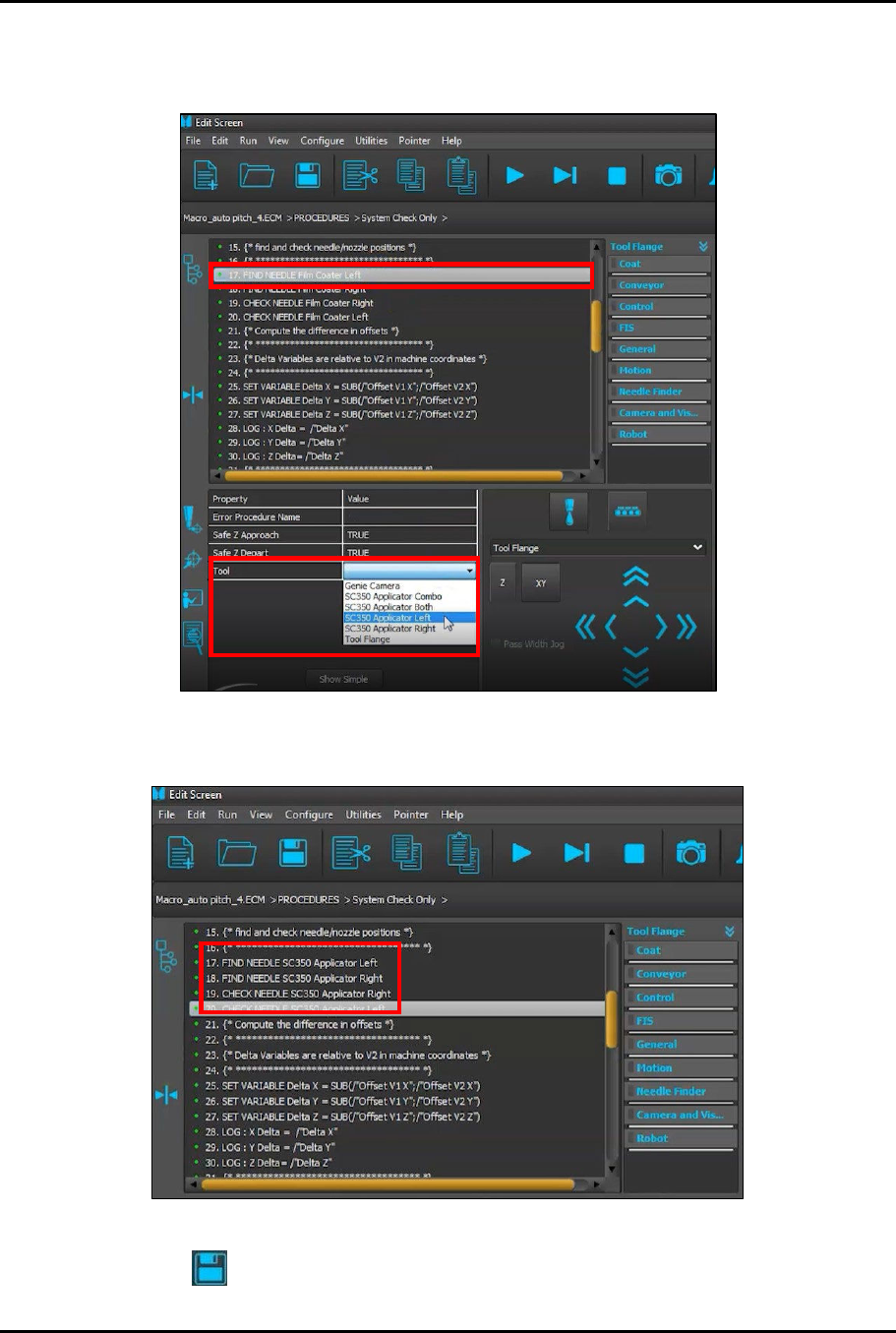

14. Change the applicator names in the System Check Only procedure by highlighting one of
them (e.g., Film Coater Left) and then selecting the corresponding applicator from the
drop-down list (Figure 4-21).
Figure 4-21 Select Applicator Name
15. Repeat Step 14 until all applicator entries have been changed (Figure 4-22).
Figure 4-22 All Applicator Names Changed
16. Click on to save the changes.
