User manual SIPLACE X-Series 3 Technical data and assemblies From software version 708.1 Version 05/2015 3.3 Dimensions and weight 123 3.3.3 Center of gravity 3 Fig. 3.3 - 4 Center of gravity in millimeters (e xample of …
3 Technical data and assemblies User manual SIPLACE X-Series
3.3 Dimensions and weight From software version 708.1 Version 05/2015
122
3.3.2 For a definition of placement performance values
3

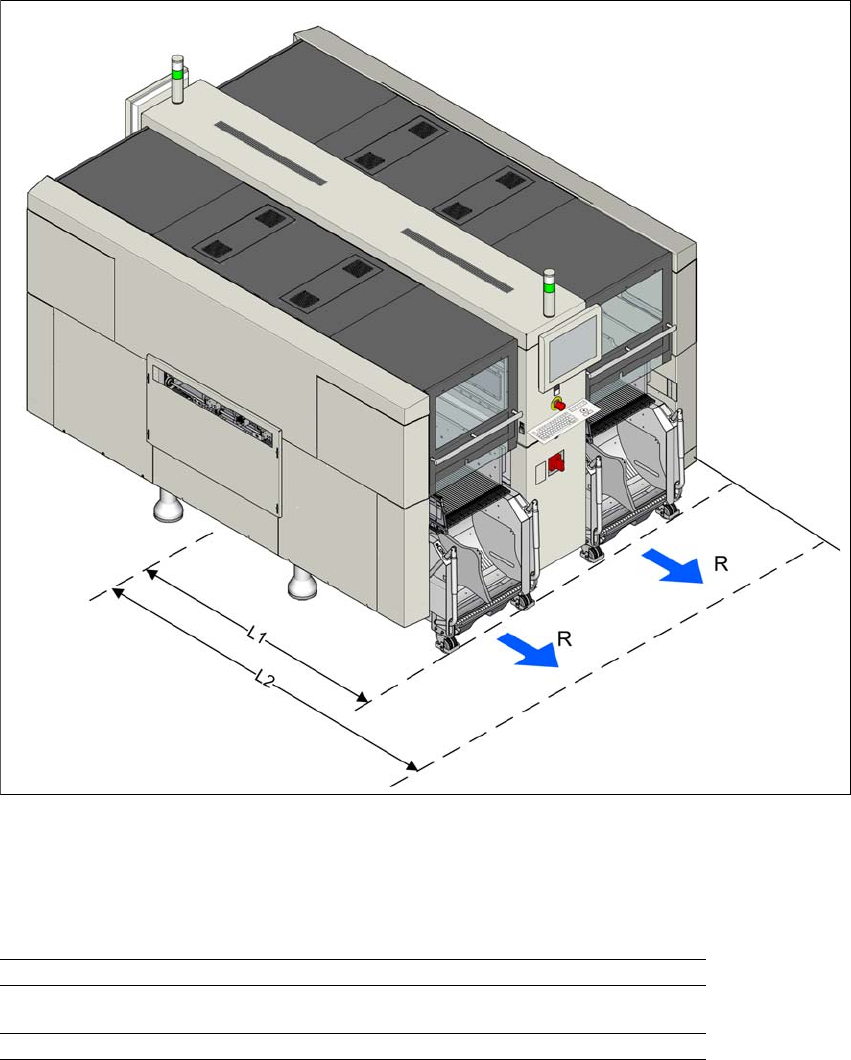

Fig. 3.3 - 3 Maneuvering distances of component trolleys in X-Series machines
The maneuvering distances R for the component trolley of the SIPLACE X-Series machines are
as follows:
3
3
3
Maneuvering distance R location position 600 mm
Distance L1: Machine center to outer edge of X component
trolley
1470 mm
Distance L2: Machine center to wall 2070 mm
User manual SIPLACE X-Series 3 Technical data and assemblies
From software version 708.1 Version 05/2015 3.3 Dimensions and weight
123
3.3.3 Center of gravity
3
Fig. 3.3 - 4 Center of gravity in millimeters (example of SIPLACE X2 S / X3 S / X4 S shown)
X coordinate 0 mm
Y coordinate 0 mm
Z coordinate 630 mm
These center of gravity coordinates relate to placement machines with a PCB conveyor height of
900 mm.
3 Technical data and assemblies User manual SIPLACE X-Series
3.4 Overview of the modules From software version 708.1 Version 05/2015
124
3.4 Overview of the modules
3
3
Fig. 3.4 - 1 Overview of assemblies - example of X3 S shown
(1) Location 1 with component trolley, tape cutter, empty tape duct
(2) Location 2 with component trolley, tape cutter, empty tape duct
(3) Location 3 with COT insert, tape cutter, empty tape duct
(4) Location 4 with COT insert, tape cutter, empty tape duct
(5) Gantry 1 at location 1 with placement head
(6) Monitor with keyboard (2x)
(7) Board conveyor
(T) Direction of PCB transport
(1)
(2)
(3)
(4)
(6)
(7)
(7)
(5)
