1.1.4 SIPLACE X4 S micron
1

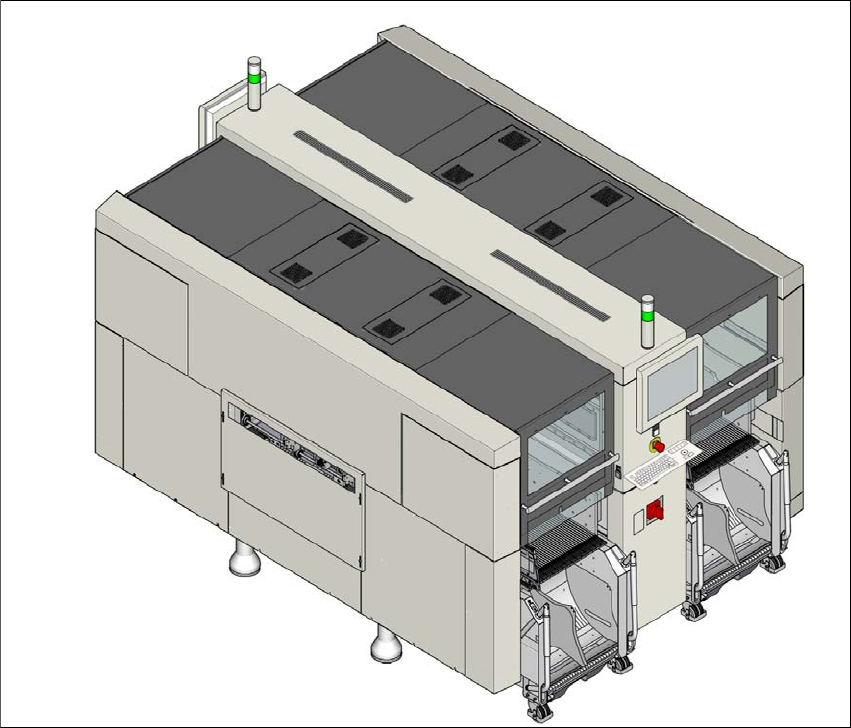

Fig. 1.1 - 4 SIPLACE X4 S micron placement machine
The SIPLACE X4 S micron placement machine is distinguished by
– Enhanced precision due to high-resolution scales
– Top performance optimization due to precision-optimized axis parameters
– Intelligent configuration strategies,
– Highest possible placement performance up to high-end processing
Three placement methods are possible for processing the components:
– Collect&Place,
– Pick&Place and
– A combination of Collect&Place and Pick&Place (mixed mode).
The SIPLACE X4 S micron placement machine has four gantries. The two gantries in placement
area 1 point to location 4. The two gantries in placement area 2 point to location 2.
User manual SIPLACE X-Series 1 Introduction
From software version 708.1 Version 05/2015 1.1 Machine overview
25
These can be quickly and accurately positioned by linear motors, moving independently of one
another in the X and Y directions. The enhanced precision is realized through the use of high-res-
olution scales and in connection with optimized axis parameters. The scanning units have been
further enhanced to meet these requirements.
The SIPLACE X4 S micron placement machine has two placement areas, one single conveyor or
one dual conveyor. Two boards can be placed at the same time on dual conveyors.
There are four locations available for supplying components. These can be fitted with component
trolleys and configured with up to 40 tracks. At locations 2/3 or 1/4, the table positions for the rel-
evant placement area can be configured on the innermost or outermost position.
1.1.4.1 Overview of placement head configuration
1
1.1.4.2 Overview of placement head configuration (from SC 707.1)
1
Placement area 1 Placement area 2
C&P20 M / C&P20 M C&P20 M / C&P20 M
Placement area 1 Placement area 2
C&P20 M / C&P20 M C&P20 M / C&P20 M
C&P20 M / C&P20 M CPP / CPP
1 Introduction User manual SIPLACE X-Series
1.1 Machine overview From software version 708.1 Version 05/2015
26
1.1.5 SIPLACE X3 S
1
Fig. 1.1 - 5 SIPLACE X3 S placement machine
The SIPLACE X3 S placement machine is distinguished by
– High precision,
– Intelligent placement optimization,
– Intelligent configuration strategies,
– Placement performance up to the high end process range
