User manual SIPLACE X-Series 3 Technical data and assemblies From software version 708.1 Version 05/2015 3.9 X feeder modules for SIPLACE X-Series 183 3.9.2.6 SIPLACE Smart Feeder 16 mm 3 Fig. 3.9 - 8 SIPLACE Smart Feede…
3 Technical data and assemblies User manual SIPLACE X-Series
3.9 X feeder modules for SIPLACE X-Series From software version 708.1 Version 05/2015
182
3.9.2.5 SIPLACE Smart Feeder 12 mm X
3

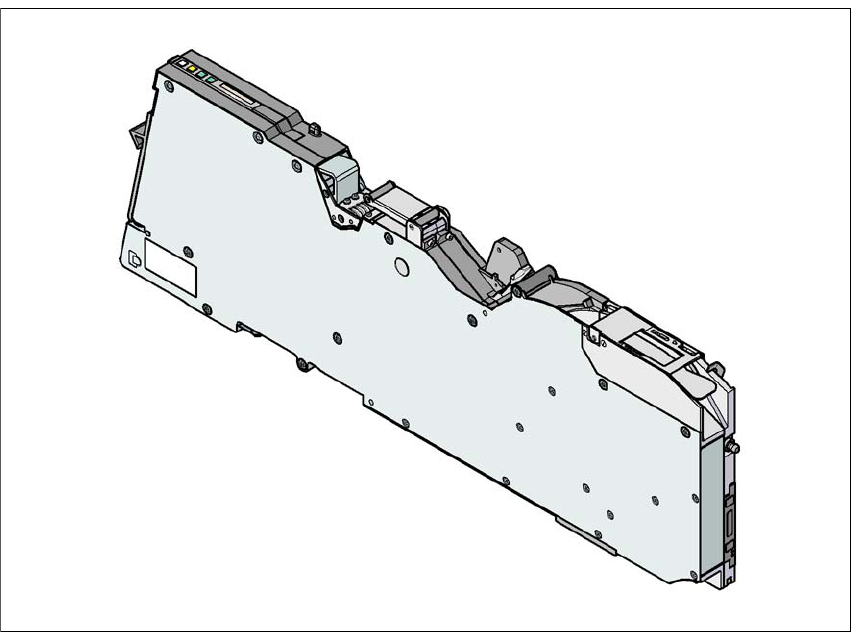

Fig. 3.9 - 7 SIPLACE Smart Feeder 12 mm X
3
3
SIPLACE Smart Feeder 12 mm X Item no. 00141371-xx
SIPLACE Smart Feeder12 mm X with splice sensor Item no. 00141391-xx
Width 22.6 mm
Feeder module locations filled 2
Conveyor increment From 4 mm to 16 mm in 4 mm increments
Changeover time for the component tape < 45 s
Changeover time for the preset feeder module
on the machine
≤ 8 s
User manual SIPLACE X-Series 3 Technical data and assemblies
From software version 708.1 Version 05/2015 3.9 X feeder modules for SIPLACE X-Series
183
3.9.2.6 SIPLACE Smart Feeder 16 mm
3

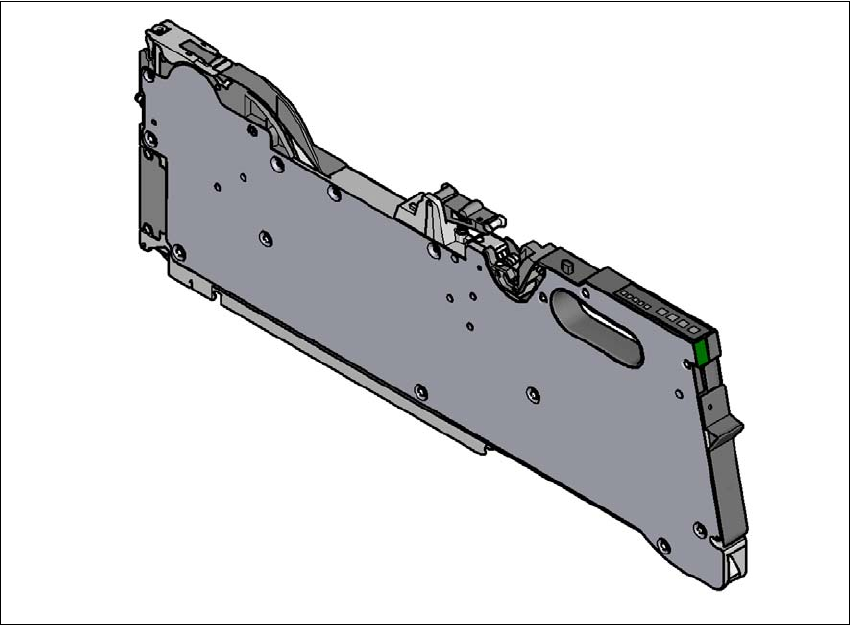

Fig. 3.9 - 8 SIPLACE Smart Feeder 16 mm X
3
SIPLACE Smart Feeder 16 mm X Item no. 00141372-xx
SIPLACE Smart Feeder 16 mm X with splice sensor Item no. 00141392-xx
Width 22.6 mm
Feeder module locations filled 3
Conveyor increment From 4 mm to 20 mm in 4 mm increments
Changeover time for the component tape < 45 s
Changeover time for the preset feeder module
on the machine
≤ 8 s
3 Technical data and assemblies User manual SIPLACE X-Series
3.9 X feeder modules for SIPLACE X-Series From software version 708.1 Version 05/2015
184
3.9.2.7 Tape feeder module 24 mm X
3
Fig. 3.9 - 9 Tape feeder module 24 mm X
3
3
3
Tape feeder module 24 mm X Item no. 00141273-xx
24 mm X tape feeder module with splice sensor Item no. 00141293-xx
Width 34.4 mm
Feeder module locations filled 3
Conveyor increment From 4 mm to 32 mm in 4 mm increments
Changeover time for the component tape < 45 s
Changeover time for the preset feeder module
on the machine
≤ 8 s
