4 Setting up and commissioning User manual SIPLACE X-Series
4.3 Setting up the machine From software version 708.1 Version 05/2015
248
4.3.7 Machine foot clearances and the stationary PCB conveyor edges
Machine foot clearances for the PCB single conveyor
4
Fig. 4.3 - 8 Machine foot clearances for the PCB single conveyor in millimeters
Fixed conveyor side at maximum
right position
a
.
a) The value depends on the position of the fixed side. All dimensions in millimeters.
Fixed conveyor side at maximum
left position
a
.
User manual SIPLACE X-Series 4 Setting up and commissioning
From software version 708.1 Version 05/2015 4.3 Setting up the machine
249
4.3.7.1 Machine foot clearances for the PCB dual conveyor
4

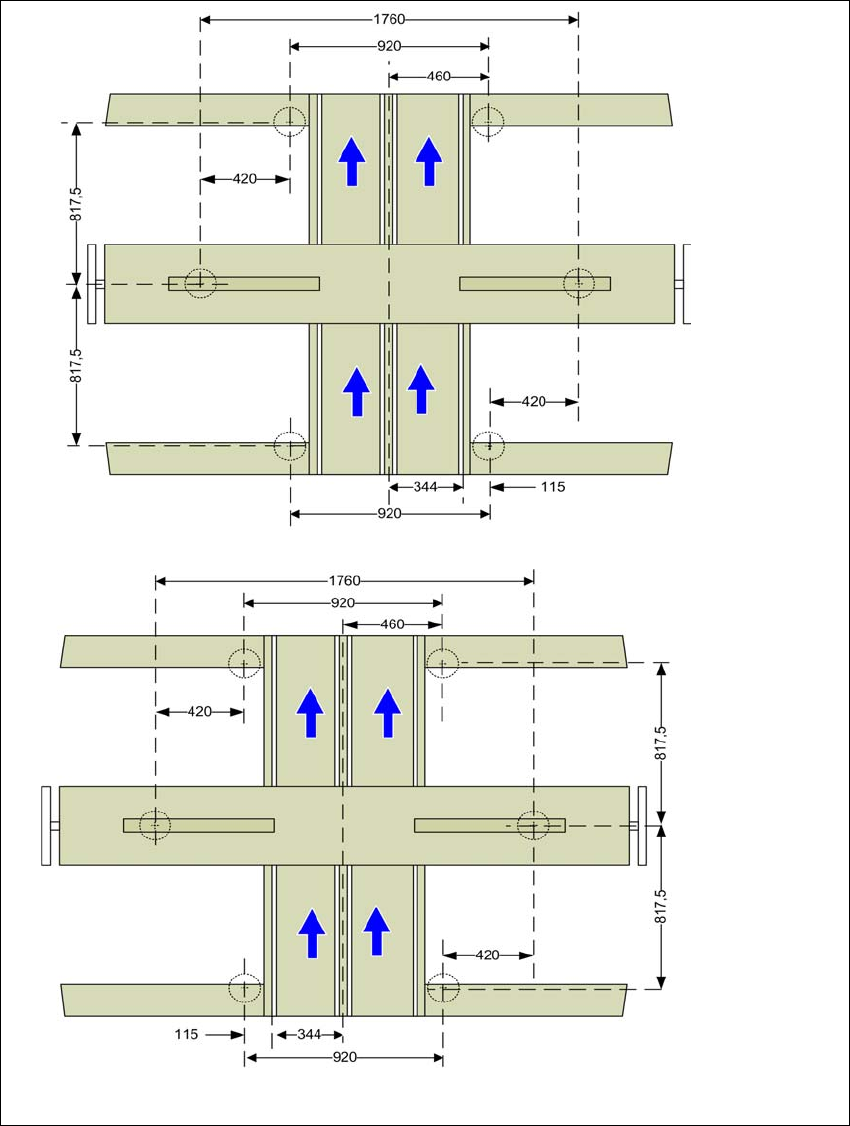

Fig. 4.3 - 9 Machine foot clearances for the PCB dual conveyor in millimeters
Fixed conveyor side at maxi-
mum right position
a
.
a) The value depends on the position of the fixed side. All dimensions in millimeters.
Fixed conveyor side at maxi-
mum left position
a
.
4 Setting up and commissioning User manual SIPLACE X-Series
4.3 Setting up the machine From software version 708.1 Version 05/2015
250
4.3.8 Integrating the machine into the line
Observe the general warnings in section 4.3.1, page 235.
Observe the warnings for transportation of the machine in section 4.3.2, page 236.
For details of tools and equipment, refer to section 4.3.5, page 239.
4.3.8.1 Aligning and adjusting the machines in the line
With the fork-lift, raise the machine until the weight is taken off the machine feet.
Determine the PCB conveyor height for the machine in the line and use the hexagon socket
head screw to adjust the height approximately.
You may need to fit the machine feet to the relevant PCB conveyor height (see 4.3.6 on page
240).
Position the machine on the free location on the line using the fork-lift.
Pay attention to the alignment of the PCB conveyors and check the distance to the previous
machine.
4
4
WARNING
Risk of damage!
If the machine feet on one side hit the ground hard, the fixings may be damaged.
Lower the machine slowly.
A second person should look underneath to ensure that all the machine foot touch
the floor at the same time.
