User manual SIPLACE X-Series 3 Technical data and assemblies
From software version 708.1 Version 05/2015 3.9 X feeder modules for SIPLACE X-Series
195
3.9.5 Feeder module adapter for the X-Series
Item no. 00141305-xx Adapter for X-Series feeder modules
Item no. 00141308-xx Adapter plate for Reject Conveyor
Item no. 00141310-xx Adapter plate for Label Presenter
3
The spectrum of X tape feeder modules has been extended to include the linear vibratory feeder,
the Label Presenter and the Reject Conveyor. With an adapter, you can also convert the S linear
vibratory feeder, Label Presenter and Reject Conveyor for use with X-Series component trolleys.
The adapter performs electronic as well as mechanical functions: It converts the communication
signals from the S feeder modules into signals conforming to the extended X-Series protocol. Ad-
ditional functions, such as feeder module identification, have also been implemented.
3
PLEASE NOTE
S linear vibratory feeders, label presenters and reject conveyors can not be set up at
component trolleys if these are in the access range of a SpeedStar (C&P20).
3 Technical data and assemblies User manual SIPLACE X-Series
3.9 X feeder modules for SIPLACE X-Series From software version 708.1 Version 05/2015
196
3.9.5.1 Feeder module adapter for the X-Series with Label Presenter
3

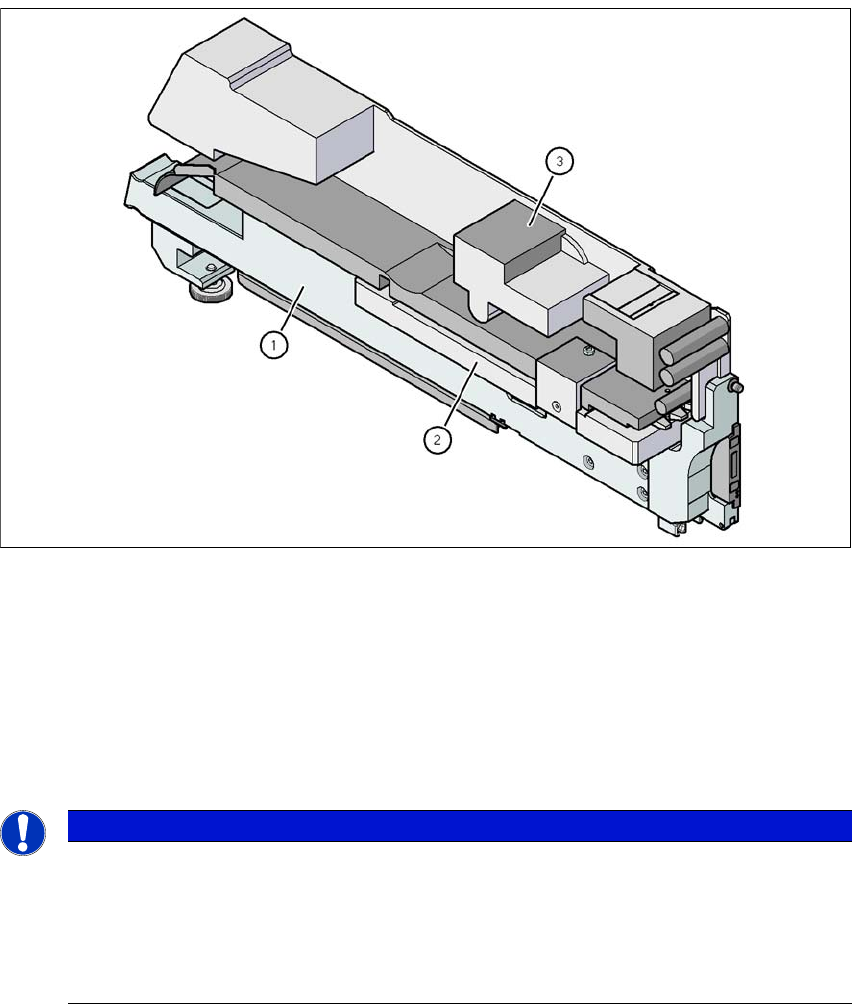

Fig. 3.9 - 17 Feeder module adapter for the X-Series with Label Presenter
(1) Adapter for X-Series feeder modules (item no. 00141305-xx)
(2) Adapter plate for Label Presenter (item no. 00141310-xx)
(3) Label presenter
3.9.5.2 Feeder module adapter for the X-Series with linear vibratory feeder
3
3
PLEASE NOTE
Use of adapter plate
An adapter plate is supplied as standard with the adapter for X-Series feeder modules:
The adapter plate should be used for component heights up to 16.5 mm.
Component heights between 16.5 mm and 25 mm are processed without an adapter
plate.
User manual SIPLACE X-Series 3 Technical data and assemblies
From software version 708.1 Version 05/2015 3.9 X feeder modules for SIPLACE X-Series
197
3

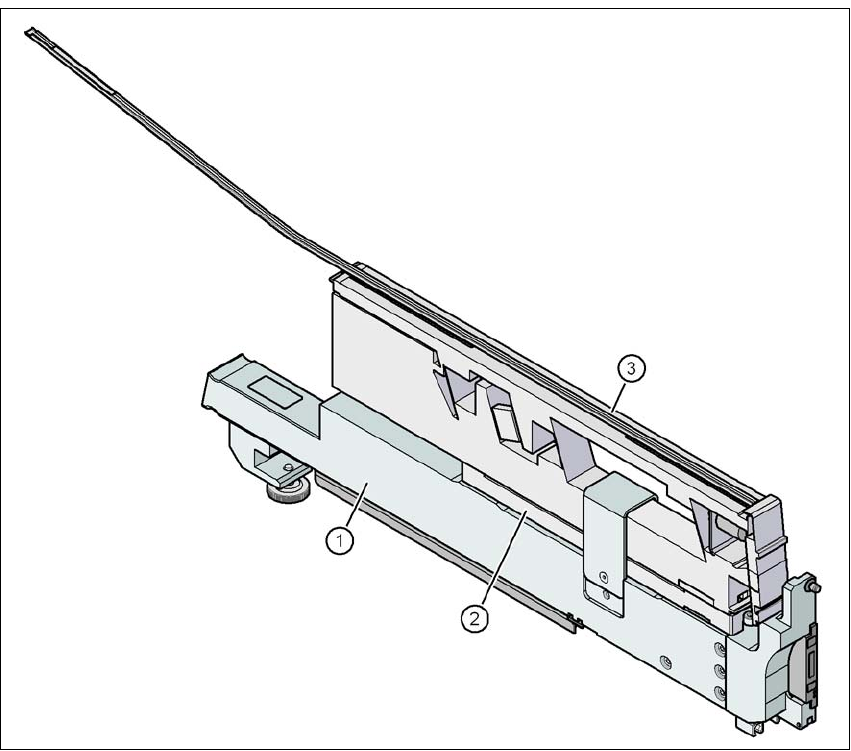

Fig. 3.9 - 18 Feeder module adapter for the X-Series with linear vibratory feeder
(1) Adapter for X-Series feeder modules (item no. 00141305-xx)
(2) Adapter plate 16.5 mm (in the deliverables)
(3) Linear vibratory feeder, type 3 (item no. 00142031-xx)
Width 34.4 mm
Tracks per feeder module 1, 2 or 3 3
Occupied feeder module locations 3 3
Stock of components Up to 150 per steel stick magazine, 3
depending on the component length 3
Specific data for stick magazines 9.5 mm wide / x 3 3
15 mm wide / x 2 3
> 15 mm wide / x 1 3
30 mm wide / 1 x 3
Vibrating time: variable setting with SIPLACE Pro from 400 to
over 1000 msec 3
