2 Operational safety User manual SIPLACE X-Series
2.2 Warning labels From software version 708.1 Version 05/2015
54

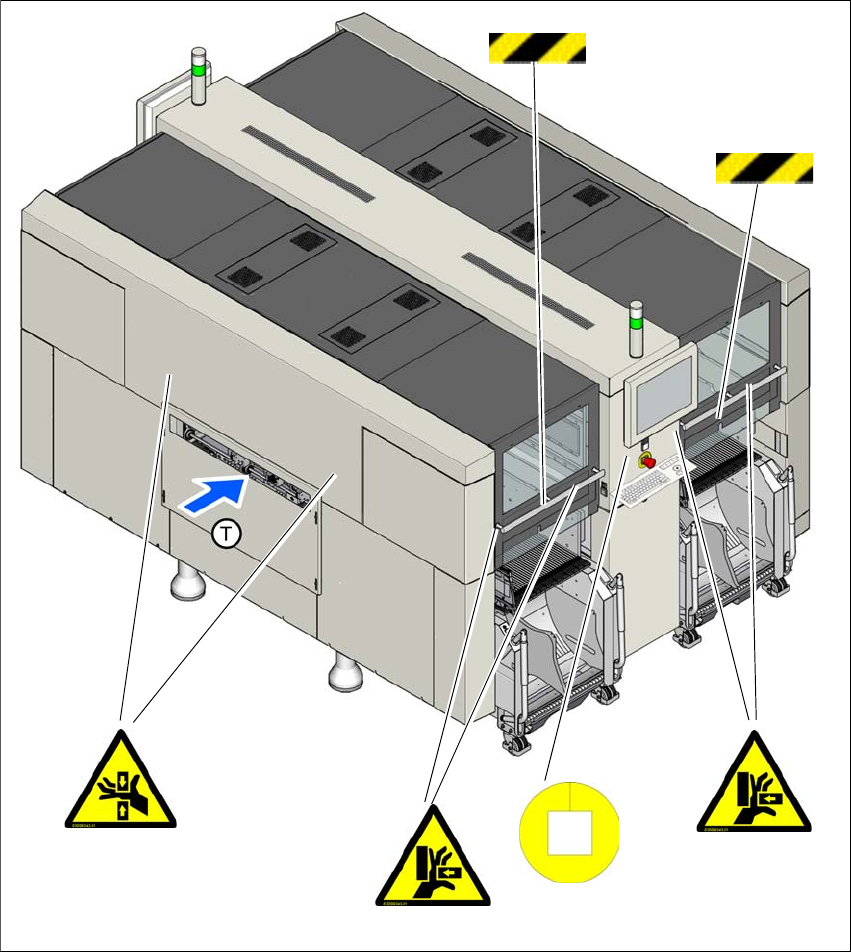

Fig. 2.2 - 2 Warning labels on the machine - part 2 (example of SIPLACE X2 S / X3 S / X4 S shown)
W203, item no. 03009342-01
W204, item no. 03009343-01
W210, item no. 03009350-01
(1) Warning strips, down on the four protective hoods
(T) Direction of PCB transport
W 210
W 204
W 203
W 204
1
1
User manual SIPLACE X-Series 2 Operational safety
From software version 708.1 Version 05/2015 2.2 Warning labels
55
2
2.2.1.1 Warning label W201
2
W201 in fig. 2.2 - 1, page 53, item no. 03009338-01 (quantity per machine: 1)
2.2.1.2 Warning label W203
2
W203 in fig. 2.2 - 1, page 53 and 2.2 - 2, page 54, item no. 03009342-01 (quantity per machine: 4)
WARNING
Damage to warning labels!
The warning labels can be damaged or destroyed by abrasive cleaning agents or sol-
vents.
Do not use abrasive cleaners or solvents for cleaning warning labels.
Replace any damaged or illegible warning labels.
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
SAFE OPERATION OF THE MACHINE
Safe operation of the machine depends absolutely on the opera-
tor being familiar with the user manual and safety instructions
and putting them into effect.
2
2
2
DANGER OF CRUSHING!
Reaching in here can lead to injuries to the arms and hands.
Do not reach into the machine while it is running
2 Operational safety User manual SIPLACE X-Series
2.2 Warning labels From software version 708.1 Version 05/2015
56
2.2.1.3 Warning label W204
2
W204 in fig. 2.2 - 1, page 53 and 2.2 - 2, page 54, and 2.2 - 3, page 57,
Item no. 03009343-01 (quantity per machine: 8)
2.2.1.4 Warning label W210
2
W210 in fig. 2.2 - 1, page 53 and 2.2 - 2, page 54, item no. 03009350-01 (quantity per machine: 2)
2.2.1.5 Warning strips
2
2
2
DANGER OF CRUSHING!
Reaching in here can lead to injuries to the arms and hands.
Do not reach into the machine while it is running
2
2
2
2
2
2
Warning label on the EMERGENCY STOP button
2
2
2
RISK OF CRUSHING HANDS IF THE PROTECTIVE COVERS ARE
NOT CLOSED CORRECTLY
See also 2.5.1 - Safety instructions for closing the protective covers.
