6 Station extensions User manual SIPLACE X-Series
6.1 Nozzle changer From software version 708.1 Version 05/2015
330
6.1.2.5 Configuration example: C&P20/C&P20 M for SIPLACE X4i S - outer table position
Two rows of nozzle changers can be installed at locations 1, 2, 3 and 4 for the SpeedStar (items
1 and 4 in fig. 6.1 - 4
, page 330).
6
Fig. 6.1 - 4 Position of nozzle changer for the SIPLACE SpeedStar machine - configuration example (SIPLACE X4i
S)
6
6
6
(1) Nozzle changer
(2) SIPLACE SpeedStar
(3) "Outer" table position
(4) Nozzle changer row 2 (optional)
PLEASE NOTE
Stop machine if magazine missing
The safety circuit stops the machine if magazines are missing or not fitted correctly.
Use all magazine places.
(2)
(4)
(1)
(2)
(1)
(2) (2)
(1)
(3)
(3)
(3)
(3)
(4)
(1)
(4)
(4)
User manual SIPLACE X-Series 6 Station extensions
From software version 708.1 Version 05/2015 6.1 Nozzle changer
331
6.1.2.6 Configuration example: C&P20/C&P20 M for SIPLACE X4 S
Locations 1, 2, 3 and 4 can each accommodate one nozzle changer for the SpeedStar (item 1 in
fig. 6.1 - 5
, page 331).
6

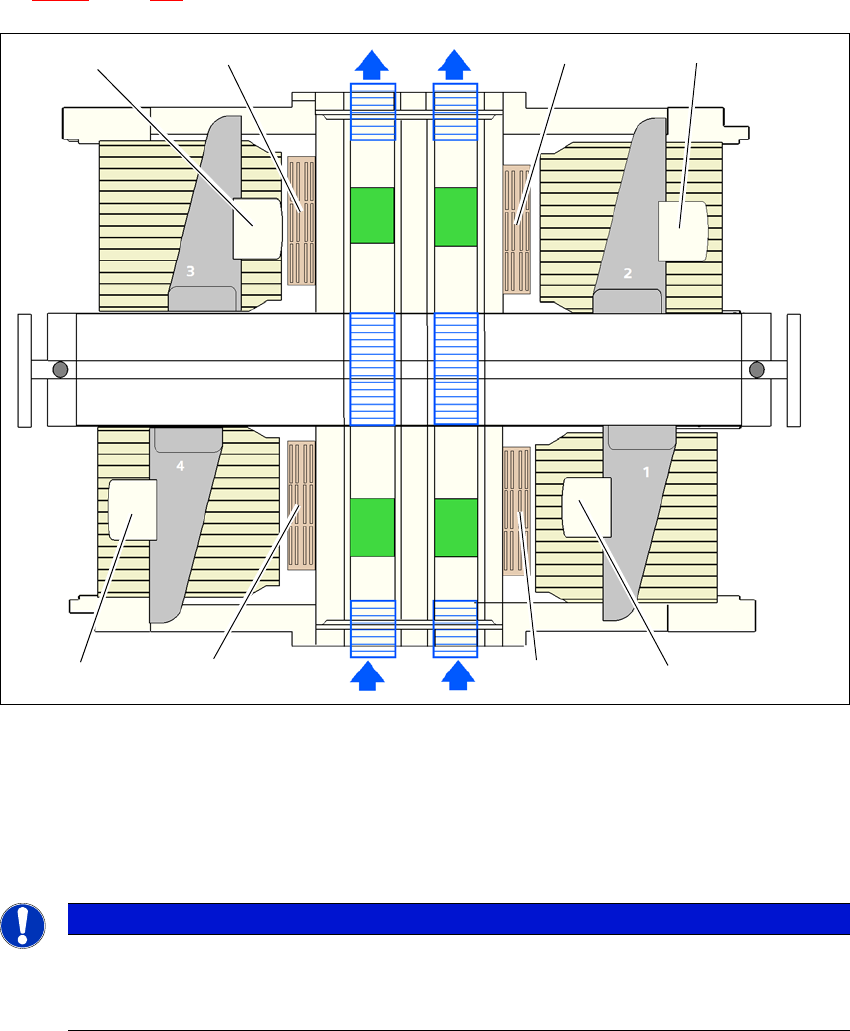

Fig. 6.1 - 5 Position of nozzle changer for the SIPLACE SpeedStar machine - configuration example (SIPLACE X4
S)
6
6
6.1.2.7 Nozzle changer "row 2" for the SIPLACE SpeedStar
The "nozzle changer for row 2" option enables you to configure an additional row of nozzle chang-
ers for the SIPLACE SpeedStar. The retrofit package contains the nozzle changer and an assem-
bly kit.
(1) Nozzle changer
(2) SIPLACE SpeedStar
PLEASE NOTE
Stop machine if magazine missing
The safety circuit stops the machine if magazines are missing or not fitted correctly.
Use all magazine places.
(2)
(1)
(1)
(2)
(1)
(2) (2)
(1)
6 Station extensions User manual SIPLACE X-Series
6.1 Nozzle changer From software version 708.1 Version 05/2015
332
6.1.2.8 Assembly
The nozzle changers are fixed to the COT insert.
6

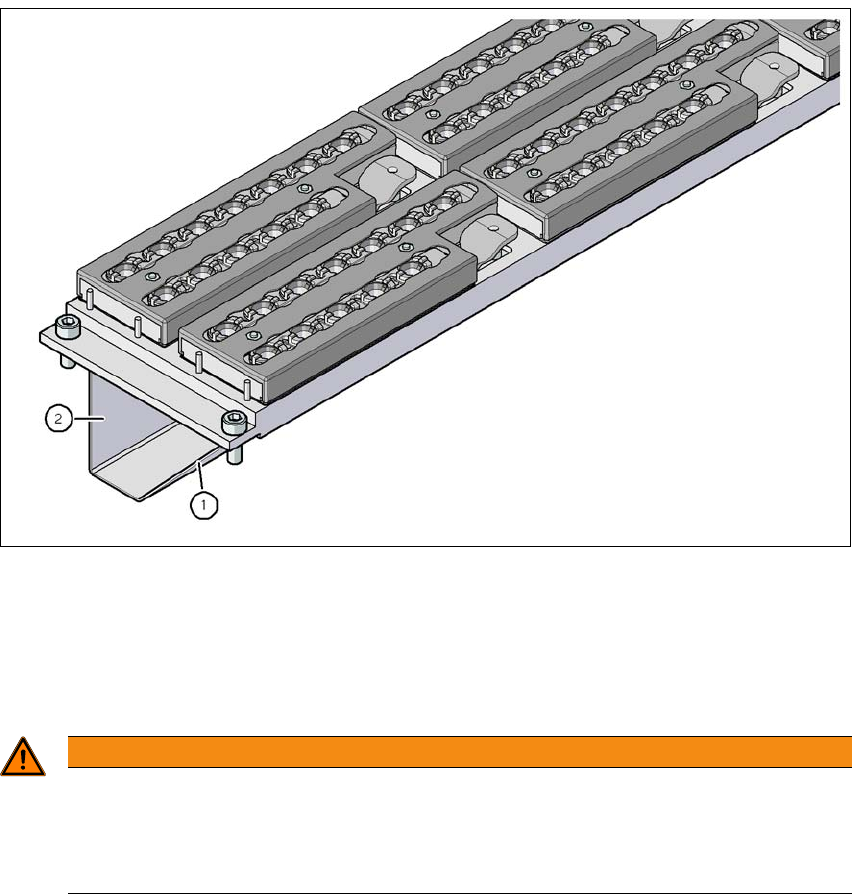

Fig. 6.1 - 6 Assembly position
(1) Sloping side points towards the COT insert
(2) Vertical side points towards the PCB conveyor
Align the nozzle changer so that the sloping side points towards the COT insert.
6
WARNING
Risk of head crashes with mixed configurations!
There is a risk of head crashes with mixed configurations.
Only install the associated nozzle changer for each placement head, with the nozzle
magazines for the respective placement head.
