5.6.2 Viewing information about the selected alert
Click on the button in the toolbar (1).
All the alerts which occurred will be listed.
Click on the "Show message report" (2) button.
Click through the menu tree of the alert list (3), to open detailed alert messages.
. 5
Fig. 5.6 - 2 Example:alert list (example of SIPLACE X4i shown)
Select the alert display for which you want to view information from the list of alerts.
Click on the "Show Help" (4) button to view the information.
To view information about a different alert, search the index of the help system (5) by entering the
alert number.
User manual SIPLACE X-Series 5 Working with the machine
From software version 708.1 Version 05/2015 5.6 Alert information and online help
285
5.6.3 Color coding in the online help alert information
5
5.6.4 Context-sensitive online help
To see information about the current view, click on the icon to start the help system for the
station computer. The main window of the help system will open with alert information. The infor-
mation refers to the view currently shown and from which the help function was started. Use the
list of contents, index and the search function to view the contents of the Online Help.
Text highlight Meaning
Red text Alert number and message
Black text Possible cause(s) of alert
Green text Instructions for solving the alert
Blue underlined text Open additional information
5 Working with the machine User manual SIPLACE X-Series
5.7 Indicator lamps with horn From software version 708.1 Version 05/2015
286
5.7 Indicator lamps with horn
5.7.1 Overview
These indicator lamps are used to signal operating statuses and malfunctions of the machine. The
horn indicates when an alert has occurred. SIPLACE machines can either be fitted with a two or
three color indicator lamp. The relevant indicator lamp system (two or three color) is set in the au-
toconfiguration, see installation guide for station software, Item No. 00196771-xx.
5.7.1.1 Two color indicator lamp (standard)

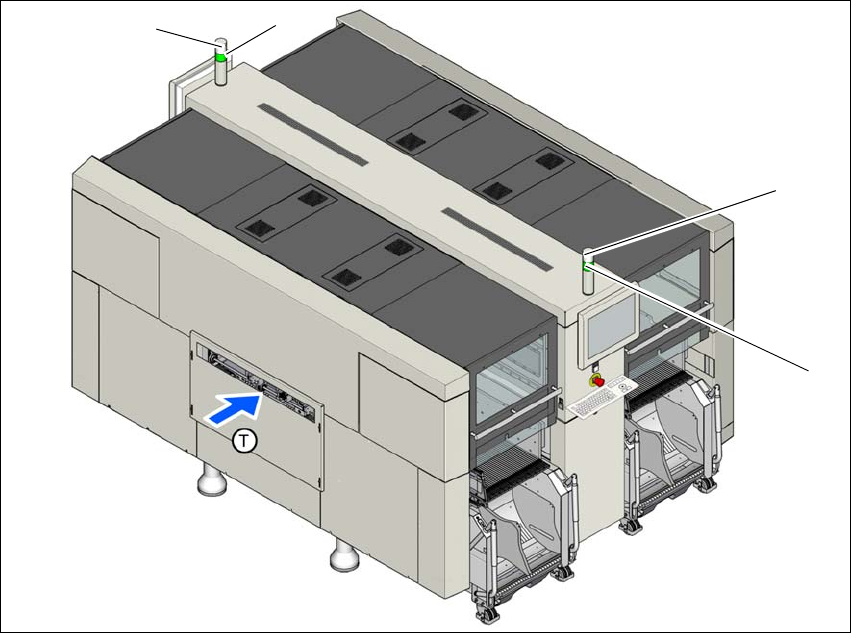

Fig. 5.7 - 1 Indicator lamps for operating states (example of SIPLACE X2 S / X3 S / X4 S shown)
L1 White indicator lamp, right
L2 Green indicator lamp, right
L3 White indicator lamp, left
L4 Green indicator lamp, left
T Direction of PCB transport
(L2)
(L1)
(L3)
(L4)
