6 Typical Operating Characteristics
6.1 Electro-Optical Characteristics
Below are the typical electro-optical specifications of the CMV12000. These are typical values for the
whole operating temperature range unless otherwise specified.
Figure 7:
Electro-Optical Characteristics
Parameter
Value
Remark
Effective pixels
4096 × 3072
Pixel pitch
5.5 µm × 5.5 µm
Optical format
APS-like
28.16 mm
Pixel type
Global shutter
with true CDS
Allows fixed pattern noise correction and reset (kTC) noise canceling by true
correlated double sampling (true-CDS).
Shutter type
Pipelined global
shutter
Exposure of next image during readout of the previous image.
Full well charge
13500 e
Pixel full well charge
Conversion gain
0.11 DN/e
10b, unity gain
Sensitivity
4.64 V/lux.s
0.22 A/W
@555 nm
Temporal noise
13 e
Dynamic range
60 dB
SNR
MAX
41.3 dB
Shutter efficiency
1/50000
@555 nm
Dark current
70 e/s
@ 25 °C junction temperature
DC doubles every 6.5 °C increase
DCNU
7.5 e/s
@ 25 °C sensor temperature; DC Non Uniformity
FPN
<1 LSB
<0.1 % of full swing in 10b mode; fixed pattern noise
PRNU
< 1.27 % RMS
Photo Response Non Uniformity; RMS of signal
Color filters
Optional
RGB Bayer pattern
QE
50 %
Monochrome device @ 555 nm; Quantum efficiency
LVDS outputs
64 Data
1 Control
1 Clock
Each data output running @600 Mbit/s maximum.
Less outputs selectable at reduced frame rate
Frame rate
300 fps
Using 10-bit mode at 600 Mbit/s
Higher frame rate possible in row windowing mode.
Timing generation
On-chip
Possibility to control exposure time through external pin.
PGA
Yes
x1, x2, x3, x4 analog gain settings
Programmable
registers
Sensor
parameters
Window coordinates, Timing parameters, Gain & offset, Exposure time,
Document Feedback
CMV12000
Typical Operating Characteristics
Datasheet • PUBLIC
DS000603 • v6-00 • 2023-Sep-22
84 │ 17
Parameter
Value
Remark
HDR mode
Interleaved
Multiple slope
2 exposure times for odd/even columns
Partial pixel reset
ADC
8/10/12-bit
Column ADC
Interface
LVDS; 600 Mbit/s
Serial output data + synchronization signals
I/O logic levels
LVDS = 1.8 V
Dig. I/O = 3.3 V
Cover glass
D263T eco
Double sided AR coating
T≥97.0 % abs, 400 - 900 nm, per surface, AOI=15°
Mass
15.2 g
6.2 Spectral Characteristics

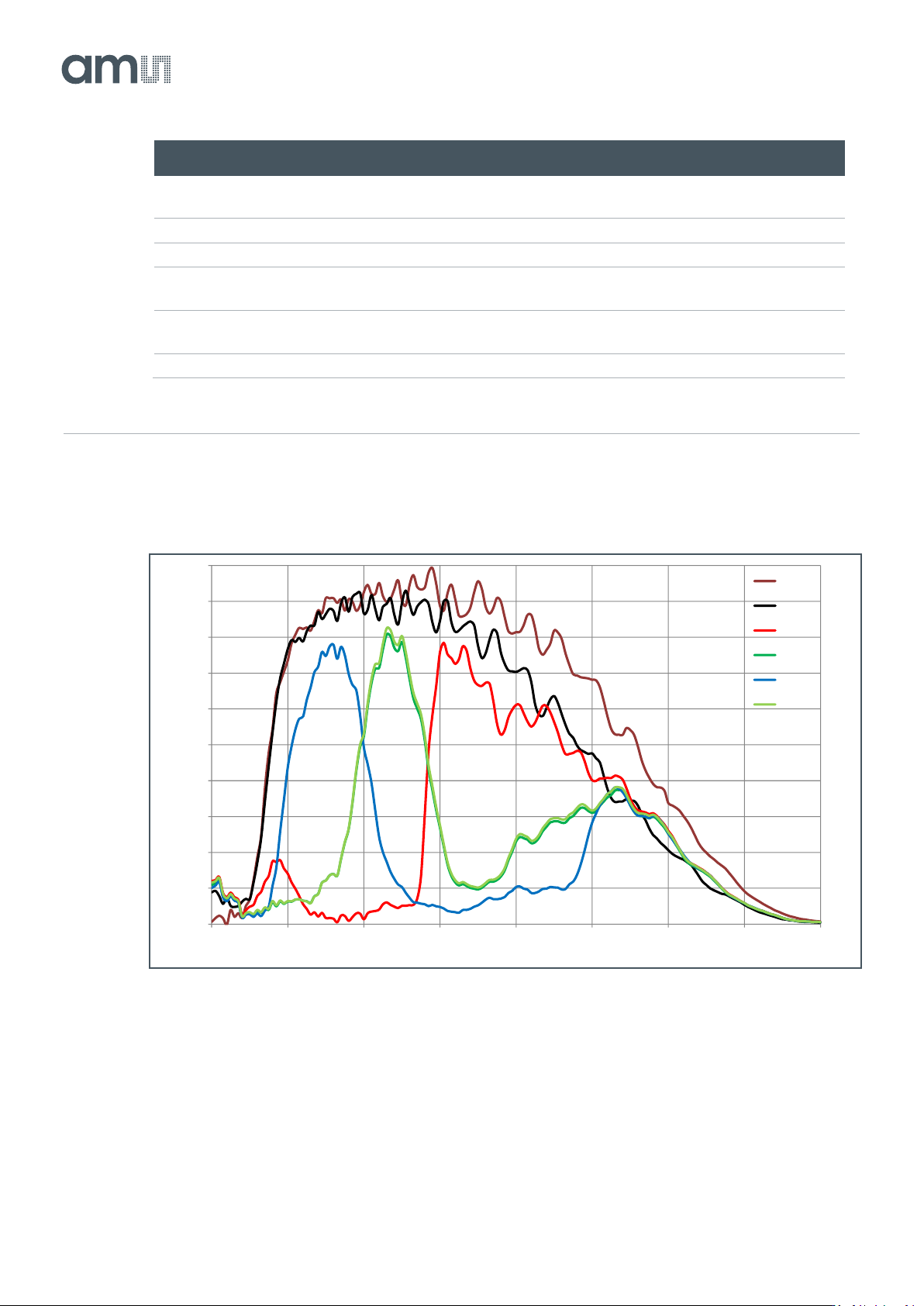

Figure 8:
Quantum Efficiency
0
0.05
0.1
0.15
0.2
0.25
0.3
0.35
0.4
0.45
0.5
300 400 500 600 700 800 900 1000 1100
Absolute QE
Wavelength [nm]
NIR
Mono
Color_R
Color_Gr
Color_B
Color_Gb
Document Feedback
CMV12000
Typical Operating Characteristics
Datasheet • PUBLIC
DS000603 • v6-00 • 2023-Sep-22
84 │ 18

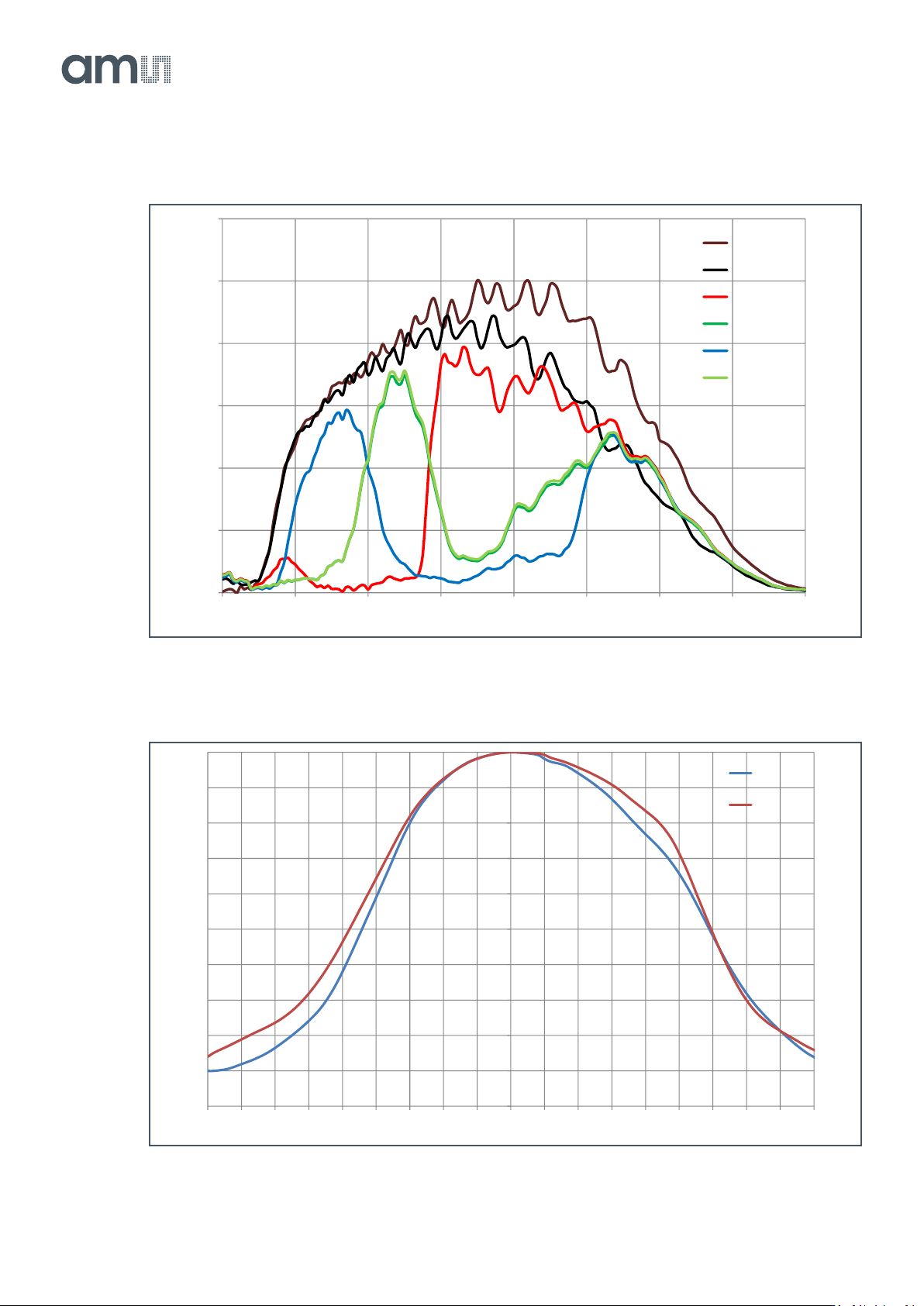

Figure 9:
Spectral Response
Figure 10:
Angular Response
0
0.05
0.1
0.15
0.2
0.25
0.3
300 400 500 600 700 800 900 1000 1100
Spectral response [A/W]
Wavelength [nm]
NIR
Mono
Color_R
Color_Gr
Color_B
Color_Gb
0
10
20
30
40
50
60
70
80
90
100
-45 -40 -35 -30 -25 -20 -15 -10 -5 0 5 10 15 20 25 30 35 40 45
Relative response [%]
Incmoming light angle [°]
Vertical
Horizontal
