1 General Description
The CMV12000 is a high speed CMOS image sensor with 4096 by 3072 pixels (22.5 mm x 16.9 mm)
developed for machine vision and other applications. The image array consists of 5.5 μm x 5.5 μm
pipelined global shutter pixels, which allow exposure during read-out. The image sensor has 64 8-,
10 - or 12-bit digital LVDS outputs (serial). The image sensor also integrates a programmable gain
amplifier and offset regulation. Each channel runs at 600 Mbit/s which results in 132 fps frame rate at
full resolution and 12-bit. When 10-bit per pixel is used, the frame rate increases to 300 fps. Higher
frame rates can be achieved in row-windowing mode or row-subsampling mode. These modes are all
programmable using the SPI interface. A programmable on-board sequencer generates all internal
exposure and read-out timings. External triggering and exposure programming is possible. Extended
optical dynamic range can be achieved by multiple integrated high dynamic range modes.
1.1 Key Benefits & Features
The benefits and features of CMV12000, 12Mp High Speed Machine Vision Global Shutter CMOS
Image Sensor are listed below:
Figure 1:
Added Value of Using CMV12000
Benefits
Features
Designed for high performance applications
A resolution of 4096×3072 at 300 frames per
second
Capture fast moving objects
8T global shutter pixel with true Correlated
Double Sampling (true CDS)
Select high frame rate or improved image quality
8-bit, 10-bit and 12-bit ADC
See bright and dark objects simultaneous
Standard dynamic range of 60 dB
High Dynamic Range (HDR) modes possible
1.2 Applications
● Machine Vision
● High End Inspection
● Video/Broadcast
● Motion Capture
● Intelligent Transportation System (ITS)
Document Feedback
CMV12000
General Description
Datasheet • PUBLIC
DS000603 • v6-00 • 2023-Sep-22
84 │ 4

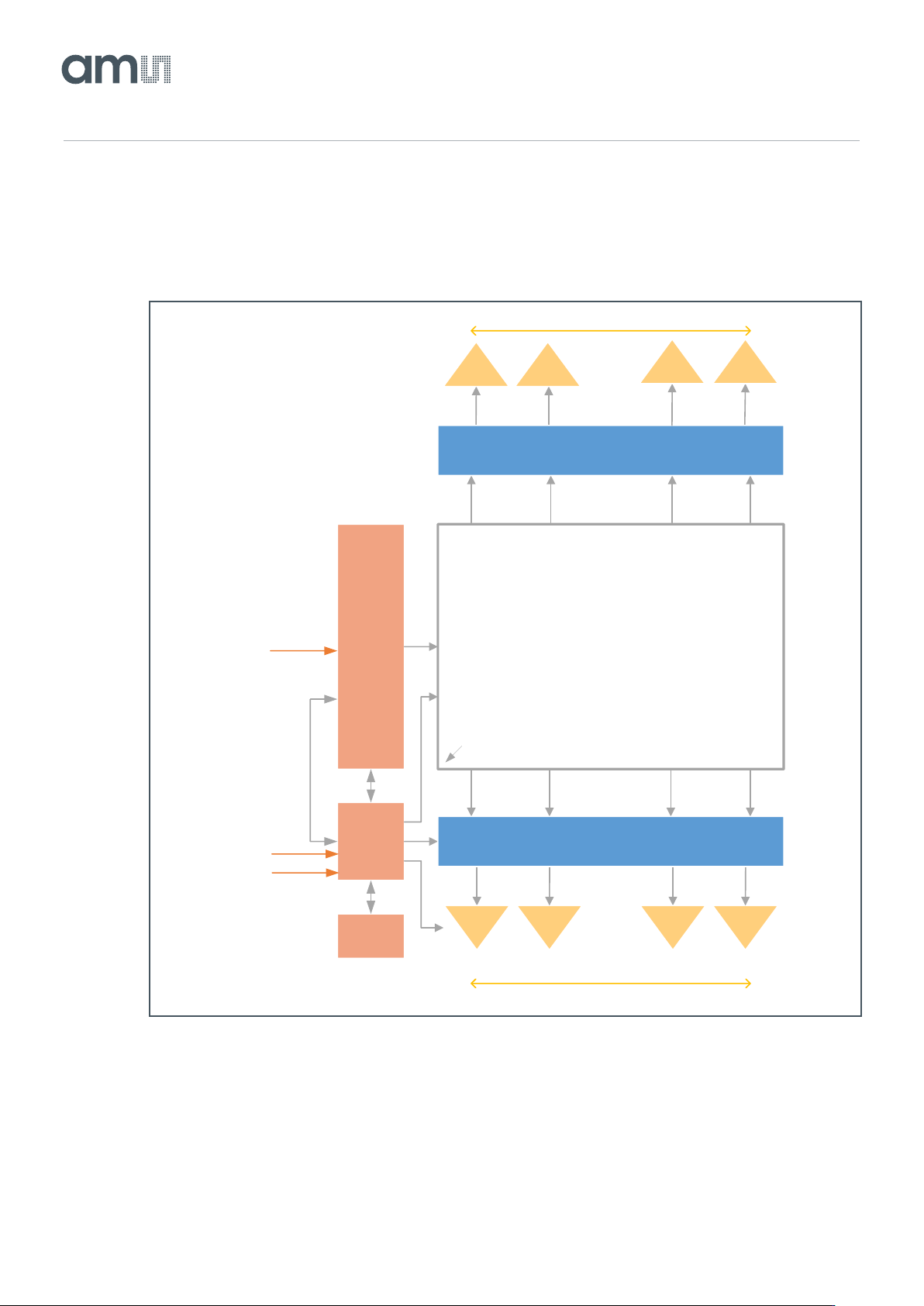

1.3 Block Diagram
The functional blocks of this device are shown below:
Figure 2:
Functional Blocks of CMV12000
Pixel array
4096 x 3072 active pixels
SPI
Sequencer
32, 16, 8, 4, 2 or 1 outputs
External driving
signals
...
Input clock
SPI signals
Temp
Sensor
LVDS LVDS LVDS LVDS
Analog Front End
(gain, offset, ADCs)
...
32, 16, 8, 4, 2 or 1 outputs
...
Analog Front End
(gain, offset, ADCs)
...
LVDSLVDS
LVDSLVDS
Pixel (0,3071)
Document Feedback
CMV12000
Ordering Information
Datasheet • PUBLIC
DS000603 • v6-00 • 2023-Sep-22
84 │ 5

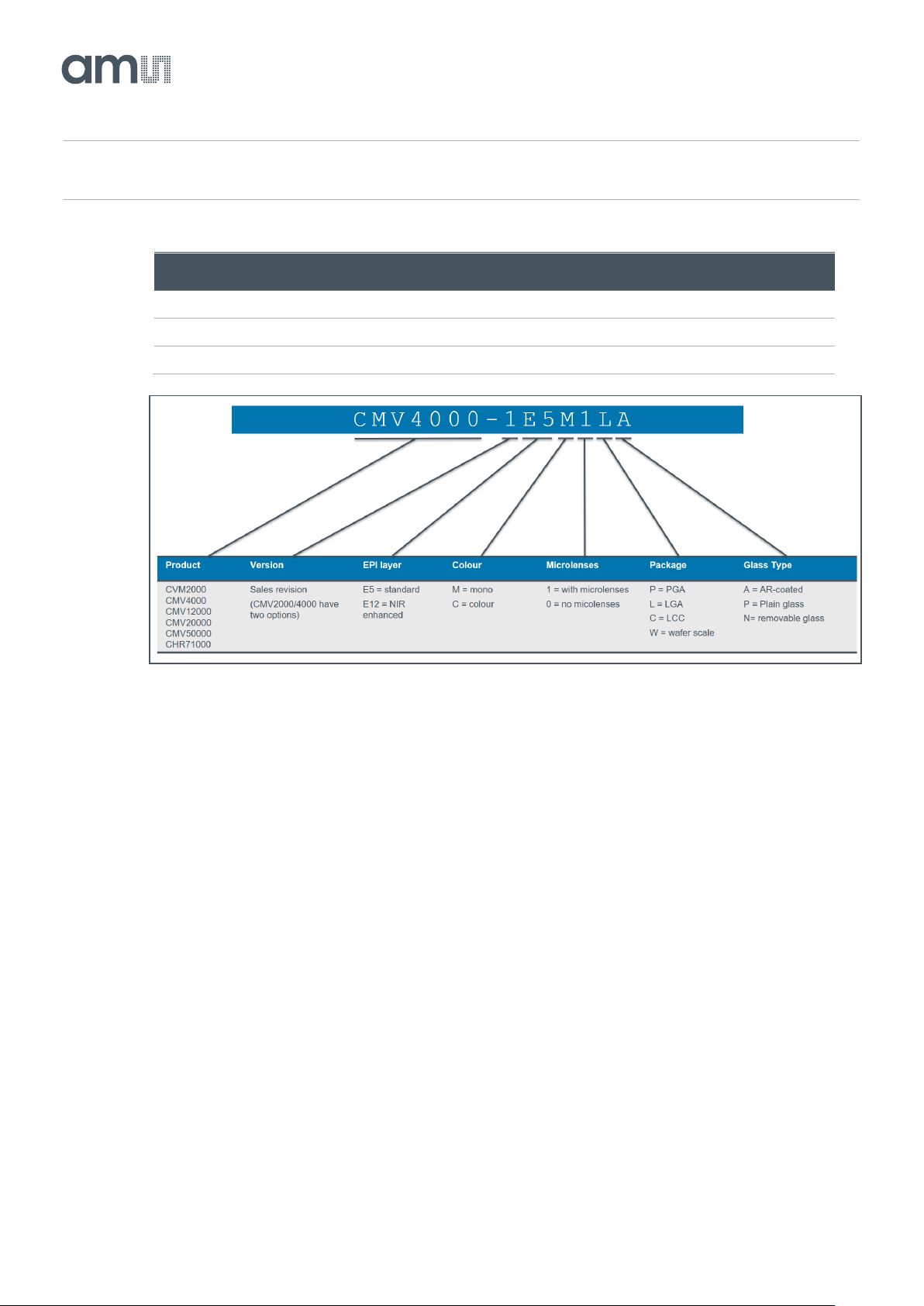

2 Ordering Information
Ordering Code
Package
Chroma
Delivery Quantity
CMV12000-2E5M1PA
237-µPGA
Mono
18 pcs/tray
CMV12000-2E5C1PA
237-µPGA
Color
18 pcs/tray
CMV12000-2E5M1PN
237-µPGA
Mono
18 pcs/tray
