Document Feedback

CMV12000

Pin Assignment

Datasheet • PUBLIC

DS000603 • v6-00 • 2023-Sep-22

84 │ 6

3 Pin Assignment

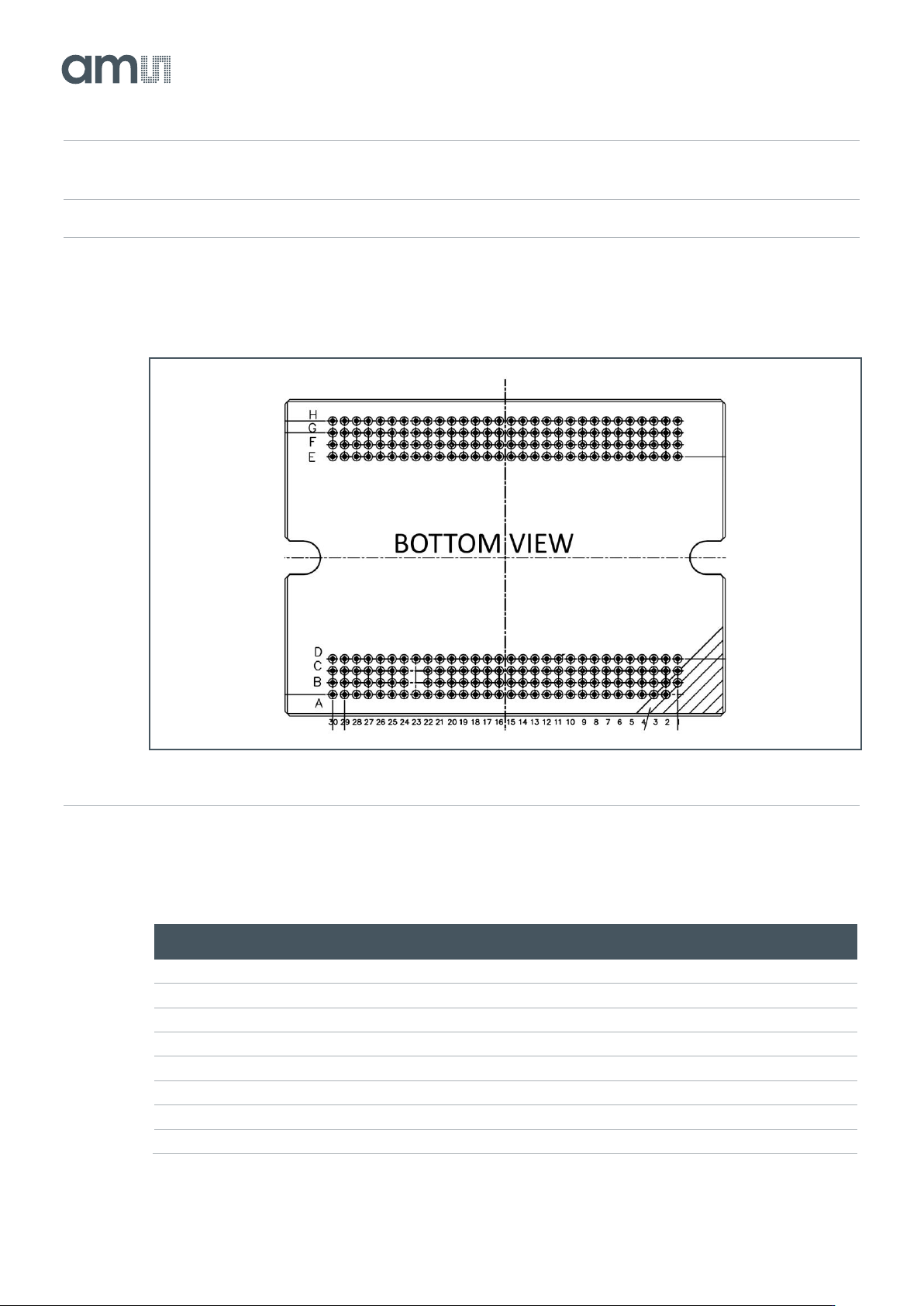

3.1 Pin Diagram

Figure 3:

Pin Numbering

3.2 Pin Description

Figure 4:

Pin Description of CMV12000

Number

Name

Type

Description

TANA

Analog output

Test pin for analog pixel signals (do not connect)

VREF

Bias

Reference for column amps (decouple with 100 nF to GND)

VPCH_L

Bias

Pre-charge low voltage (decouple with 100 nF to GND)

OUTCTR_N

LVDS output

LVDS negative control channel output

OUTCTR_P

LVDS output

LVDS positive control channel output

OUT2_N

LVDS output

LVDS negative output channel 2

OUT2_P

LVDS output

LVDS positive output channel 2

GND

Ground

Ground pin

Document Feedback

CMV12000

Pin Assignment

Datasheet • PUBLIC

DS000603 • v6-00 • 2023-Sep-22

84 │ 7

Number

Name

Type

Description

A10

VDD18

Supply

1.98 V supply

A11

OUT9_N

LVDS output

LVDS negative output channel 9

A12

OUT9_P

LVDS output

LVDS positive output channel 9

A13

OUT13_N

LVDS output

LVDS negative output channel 13

A14

OUT13_P

LVDS output

LVDS positive output channel 13

A15

VDD18

Supply

1.98 V supply

A16

VDD18

Supply

1.98 V supply

A17

OUT19_N

LVDS output

LVDS negative output channel 19

A18

OUT19_P

LVDS output

LVDS positive output channel 19

A19

OUT23_N

LVDS output

LVDS negative output channel 23

A20

OUT23_P

LVDS output

LVDS positive output channel 23

A21

GND

Ground

Ground pin

A22

VDD18

Supply

1.98 V supply

A23

OUT29_N

LVDS output

LVDS negative output channel 29

A24

OUT29_P

LVDS output

LVDS positive output channel 29

A25

GND

Ground

Ground pin

A26

VDD18

Supply

1.98 V supply

A27

VDD18

Supply

1.98 V supply

A28

GND

Ground

Ground pin

A29

GND

Ground

Ground pin

A30

VDD_PIX

Supply

3.0 V supply

CMD_COL_LOAD

Bias

Decouple with 100 nF to VDD33

VTREF

Analog input

Test pin (decouple with 100 nF to GND)

VREF_ADC

Bias

Reference for ADC (decouple with 100 nF to GND)

VDD18

Supply

1.98 V supply

GND

Ground

Ground pin

OUT1_N

LVDS output

LVDS negative output channel 1

OUT1_P

LVDS output

LVDS positive output channel 1

OUT5_N

LVDS output

LVDS negative output channel 5

OUT5_P

LVDS output

LVDS positive output channel 5

B10

OUT8_N

LVDS output

LVDS negative output channel 8

B11

OUT8_P

LVDS output

LVDS positive output channel 8

B12

OUT12_N

LVDS output

LVDS negative output channel 12

B13

OUT12_P

LVDS output

LVDS positive output channel 12

B14

OUT16_N

LVDS output

LVDS negative output channel 16

B15

OUT16_P

LVDS output

LVDS positive output channel 16

B16

OUT18_N

LVDS output

LVDS negative output channel 18

B17

OUT18_P

LVDS output

LVDS positive output channel 18

B18

OUT22_N

LVDS output

LVDS negative output channel 22

B19

OUT22_P

LVDS output

LVDS positive output channel 22

Document Feedback

CMV12000

Pin Assignment

Datasheet • PUBLIC

DS000603 • v6-00 • 2023-Sep-22

84 │ 8

Number

Name

Type

Description

B20

OUT26_N

LVDS output

LVDS negative output channel 26

B21

OUT26_P

LVDS output

LVDS positive output channel 26

B22

GND

Ground

Ground pin

B24

OUT31_N

LVDS output

LVDS negative output channel 31

B25

OUT31_P

LVDS output

LVDS positive output channel 31

B26

GND

Ground

Ground pin

B27

GND

Ground

Ground pin

B28

GND

Ground

Ground pin

B29

CMD_RAMP

Bias

Decouple with 100 nF to VDD33

B30

VTF_LOW2

Bias

Transfer low voltage 2 (decouple with 100 nF to GND)

CMD_LVDS

Bias

Decouple with 100 nF to GND

VTSIG

Analog input

Test pin (decouple with 100 nF to GND)

VCM_COMP33

Bias

Decouple with 100 nF to GND

VPCH_H

Bias

Pre-charge high voltage (decouple with 100 nF to GND)

VTF_LOW0

Bias

Transfer low voltage 0 (connect to GND)

CMD_COLAMP

Bias

Decouple with 100 nF to VDD33

OUT4_N

LVDS output

LVDS negative output channel 4

OUT4_P

LVDS output

LVDS positive output channel 4

OUT7_N

LVDS output

LVDS negative output channel 7

C10

OUT7_P

LVDS output

LVDS positive output channel 7

C11

OUT11_N

LVDS output

LVDS negative output channel 11

C12

OUT11_P

LVDS output

LVDS positive output channel 11

C13

OUT14_N

LVDS output

LVDS negative output channel 14

C14

OUT14_P

LVDS output

LVDS positive output channel 14

C15

GND

Ground

Ground pin

C16

GND

Ground

Ground pin

C17

OUT21_N

LVDS output

LVDS negative output channel 21

C18

OUT21_P

LVDS output

LVDS positive output channel 21

C19

OUT25_N

LVDS output

LVDS negative output channel 25

C20

OUT25_P

LVDS output

LVDS positive output channel 25

C21

OUT28_N

LVDS output

LVDS negative output channel 28

C22

OUT28_P

LVDS output

LVDS positive output channel 28

C24

OUT32_N

LVDS output

LVDS negative output channel 32

C25

OUT32_P

LVDS output

LVDS positive output channel 32

C26

VDD33

Supply

3.3 V supply

C27

VDD33

Supply

3.3 V supply

C28

GND

Ground

Ground pin

C29

VBGAP

Bias

Decouple with 100 nF to GND

C30

VTF_LOW3

Bias

Transfer low voltage 3 (decouple with 100 nF to GND)

CMD_COL_PC

Bias

Decouple with 100 nF to VDD33
