CMV12000
Functional Description
Datasheet • PUBLIC
DS000603 • v6-00 • 2023-Sep-22
84 │ 31
7.3.4 Pixel Remapping
Depending on the number of output channels, the pixels are located at different channels and are read
out at a different moment in time. With the details from the next sections, the end user is able to remap
the pixels on the outputs to their correct image array location.
Two Sided Readout Mode
Below are two examples of the pixel mapping when using 2 × 32 channels and 2 × 16 channels. It will
be similar for less channels.
64 bursts (2 × 32) of 128 pixels happen in parallel on the data outputs. This means that two complete
rows are read out in one burst; the odd rows via the bottom channels, the even rows via the top
channels. The amount of rows that will be read out depends on the value in the corresponding
register. By default there are 3072 rows read out.

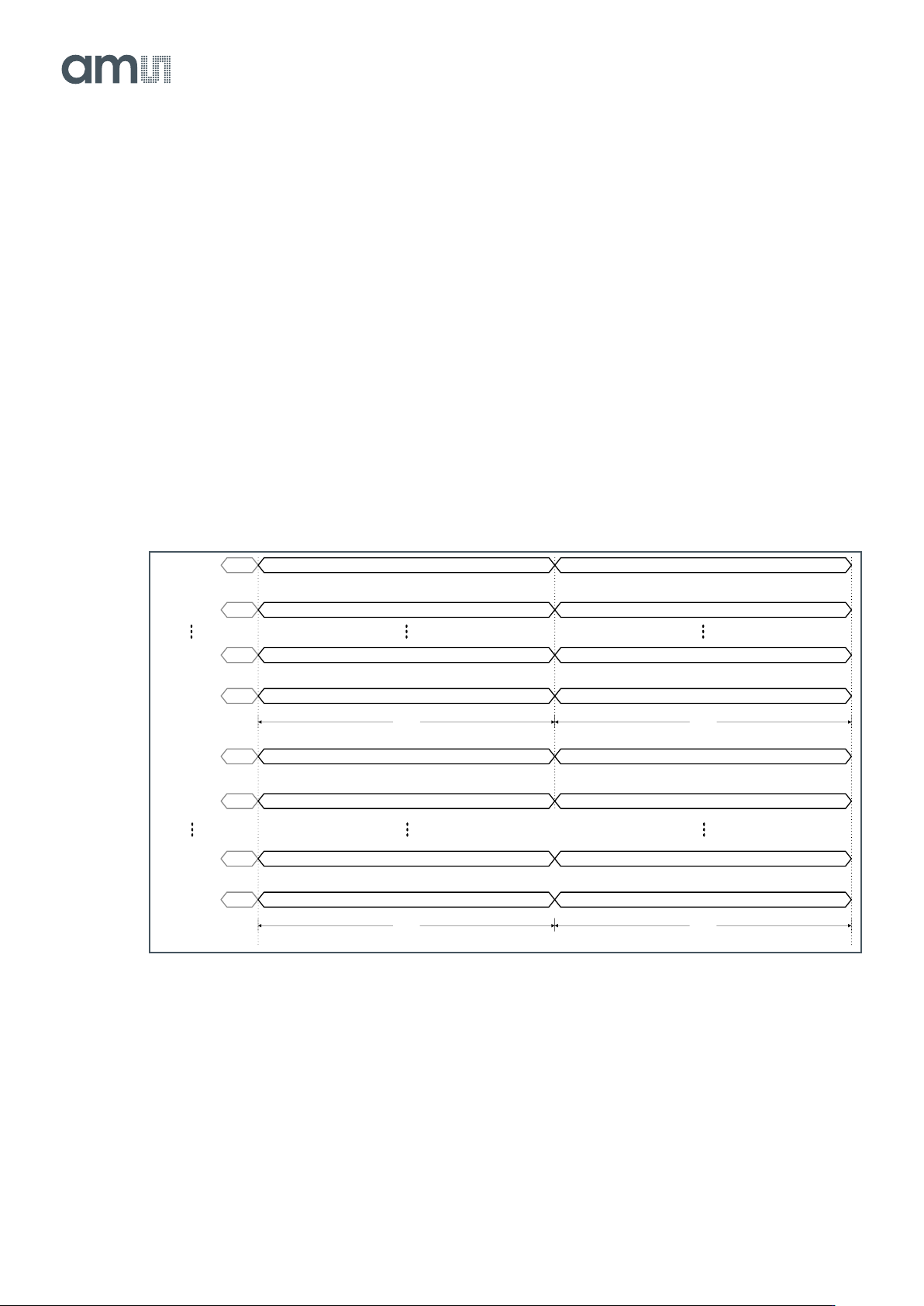

Figure 30:
Pixel Mapping Using 2 x 32 Channels
When 2 × 16 output mode is used, the pixel data is placed on the outputs as detailed in the figure
below. 16 bursts of 128 pixels happen in parallel on the data outputs on both sides simultaneous (16
on the top and 16 on the bottom outputs); the odd rows via the bottom channels, the even rows via the
top channels. This means that one complete row one each side is read out in two burst (so effectively
two rows are read-out in two bursts).
The time needed to read out two rows is doubled compared to when 64 outputs are used. The even
LVDS channels are not being used in this case, so they can be turned off by setting the correct bits in
IDLE Pixel 0 to 127Channel 1
IDLEChannel 2
Row 1
Pixel 128 to 255
IDLEChannel 31 Pixel 3840 to 3967
IDLEChannel 32 Pixel 3968 to 4095
Pixel 0 to 127
Row 3
Pixel 128 to 255
Pixel 3840 to 3967
Pixel 3968 to 4095
IDLE Pixel 0 to 127Channel 33
IDLEChannel 34
Row 2
Pixel 128 to 255
IDLEChannel 63 Pixel 3840 to 3967
IDLE
Channel 64
Pixel 3968 to 4095
Pixel 0 to 127
Row 4
Pixel 128 to 255
Pixel 3840 to 3967
Pixel 3968 to 4095
2x32CH
CMV12000
Functional Description
Datasheet • PUBLIC
DS000603 • v6-00 • 2023-Sep-22
84 │ 32
the register with addresses 92-93. Turning off these channels will reduce the power consumption of
the chip. The amount of rows that will be read out depends on the value in the corresponding register.
By default there are 3072 rows being read out.

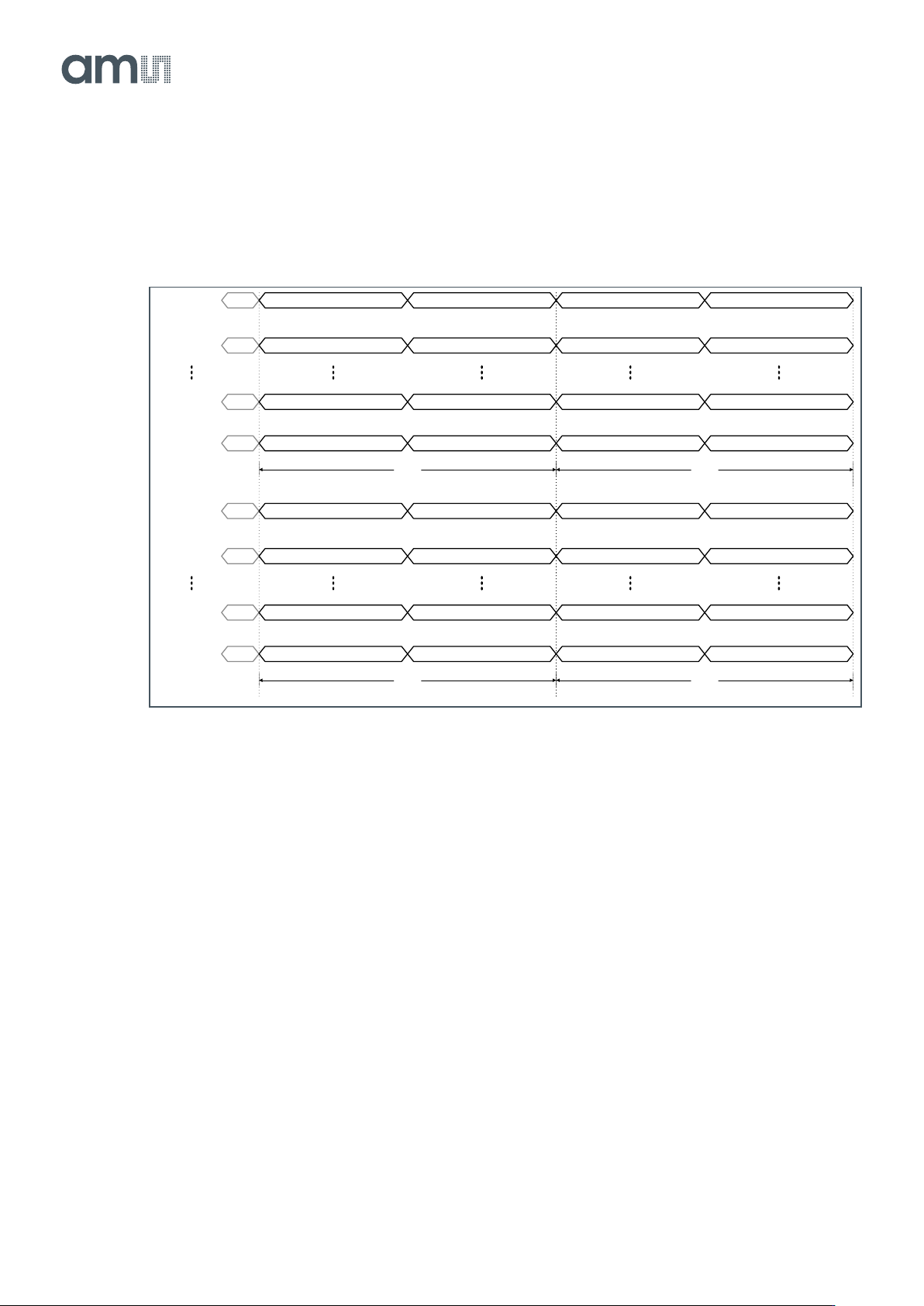

Figure 31:
Pixel Mapping Using 2 x 16 Channels
One Sided Readout Mode
When only one side is used, the pixel data is placed on the outputs as detailed in the figure below
(example of 1 × 32 and 1 × 16). N bursts of 128 pixels happen in parallel on the data outputs. This
means that one complete row is read out in one burst. The rows will be read out following the pattern:
row 1, row 2, row 4, row 3, row 5, row 6, row 8, row 7… So every 3
rd
and 4
th
row are switched.
The time needed to read out two rows is doubled compared to when 64 outputs are used. The top
LVDS channels are not being used in this mode, so they can be turned off by setting the correct bits in
the register with addresses 92-93. Turning off these channels will reduce the power consumption of
the chip. The amount of rows that will be read out depends on the value in the corresponding register.
By default there are 3072 rows read out.
IDLE Pixel 0 to 127Channel 1
IDLEChannel 3
Row 1
Pixel 256 to 383
IDLEChannel 29 Pixel 3584 to 3711
IDLEChannel 31 Pixel 3840 to 3967
Pixel 128 to 255
Pixel 384 to 511
Pixel 3712 to 3839
Pixel 3968 to 4095
IDLE Pixel 0 to 127Channel 33
IDLEChannel 35
Row 2
Pixel 256 to 383
IDLEChannel 61 Pixel 3584 to 3711
IDLEChannel 63 Pixel 3840 to 3967
Pixel 128 to 255
Pixel 384 to 511
Pixel 3712 to 3839
Pixel 3968 to 4095
2x16CH
Pixel 0 to 127
Row 3
Pixel 256 to 383
Pixel 3584 to 3711
Pixel 3840 to 3967
Pixel 128 to 255
Pixel 384 to 511
Pixel 3712 to 3839
Pixel 3968 to 4095
Pixel 0 to 127
Row 4
Pixel 256 to 383
Pixel 3584 to 3711
Pixel 3840 to 3967
Pixel 128 to 255
Pixel 384 to 511
Pixel 3712 to 3839
Pixel 3968 to 4095
CMV12000
Functional Description
Datasheet • PUBLIC
DS000603 • v6-00 • 2023-Sep-22
84 │ 33

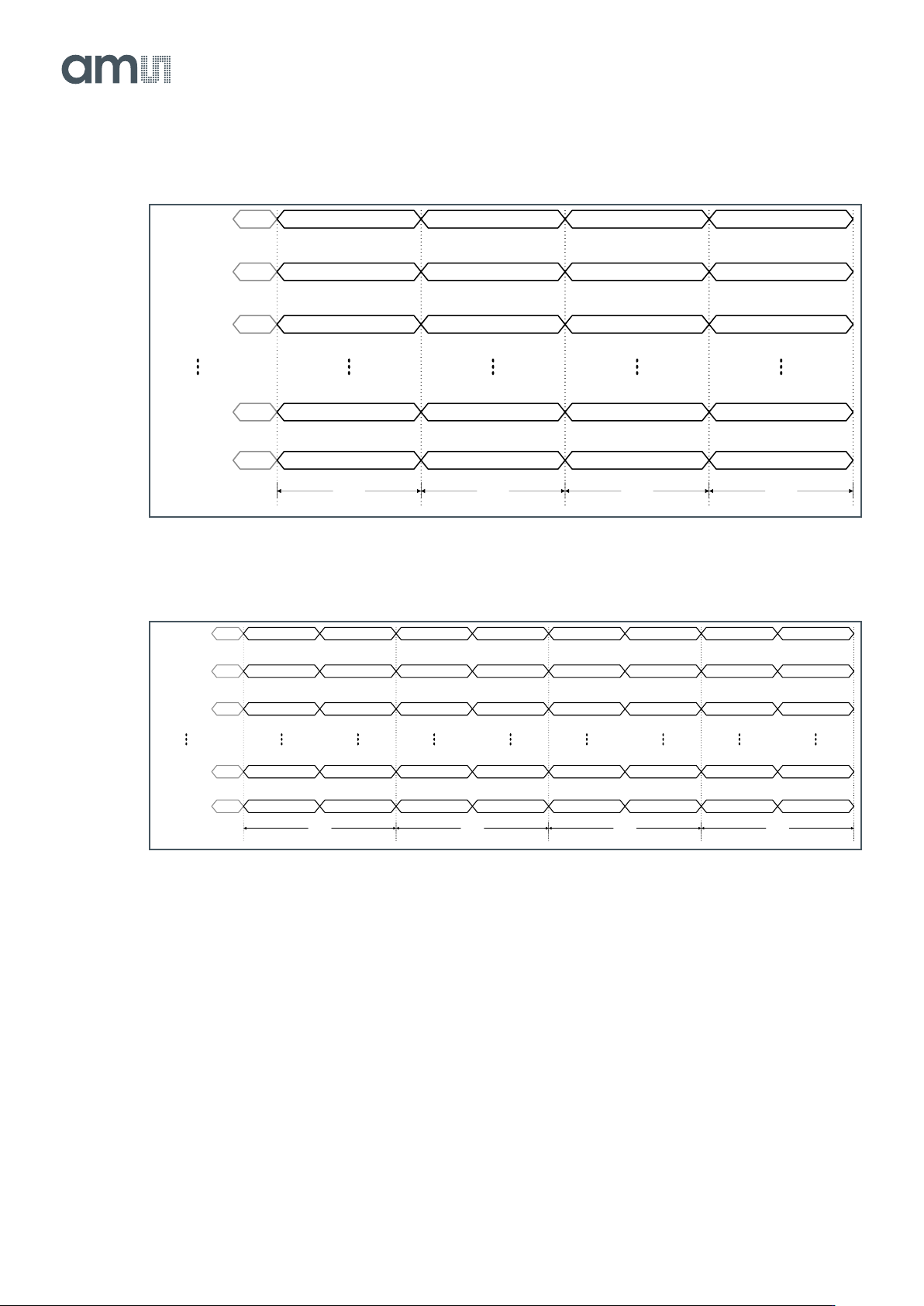

Figure 32:
Pixel Mapping Using 1 × 32 Channels
Figure 33:
Pixel Mapping Using 1 × 16 Channels
7.3.5 Control Channel
The CMV12000 has one LVDS output channel dedicated for the valid data synchronization and timing
of the output channels. The end user must use this channel to know when valid image data or training
data is available on the data output channels.
The control channel transfers status information in 8-bit, 10-bit or 12-bit word format. Every bit of the
word has a specific function. Next table describes the function of the individual bits.
IDLE Pixel 0 to 127Channel 1
IDLEChannel 2
Row 1
Pixel 128 to 255
IDLEChannel 3 Pixel 256 to 383
IDLEChannel 31 Pixel 3840 to 3967
IDLEChannel 32 Pixel 3968 to 4095
Pixel 0 to 127
Row 2
Pixel 128 to 255
Pixel 256 to 383
Pixel 3840 to 3967
Pixel 3968 to 4095
1x32CH
Pixel 0 to 127
Row 4
Pixel 128 to 255
Pixel 256 to 383
Pixel 3840 to 3967
Pixel 3968 to 4095
Pixel 0 to 127
Row 3
Pixel 128 to 255
Pixel 256 to 383
Pixel 3840 to 3967
Pixel 3968 to 4095
IDLE Pixel 0 to 127Channel 1
IDLEChannel 3
Row 1
Pixel 256 to 383
IDLEChannel 5 Pixel 512 to 639
IDLEChannel 29 Pixel 3584 to 3711
IDLEChannel 31 Pixel 3840 to 3967
Pixel 128 to 255
Pixel 384 to 511
Pixel 640 to 767
Pixel 3712 to 3839
Pixel 3968 to 4095
Pixel 0 to 127
Row 2
Pixel 256 to 383
Pixel 512 to 639
Pixel 3584 to 3711
Pixel 3840 to 3967
Pixel 128 to 255
Pixel 384 to 511
Pixel 640 to 767
Pixel 3712 to 3839
Pixel 3968 to 4095
1x16CH
Pixel 0 to 127
Row 4
Pixel 256 to 383
Pixel 512 to 639
Pixel 3584 to 3711
Pixel 3840 to 3967
Pixel 128 to 255
Pixel 384 to 511
Pixel 640 to 767
Pixel 3712 to 3839
Pixel 3968 to 4095
Pixel 0 to 127
Row 3
Pixel 256 to 383
Pixel 512 to 639
Pixel 3584 to 3711
Pixel 3840 to 3967
Pixel 128 to 255
Pixel 384 to 511
Pixel 640 to 767
Pixel 3712 to 3839
Pixel 3968 to 4095
