D系列电路图00194841-02_DC_SIPLACED12_DE+EN.pdf - 第126页

5 - 5 0033064 8-050101 ND4 Zwischen verteile r , SP6-12, digital (Bl. 2 v . 2) Intermed . distri butor, SP6 - 12, dig ital (sh. 2 o f 2) = Sheet Sh. + 1 4 B 8 6 F 5 6 45 D E E 23 78 C B A 3 2 D C F A 7 1 01. 01. 05. 003 …

100%1 / 181
5 - 4

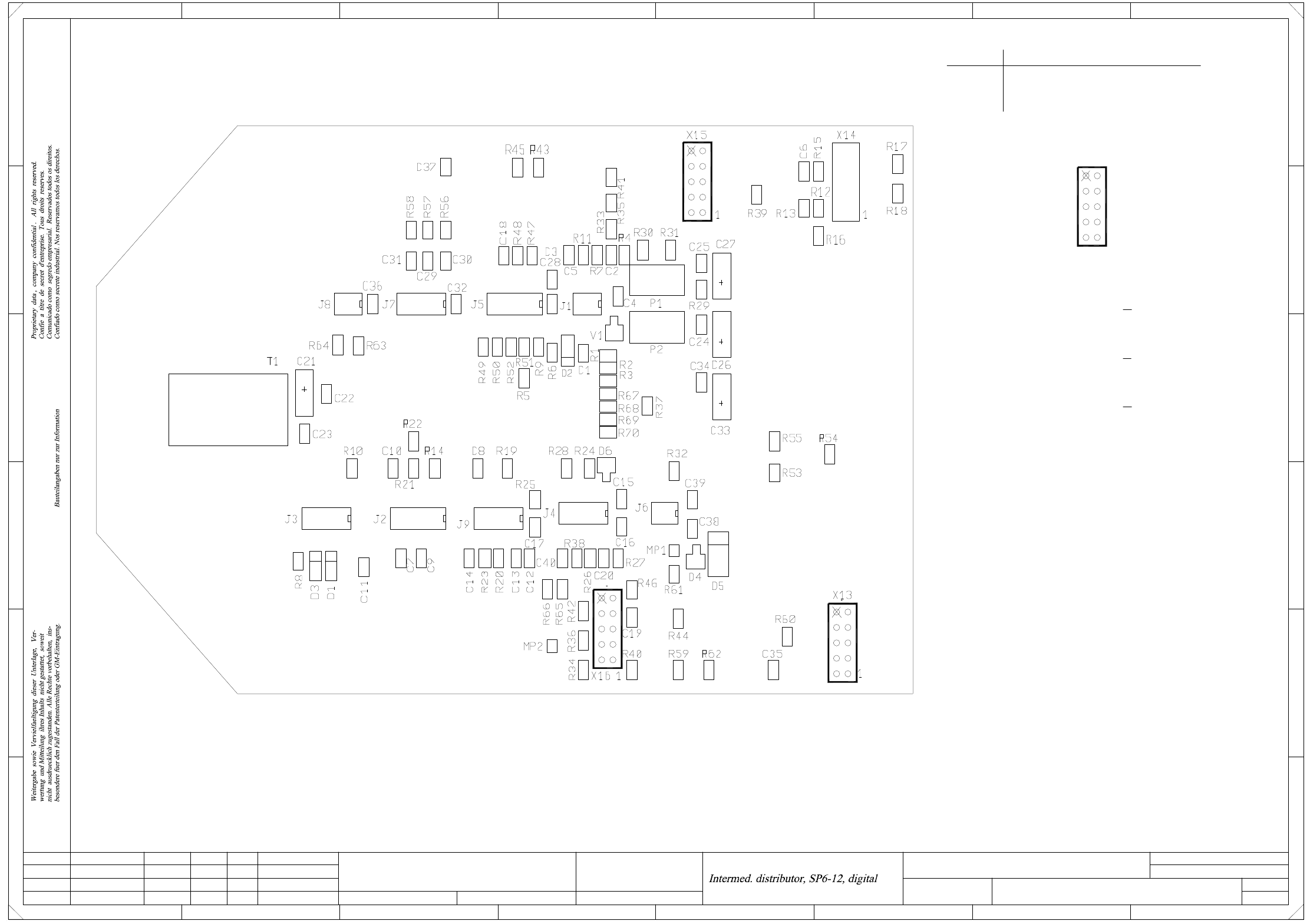

00330648-050101ND4 Zwischenverteiler, SP6-12, digital (Bl. 1 v. 2)
Intermed. distributor, SP6 - 12, digital (sh. 1 of 2)
=
Sheet
Sh.
+
1 4
B
8
6
F
5
645
D
E E
23 78
C
B
A
32
D
C
F
A
71
01.
01.
05.
00330648-050101ND4
#
1
2
Product status
Doc. status
Function status
12.10.00 PIB
Zwischenverteiler, SP6-12, digital SIPLACE D1/D2
Bestueckungsplan / Comp. mount. diagr.
Status Modified Date Name
Date
Author
Check.
Stand. Orig. Creat. f. Creat. by
Assembly
Test connector, DR-axis track signals
Test connector, DP-axis track signals
Test connector, Z-axis track signalsX13
X16
X15
Connector
X13 / X15 / X16
10 9
78
56
34
12
1 Analog GND
Track A2
Track A3
GND4
Track B5
Track B6
+ 5 V7
Track N8
Track N9
Removed10
DT EA Copyright reserved
SIEMENS AG
5 - 5

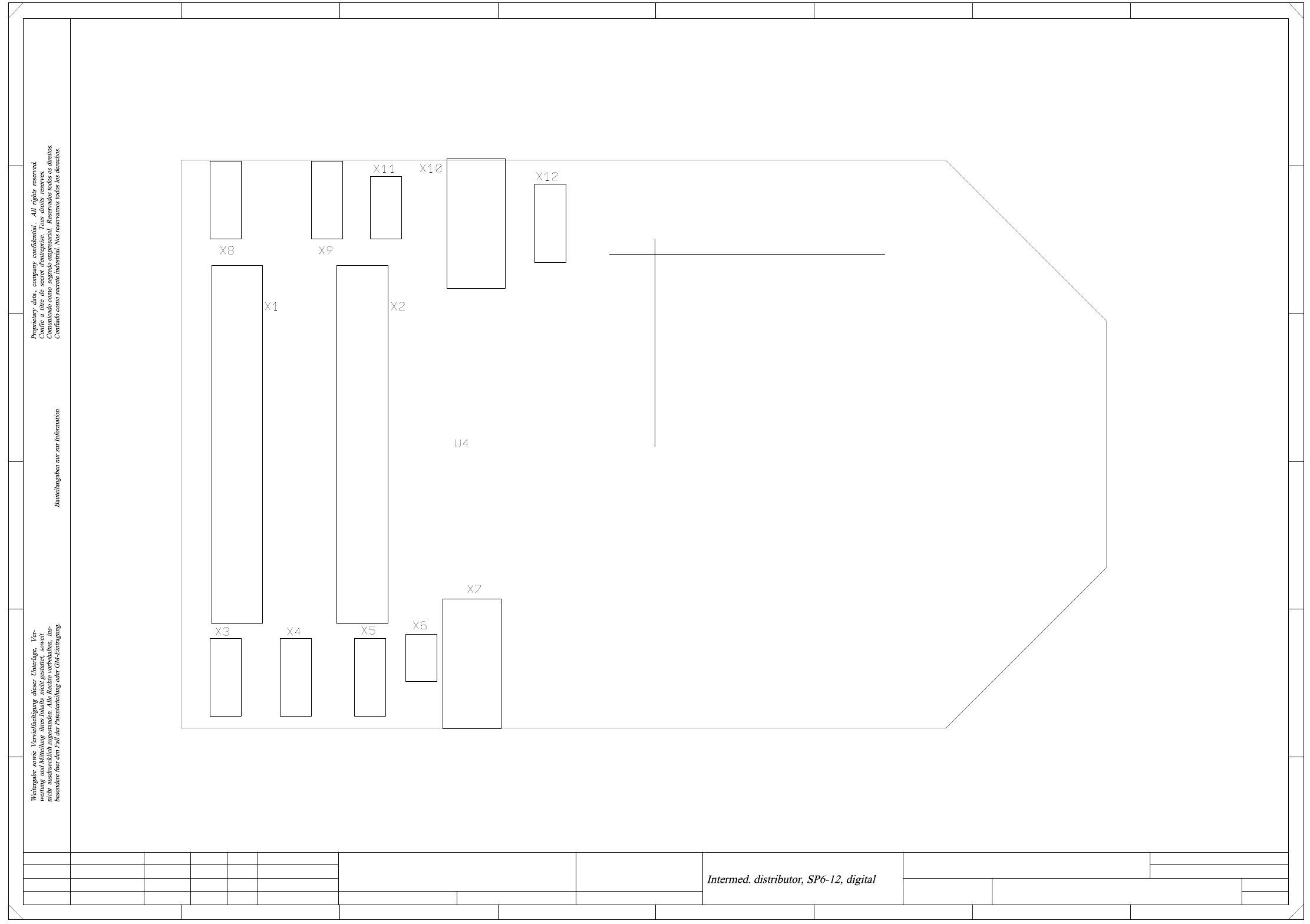

00330648-050101ND4 Zwischenverteiler, SP6-12, digital (Bl. 2 v. 2)
Intermed. distributor, SP6 - 12, digital (sh. 2 of 2)
=
Sheet
Sh.
+
1 4
B
8
6
F
5
645
D
E E
23 78
C
B
A
32
D
C
F
A
71
01.
01.
05.
00330648-050101ND4
#
2
2
Product status
Doc. status
Function status
Zwischenverteiler, SP6-12, digital SIPLACE D1/D2
12.10.00 PIB
Bestueckungsplan / Comp. mount. diagr.
Status Modified Date Name
Date
Author
Check.
Stand. Orig. Repl. f. Replaced by
To X14, head adapter DLM 03000903
Z-axis tachometer/motor
To X13, head adapter DLM 03000903
AssemblyConnector
X3
X2
X1
X4 Z-axis measuring system
X5 Star axis motor
X6 Forced air valve
X7 DP-axis measuring system
X8 Not used
X9 Not used
X10
X11
X12
Light barrier, Z-axis bottom
Light barrier, Z-axis top
DR-axis measuring system
DT EA Copyright reserved
SIEMENS AG
5 - 6

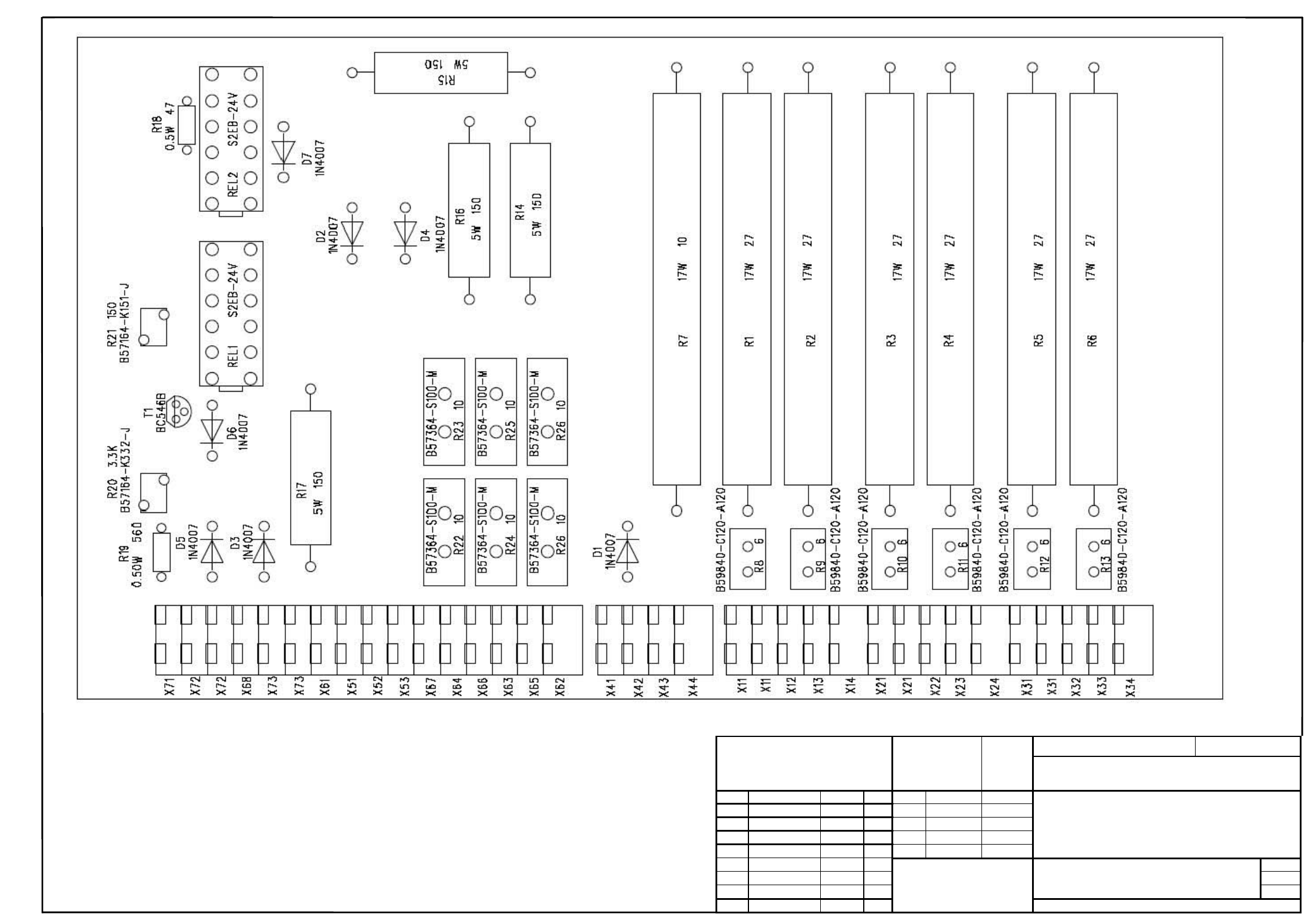

00341831-030301ND3 Eingangsstrombegrenzer
Inrush current limiter
Scale / Maßstab Format A3
SIPLACE D1/D2
Date Name
Drawn. 21.06.05 ZHANGYF
Checked.
Standard
Item name / Benennung
Eingangsstrombegrenzer
Inrush Current Limiter
Sheet
1
of
FS-03 402633 18.05.06 Tuth
Document No. / Dokumentennummer:
00341831 – 030101ND3
1
Vers. Modification Date Name
Copyright Reserved
Siemens AG
DT EA
Stamm - Nr. FS ES US UA S F
Weitergabe sowie Vervielfältigung dieser Unterlage, Verwer-
tung und Mitteilung ihres Inhaltes nicht gestattet, soweit nicht
ausdrücklich zugestanden. Zuwiderhandlungen verpflichten zu
Schadensersatz. Alle Rechte für den Fall der Patenterteilung
oder GM-Eintra
g
un
g
vorbehalten.
Copying of this docum ent, and giving it to others and the use
or comm unication of the contents thereof, are forbidden with-
out exp ress authority. Offenders are liable to the paym ent of
damages. All rights are reserved in the event of the grant of
a
p
atent or the re
g
istration of the utilit
y
model or desi
g
n.
Component layout
