6 Pneumatikpläne / Pneumatic diagrams
03000487-050301XD3 Schneidgerät pneum., SIPLACE D1, D2
Pneumatic tape cutter, SIPLACE D1, D2 1
90010921-010101XD0 Druckluftversorgung D1 (Bl. 1 v. 2)
D1 compressed air supply (sh. 1 of 2) 2
90010921-010101XD0 Druckluftversorgung D1 (Bl. 2 v. 2)
D1 compressed air supply (sh. 2 of 2) 3
90010922-010101XD0 Druckluftversorgung D2 (Bl. 1 v. 2)
D2 compressed air supply (sh. 1 of 2) 4
90010922-010101XD0 Druckluftversorgung D2 (Bl. 2 v. 2)
D2 compressed air supply (sh. 2 of 2) 5
03048980-010101XD4 Zylinder-Ventil Kombination HT
Cylinder valve combination LT 6
03055893-010101ND3 Layout für Pneumatikaufkleber / D1
Layout for pneumatic label / D1 7
03055894-010101ND3 Layout für Pneumatikaufkleber / D2
Layout for pneumatic label / D2 8
00329906-010101ED3 Pneumatik-Symbole
Pneumatic symbols 9
6 - ii
SIPLACE D1/D2 Detailed Circuit Diagrams Folder
Ausgabe 06/2008 DE/EN Edition
6 - 1
6 Pneumatikpläne / Pneumatic diagrams

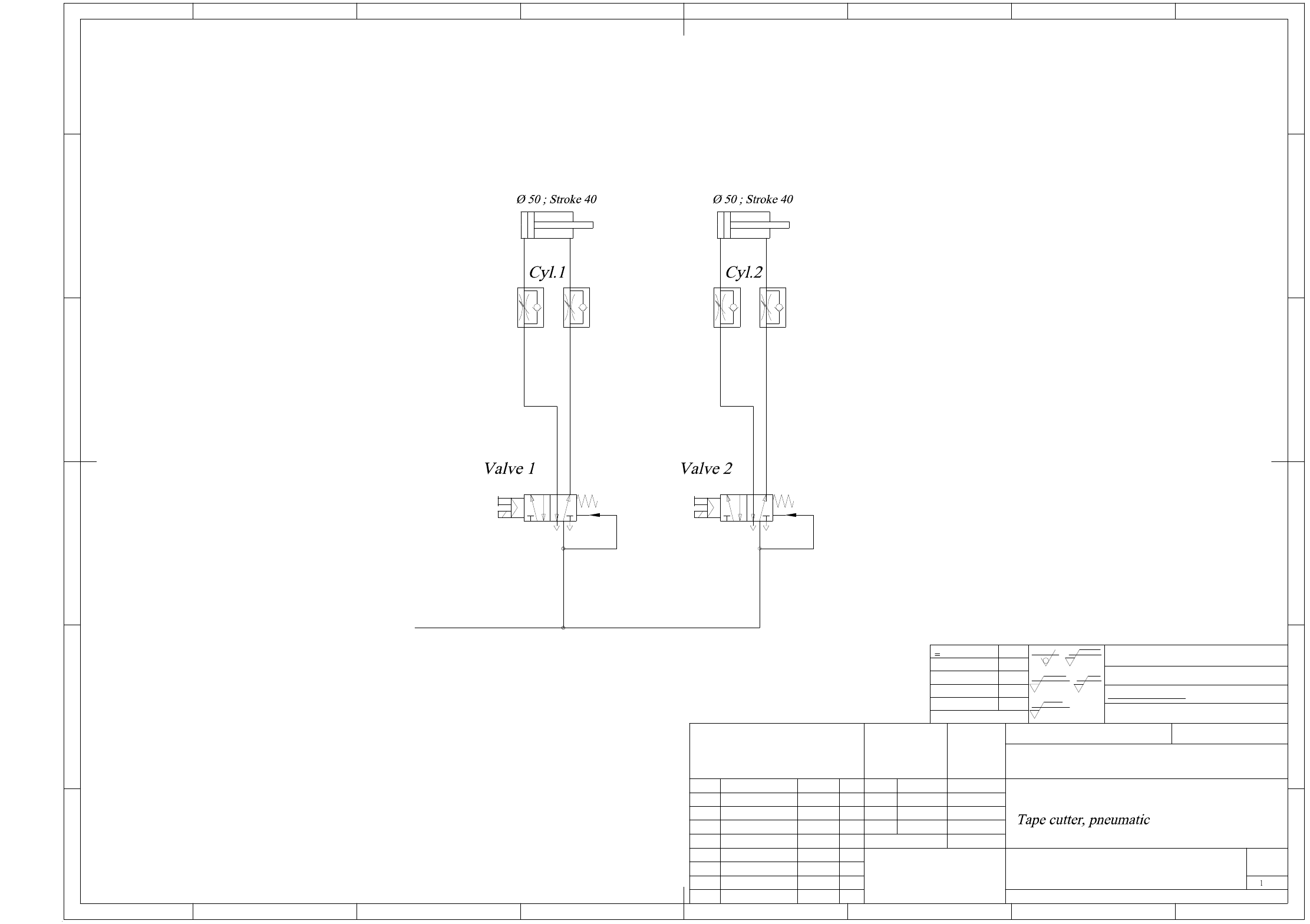

03000487-050301XD3 Schneidgerät pneum., SIPLACE D1, D2
Pneumatic tape cutter, SIPLACE D1, D2
DateModification/ECO no.Vers.
DT EA
SIEMENS AG
DIN 7167
RS03 402104 03.10.05 Hi
FS0502 401637 16.03.05 Schn
DS 01 new nn.nn.nn ----
A3
ISO 2768 mH
()
Drawings2/A
Lanzinger17.01.02
Schneidgerät pneum.
03000487-050301XD3
1
(Material, semi-fin. products)
(Unmachined part no.)
(Model or swage no.)
General tolerances for
nominal dimensions without
spec. tolerances
accuracy/principle
Comprising
coordinate list:
SIPLACE D1/D2
Ø 50 ; Hub 40Ø 50 ; Hub 40
Zyl.1 Zyl.2
Compressed air supply
for the pneumatic block
of the machine
5.2 bar
Ventil 1/
ba
2
3
4
1
5
Ventil 2/
ba
2
3
4
1
5
Druckluftversorgung
von Pneumatik-Block
Maschine
5,2 bar/
