CM101-D
程序手册
2.4
软盘的文件操作
Page 2-8

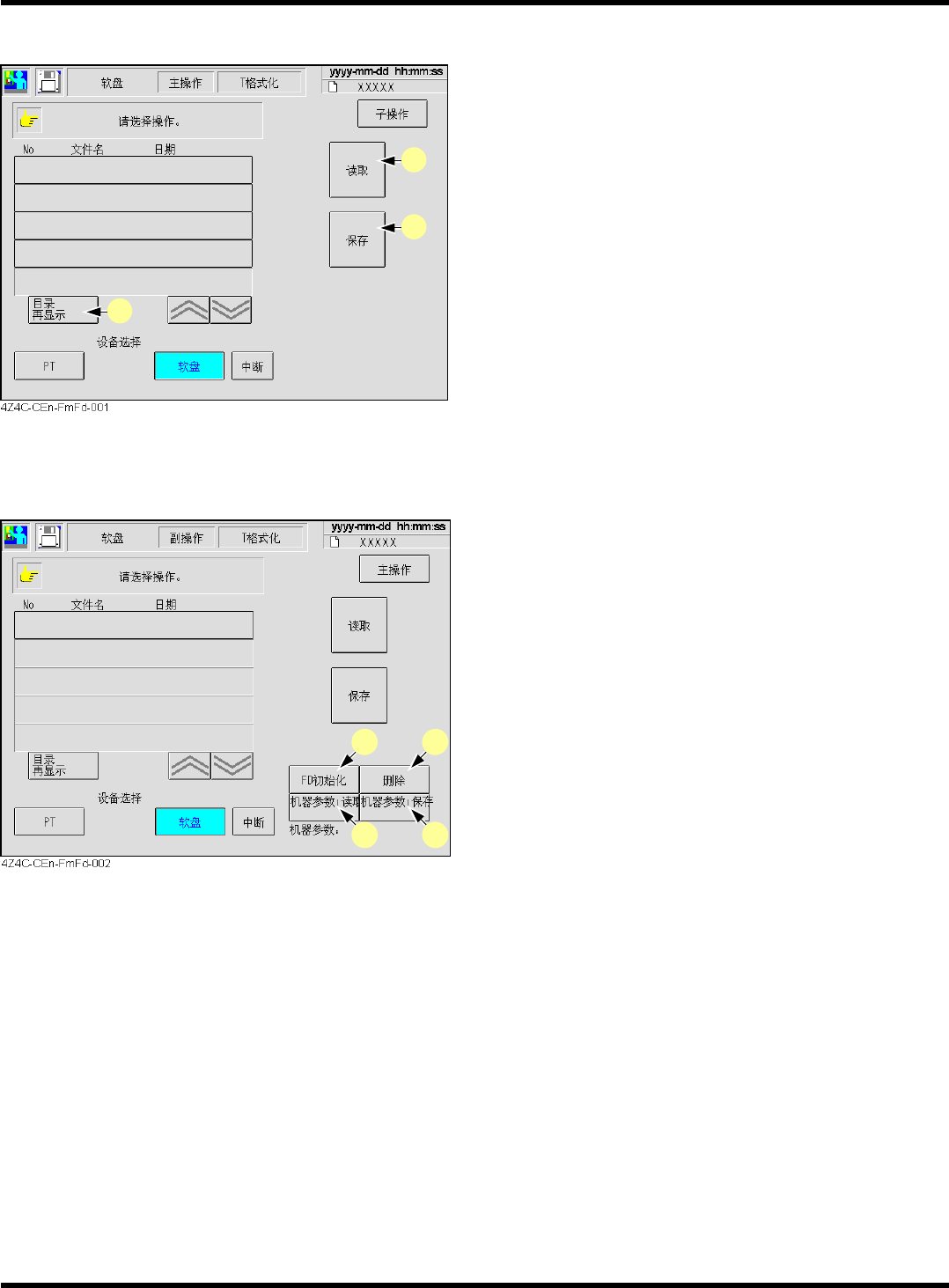

软盘主操作画面详情
a.
[
读取
]
读取生产数据。
b.
[
保存
]
保存生产数据。
c.
[
目录再显示
]
重新显示软盘的目录信息。
软盘子操作画面详情
除了与主操作同样的操作外，也可以使用以下操作。
a.
[FD
初始化
]
将软盘初始化。
b.
[
删除
]
删除软盘的数据。
c.
[
机器参数读取
]
读取机器参数。
d.
[
机器参数保存
]
保存机器参数。
a b
c d
