Components
3.3.3 Configuration Siemens SCALANCE W788-1Pro Access Point
Installation Manual WLAN Infrastructure for SIPLACE 35
3.3.3.5
3.3.3.5 Link Check
Link Check
One of the client monitoring options is the so-called Link Check.
► To use this function, enable it at IFeatures → Link-Check and enter the MAXC addresses to be mon
-
itored for the client and the maximum timeout for the polling interval.
► The SNMP trap function can be enabled at System → Events.
3.3.3.6
3.3.3.6 IP Alive
IP Alive
The IPAlive option function is similar to that of Link Check. However, this monitoring option uses the IP
address of the client, which is difficult to realize with dynamic addresses. Once again, you need to enter
the IP address for the client, the IPPort to be addressed and the maximum timeout here. Then, enable
the function.
► The SNMP trap function can be enabled at System → Events.
Components
Siemens SCALANCE W788-1Pro Access Point 3.3.3 Configuration
36 Installation Manual WLAN Infrastructure for SIPLACE
3.3.3.7
3.3.3.7 Firmware Update
Firmware Update
To ensure the correct working, it is strongly recommended to import the recent firmware update to the
device!
► Open the folder System and click the button Load&Save.
► In the line Firmware you can now import the file: <CDroot>\3rdparty installer\Scalance\Firm
-
ware\V3.1.26\SCALANCE_W700_V3126.LAD by pressing the button Load.
► After the upload of the firmware to the SCALANCE W product has been completed, you must per
-
form a restart.
Information on how to load new firmware is provided in manuals within the folder:
<CDroot>\3rdparty installer\Scalance\Documentation\...
Components
3.3.3 Configuration Siemens SCALANCE W744-1Pro Client Module
Installation Manual WLAN Infrastructure for SIPLACE 37
3.4

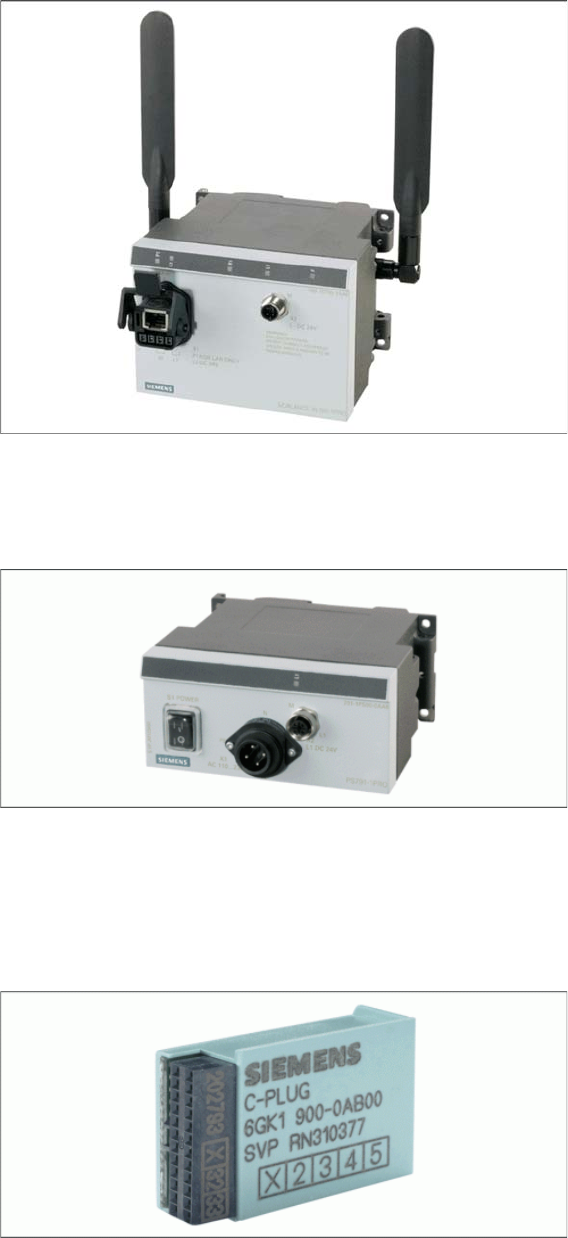

3.4 Siemens SCALANCE W744-1Pro Client Module
Siemens SCALANCE W744-1Pro Client Module
In the Legacy Concept, the line server is connected via a SCALANCE W744-1Pro client module, where
-
by the W744-1Pro is linked to a USB Ethernet network card.
This client module possesses the same hardware properties as the access points W788-1Pro, although
it does not function as an access point. However, a W788-1Pro access point could be configured (pa
-
rameterized) and used as client modules.
Use the PS791-1PRO power supply to feed the client module.
Use the Siemens C-Plug as an external memory for storing the configuration of the client module.
PS791-1PRO Power Supply
Power supply, suitable for industrial application, in accordance with IP65, suitable for worldwide applica
-
tion, low heat emission.
Siemens C-Plug
If an access point or client module fails, this memory unit can be removed and connected to the spare
part. The original setup configuration will be adopted.
