3.4.3 Configuration Siemens SCALANCE W744-1Pro Client Module
Installation Manual WLAN Infrastructure for SIPLACE 45
► Go to Security → Basic WLAN and set the security level (authentication type) to WPA-PSK, the ci
-
pher code to TKIP and enter the communication password which you specified at the access point.
► Click on the Set Values button, to confirm your entries.
► Restart the client module at System → Restart, to enable your settings.
► The client module has now been configured and is ready for use.
Components
Motorola MC70 PDA 3.5.1 Features
46 Installation Manual WLAN Infrastructure for SIPLACE
3.5
3.5 Motorola MC70 PDA
Motorola MC70 PDA
Motorola MC70 PDA
3.5.1
3.5.1 Features
Features
▪ Manufacturer: Motorola
▪ Model: MC70 (model MC7090)
▪ Operating system: Windows Mobile 5.0
▪ Processor: PXA270-624MHz
▪ Screen resolution: 240 x 320 pixel
See also
3.1.2 Installation [ ➙ 10]
NOTICE
Installation of the hardware components
For information about installation of the hardware components, see the "Installation" section for
the relevant component.
Components
3.5.2 Configuration Motorola MC70 PDA
Installation Manual WLAN Infrastructure for SIPLACE 47
3.5.1.1
3.5.1.1 Safety Instructions
Safety Instructions
The Pocket PC conforms to laser class 2.
Warning label W216 (shown above) is displayed on the Pocket PC.
3.5.2
3.5.2 Configuration
Configuration
Motorola PDAs of the MC70 series can be used as wireless clients (pocket PC). The current firmware
for these supports WPA-TKIP with preshared keys, which forms the basis for a secure application on
SIPLACE placement machines.
We recommend that you perform PDA parameterization within the range of an active WLAN infrastruc
-
ture radio cell. To configure and connect the PDA to the WLAN infrastructure, proceed as follows:
3.5.2.1
3.5.2.1 Manage Profiles
Manage Profiles

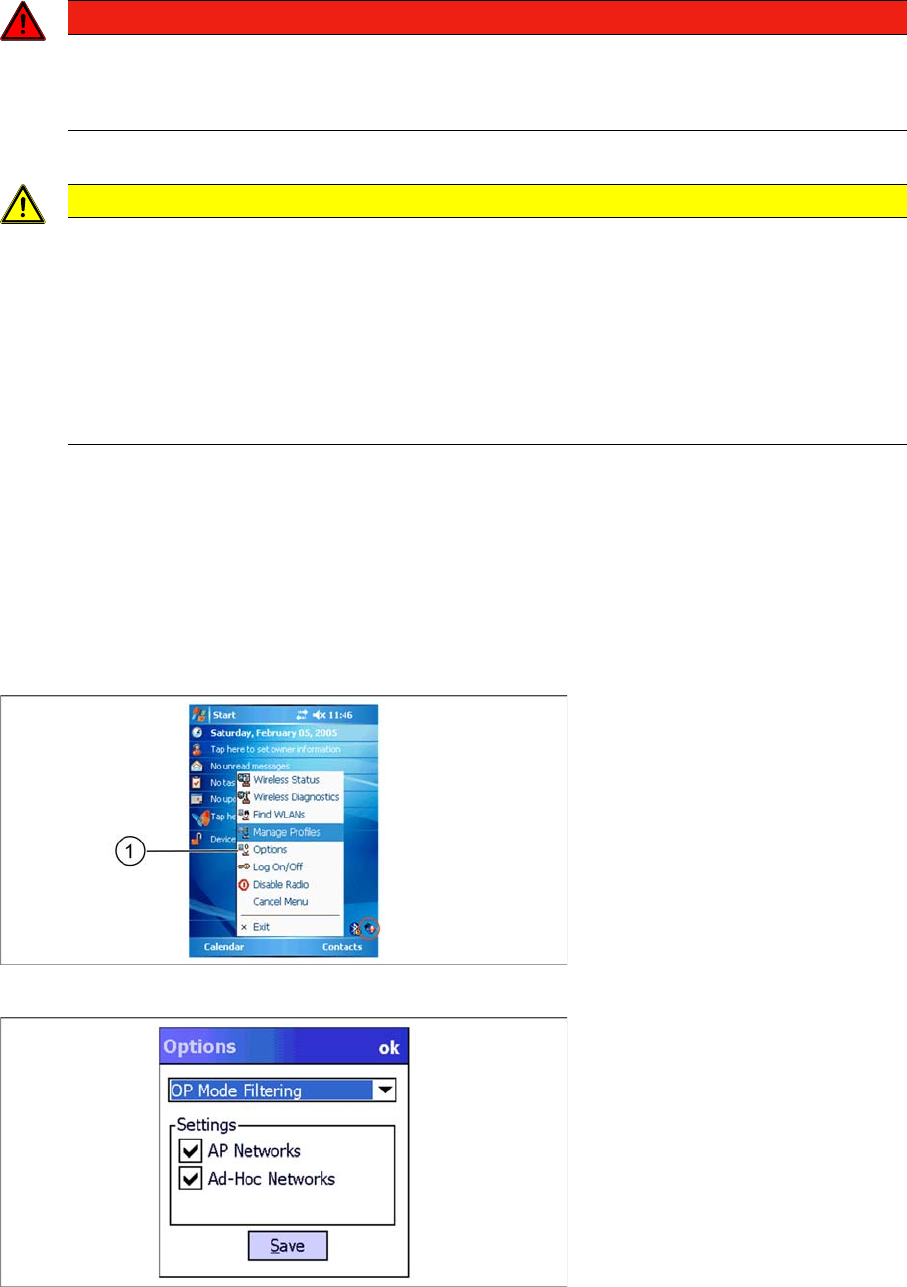

► Select the WLAN icon from the task bar and the select the entry Options (1) from the context menu.
► Select the entry Regulatory from the drop down list.
► In the next screen select the country of use. The selected country must be identical with the setting
of the appropriate Access Point.
DANGER
LASER RADIATION!
Laser Class 2
► Do not look into the beam!
CAUTION
Laser regulations
Before operating the pocket PC, inform all operating personnel about the laser regulations.
While operating the Pocket PC, observe the respective regulations in line with VDE 0837 "Pro
-
tection from radiation emitted by laser devices" and the "Laser radiation" accident prevention
regulations (VBG93), applicable in Germany.
Also observe the accident prevention regulations applicable in your country.
Despite the low laser power, avoid looking directly at the laser beam. The natural closure reflex
of your eyelids will protect your eyes from the visible beam.
