SIPLACE WLAN Concepts Standard Concept Installation Manual WLAN Infrastructure for SIPLACE 7 2 2 S I P L A C E W L A N C o n c e p t s SIPLACE WLAN Concepts The following chapters describe the different conce pts for con…
Introduction
6 Installation Manual WLAN Infrastructure for SIPLACE
SIPLACE WLAN Concepts
Standard Concept
Installation Manual WLAN Infrastructure for SIPLACE 7
2
2 SIPLACE WLAN Concepts
SIPLACE WLAN Concepts
The following chapters describe the different concepts for connection of a placement line to the WLAN
infrastructure.
2.1

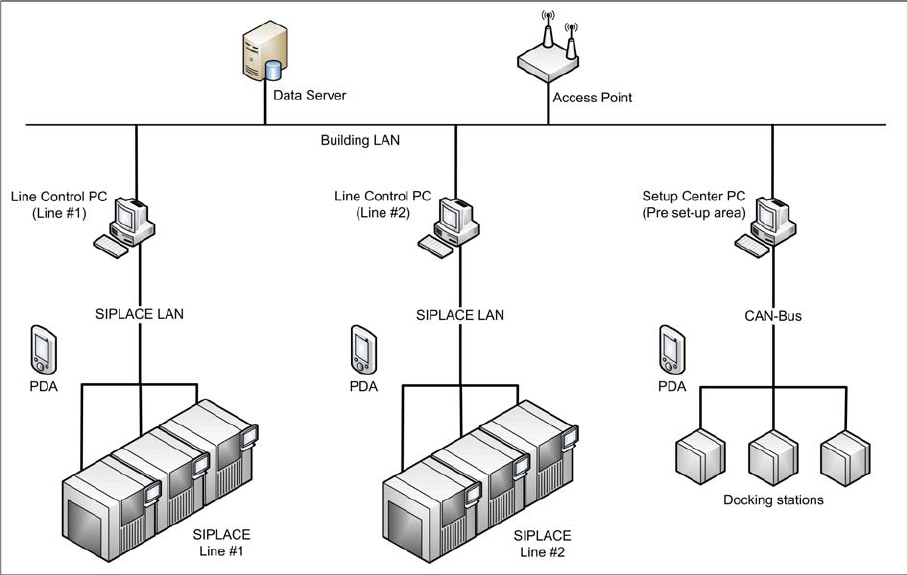

2.1 Standard Concept
Standard Concept
A single access point is used. The access point is connected to the building's network.
SIPLACE WLAN Concepts
Legacy Concept
8 Installation Manual WLAN Infrastructure for SIPLACE
2.2

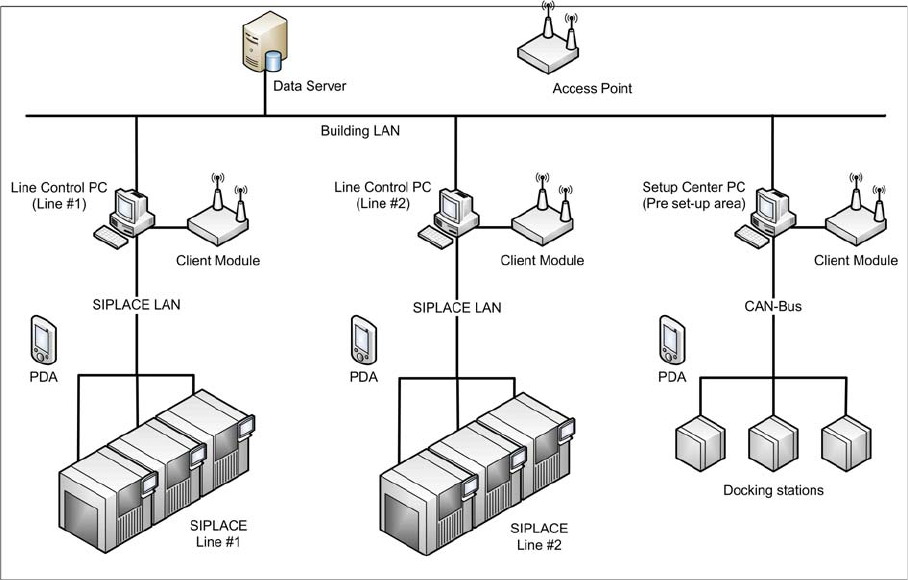

2.2 Legacy Concept
Legacy Concept
A single access point is used. The access point has no wired connection to any network. The line control
PC’s and the Setup Center PC of the pre set-up area are linked via a Client Module SCALANCE W744-
1Pro. This requires realization of a further network connection (RJ45 10/100Mbps) via USB and the cor
-
responding adapter.
