Components
Motorola MC67 / MC75 PDA 3.6.2 Configuration
60 Installation Manual WLAN Infrastructure for SIPLACE
► Select the Options icon (1).
► Select the entry Regulatory from the drop down list.
► In the next screen select the country of use. The selected country must be identical with the setting
of the appropriate Access Point.
► Select the entry Band Selection from the drop down list.
► In the next screen select the band of use. The selected band must be identical with the setting of the
appropriate Access Point.
► Click on Save.
Components
3.6.2 Configuration Motorola MC67 / MC75 PDA
Installation Manual WLAN Infrastructure for SIPLACE 61

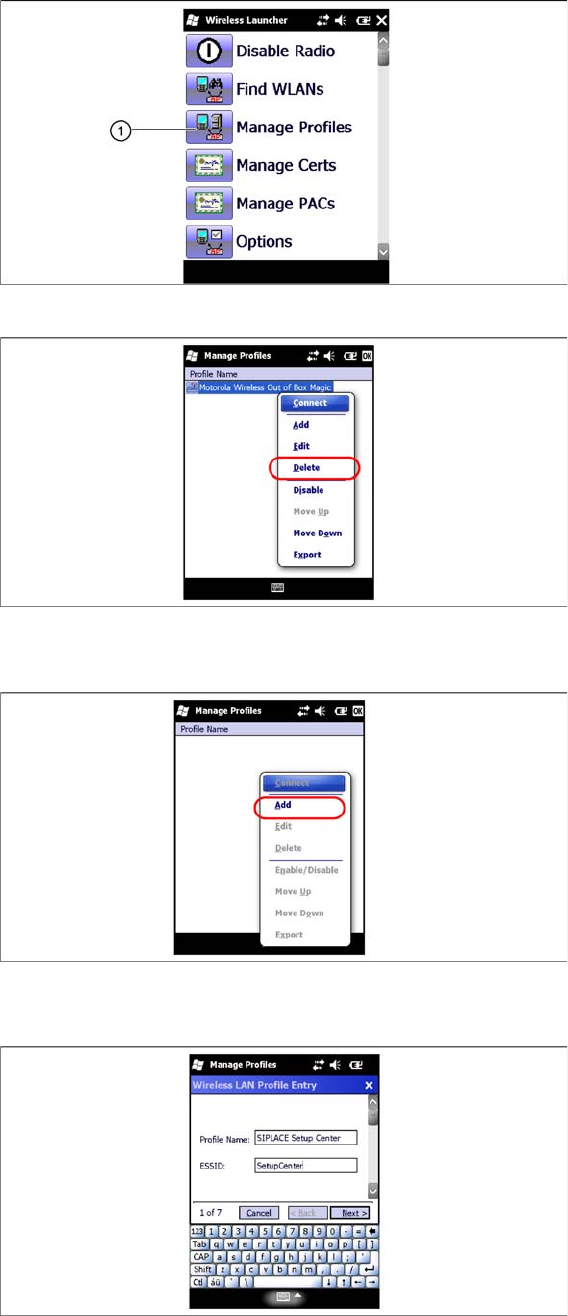

► Select the Manage Profiles icon (1).
► Select the „Out of the box profile and open the context menu.
► Click on Delete.
► Click on Add to add a new profile.
► In the next screen, select a profile name and enter the SSID (network name) set in the access point.
► Select Next to continue.
Components
Motorola MC67 / MC75 PDA 3.6.2 Configuration
62 Installation Manual WLAN Infrastructure for SIPLACE
► Select your country.
► If you change the country, acknowledge the warning issued with OK.
► Select Next to continue.
► Select the Security Mode –WPA-Personal.
► Select the Authentication Type –None.
► Select the Encryption Type - TKIP.
► Select Next to continue.
