3.5.2 Configuration Motorola MC70 PDA
Installation Manual WLAN Infrastructure for SIPLACE 57

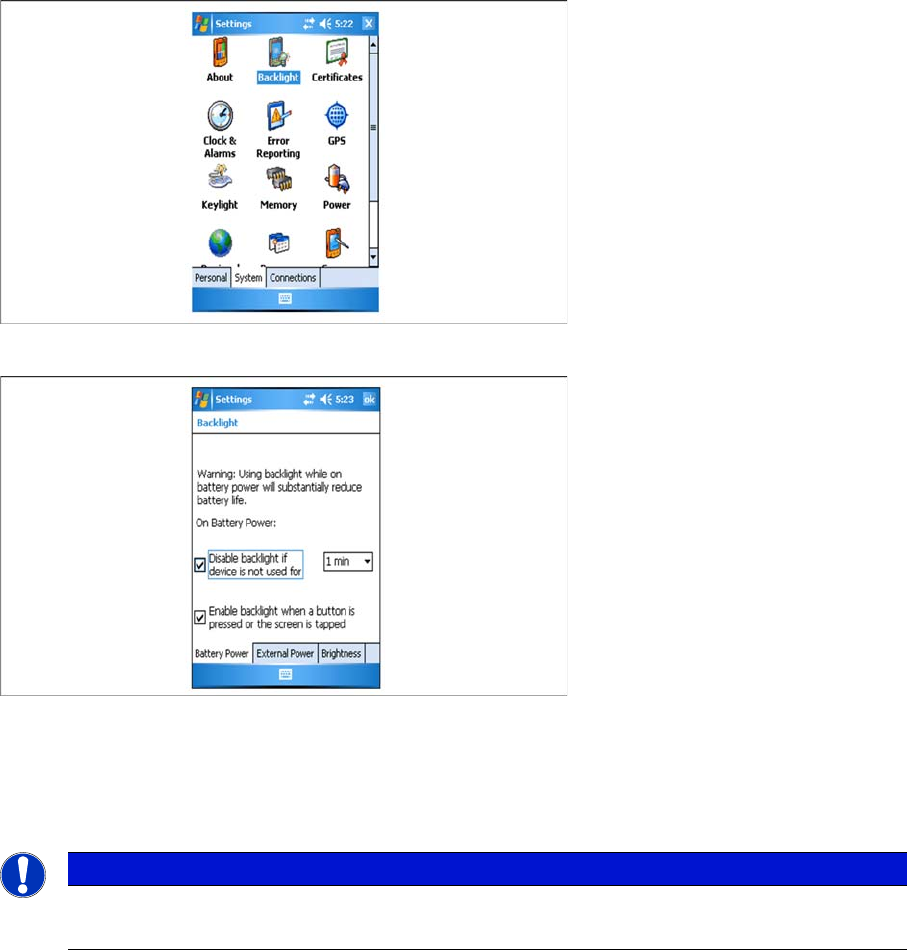

► Select the Backlight icon in the System tab page.
► Enable all features in the Battery Power tab page.
► Set the time value to 1 minute.
► Click on OK to save the settings. The Backlight settings dialog will be closed.
► Close the Settings dialog.
NOTICE
Battery Power
To save battery power we recommend to place the PDA in the cradle if it is not used
Components
Motorola MC67 / MC75 PDA 3.6.1 Features
58 Installation Manual WLAN Infrastructure for SIPLACE
3.6
3.6 Motorola MC67 / MC75 PDA

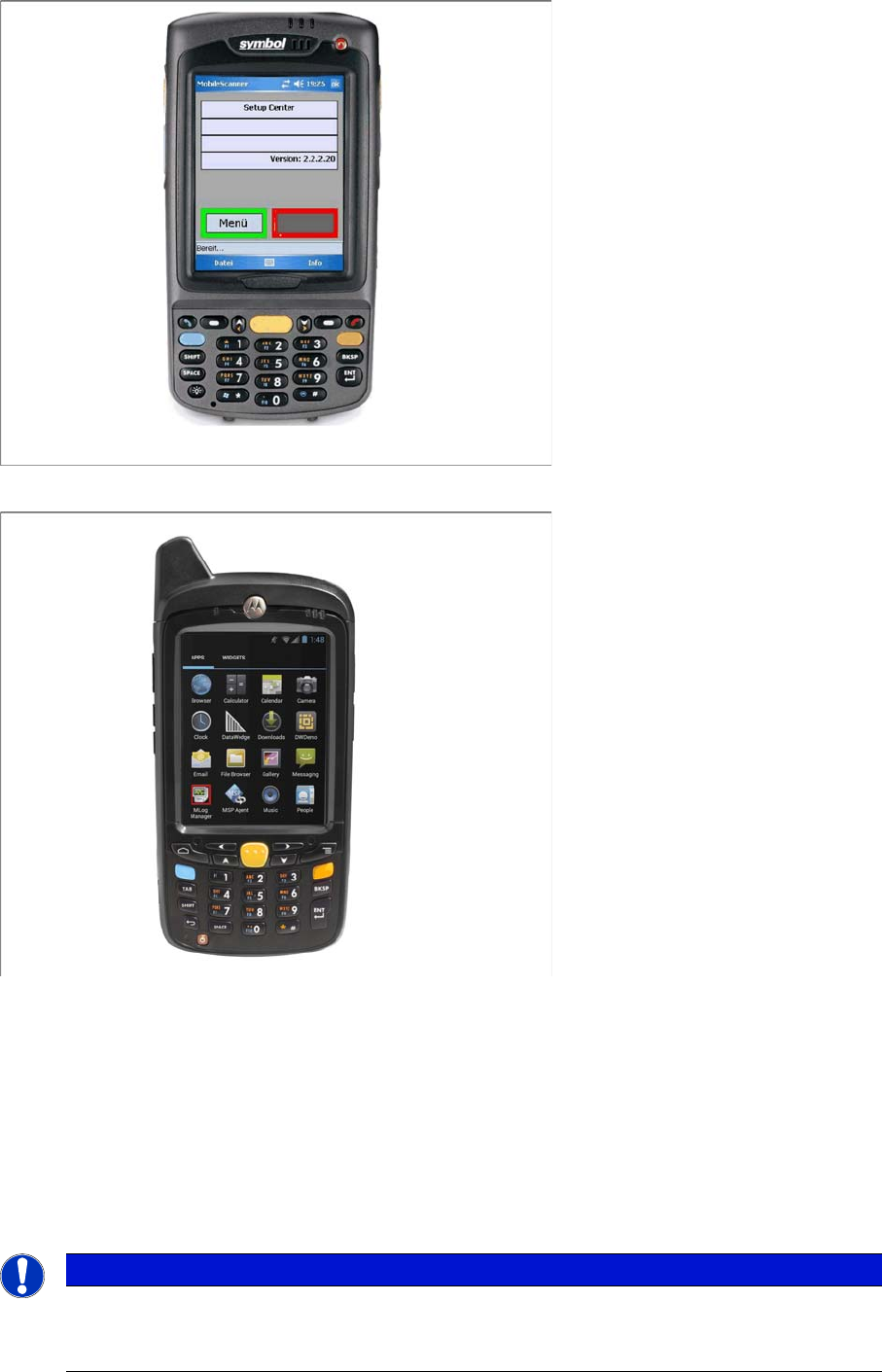

Motorola MC67 / MC75 PDA
MC75 PDA
MC67 PDA
3.6.1
3.6.1 Features
Features
▪ Manufacturer: Motorola
▪ Model: MC75 or,
▪ Model: MC67
▪ Operating system: Windows Mobile 6.5
▪ Processor: PXA32X-806MHz
▪ Screen resolution: 480 x 640 pixel
NOTICE
Installation of the hardware components
For information about installation of the hardware components, see the "Installation" section for
the relevant component.
Components
3.6.2 Configuration Motorola MC67 / MC75 PDA
Installation Manual WLAN Infrastructure for SIPLACE 59
3.6.1.1
3.6.1.1 Safety Instructions
Safety Instructions
The Pocket PC conforms to laser class 2.
Warning label W216 (shown above) is displayed on the Pocket PC.
3.6.2
3.6.2 Configuration
Configuration
Motorola PDAs of the MC67 / MC75 series can be used as wireless clients (pocket PC). The current firm
-
ware for these supports WPA-TKIP with preshared keys, which forms the basis for a secure application
on SIPLACE placement machines.
We recommend that you perform PDA parameterization within the range of an active WLAN infrastruc
-
ture radio cell. To configure and connect the PDA to the WLAN infrastructure, proceed as follows:
3.6.2.1
3.6.2.1 Manage Profiles
Manage Profiles

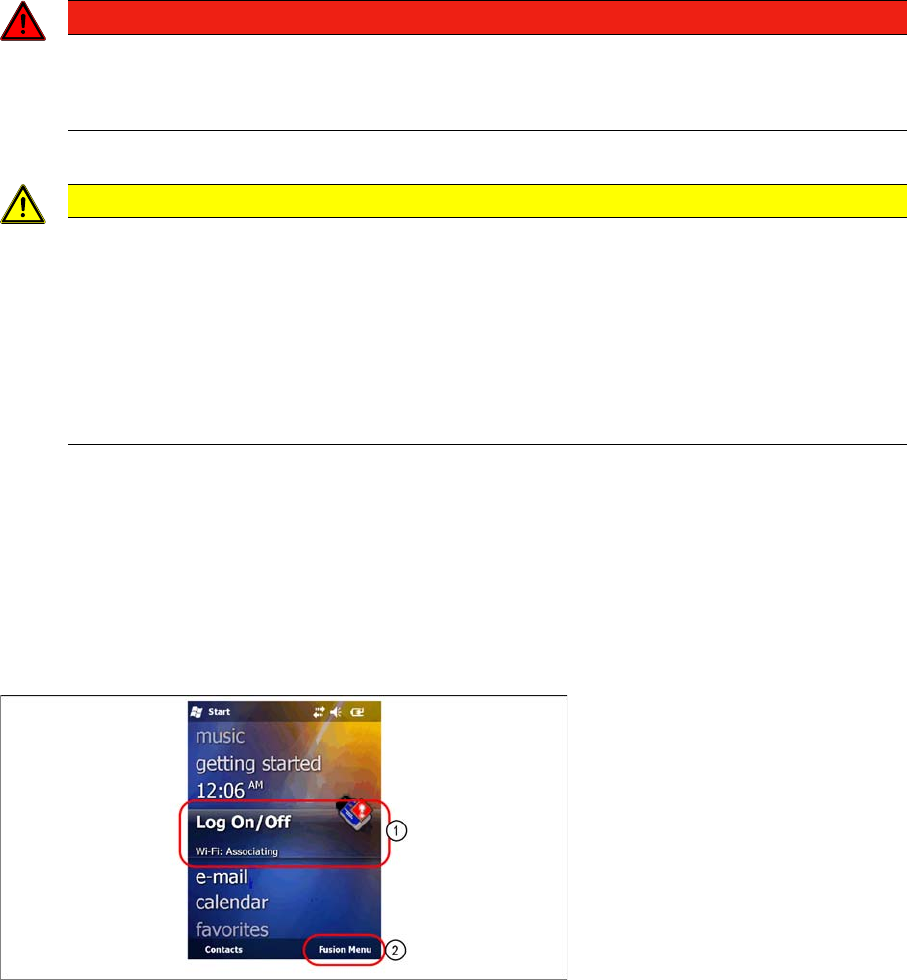

► Select Log On/Off (1).
► Select Fusion Menu (2).
DANGER
LASER RADIATION!
Laser Class 2
► Do not look into the beam!
CAUTION
Laser regulations
Before operating the pocket PC, inform all operating personnel about the laser regulations.
While operating the Pocket PC, observe the respective regulations in line with VDE 0837 "Pro
-
tection from radiation emitted by laser devices" and the "Laser radiation" accident prevention
regulations (VBG93), applicable in Germany.
Also observe the accident prevention regulations applicable in your country.
Despite the low laser power, avoid looking directly at the laser beam. The natural closure reflex
of your eyelids will protect your eyes from the visible beam.
