Components
Motorola MC70 PDA 3.5.2 Configuration
54 Installation Manual WLAN Infrastructure for SIPLACE
3.5.2.3
3.5.2.3 Wireless Diagnostics
Wireless Diagnostics
Sending Ping Test Packages

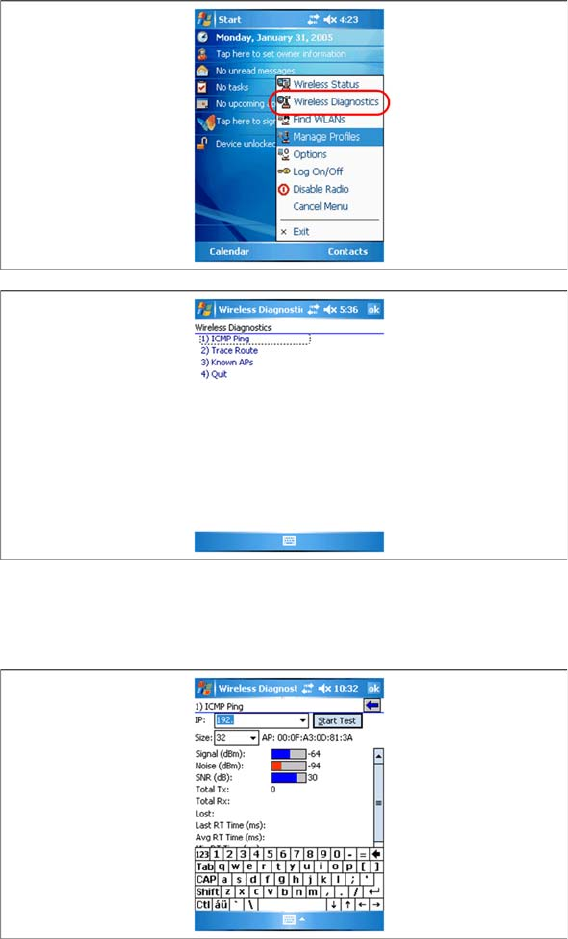

► Click on the card icon in the bottom right taskbar and select the entry Wireless Diagnostics.
► To test the connection to the Setup Center Computer, click on the ICMP Ping tab and send test pack
-
ages to the relevant IP address of the USB LAN adapter.
► Select ICMP Ping to continue.
► Enter a valid IP address (same subnet), which you want to reach, and select Start Test..
Components
3.5.2 Configuration Motorola MC70 PDA
Installation Manual WLAN Infrastructure for SIPLACE 55

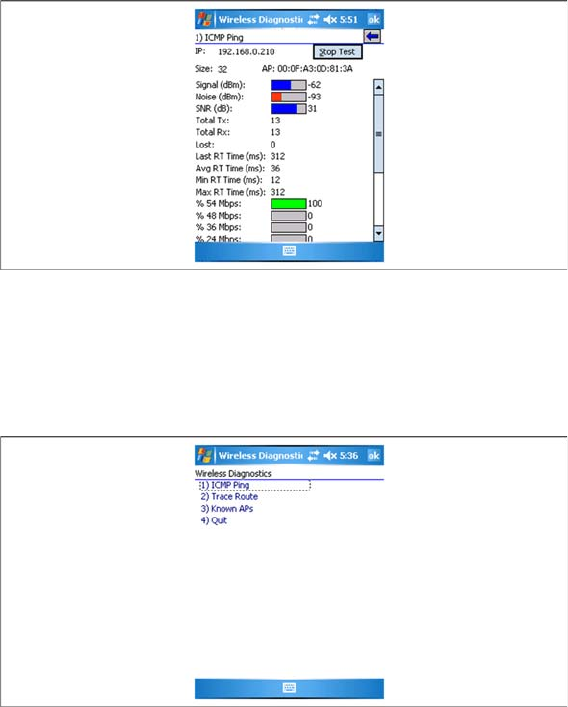

► You will see the number of packages sent and acknowledged, plus the errors which occurred during
transmission. A diagram will display the transmission rate, which indicates the quality of the connec
-
tion. You can also view the signal strength (Signal Level).
► Select Stop Test to stop sending the test packages.
► Select Ok to return to the Wireless Diagnostics menu.
► Close the Wireless Diagnostics menu with Ok.
► Setup of the PDA is now complete. After switching on, the client uses the stored WLAN profile to
automatically log into the next available radio cell with the same name. The static IP address allows
the client to immediately establish an IP-based network connection to any of the network partici
-
pants, including the line server.
Components
Motorola MC70 PDA 3.5.2 Configuration
56 Installation Manual WLAN Infrastructure for SIPLACE
3.5.2.4
3.5.2.4 Switching Off the Standby Mode (Optional)
Switching Off the Standby Mode (Optional)
Due to the hardware design of the MC70 the power of the wireless device is disconnected when the
MC70 switches to the standby mode. As a result, reestablishing the wireless connection takes 5 - 8 sec
-
onds after waking up from standby.
To work around this behavior, we recommend to disable the standby mode, proceed as follows.

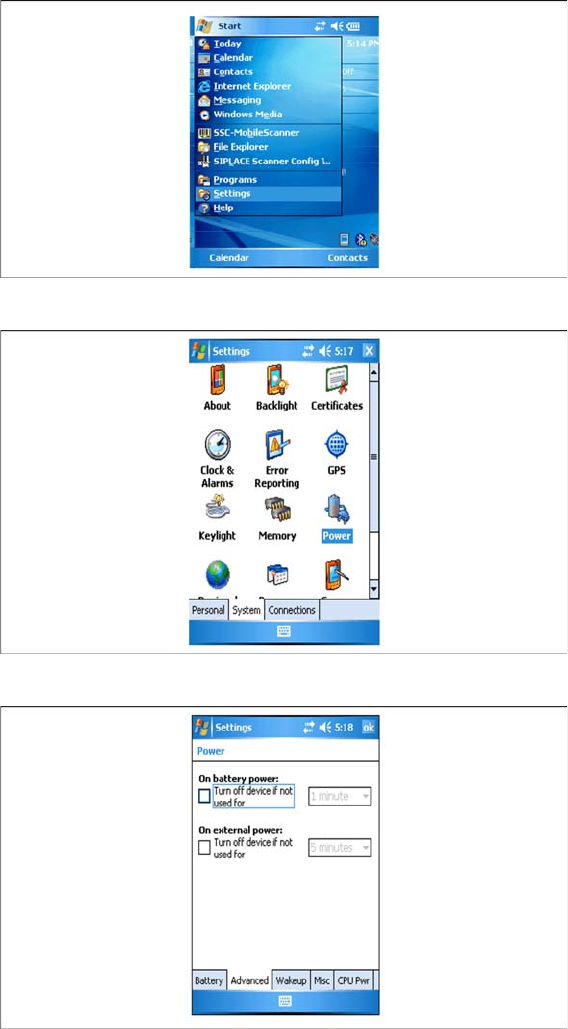

► Select the Settings entry from the Start menu.
► Select the System tab page and select the Power icon.
► Select the Advanced tab page and disable all features in this screen.
► Click on OK to save the settings.
⇨ The power settings dialog will be closed.
