3-50 3 Periodic maintenance items T ransfer direction T ransfer direction T ransfer direction Dual-lane type Lane 1 Lane 2 STD : 350 - 420 Hz EXT : 1 10 - 130 Hz STD : 350 - 420 Hz EXT : 1 10 - 130 Hz Conveyor belt: T en…
3-49
3
Periodic maintenance items
n
NOTE
The tension measurement locations and tension standards of this machine's conveyor belt are as below.
Adjust with tension meter as needed.

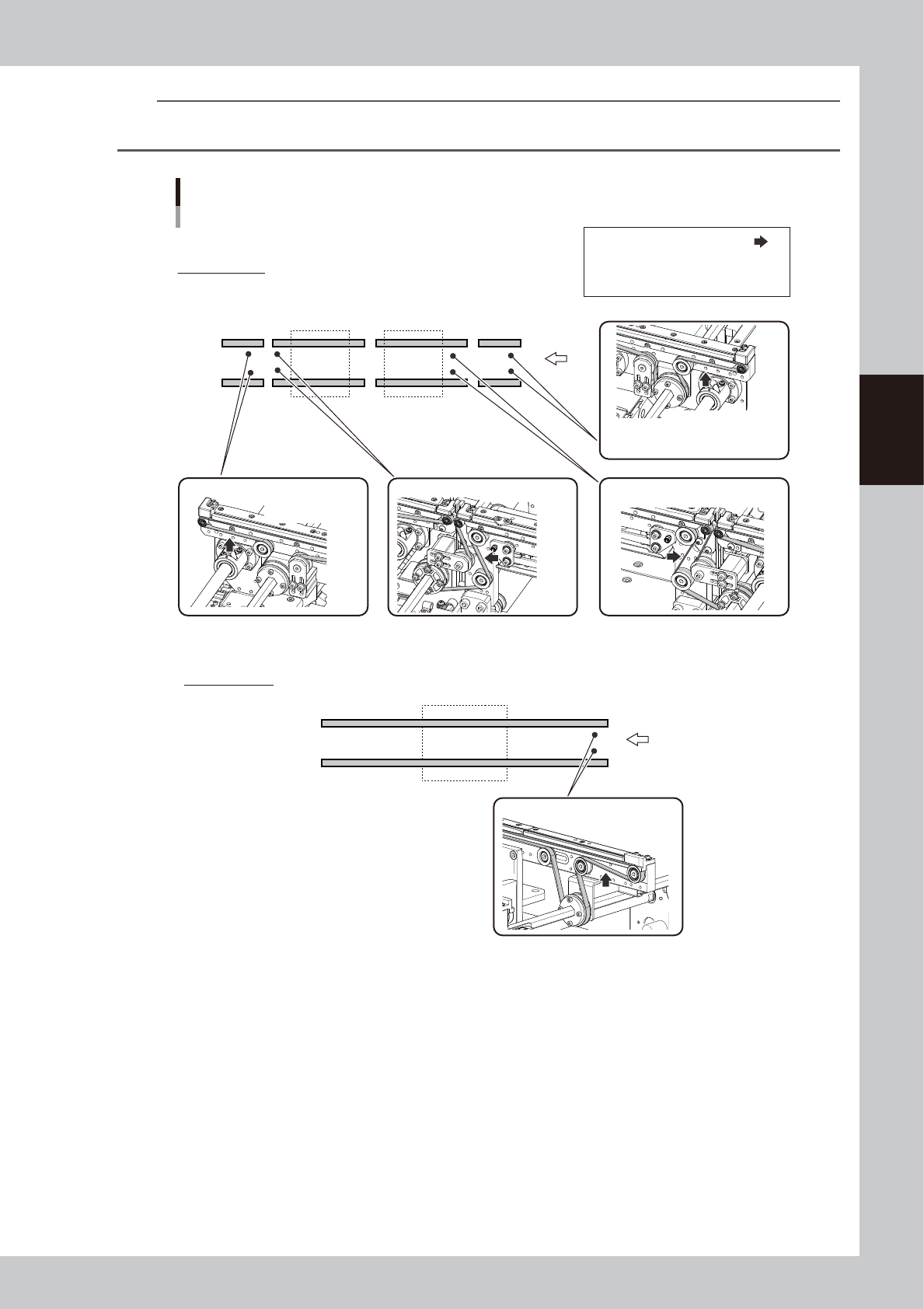

Conveyor belt: Tension measurement locations / Tension standards
YSM20R
Transfer
direction
Dual-stage type
STD: 425 - 475 Hz
EXT: 100 - 120 Hz
Single-lane type
STD: 490 - 540 Hz
STD: 490 - 540 Hz
STD: 425 - 475 Hz
EXT: 100 - 120 Hz
STD: 350 - 420 Hz
EXT: 110 - 130 Hz
W1
W2W3
W4
Tension measurement location:
STD: Tension of standard conveyor
EXT: Tension of extended conveyor
Transfer
direction
53367-KMK-00
3-50
3
Periodic maintenance items
Transfer direction
Transfer direction
Transfer direction
Dual-lane type
Lane 1
Lane 2
STD : 350 - 420 Hz
EXT : 110 - 130 Hz
STD : 350 - 420 Hz
EXT : 110 - 130 Hz

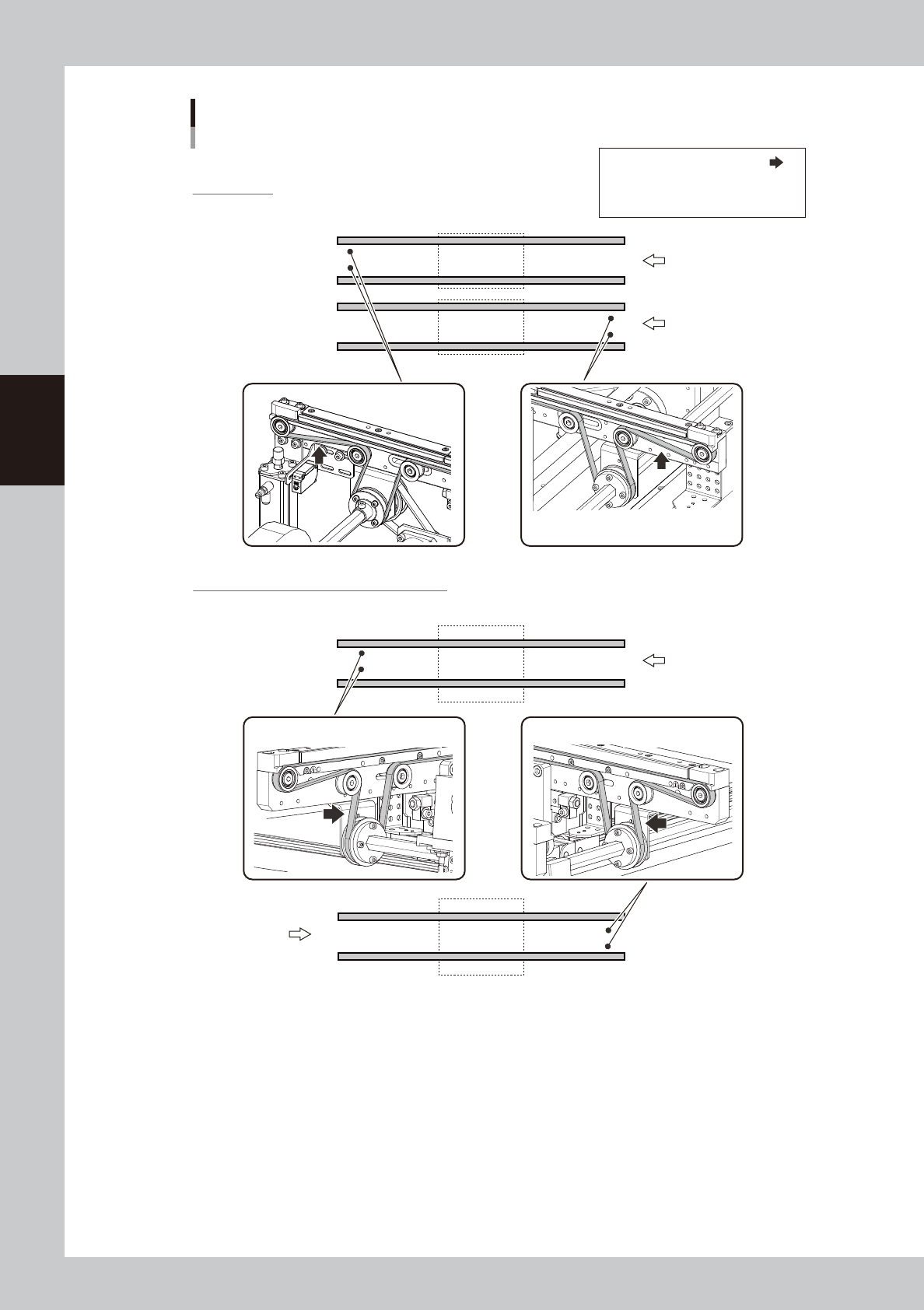

Conveyor belt: Tension measurement locations / Tension standards
YSM20WR
Tension measurement location:
STD: Tension of standard conveyor
EXT: Tension of extended conveyor
Single-lane type (for transferring heavy board)
STD : 274-334 Hz STD : 274-334 Hz
533A4-KMK-10
3-51
3
Periodic maintenance items
9

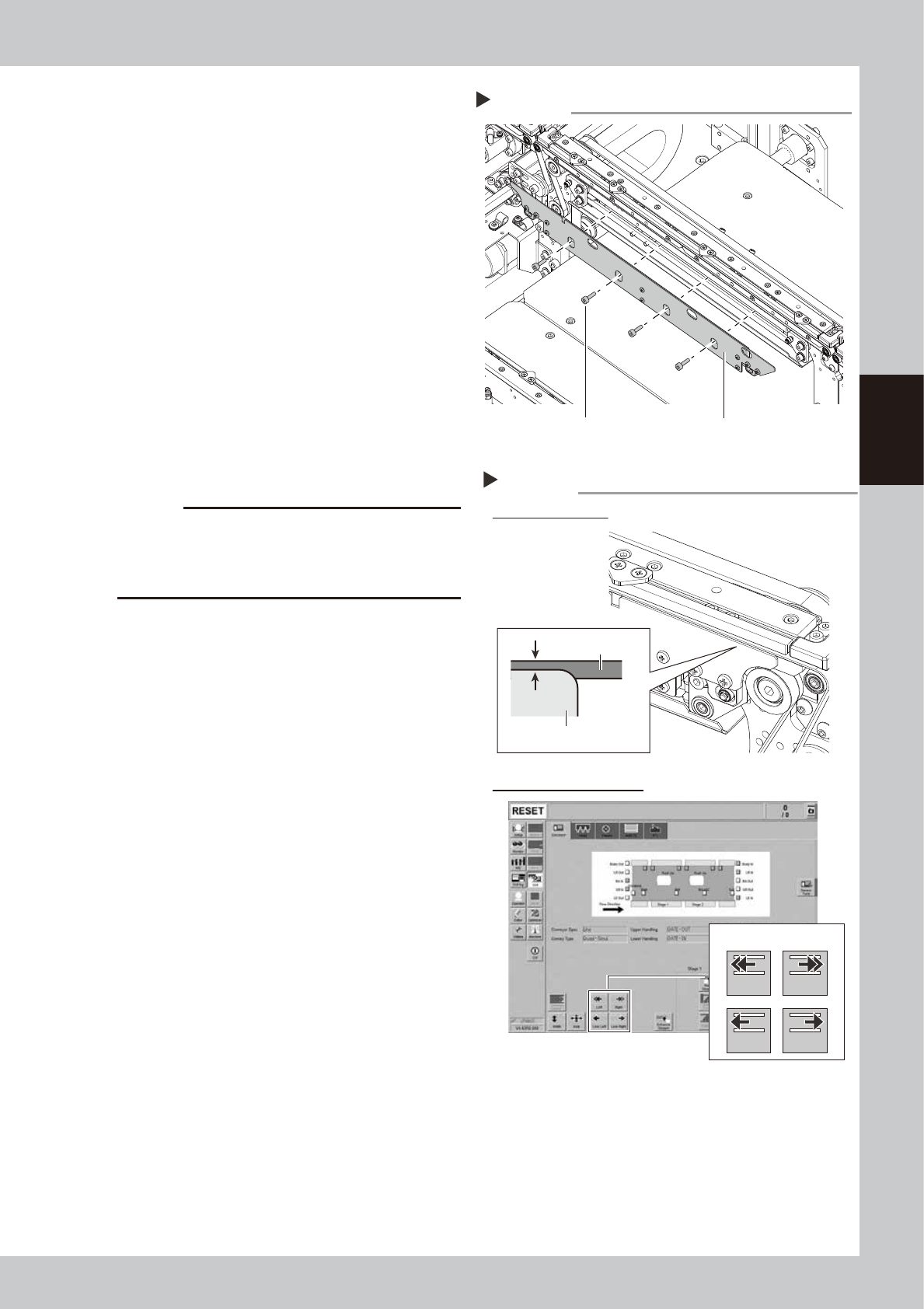

Mount the board clamp plate.
1. Fit the board clamp plate into its original
position and tighten the board clamp
plate mounting bolts with hex wrench (3).
2. Remove the square cloth.
0
Check the belt setting.
1. Make sure that the board clamp top
surface is approx. 0.5 mm lower than the
belt upper surface.
2. Close the machine safety cover and
cancel the emergency stop. Attach the
carriage if the machine is carriage type.
3. On the [Unit] - [Conveyor] screen, press
the [Conveyor In] button or [Conveyor
Out] button to turn on the conveyor
motor and check the belt rotation.
4. If the conveyor belt rotation is uneven or
if the belt deflects, adjust the tensioner
(pulley bracket) position again.
c
CAUTION
When the difference between the belt upper surface
and board clamp top surface is very little, the board
transfer error may occur easily. In this case, contact
YAMAHA sales representatives.
Mounting the board clamp plate
Step 9
Board clamp plate
Mounting bolt
53368-KMK-00
Board clamp plate
Belt
Check belt setting and rotation
Step 10
Checking conveyor rotation
Checking belt setting
0.5 mm
Conveyor drive buttons
Left Right
Low Left Low Right
54305-KMK-00
