3-56 3 Periodic maintenance items 5.3.2 YSM20R/YSM20WR Single-lane: Cleaning and lubricating W-axis T he following describes the cleaning and lubrication procedure of W -axis of YSM20R single-lane type as example. As to …
3-55
3
Periodic maintenance items
0
Change the conveyor width to the
minimum width.
1. Close the machine safety cover and
cancel the emergency stop. Attach the
carriage if the machine is the carriage
type.
2. Press the [Width] button to display the
"Conveyor Width" screen.
3. Enter the minimum value of the conveyor
width "50 mm" in the "Target Width" box
and press the [OK] button. The conveyor
width is changed to the specified width.
q
Raise the push-up unit.
Raise the push-up unit following Step 3.
e
w
Apply grease to rest of ball screw
and hexagon spline.
1. Press the emergency stop button and
then open the machine safety cover.
2. If the machine is carriage type, detach
carriage to access to the conveyor.
3. Apply the specified grease (NSL) with
finger uniformly over the hexagon spline
shaft surface and ball screw surface and
groove where grease could not be
applied in Step 8.
e
Spread the grease.
1. Close the machine safety cover and
cancel the emergency stop. Attach the
carriage if the machine is the carriage
type.
2. Change the conveyor width to maximum
and minimum several times referring to
Step 5 and Step 2.
e
r
Wipe away excess grease.
1. Press the emergency stop button and
then open the machine safety cover.
2. If the machine is carriage type, detach
carriage to access to the conveyor.
3. Wipe away excess grease on the edge
of ball screw, guide, and hexagon spline
shaft with lint-free cloth.

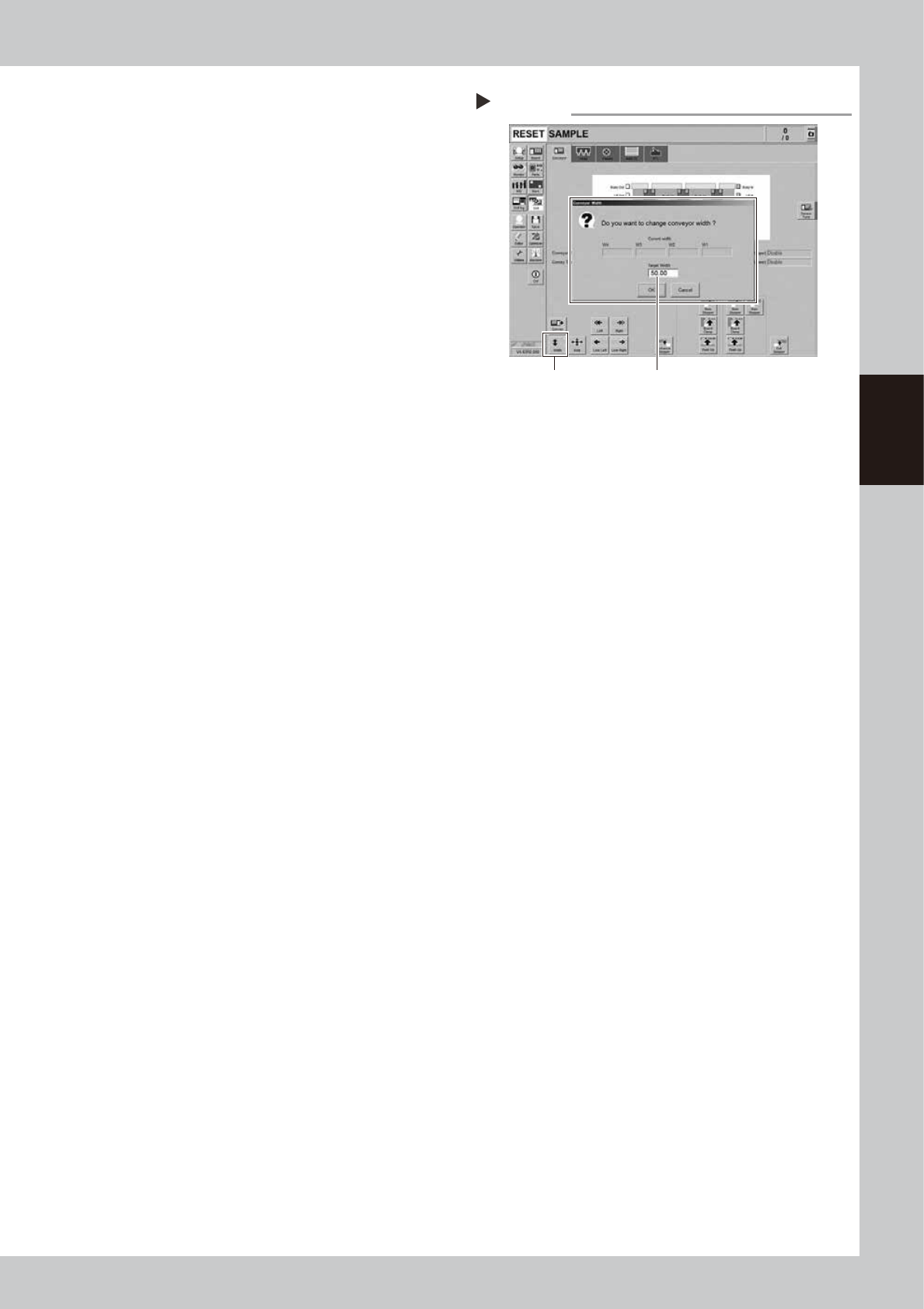

Change conveyor width to minimum
Step 10
[Width] button Enter “50 mm”.
54309-KMK-00
3-56
3
Periodic maintenance items
5.3.2 YSM20R/YSM20WR Single-lane: Cleaning and lubricating W-axis
The following describes the cleaning and lubrication procedure of W-axis of YSM20R single-lane type as
example. As to YSM20WR Single-lane type (for transferring heavy board), the W-axis cleaning and lubrication
procedures are the same, though the mounting position of hexagon spline shaft and the height of guide flame
deffer from the normal type.
1
Change the conveyor width to the
minimum width.
1. Press the [Width] button on the [Unit]
- [Conveyor] screen to display the
"Conveyor Width" screen.
2. Enter "50 mm" in the "Target Width" box
and press the [OK] button. The conveyor
width is changed to the specified width.
e
2
Clean each part of W-axis.
1. Press the emergency stop button and
then open the machine safety cover.
2. If the machine is carriage type, detach
carriage to access to the conveyor.
3. Take off all accessories susceptible to the
magnetic fields, such as a wristwatch
and/or magnetic ID card.
4. Wipe the old grease and soiling on entire
areas of 2 ball screws, 2 guides , and 1
hexagon spline of the W-axis with lint-free
cloth.
n
NOTE
Carefully wipe the lead grooves of the ball screw and
guide rail during the cleaning. Additionally, make sure
that any dirt is not produced after wiping.
n
NOTE
See "Chapter 5 Lubrication points" for the positions and
quantities of ball screw, guide, and hexagon spline.
3
Change the conveyor width to the
maximum width.
1. Close the machine safety cover and
cancel the emergency stop. Attach the
carriage if the machine is the carriage
type.
2. Press the [Width] button to display the
"Conveyor Width" screen.
3. Enter "490 mm" (YSM20WR Single-lane
type: "742mm") in the "Target Width" box.
Pressing the [OK] button changes the
conveyor width to the specified width.

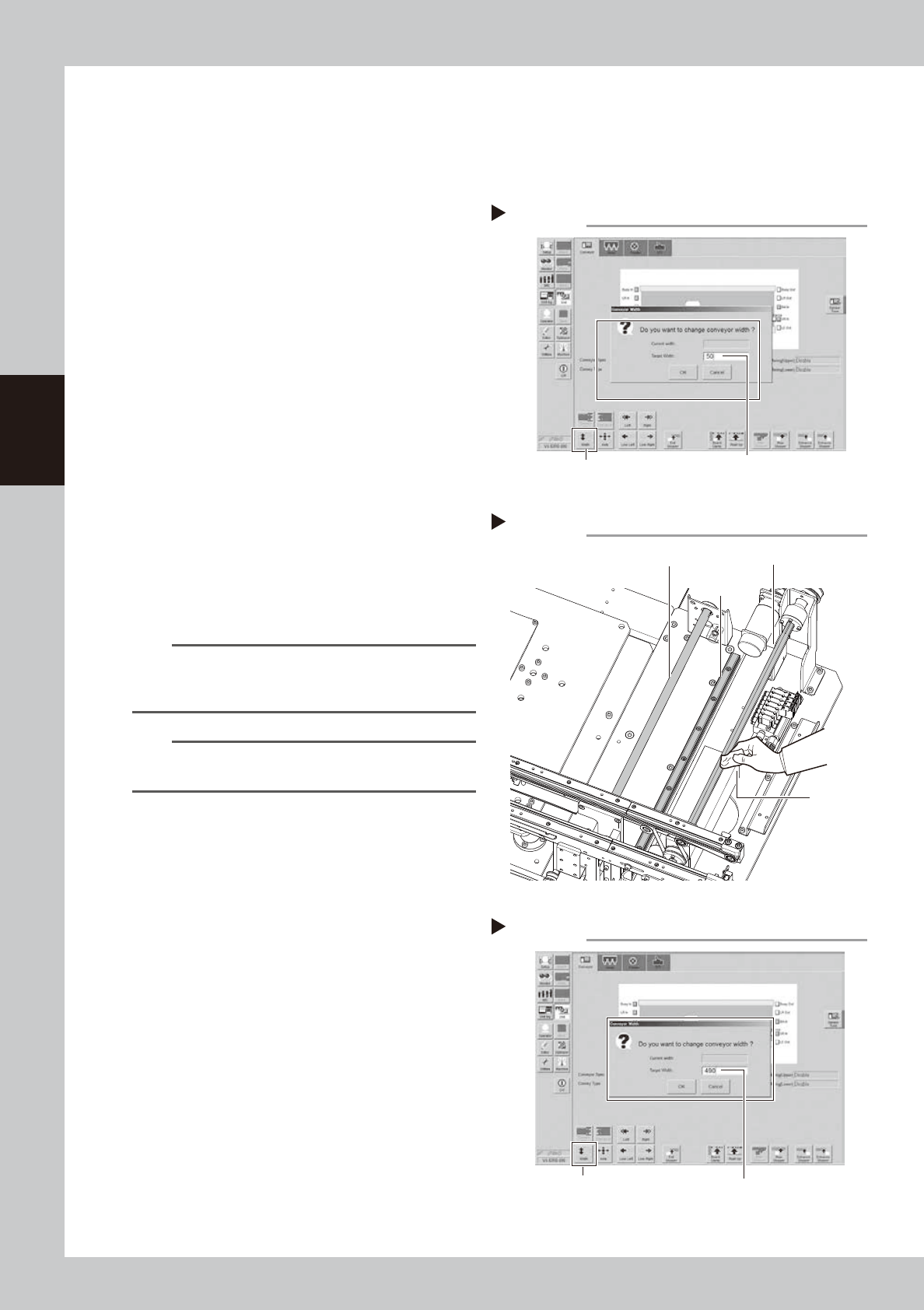

Step 1
Change conveyor width to minimum
[Width] button
Enter “50 mm”.
54310-KMK-00
Step 3
Change conveyor width to maximum
[Width] button
Enter “490 mm”.
54311-KMK-00
Cleaning W-axis
Step 2
Ball screw
Guide
Hexagon spline shaft
Cloth
53373-KMK-00
3-57
3
Periodic maintenance items
e
4
Wipe off remaining grease.
1. Press the emergency stop button and
then open the machine safety cover.
2. If the machine is carriage type, detach
carriage to access to the conveyor.
3. Wipe off remaining grease in Step 2 with
lint-free cloth.
5
Apply grease to ball screw and
hexagon spline.
Apply the specified grease (NSL) with finger
uniformly over the hexagon spline shaft
surface and ball screw surface and groove.
6
Apply grease to the guide.
Apply grease to the guide with grease gun.
Inject the specified grease (NSL) to the
grease nipple of the guide with a grease
gun (bent type nozzle).
n
NOTE
Apply grease until the new grease oozes from the gap.
n
NOTE
See "Chapter 5 Lubrication points" for the positions and
quantity of the guide grease nipple.
7
Change the conveyor width to the
minimum width.
1. Close the machine safety cover and
cancel the emergency stop. Attach the
carriage if the machine is the carriage
type.
2. Change the conveyor width to minimum
following the procedure in Step 1.

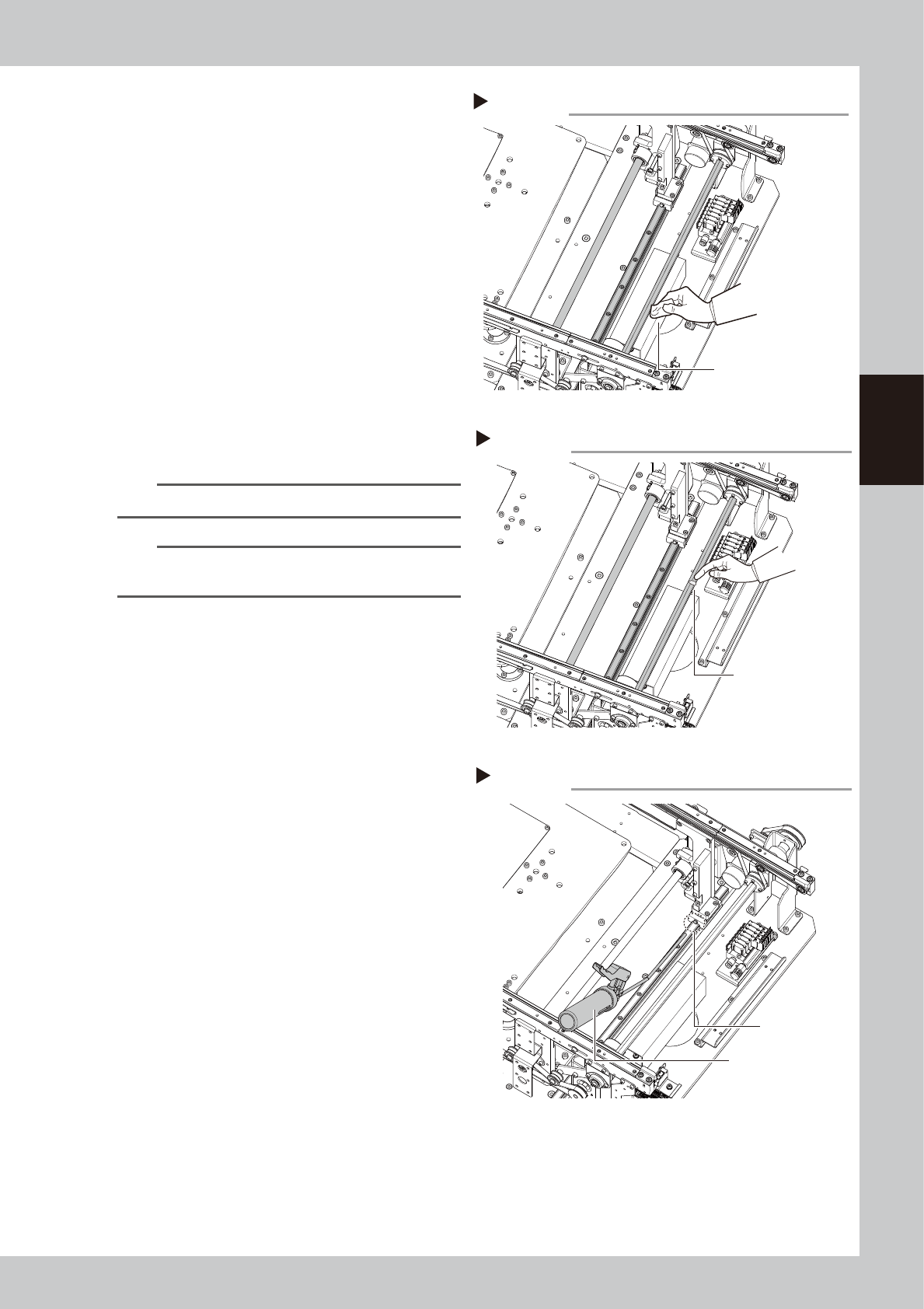

Cleaning W-axis 2
Step 4
Wipe off remaining grease.
53374-KMK-00
Applying grease to W-axis
Step 5
Grease
(Apply uniformly.)
53375-KMK-00
Step 6
Grease nipple
Applying grease to guide
Grease gun
(30°-bent type)
53376-KMK-00
