5-3 5 Lubrication points 2. Lubrication points/schedule (Main machine) 2.1 X-axis X-axis lubrication points Ball screw & guide Grease gun: Manual lubrication: X-axis guide T op-side grease nipple X-axis guide T op-si…
5-2
5
Lubrication points
1.2 Grease gun
The grease gun has 3 interchangeable nozzle types to accommodate the various greasing point configurations.
Always use the prescribed nozzle for the greasing point in question.
Note that a grease type needing the grease gun is only NSL in this machine.
Grease gun
Grease gun
30° bent type nozzle
Standard nozzle
The various
nozzle tips are
inserted here
Flexible chuck type nozzle
30°
OD ø14 tip
OD ø10 tip
OD ø0.5 tip
53500-KMK-00
c
CAUTION
Prepare the tip nozzle for grease to be used. If two or more kinds of grease with different characteristics are mixed in
the nozzle and it is applied, this may cause the machine performance to lower.
5-3
5
Lubrication points

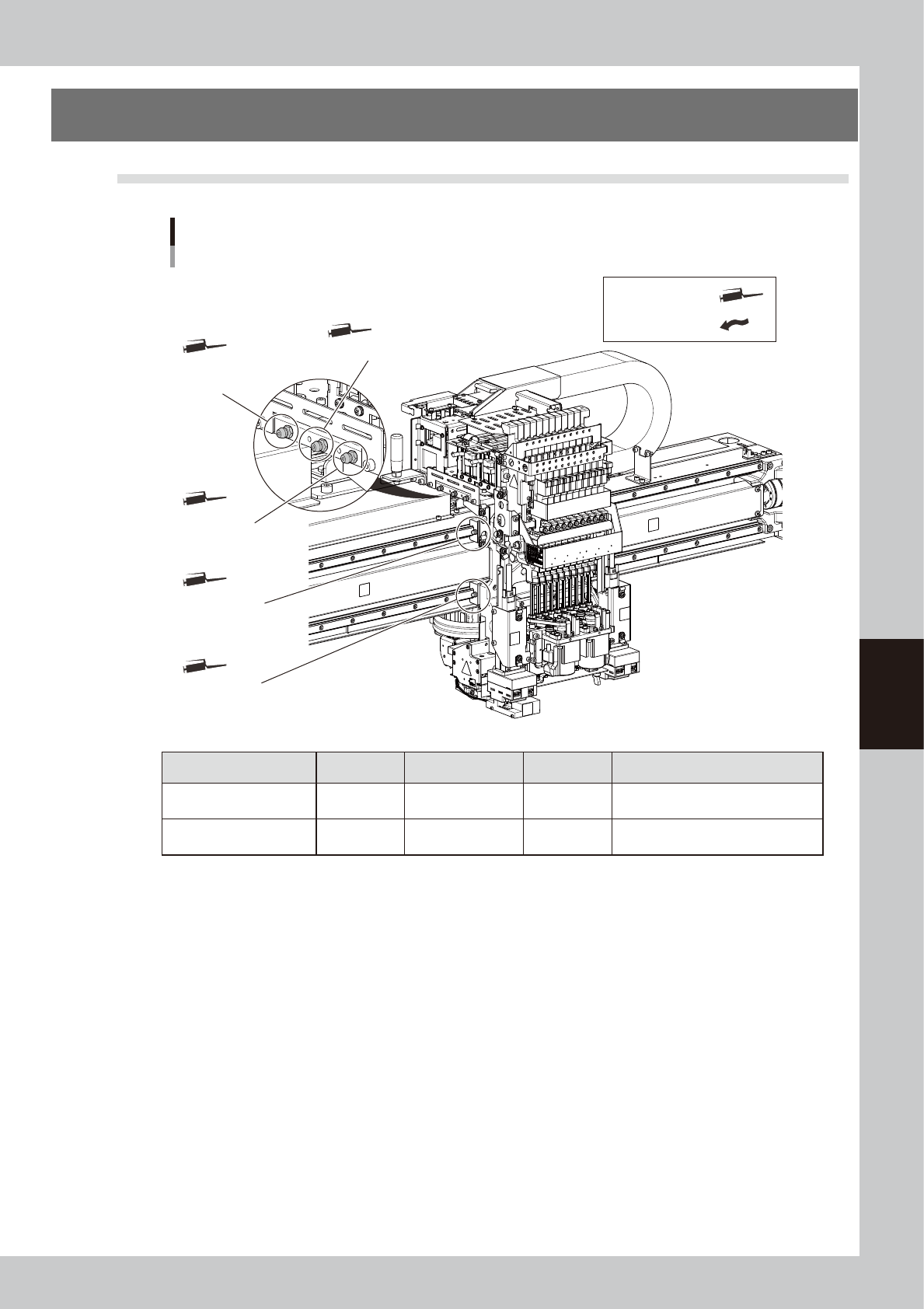

2. Lubrication points/schedule (Main machine)
2.1 X-axis
X-axis lubrication points
Ball screw & guide
Grease gun:
Manual lubrication:
X-axis guide
Top-side grease nipple
X-axis guide
Top-side grease nipple
X-axis ball screw
X-axis guide
Bottom-side grease nipple
X-axis guide
Bottom-side grease nipple
53501-KMK-00
Lubrication section Grease Lubrication point Interval Procedure
Ball screw NSL 1 (each table) Monthly
Grease gun: Standard type nozzle
(
φ
10 mm)
Guide NSL 4 (each table) Monthly
Grease gun: Standard type nozzle
(
φ
10 mm)
5-4
5
Lubrication points
2.2 Y-axis
n
NOTE
YSM20R includes TypePV (Premium Version) and TypeSV (Standard Version). The structure of Y-axis guide and the
grease nipple size vary depending on TypePV or TypeSV.
2.2.1 YSM20R TypePV / YSM20WR
Y-axis lubrication points
YSM20R TypePV
Y-axis guide grease nipples
Grease gun:
Manual lubrication:
53502-KMK-00
Lubrication section Grease Lubrication point Interval Procedure
Guide NSL 6 (each table) Monthly
Grease gun: Standard type nozzle
(
φ
10 mm)
