6-20
6
How to replace consumable parts
4.2 Replacing conveyor valve
The position of valve that drives conveyor stopper or clamp board and the quantity of valve vary depending on
the machine type and board transfer direction. See the figure below and mark tube on the valve connector wire
to check the valve to be replaced.
n
YSM20R Dual-stage type
The valve assemblies locate on the left and right of conveyor (entrance conveyor/exit conveyor) for dual-stage type.

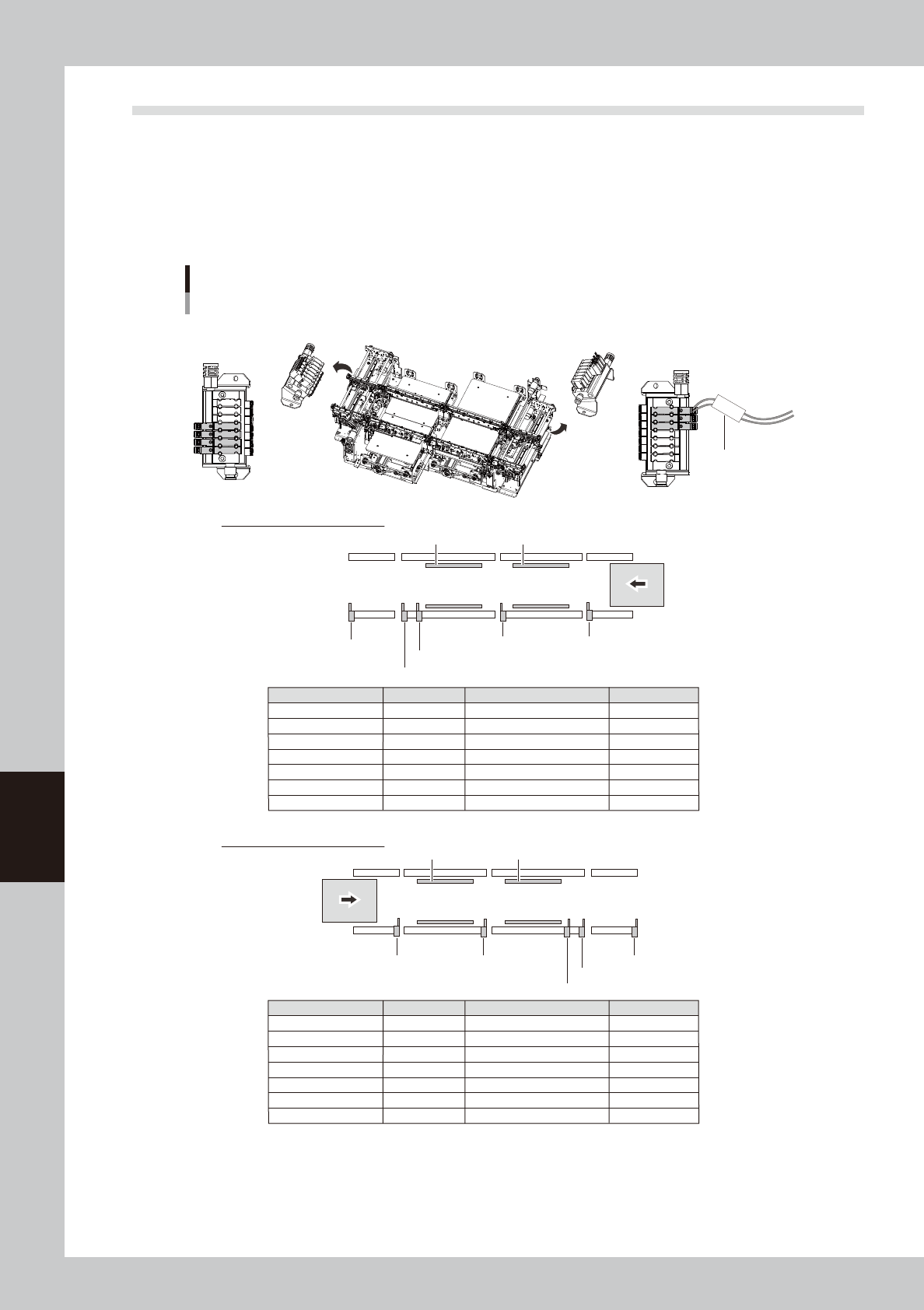

CV ST1
Positions of conveyor valves
YSM20R Dual-stage type
Sub stopper
Main stopper 2-1
Main stopper 1
Exit stopper
Clamp 1
Clamp 2
Main stopper 2-2
Sub stopper
Main stopper 2-1
Main stopper 1 Exit stopper
Clamp 1Clamp 2
Main stopper 2-2
Transfer direction from right to left
Mark tube name
CV ST1
CV ST3
CV ST6
CV ST7
CV ST8
CLAMP1
CLAMP2
Description
Sub stopper
Main stopper 1
Main stopper 2-1
Main stopper 2-2
Exit stopper
Stage 1 clamp board
Stage 2 clamp board
Remarks
Transfer direction from left to right
Mark tube name
CV ST1
CV ST2
CV ST3
CV ST6
CV ST8
CLAMP1
CLAMP2
Description
Exit stopper
Main stopper 2-2
Main stopper 2-1
Main stopper 1
Sub stopper
Stage 1 clamp board
Stage 2 clamp board
Remarks
Mark tube
Valve assembly
Valve assembly
Stage 1Stage 2
Stage 1Stage 2
Valve position
Right side
Right side
Left side
Left side
Left side
Right side
Left side
Valve position
Right side
Right side
Right side
Left side
Left side
Right side
Left side
53631-KMK-00
6-21
6
How to replace consumable parts
n
YSM20R Single-lane type
The valve assembly locates on the right of conveyor for single-lane type.
The following describes the position of conveyor valve of YSM20R Single-lane type as example. As to YSM20WR Single-
lane type (for transferring heavy board), its valve position is the same as of YSM20R Single-lane L510mm type.

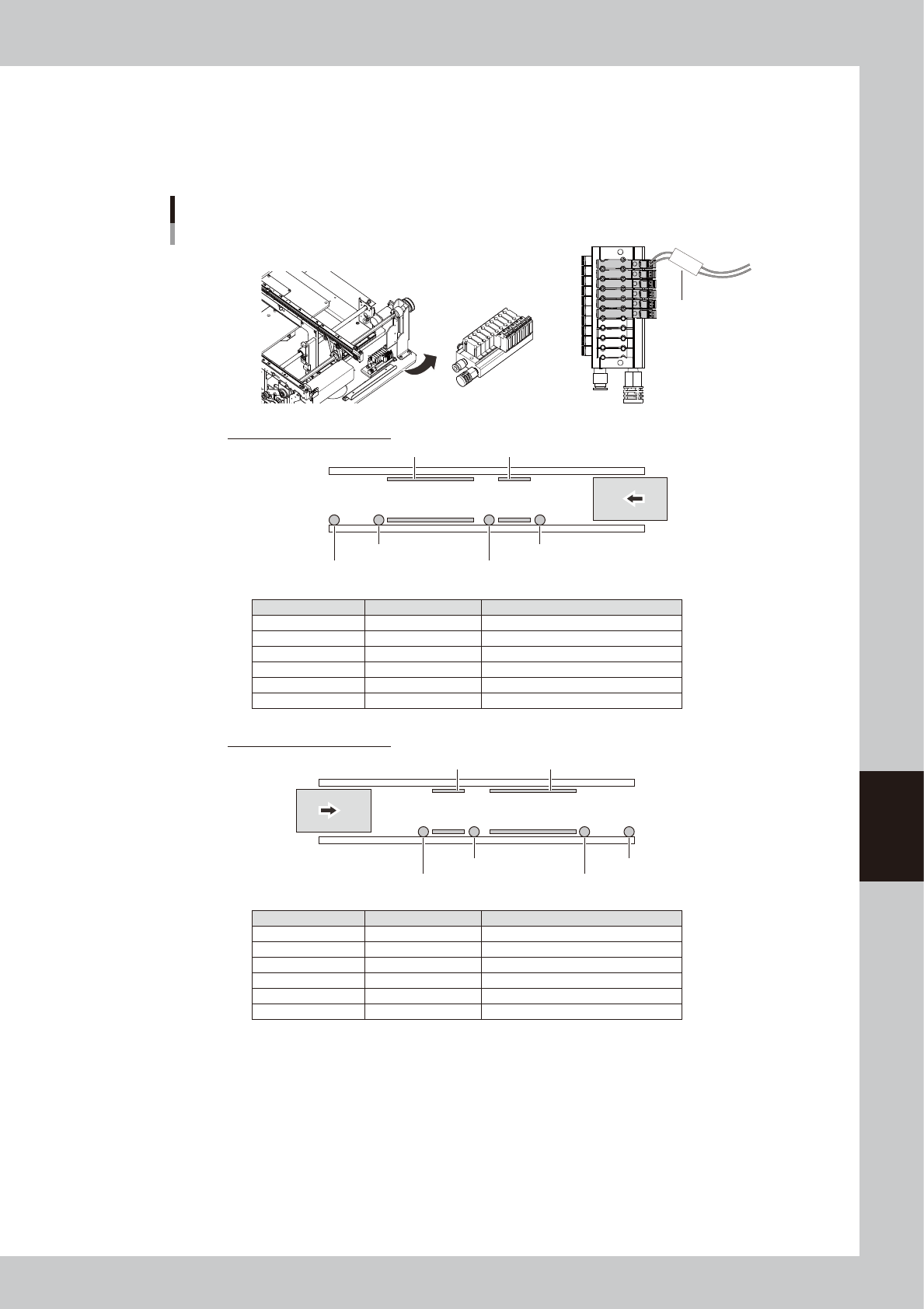

CV ST1
Position of conveyor valve
Example: YSM20R Single-lane type
Transfer direction from right to left
Sub stopper 1
Sub stopper 2
Clamp 1Clamp 2
Main stopper
Exit stopper
Mark tube name
CV ST1
CV ST2
CV ST3
CV ST5
CLAMP1
CLAMP3
Description
Sub stopper 1
Sub stopper 2
Main stopper
Exit stopper
Clamp board (Large)
Clamp board (Small)
Transfer direction from left to right
Sub stopper 2
Sub stopper 1
Clamp 1Clamp 2
Main stopper
Exit stopper
Mark tube name
CV ST1
CV ST3
CV ST4
CV ST5
CLAMP1
CLAMP3
Description
Exit stopper
Main stopper
Sub stopper 2
Sub stopper 1
Clamp board (Large)
Clamp board (Small)
Remarks
Used for 510 mm length type (option).
Used for 510 mm length type (option).
Remarks
Used for 510 mm length type (option)
Used for 510 mm length type (option)
* Quantity of valve varies depending
on machine type.
Mark tube
Valve assembly
53632-KMK-00
6-22
6
How to replace consumable parts
n
YSM20WR Dual-lane type
The valve assemblies locate on the left and right of conveyor (entrance conveyor/exit conveyor) for dual-lane type.
CV ST2
Lane 2
Lane 1
Transfer direction from right to left
Sub stopper 1-1
Sub stopper 1-2
Clamp 1Clamp 3
Main stopper 1
Exit stopper 1
Mark tube name
CV ST1
CV ST2
CV ST3
CV ST5
CLAMP1
CLAMP3
CV ST6
CV ST7
CV ST8
CV ST10
CLAMP2
CLAMP4
Description
Sub stopper 1-1
Sub stopper 1-2
Main stopper 1
Exit stopper 1
Lane 1 Clamp board (Small)
Lane 1 Clamp board (Large)
Sub stopper 2-1
Sub stopper 2-2
Main stopper 2
Exit stopper 2
Lane 2 Clamp board (Small)
Lane 2 Clamp board (Large)
Remarks
Used for 510 mm length type (option)
Used for 510 mm length type (option)
Used for 510 mm length type (option)
Used for 510 mm length type (option)
* Quantity of valve varies depending
on machine type.
Mark tube
Valve assembly
Valve assembly
Valve position
Right
Right
Right
Right
Right
Right
Left
Left
Left
Left
Left
Left
Sub stopper 2-1
Sub stopper 2-2
Clamp 2Clamp 4
Main stopper 2
Exit stopper 2
Position of conveyor valve
YSM20WR Dual-lane type 1
