Periodic maintenance items
5
Operate blow valve for cleaning.
1. Open [Unit] - [I/O] screen.
2. Select "HEAD" from "Output" drop-down
list.
3. Select the address of blow valve for
cleaning.
n
Address of blow valve for cleaning
Table A: T1301704
Table B: T1305704
Select the address and check the
description on bottom left of the screen.
4. Recheck that all nozzles of the relevant
head unit are removed.
5. Blow valve for cleaning operates by
pressing [ON/OFF] button once.
(Address: 0 to 1)
c
CAUTION
Make sure to recheck that all nozzles of the relevant
head unit are removed before operating blow valve for
cleaning. If not, nozzles come off from the head and
they may be damaged or lost.
6
Check the condition of blow valve
for cleaning.
1. Place a hand under each head to check
that air blows stronger than Step 4.
2. Press [ON/OFF] button on [Unit] - [I/O]
screen again. The address changes from
1 to 0 and blow valve for cleaning closes.
3. Check that air from head is lighter.
If the strength of air from head does not
change even after operating the blow valve
for cleaning, it needs to be replaced.
See "3.1 HM head: Replacing valves" and
"3.2 FM head: Replacing valves" in chapter 6
to replace valve.
c
CAUTION
Make sure to wear safety goggles as cleaning air may
strike face.
7
Stop the blowing.
Press the [Blow] buttons of all heads on [Unit]
- [I/O] screen to stop the blowing.
8
Return nozzles to the original
position.
When the nozzles were removed from the
head manually, return them to the original
heads.

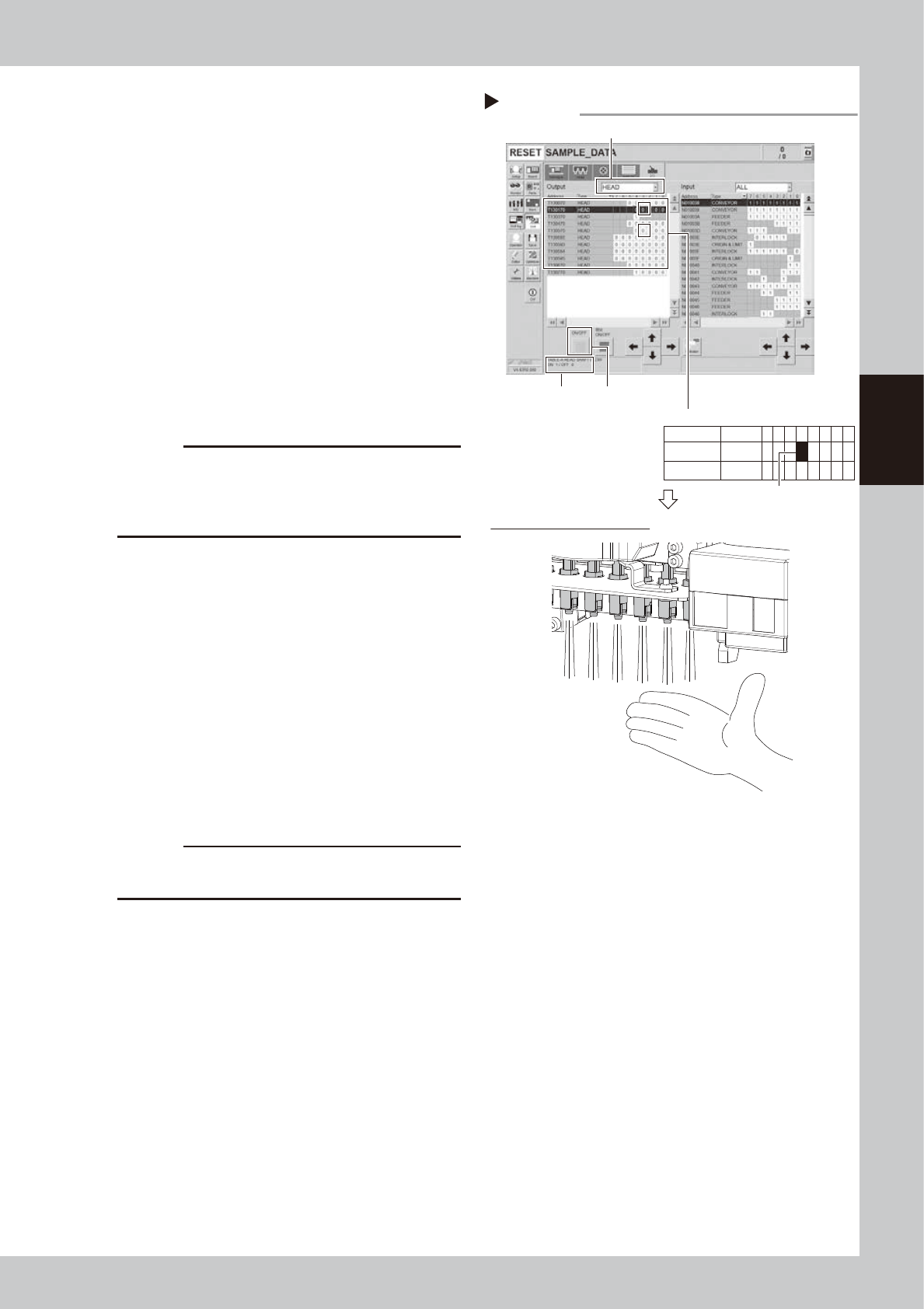

Checking the blowing
Step 5,6
Checking cleaning blow of heads
[ON/OFF] button
Select “HEAD” from “Output”.
Select address.
Address
description
Example: T1301704
Address
T130170
T130570
Type
HEAD
HEAD
7 6 5
0
0
4
0
0
3
0
0
2
0
0
1
0
0
0
0
0
54315-KMK-00
3-24
3
Periodic maintenance items
3.4 Checking shaft tip
As a shaft tip may get dirty by the long-term use, periodic shaft tip check is required.
This section describes how to check the shaft tip for HM head unit as an example.

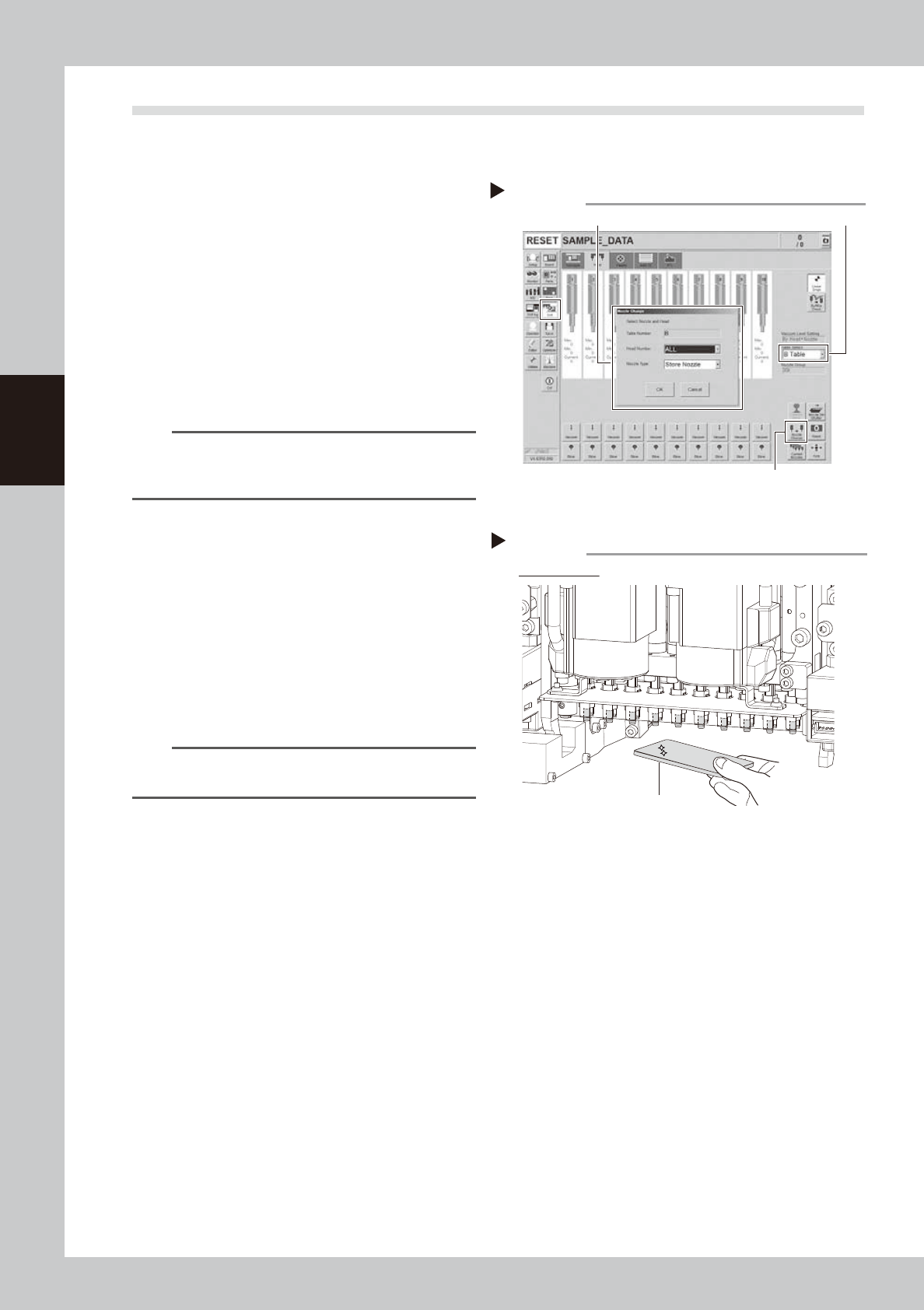

1
Remove nozzles from all heads.
With nozzle station:
1. Open [Unit] - [Head] screen.
2. Select desired head unit from "Table
Select".
3. Press the [Nozzle Change] button.
4. Select "ALL" for Head Number and select
"Store nozzle" for Nozzle type on "Nozzle
Change" screen.
5. Pressing the [OK] button stores nozzles of
all heads to the nozzle station.
n
NOTE
If the nozzle station is not equipped with the machine,
open the machine safety cover and remove nozzles
manually.
e
2
Move head unit forward.
1. Press the emergency stop button and
then open the machine safety cover.
2. If the machine is carriage type, detach
carriage to easily access to the head unit.
3. Move the head unit to convenient
position for maintenance work.
3
Check the shaft tip.
Check the shaft tip visually with mirror or
similar tool. Perform this for all heads.
TIP
See "5.4 Cleaning shaft tip" described later to clean the
shaft tip if it is dirty.
Storing nozzles
Step 1
Head Number: “ALL” / Nozzle type: “Store Nozzle”
[Nozzle Change] button
Table Select
54316-KMK-00
Checking shaft tip
Step 3
Check all heads.
Hand mirror
53398-KMK-00
3-25
3
Periodic maintenance items
3.5 HM Head: Checking Z-axis operation
3.5.1 HM head: Checking spline shaft Z-axis operation
This section describes how to check the spline shaft Z-axis operation of HM head.
e
1
Move the head unit.
1. Press the emergency stop button and then open the machine safety cover.
2. If the machine is carriage type, detach carriage to easily access to the head unit.
3. Move the head unit forward.
2
Move up/down spline shaft Z-axis.
Press down the bottom of joint block for
spline Z-axis with finger. It returns to the
original position by releasing finger.
Check that no heaviness, unsteady
movement, or abnormal sound compare to
the other spline shaft is found.
n
NOTE
Do not touch the shaft as the surface may get rusted if
lacking grease.
c
CAUTION
Fatal error may occur if operating a machine with
unsteady movement of spline shaft. Stop the machine
in this case and contact YAMAHA sales representatives.
3.5.2 HM head: Checking/cleaning around spline shaft
Check and clean the area around the spline shaft of HM head.
e
1
Move the head unit.
1. Press the emergency stop button and then open the machine safety cover.
2. If the machine is carriage type, detach carriage to easily access to the head unit.
3. Move the head unit forward.
2
Visually check around spline shaft.
Check that no dust or dirt is found on the
spline shaft.
3
Clean the spline shaft.
If dust or dirt is on the spline shaft, wipe it
with lint-free paper or cotton swab.
c
CAUTION
Do not completely wipe off grease on spline shaft
surface as the surface may get rusted due to the lack
of grease. However, apply grease for anti-rust with the
procedure on next page if the grease is wiped off due
to cleaning.

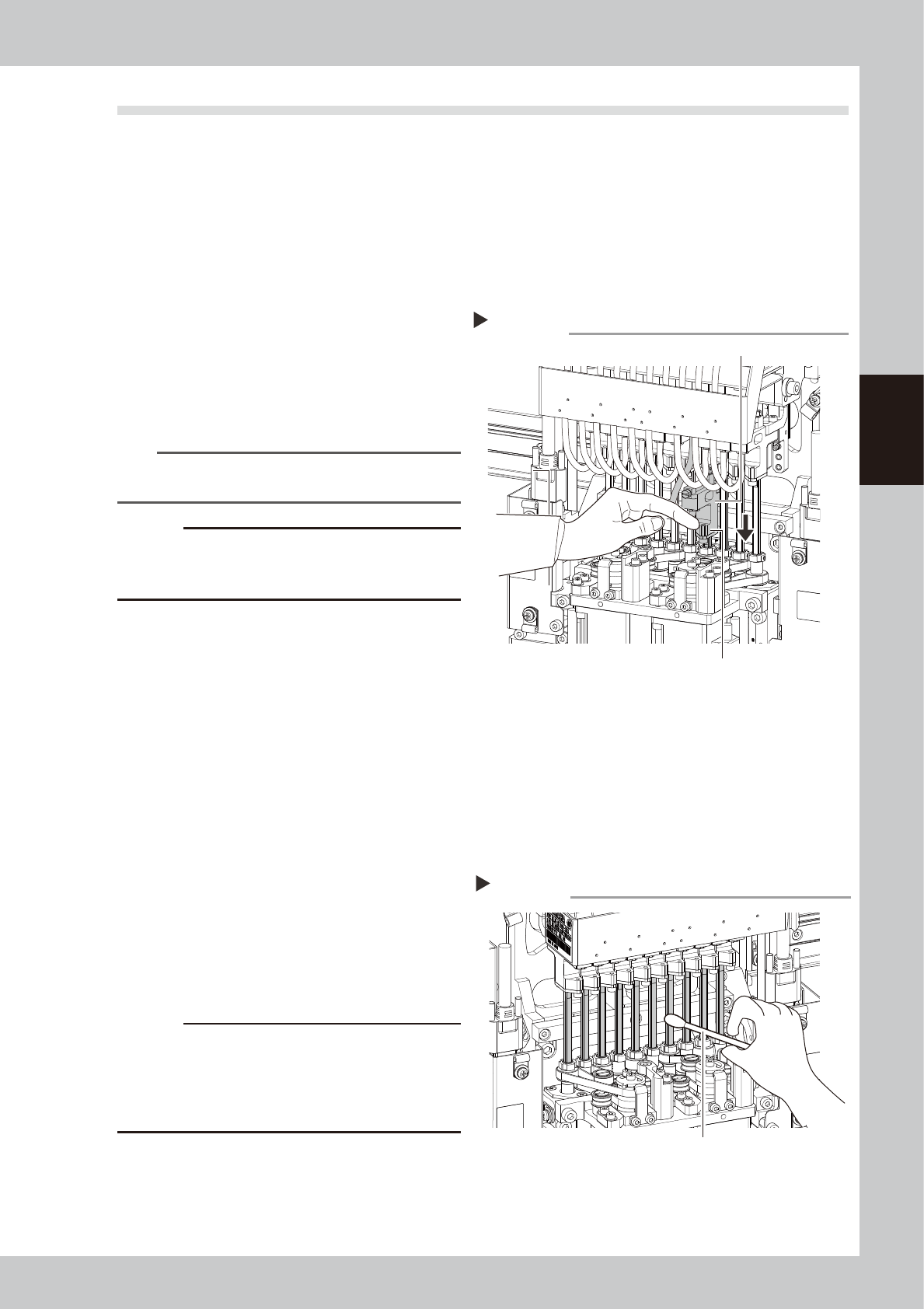

Checking Z-axis operation
Step 2
Press down here with finger.
Joint block
53333-KMK-00
Cleaning spline shaft
Step 3
Cotton swab
