1-8 1 Maintenance n Base consumable parts (Optional purchase par ts) Name Part name Part No. Note Filter element FIL TER ELEMENT KLF-M8502-50X Air filter (Media) Mist filter element MIST FIL TER ELEMENT KLF-M8502-70X Mis…
1-7
1
Maintenance
W2W3 EntranceExit
Lane 1 / Lane 2
YSM20R Dual-stage typeYSM20R Single-lane type
YSM20WR Dual-lane type
YSM20WR Single-lane type (for transferring heavy board)
YSM20R Dual-stage type conveyor
W2W3 EntranceExit
B
C
D
E
E
F
C
BA A
A A
YSM20R Single-lane / YSM20WR Dual-lane type conveyor
Standard conveyor
Extension conveyor
Standard conveyor
One side
Extension conveyor
One side
Extension conveyor
Both side
Extension conveyor
Lane 1 / Lane 2
Lane 1 / Lane 2
Lane 1 / Lane 2

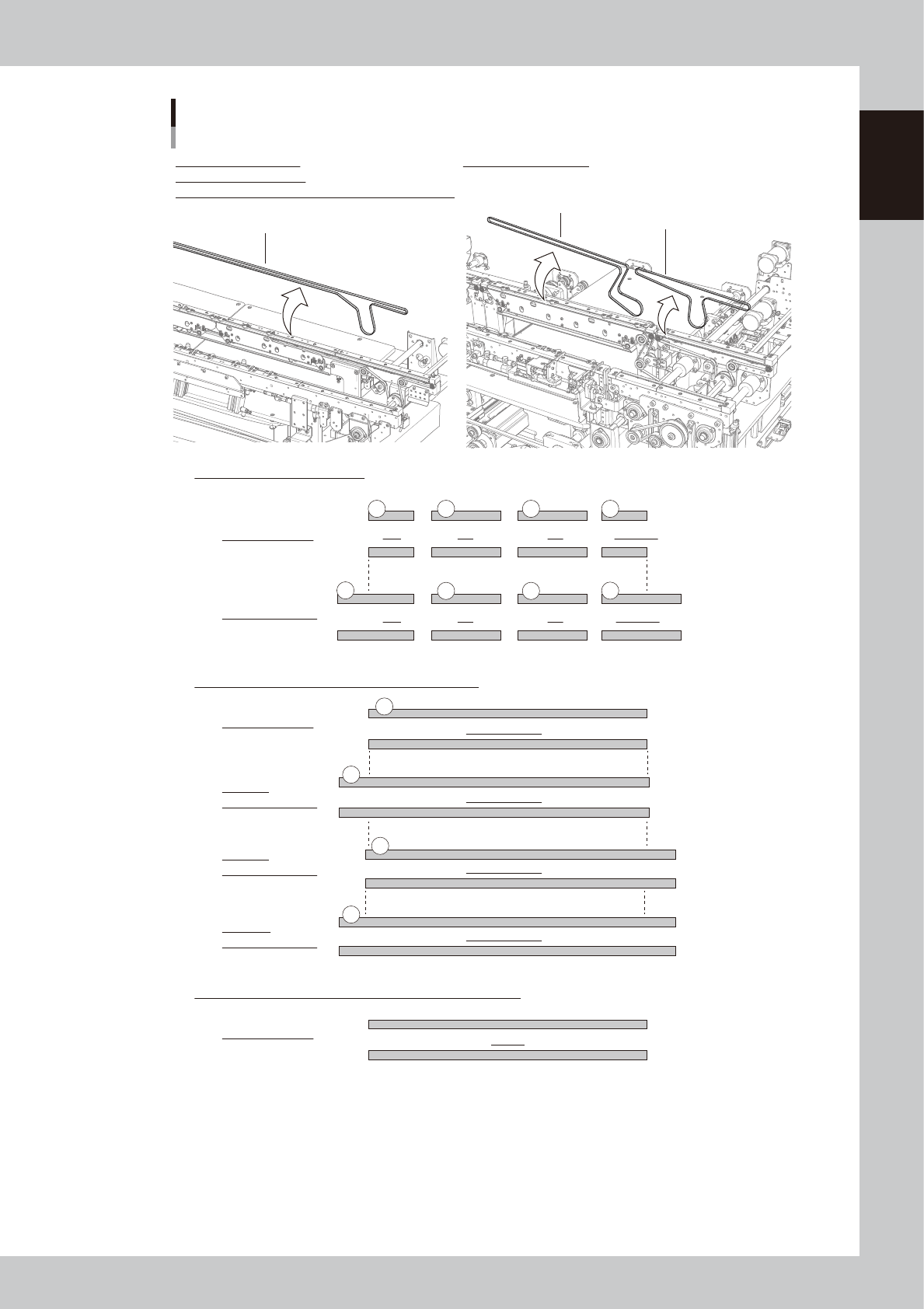

Consumable parts (conveyor)
Optional purchase parts
Conveyor belt
(for Single/Dual lane)
Conveyor belt (for entrance /exit)
Conveyor belt (for W2 and W3)
YSM20WR Single-lane type conveyor (for transferring heavy board)
Standard conveyor
Lane 1
53103-KMK-20
1-8
1
Maintenance
n

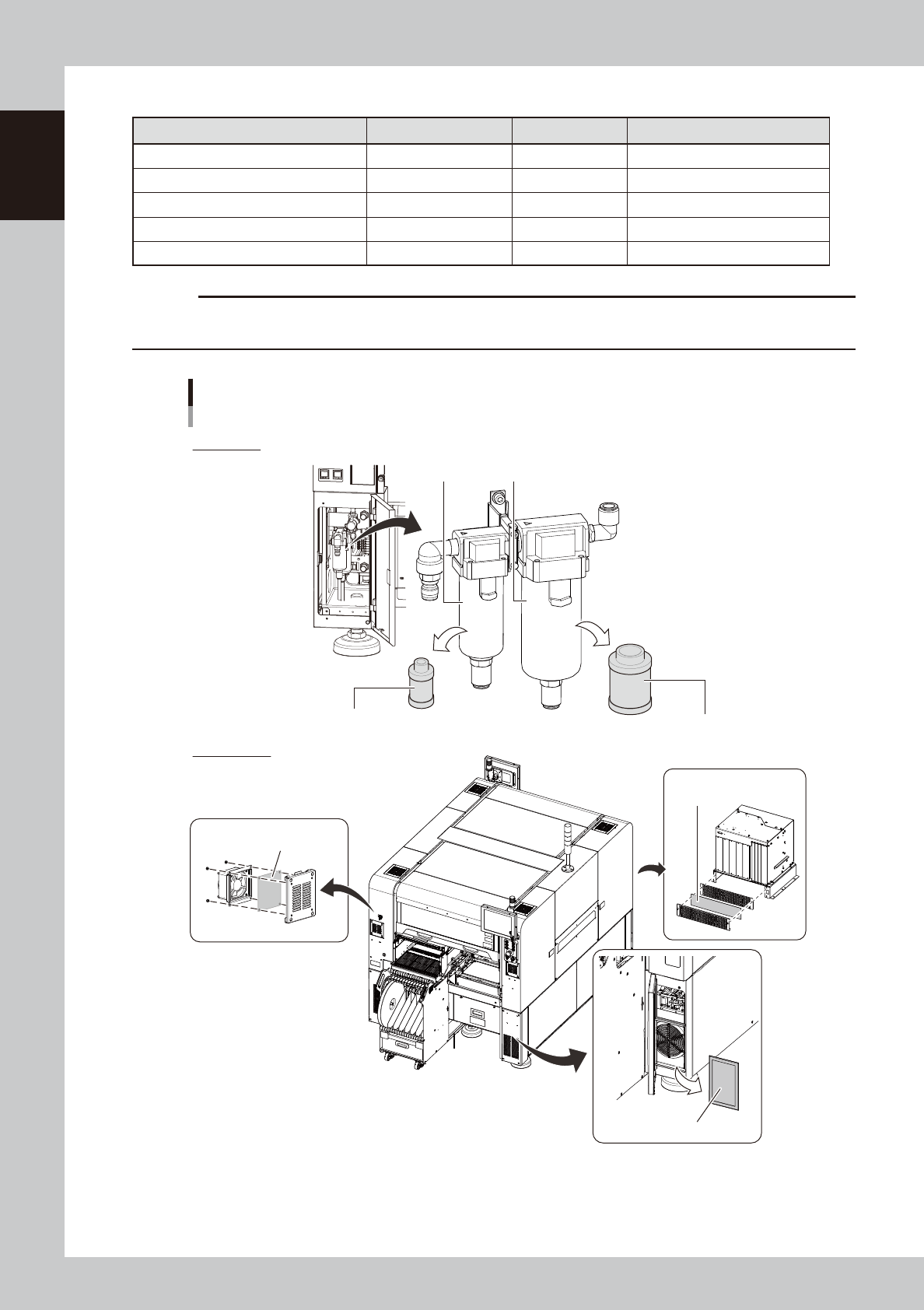

Base consumable parts (Optional purchase parts)
Name Part name Part No. Note
Filter element FILTER ELEMENT KLF-M8502-50X Air filter (Media)
Mist filter element MIST FILTER ELEMENT KLF-M8502-70X Mist filter (Media)
Air intake filter FILTER, FAN KMG-M13NC-00X Filter for cooling Y-axis
Air intake filter (Machine rear left) FILTER, REAR FAN KLW-M13NB-00X Air intake filter for machine rear
Air intake filter (Control box) FILTER KLV-M4136-00X Air intake filter for control box
c
CAUTION
The parts (Part Nos.) in this manual are at the time of issuing this manual. The Part Nos. may be changed without prior
notice. Make sure to verify the latest Part Nos. before ordering.
Base consumable parts
Optional purchase parts
Air filter Oil mist filter
Mist filter element
Filter element
Air/mist filter
Air intake filter
* Viewed from the machine rear
* 2 each for front and rear
Air intake filter (Machine rear)
Air intake filter
(for cooling Y-axis)
Air intake filter
(Control box)
53111-KMK-00
1-9
1
Maintenance
2.2 Replaceable parts
The replacement parts shown here are for parts which could cause machine stops if they fail or if they cease to
function properly due to their life expiration. No machine adjustments are required after replacing these parts.
The replacement procedures are explained below.

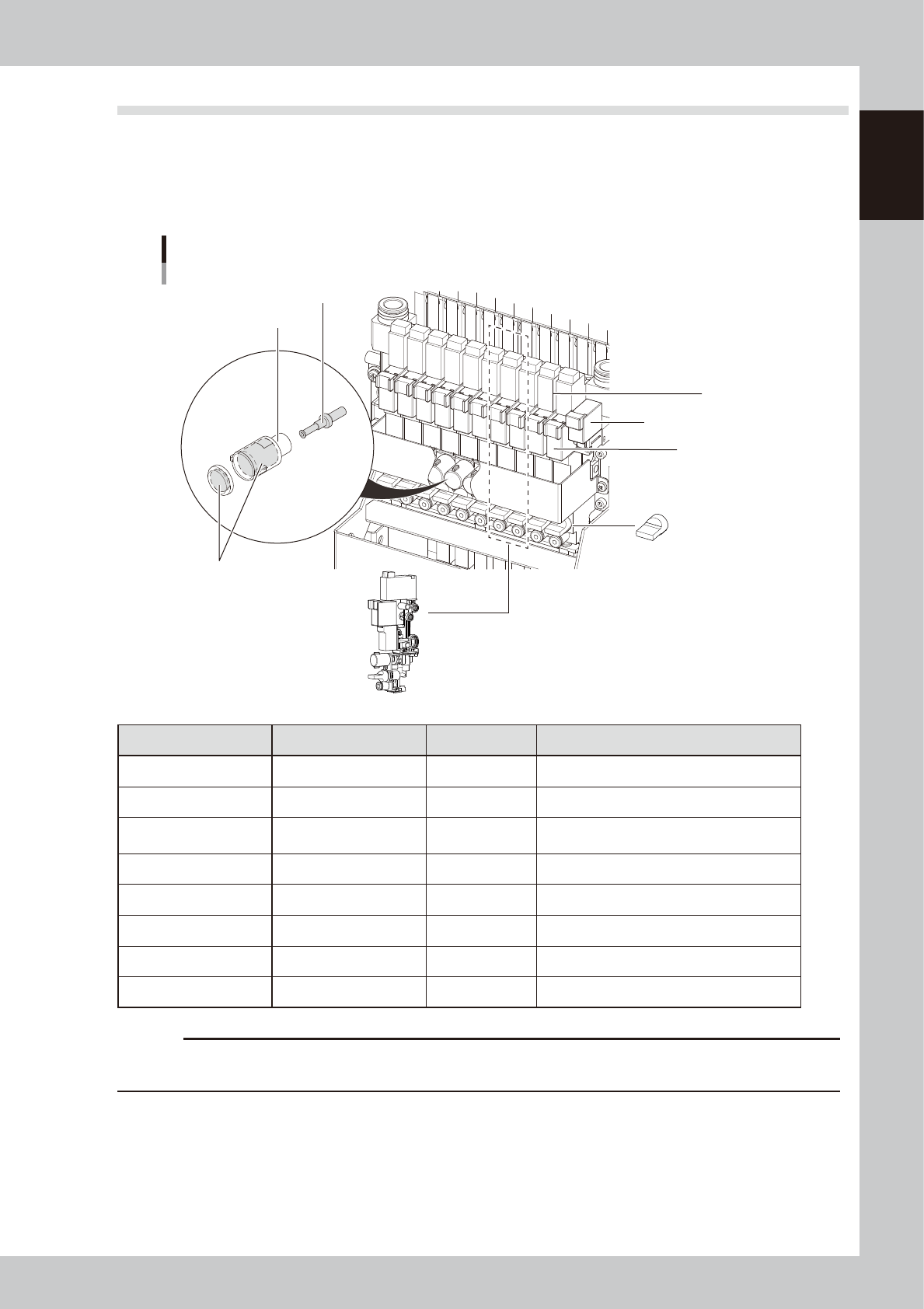

2.2.1 HM head unit
Replaceable parts (Optional purchase parts)
HM head (Figure showing the cover, connector, and air hose detached)
Bit cap
Ejector bit
Muffler
Filter cap
Spare ejector
Blow valve for cleaning
Blow valve
Operation valve
53104-KMK-10
Name Part name Part No. Note
Blow valve VALVE KLF-M7152-00X For ejector blow
Operation valve VALVE KLF-M7153-00X For ejector vacuum generation
Ejector bit BIT KLW-M7154-00X
Recommended replacement, Approx. 2 years
Do not reuse the bit.
Bit cap BIT CAP KLW-M7156-00X
Muffler MUFFLER KLW-M715A-00X Muffler inside the bit cap
Blow valve for cleaning VALVE KLW-M7158-00X
Filter cap FILTER CAP KLW-M7155-00X
Spare ejector EJECTOR KLW-M7157-10X Valve and ejector unit for one head
c
CAUTION
The parts (Part Nos.) in this manual are at the time of issuing this manual. The Part Nos. may be changed without prior
notice. Make sure to verify the latest Part Nos. before ordering.
