1-13 1 Maintenance n Cleaning tools (Optional parts) Cleaning tools Optional parts Nozzle cleaning wire handle Air blow tool Air socket Cotton swab (15 cm) Blower brush Cleaning kit Cleaning wiper V acuum assembly CLEANE…
1-12
1
Maintenance
2.3 Maintenance tools
2.3.1 Cleaning tools
n
Cleaning tools (supplied with machine)
Cleaning tools
Parts supplied with machine
Nozzle cleaning wire
Feeder plate cleaning brush
Nozzle tip cleaning tape
53106-KMK-00
Name Part name Part No. Note
Nozzle cleaning wire NEEDLE ASSY KV8-M8883-A0X
Nozzle tip cleaning tape TAPE, CLEANER KGT-M8895-00X Double-sided tape
Feeder plate cleaning brush BRUSH, FEEDER KV7-M8820-20X
Hook for cleaning brush HOOK KGA-M13B9-00X
c
CAUTION
The parts (Part Nos.) in this manual are at the time of issuing this manual. The Part Nos. may be changed without prior
notice. Make sure to verify the latest Part Nos. before ordering.
n
NOTE
Nozzle tip cleaning tape (double-sided tape) is used for nozzle tip cleaning. Clean the nozzles with an ultrasonic
cleaner (option) or ethanol and then clean them with the tape.
1-13
1
Maintenance
n

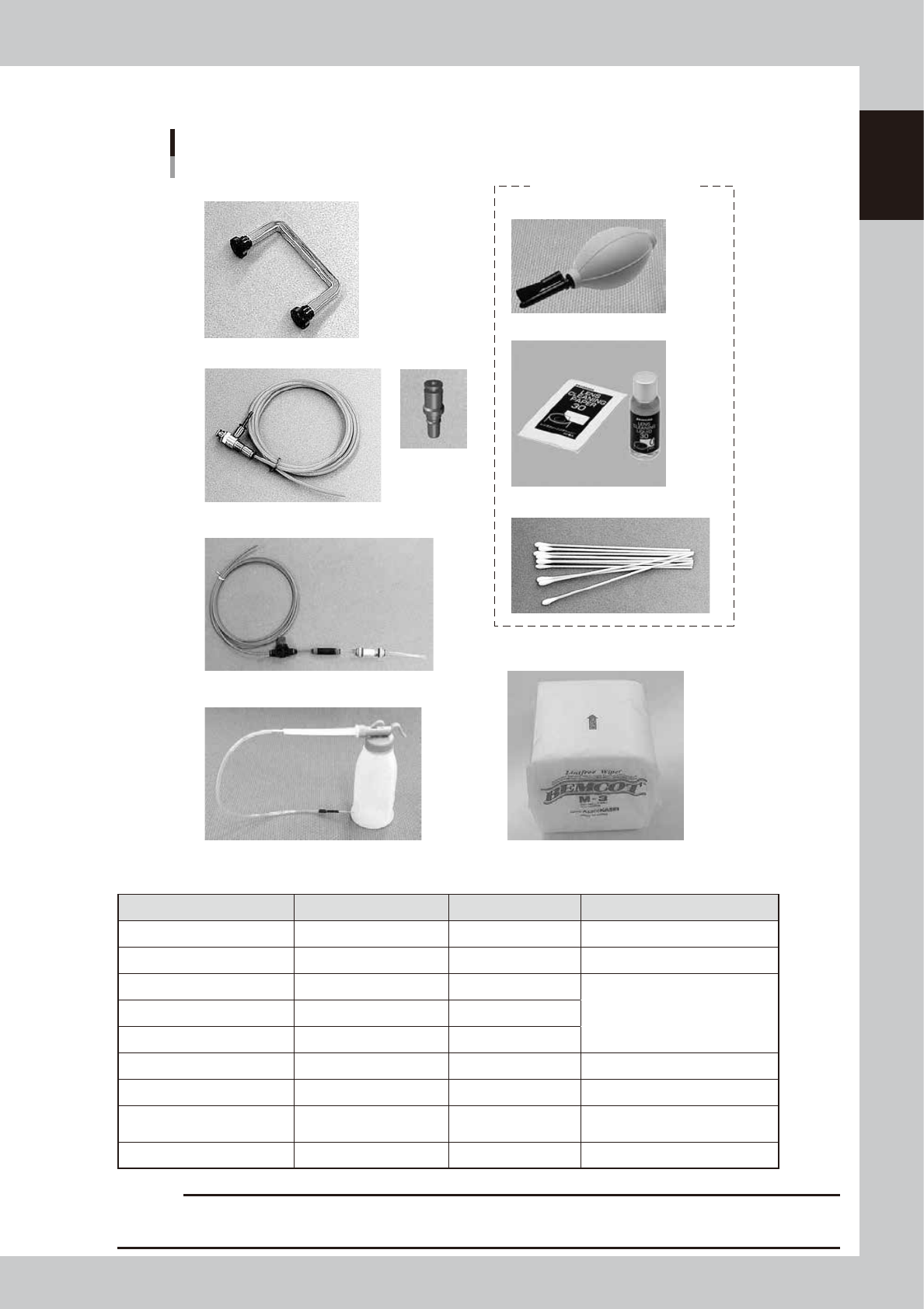

Cleaning tools (Optional parts)
Cleaning tools
Optional parts
Nozzle cleaning wire handle
Air blow tool Air socket
Cotton swab (15 cm)
Blower brush
Cleaning kit
Cleaning wiper
Vacuum assembly
CLEANER, VISION SET
Lens cleaner and cleaning paper
53107-KMK-00
Name Part name Part No. Note
Nozzle cleaning wire handle NEEDLE CLEANER ASSY KV8-M8881-A0X
Air blow tool AIR BLOW TOOL KU4-M8590-00X
φ
4 mm air hose
Cotton swab (15 cm) SWAB KGA-M3802-00X
CLEANER, VISION SET
(KHW-M3801-A0X)
Blower brush BLOWER KGA-M3803-00X
Lens cleaner, Cleaning paper CLEANER, LENS KGA-M3801-00X
Spline shaft cleaning kit CLEANING KIT KHN-M8860-01X
Cleaning wiper WIPER KGS-M3840-00X
Vacuum assembly VACUUM ASSY KHY-M88V0-A0X
For cleaning (vacuum)
φ
4 mm air hose
Air socket COUPLER PLUG D4 KLW-M8803-00X For connection of
φ
4 mm air hose
c
CAUTION
The parts (Part Nos.) in this manual are at the time of issuing this manual. The Part Nos. may be changed without prior
notice. Make sure to verify the latest Part Nos. before ordering.
1-14
1
Maintenance

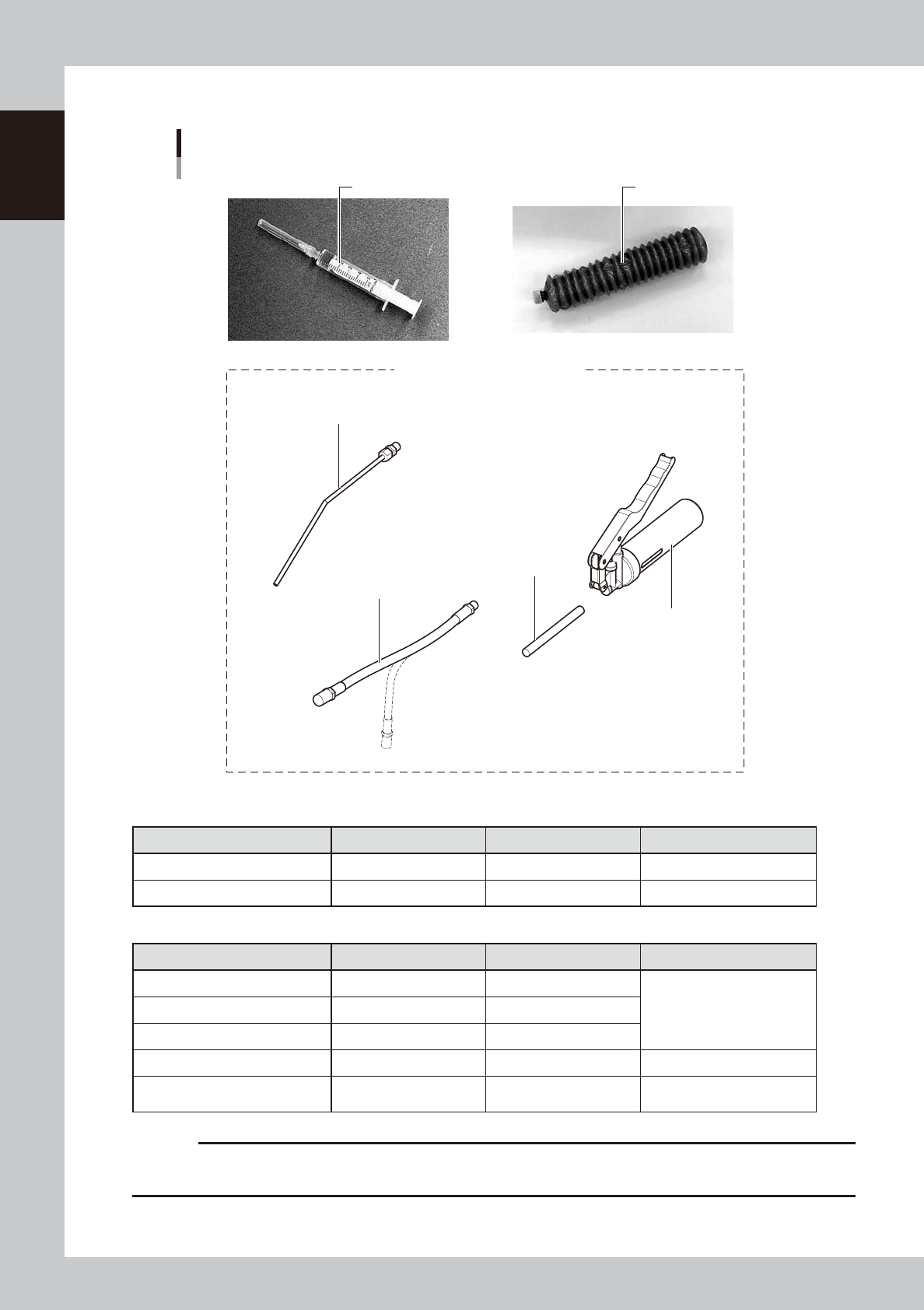

2.3.2 Lubricating tools and grease
Lubricating tools and grease
Parts supplied with machine / Optional Parts
Lithium-based grease NSL
Oil syringe for nozzle holder
Grease gun
Standard nozzle
Flexible type nozzle
Bent type nozzle
GREASE GUN SET
53108-KMK-00
n
Lubricating tools and grease (Parts supplied with machine)
Name Part name Part No. Note
Oil syringe for nozzle holder SYRING, OIL KV8-M8870-00X Turbine oil VG32
Lithium-based grease GREASE PACK K48-M3856-00X NSL 80
g
n
Lubricating tools and grease (Optional parts)
Name Part name Part No. Note
Grease gun (with standard nozzle) GREASE GUN K48-M3852-00X
GREASE GUN SET
KHW-M3852-A0X
Nozzle (flexible type) GREASE NOZZLE K48-M3857-00X
Nozzle (bent type) GREASE NOZZLE K48-M3854-00X
AFF grease GREASE PACK(THK) KJX-M3801-00X For FM head Z-axis guide
LRL grease
(Previous item: AFB grease)
GREASE PACK K48-M3851-10X
For FM head Z-axis
Spline shaft LRL 50 g
c
CAUTION
The parts (Part Nos.) in this manual are at the time of issuing this manual. The Part Nos. may be changed without prior
notice. Make sure to verify the latest Part Nos. before ordering.
