5-10 5 Lubrication points 2.4.2 YSM20R/YSM20WR Single-lane type PU-axis lubrication points PU-axis ball screw PU-axis ball screw PU-axis ball screw Grease gun: Manual lubrication: YSM20R single-lane type YSM20WR single-l…
5-9
5
Lubrication points
2.4 PU-axis
2.4.1 YSM20R Dual-stage type

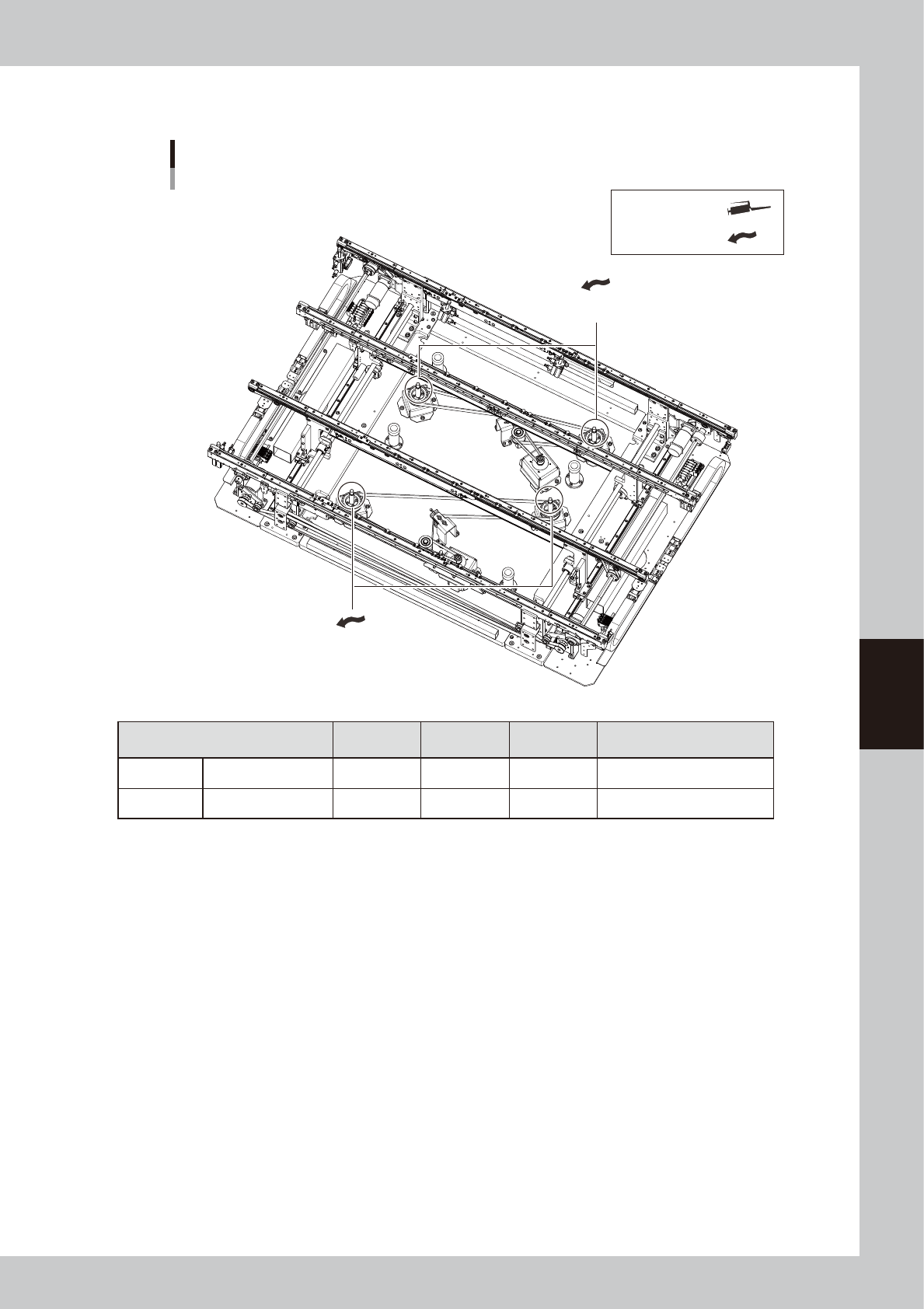

PU-axis lubrication points
YSM20R dual-stage type
PU-axis ball screw (Stage 1)
PU-axis ball screw (Stage 2)
Grease gun:
Manual lubrication:
53505-KMK-00
Lubrication section Grease
Lubrication
point
Interval Procedure
Stage 1 Ball screw NSL 2 3-month Manual lubrication
Stage 2 Ball screw NSL 2 3-month Manual lubrication
5-10
5
Lubrication points
2.4.2 YSM20R/YSM20WR Single-lane type
PU-axis lubrication points
PU-axis ball screw
PU-axis ball screw
PU-axis ball screw
Grease gun:
Manual lubrication:
YSM20R single-lane type
YSM20WR single-lane type (for transferring heavy board)
53506-KMK-10
Lubrication section Grease
Lubrication
point
Interval Procedure
YSM20R PU-axis Ball screw NSL 2 3-month Manual lubrication
YSM20WR PU-axis Ball screw NSL 3 3-month Manual lubrication
5-11
5
Lubrication points
2.4.3 YSM20WR Dual-lane type
PU-axis ball screw
(Lane 1)
PU-axis lubrication points
YSM20WR dual-lane type
PU-axis ball screw
(Lane 2)
Grease gun:
Manual lubrication:
53511-KMK-00
Lubrication section Grease
Lubrication
point
Interval Procedure
Lane 1 Ball screw NSL 2 3-month Manual lubrication
Lane 2 Ball screw NSL 2 3-month Manual lubrication
