A-10
Appendix
Position Name Part name Part No. Note Qty
DS type
conveyor
unit
W1 extension
conveyor
Conveyor belt pulley PULLEY ASSY. KLW-M913A-A2X 8
*7
Conveyor belt pulley PULLEY,CONV. ASSY. KLW-M914A-A0X 4
*7
Conveyor belt pulley
(tension adjustment)
TENSIONER ASSY. KLW-M913R-A0X 4
*7
W2 (stage 1)
standard conveyor
Conveyor belt pulley PULLEY ASSY. KLW-M913A-A2X 8
*7
Conveyor belt pulley PULLEY,CONV. ASSY. KLW-M914A-A0X 8
*7
Conveyor belt pulley
(tension adjustment)
PULLEY CONV. ASSY KLW-M9140-A0X 4
*7
W3 (stage 2)
standard conveyor
Conveyor belt pulley PULLEY ASSY. KLW-M913A-A2X 8
*7
Conveyor belt pulley PULLEY,CONV. ASSY. KLW-M914A-A0X 8
*7
Conveyor belt pulley
(tension adjustment)
PULLEY CONV. ASSY KLW-M9140-A0X 4
*7
W4 standard
conveyor
Conveyor belt pulley PULLEY ASSY. KLW-M913A-A2X 8
*7
Conveyor belt pulley PULLEY,CONV. ASSY. KLW-M914A-A0X 4
*7
Conveyor belt pulley
(tension adjustment)
TENSIONER ASSY. KLW-M913R-A0X 4
*7
W4 extension
conveyor
Conveyor belt pulley PULLEY ASSY. KLW-M913A-A2X 8
*7
Conveyor belt pulley PULLEY,CONV. ASSY. KLW-M914A-A0X 4
*7
Conveyor belt pulley
(tension adjustment)
TENSIONER ASSY. KLW-M913R-A0X 4
*7
Board stopper
(exit) R to L flow
For exit stopper CYL.RL EXIT ST ASSY KMK-M653K-00X 1
Speed controller SPEED CONTROLLER KHW-M9274-A0X 2
Board stopper
(exit) L to R flow
For exit stopper CYL.LR EXIT ST ASSY KMK-M653L-00X 1
Speed controller SPEED CONTROLLER KHW-M9274-A0X 2
Board stopper
(main stopper)
R to L flow
For stage 1 CYL.RL CV2 ST1 ASSY KLW-M654C-11X 1
Upstream side for
stage 2
CYL.RL CV3 ST1 ASSY KLW-M654C-21X 1
Downstream side for
stage 2
CYL.RL CV3 ST2 ASSY KLW-M654C-31X 1
For wait stopper CYL.LR CV1 ST ASSY KLW-M654C-00X 1
Joint JOINT KLC-M916D-00X 6
Joint JOINT $UEF4BU-M3 2
Board stopper
(main stopper)
L to R flow
For stage 1 CYL.LR CV3 ST1 ASSY KLW-M654C-61X 1
Upstream side for
stage 2
CYL.LR CV2 ST1 ASSY KLW-M654C-41X 1
Downstream side for
stage 2
CYL.LR CV2 ST2 ASSY KLW-M654C-51X 1
For wait stopper CYL.LR CV4 ST ASSY KLW-M654C-70X 1
Joint JOINT KLC-M916D-00X 6
Joint JOINT $UEF4BU-M3 2
Board clamp
common in stage
1/2
Cylinder CYLINDER KLT-M9263-00X 4
*7
Speed controller SPEED CONTROLLER KLW-M926S-A0X 8
*7
Linear guide GUIDE KV7-M9266-01X 12
*7
A-11
Appendix
Position Name Part name Part No. Note Qty
DS type
push-up
unit
PU-axis operation
(common in stage
1/2)
Motor drive belt BELT 291-EV3GT-15 RF KKE-M921D-00X 1
*8
Bolt screw belt BELT 852-3GT-15 KLW-M921E-00X 1
*8
Tension pulley shaft SHAFT 1 KHW-M921C-00X 1
*8
Tension pulley
mounting circlip
CIRCLIP 99009-10400 1
*8
Tension pulley bearing BEARING 90933-01J300 2
*8
Motor drive side pulley PULLEY 1:P22-3GT KV7-M9205-01X 1
*8
Motor drive side pulley
mounting bolt
BOLT HEX,SOCKET
HEAD
91312-04012 1
*8
Motor drive side pulley
mounting washer
WASHER, PLAIN 90990-28J076 1
*8
Drive unit assembly
pulley
PULLEY:P60-3GT KHW-M9215-00X 2
*8
Drive unit assembly
bearing
BEARING 90933-01J007 4
*8
Drive unit assembly
circlip
CIRCLIP 90440-01J090 1
*8
Pulley assembly
bearing
BEARING 90933-01J001 2
*8
Pulley assembly pulley PULLEY:P40-3GT KHW-M9223-00X 1
*8
Pulley assembly circlip CIRCLIP 99009-12400 1
*8
Single valve for base
Double solenoid valve SOLENOID VALVE KLW-M8583-00X
For carriage clamp
drive valve assembly
Depend-
ing on
type
Solenoid valve VALVE KLW-M91V1-00X
• For carriage clamp
drive valve assembly
• For stopper/clamp
board drive valve
assembly
Electrical parts Up/down stream
signal cable relay for
conveyor I/O board
SPARE RELAY KGA-M6522-20X 13
W1 to W4 axes
battery for information
back up
BATTERY KCA-M53G0-01X 4
*1
Required quantity per head unit
*2
Required quantity per nozzle station
*3
Required quantity per blow station
*4
Required quantity per carriage
*5
Required quantity per bank
*6
Required quantity per X-axis
*7
Required quantity for 2 conveyor rails of fixed and movable sides
*8
Required quantity per PU unit
*9

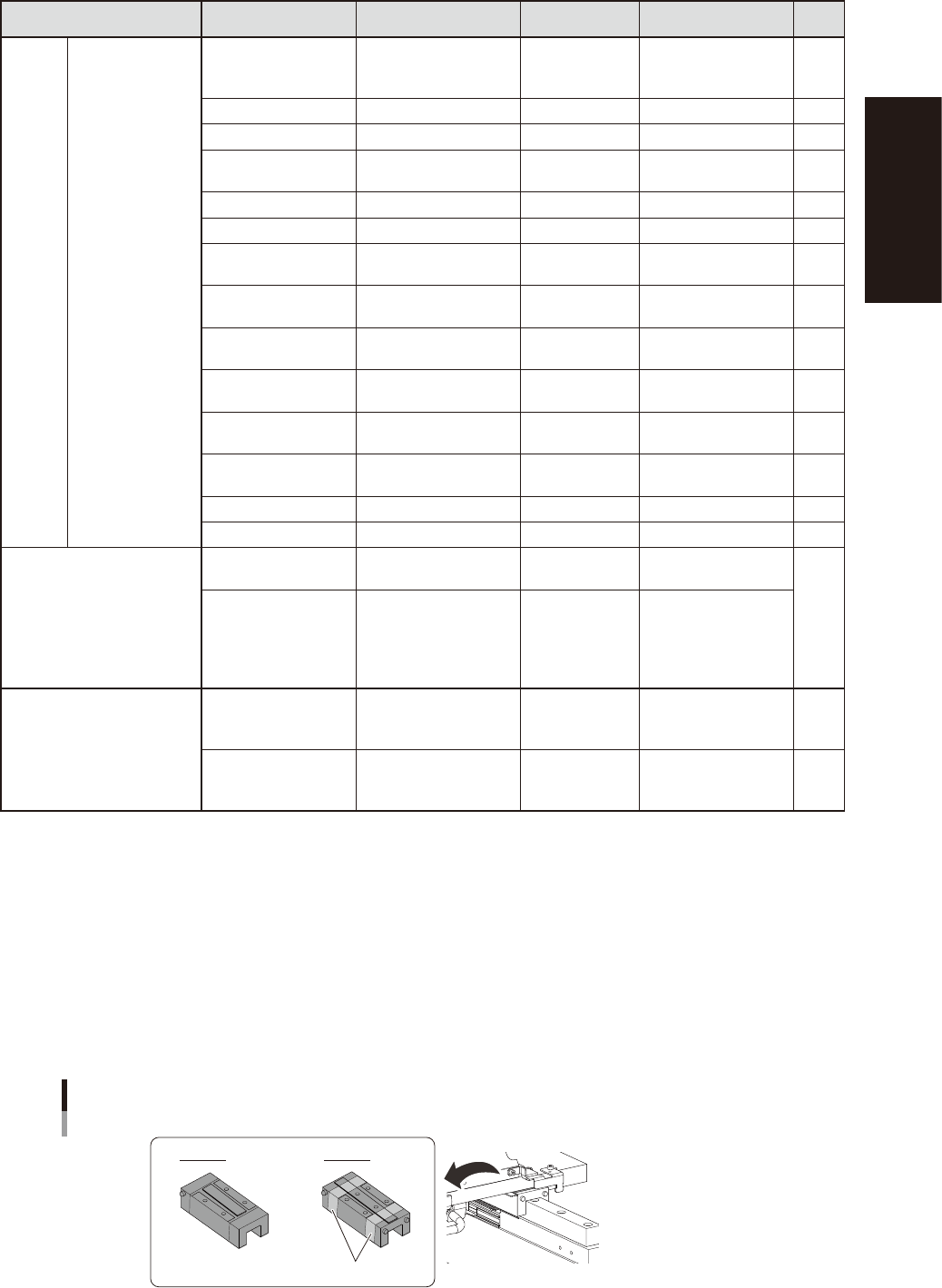

Y-axis guide for TypePV
There are 2 types of Y-axis guide set for YSM20R TypePV depending on shipping time.
Type A has no blue line on guide block. Type B has blue lines on guide block.
Y-axis guide block
Type A Type B
Blue lines
53A06-KMK-00
A-12
Appendix
n
Maintenance parts list for
YSM20R Single-lane type conveyor/push-up unit
n
NOTE
Parts other than conveyor/push-up unit are common with dual-stage type machine.
Position Name Part name Part No. Note Qty
SL type
conveyor
unit
Standard conveyor Conveyor belt pulley PULLEY,CONV. ASSY. KGY-M9140-A0X 8
*1
Conveyor belt pulley
(tension adjustment)
PULLEY CONV. ASSY KV7-M9140-A0X 2
*1
Both side extended
conveyor
Conveyor belt pulley PULLEY,CONV. ASSY. KGY-M9140-A0X 8
*1
Conveyor belt pulley
(tension adjustment)
PULLEY CONV. ASSY KV7-M9140-A0X 2
*1
One side extended
conveyor
Conveyor belt pulley PULLEY,CONV. ASSY. KGY-M9140-A0X 8
*1
Conveyor belt pulley
(tension adjustment)
PULLEY CONV. ASSY KV7-M9140-A0X 2
*1
Board stopper
SL L: 360
㎜
type
R to L flow
Main stopper 1-1 CYL.RL SLCV ST3 ASSY KMK-M653M-20X 1
Sub stopper 1-2 CYL.RL SLCV ST2 ASSY KMK-M653M-10X 1
For exit stopper CYL.RL SLCV ST5 ASSY KMK-M653M-40X 1
Speed controller SPEED CONTROLLER KHW-M9274-A0X 6
Board stopper
SL L: 360
㎜
type
L to R flow
Main stopper 1-1 CYL.LR SLCV ST3 ASSY KMK-M653N-20X 1
Sub stopper 1-2 CYL.LR SLCV ST4 ASSY KMK-M653N-30X 1
For exit stopper CYL.LR SLCV ST1 ASSY KMK-M653N-00X 1
Speed controller SPEED CONTROLLER KHW-M9274-A0X 6
Board stopper
SL L: 510
㎜
type
(L: 810
㎜
option)
R to L flow
Main stopper 1-1 CYL.RL SLCV ST3 ASSY KMK-M653M-20X 1
Main stopper 1-2:
L: 810
㎜
(option)
CYL.RL SLCV ST4 ASSY KMK-M653M-30X Option 1
*2
Sub stopper 1-1 CYL.RL SLCV ST1 ASSY KMK-M653M-00X 1
Sub stopper 1-2 CYL.RL SLCV ST2 ASSY KMK-M653M-10X 1
For exit stopper CYL.RL SLCV ST5 ASSY KMK-M653M-40X 1
Speed controller SPEED CONTROLLER KHW-M9274-A0X 8 (10
*2)
)
Board stopper
SL L: 510
㎜
type
(L: 810
㎜
option)
L to R flow
Main stopper 1-1 CYL.LR SLCV ST3 ASSY KMK-M653N-20X 1
Main stopper 1-2:
L: 810
㎜
(option)
CYL.LR SLCV ST2 ASSY KMK-M653N-10X Option 1
*2
Sub stopper 1-1 CYL.LR SLCV ST5 ASSY KMK-M653N-40X 1
Sub stopper 1-2 CYL.LR SLCV ST4 ASSY KMK-M653N-30X 1
For exit stopper CYL.LR SLCV ST1 ASSY KMK-M653N-00X 1
Speed controller SPEED CONTROLLER KHW-M9274-A0X 8 (10
*2
)
Board clamp
SL L: 360
㎜
type
Cylinder CYLINDER KLT-M9263-00X 2
*1
Speed controller SPEED CONTROLLER KLW-M926S-A0X 4
*1
Linear guide GUIDE KV7-M9266-01X 6
*1
Board clamp
SL L510
㎜
type
Cylinder CYLINDER KLT-M9263-00X 4
*1
Speed controller SPEED CONTROLLER KLW-M926S-A0X 8
*1
Linear guide GUIDE KV7-M9266-01X 12
*1
